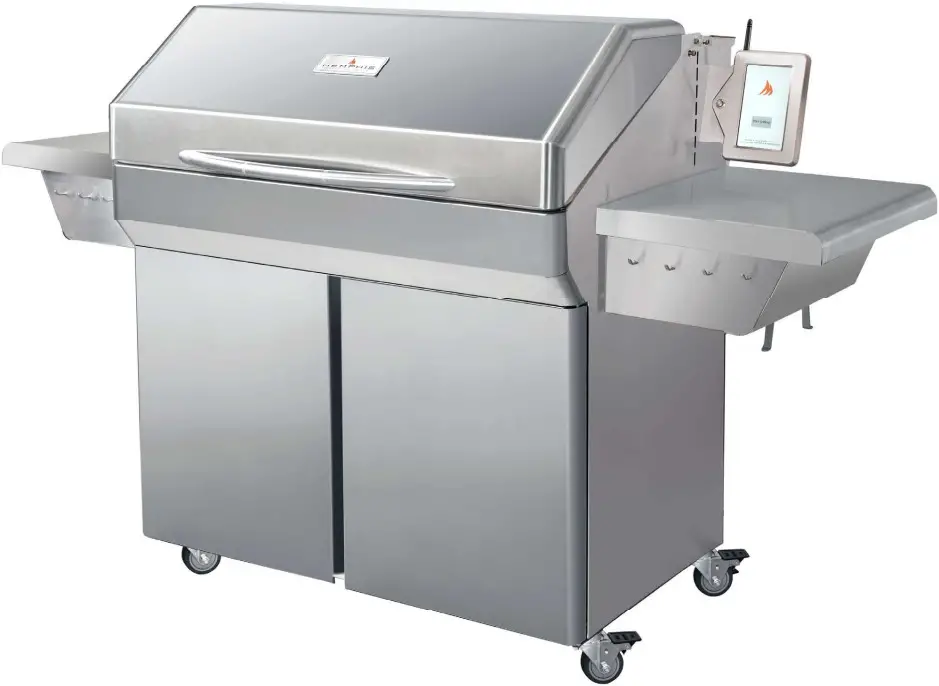

VG0002S Grills Elite Wood Fire Pellet Smoker Grill
Owner’s Manual
Memphis Elite Cart ITC 3
IntelliBurn TechnologyTM
Model Number VG0002S
| Clearance to Combustibles | 2 |
| Grill Dimensions | 3 |
| Memphis Controller Diagram | 4 |
| Memphis Component Diagram | 5 |
| Memphis Fuse Diagram | 6 |
Read all instructions before installing and using this appliance Save these instructions for future reference

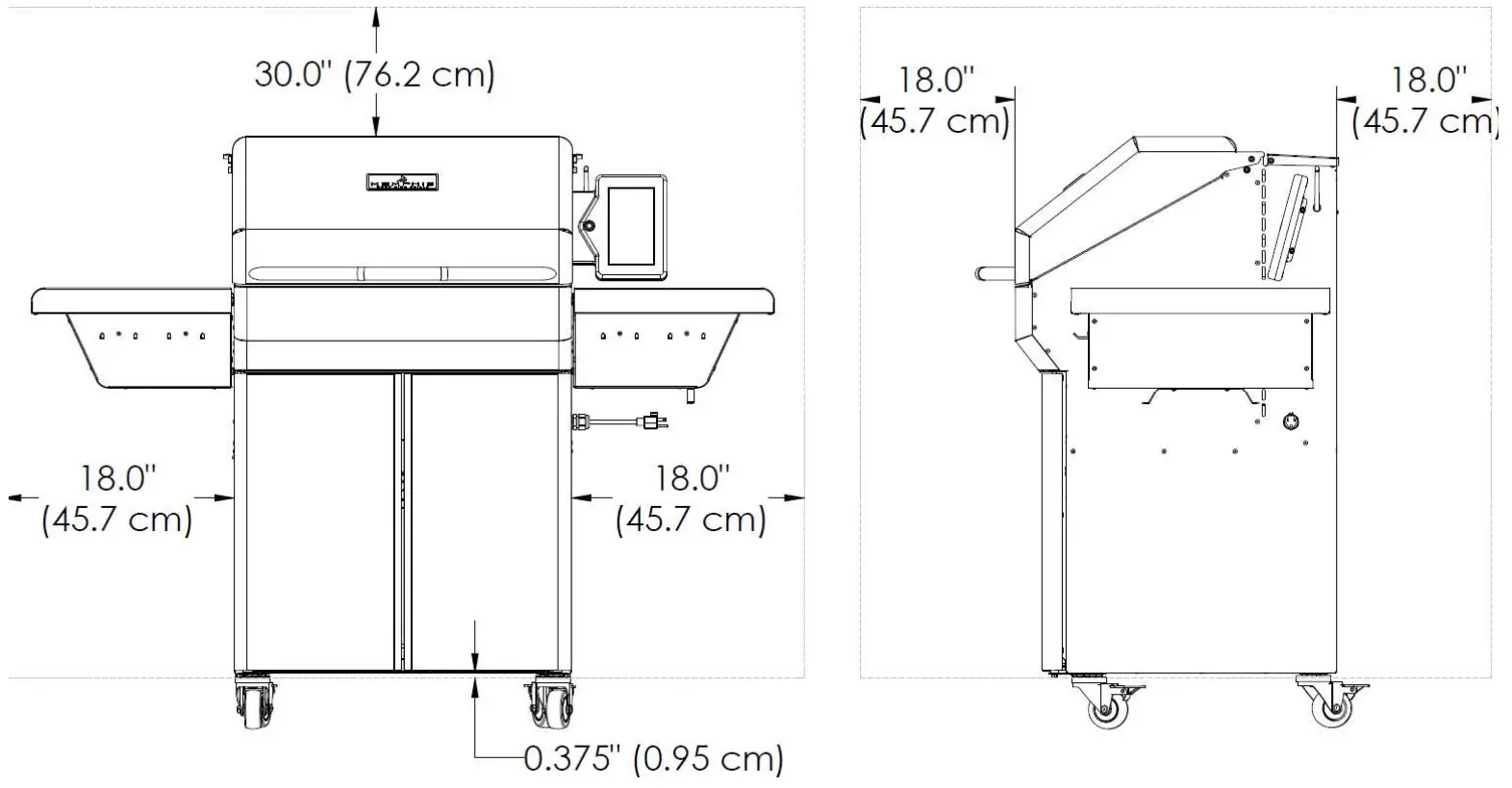

Clearance to Combustible Materials
Clearance to Combustible MaterialsYOUR MEMPHIS GRILL MUST MAINTAIN THE SPECIFIED CLEARANCE TO COMBUSTIBLE MATERIALS WHILE OPERATING THE GRILL OR WHILE THE GRILL IS HOT! Combustible Material is wood, drywall, siding, or any other material that has to ability to catch fire.
Below are some guidelines to ensure the safe operation of your Memphis Grill
- The grill is to be supported by the casters provided.
- Grill casters are to be locked while the grill is in use or while the grill is hot.
- It is recommended that the grill be placed on a non-combustible surface.
- Operating the grill under a combustible ceiling or overhang is NOT recommended.
- Maintain the minimum clearance to combustible materials specified above.
The major cause of fires is failure to maintain required clearances (air spaces) to combustible materials. It is of the utmost importance that this product is installed only in accordance with these instructions.

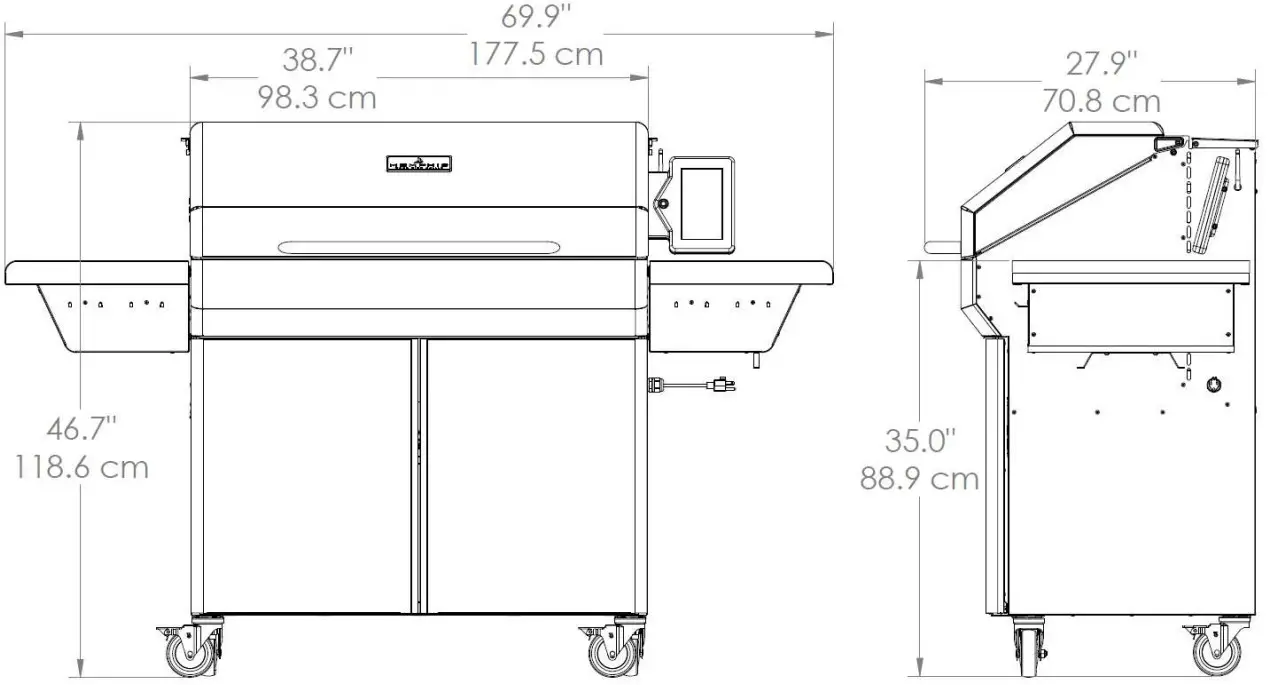

Grill Dimensions
Other Grill Information
Main Grate Area— 37.1 in X 17.4 in. Top Grate Area— 37.1 in. X 5.5 in
[94.3 cm X 44cm] [94.3 cm X 14 cm]
Optional Middle Grate Kit Area— 37.1 in. X 11 in [94.3 cm X 28 cm]
Grill Height with Hood Open— 66.2 in. [168 cm] Grill Width with Slides Shelves Open— 91.9 in. [233 cm]
644 in. sq. 204 in. sq. 408 in. sq.
[4,149 cm sq.] [1,320 cm sq.] [2,640 cm sq.]

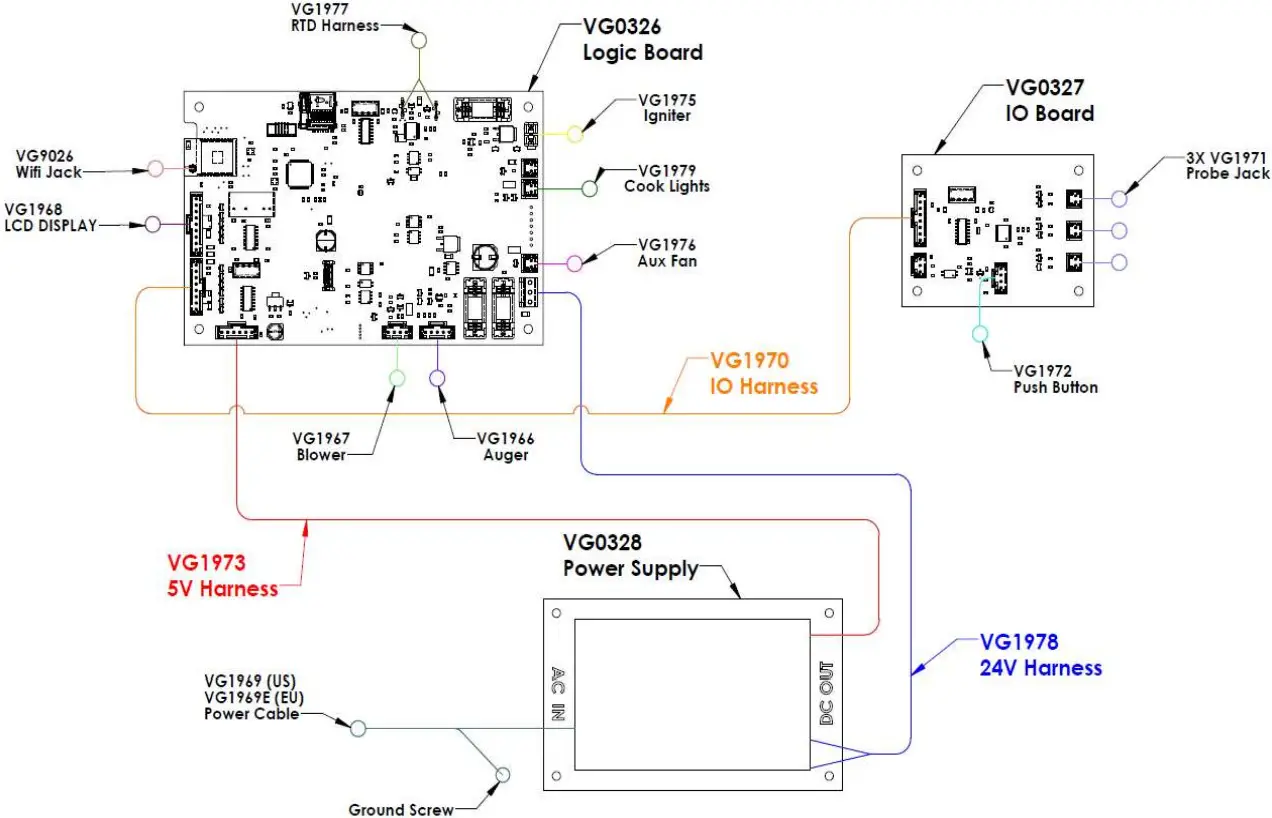

Memphis Controller Diagram
| Part # | Name | Description |
| VG1966 | Auger Wiring Harness | 5-pin connector from the auger motor to the logic board |
| VG1967 | Blower Wiring Harness | 4-pin connector from the blower to the logic board |
| VG1968 | Display Wiring Harness | 9-pin connector from the LCD display to the logic board |
| VG1969(E) | US Power Cable (Euro) | The power cable that plugs into 120VAC (US) or 240VAC (EU) wall outlet |
| VG1970 | 10 Wiring Harness | 8-pin connector from 10 board to the logic board |
| VG1971 | Probe Jack Wiring Harness | 2-pin connector from meat probe jack to the 10 board |
| VG1972 | Push Button Wiring Harness | 4-pin connector from the push button in the Display Housing to the 10 board |
| VG1973 | 5V Wiring Harness | 5-pin connector from the power supply board to the logic board |
| VG1975 | Igniter Wiring Harness | 2-pin connector from the igniter to the logic board |
| VG1976 | Auxiliary Fan Wiring Harness | 2-pin connector from Aux fan to the logic board |
| VG1977 | RTD Wiring Harness | 2 Pin connector from RTD to the logic board. Connection to the board is non-polarized |
| VG1978 | 24V Wiring Harness | 2-pin connector from the power supply to the logic board. Provides power to the blower, aux fan, auger motor, cook lights, and LCD |
| VG1979 | Cook Light Wiring Harness | 2-pin connector from cook lights to the logic board |
| VG9026 | Wifi Jack | Single conductor jack installed in a right panel connected to the logic board |
| VG0326 | Logic Board | Controls components related to smoking and cooking |
| VG0327 | 10 Board | Controls push button and meat probe jacks |
| VG0328 | Power Supply Board | Provides 24V DC and 5V DC power |
| Part # | Name | Description |
| VG9501 | Auger Motor | This component rotates the auger to supply fuel to the burn pot |
| VG1967 | Blower | This component pulls air from the lower cabinet and into the firebox for combustion |
| VG1968 | LCD | Used to display Grill information and change grill settings |
| VG1969(E) | US Power Cable (Euro) | The power cable that plugs into 120VAC (US) or 240VAC (EU) wall outlet |
| VG1971 | Probe Jack | This component is used to plug probes for monitoring meat temperature |
| VG1972 | Push Button | This component is used to set the grill to cool down, reset the controller, or put the display to sleep |
| VG1975 | Igniter | This component provides the initial heat during startup |
| VG1976 | Auxiliary Fan | This component supplies cooling for the power supply and logic boards |
| VG1977 | RTD | This component is used by the controller to determine the cook chamber temperature |
| VG1980 | Cook Lights | These components are mounted inside the cook chamber to provide light to the cooking area |
| VG9026 | WiFi Jack | Single conductor jack install in a right panel connected to the logic board |
| VG9023 | WiFi Antenna | 2.4GHz WiFi antenna |

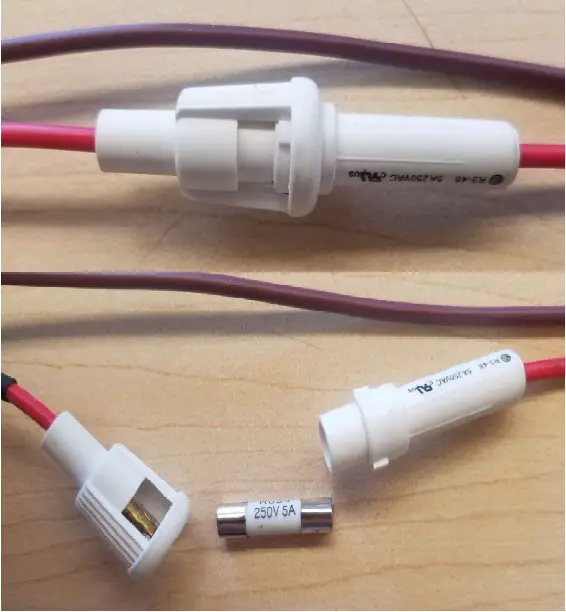

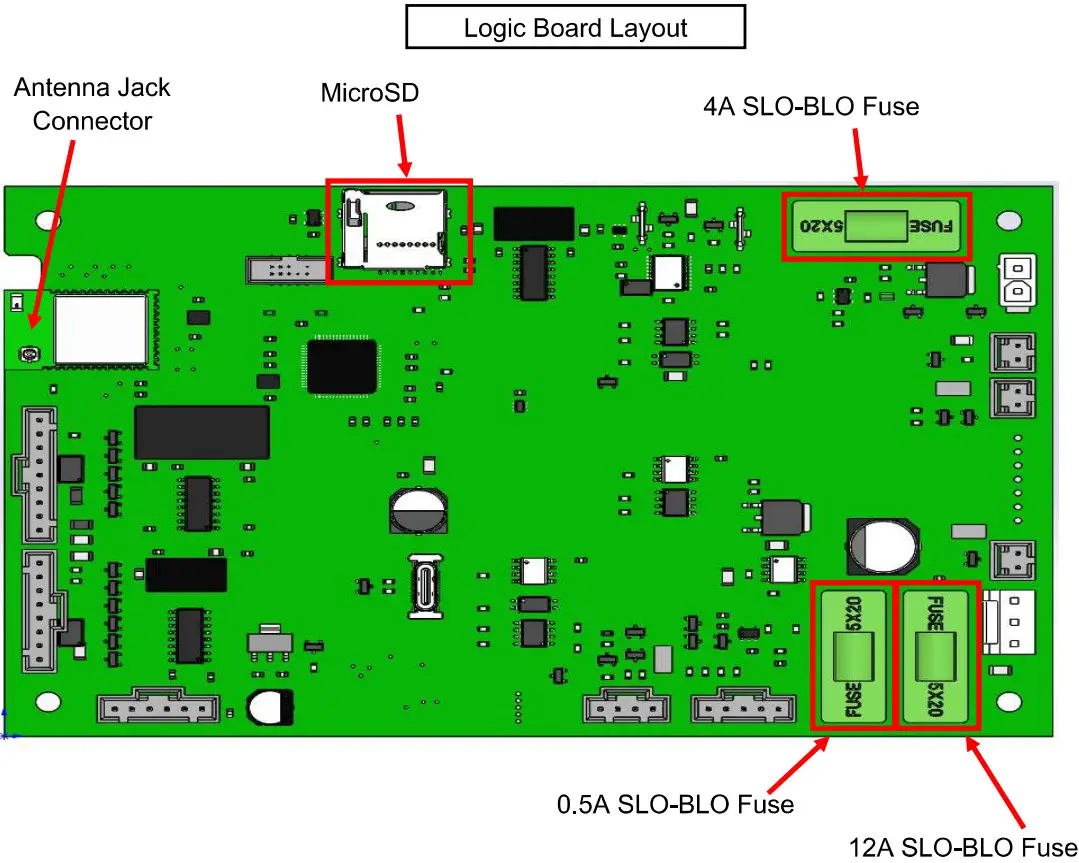

Memphis Fuse Diagram
Power Cable (VG1969) Fuse
- VG9021 – Fuse Glass 205VAC 5A 5 × 20
