Ask F6 Amplifier User Manual

ASK F6 Amplifier

 Generic product description

The product is an antenna amplifier for indoor use, to be installed in accordance with the instructions, for receiving and amplifying signals of the subset of radio frequencies for which it was designed. For correct operation, the product is connected to passive reception elements built into the car.

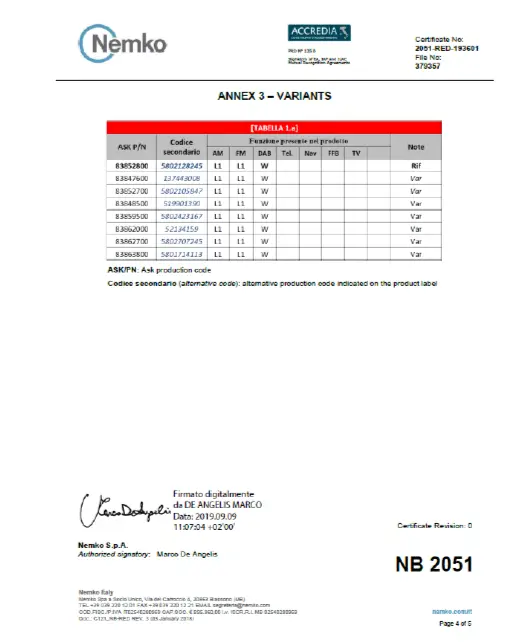

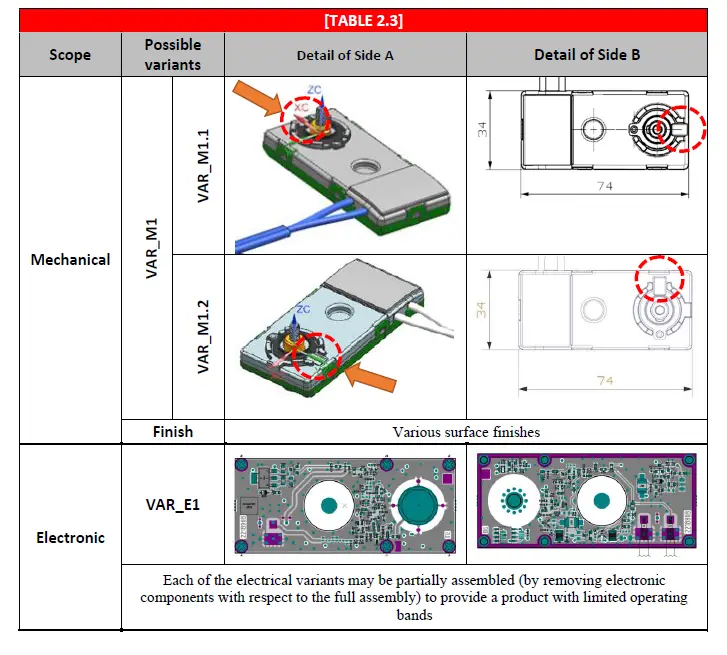

 Variants Table

ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

 Product functions – Specific Description

(*) These PNs represent the reference for the other PN regarding the mechanical and
electrical parts.
ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

 Service or Installation Manual

ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

Warnings about the installation environment

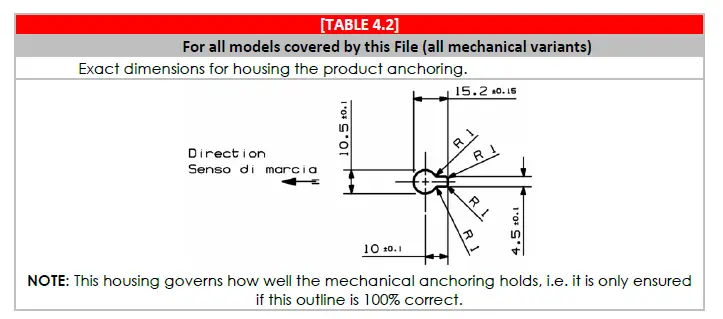

• The product is designed to be used in accordance with the installation rules shown in tables 4.1-4.2 for normal use.
• We recommend that the installation be carried out by qualified technical personnel using electrostatic discharge protection: anti-ESD.
• We recommend anchoring it to a metal surface.
• We recommend that the product be installed away from sources that can generate strong electrical noise such as: Motors, power supplies, transformers, intermittent lights, actuators, digital control units, data cables, pulsed signal sources of various kinds.
• We recommend that the product be installed in an area that is free from lateral obstructions and with a direct line of sight to the sky.
• We recommend a distance of at least 1 m from lateral metal surfaces.
• If it is not possible to meet the listed recommendations, you may experience reduced performance of some of the functions of this product.
• Conversely, this product does not generate any known problems to the installation environment.
• However, we do not recommend leaving the product in operation when it is close to or touching the human body for continuous periods, even though there is no scientific evidence that this will affect human health.
• The product may be used and installed anywhere that the law allows the installation of radio equipment without any specific limitations.
• When installing in places that are subject to specific limitations, the installer is responsible for ensuring that the product can be used.
• The installer is wholly liable for positioning the product inappropriately or for failure to comply with specific regulations that impose restrictions or limitations on normal product use.
• The product shall be positioned out of the reach of children.

 Operation Manual

• The product does not require a specific manual.
• For correct product operation, make sure that you:

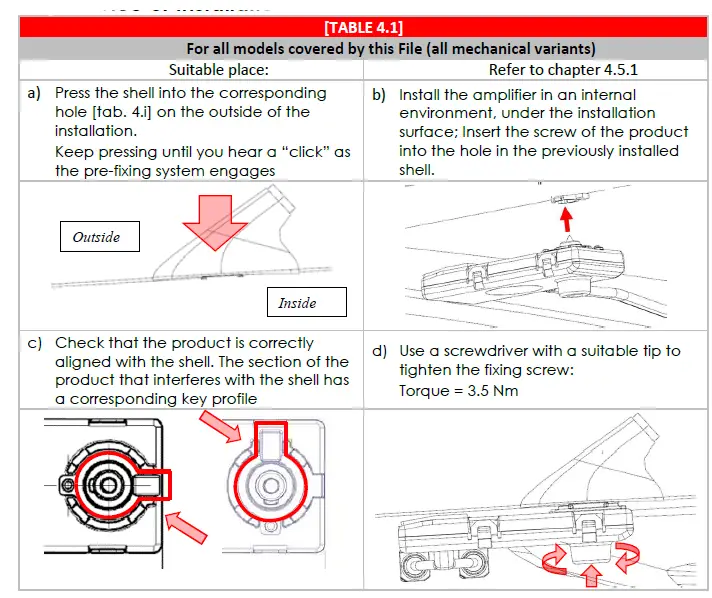

  • Install it correctly in a suitable place (in accordance with [tab. 4.1] and [tab. 4.2], refer to the “use restrictions and warnings” section in chap. 5)
  • Connect it correctly to the demodulator equipment: radio tuner (not part of this product)
  • Provide the installed product with the correct power supply (in accordance with the electrical spec. in [tab 3])
  • Do not expose the product to direct flux from radio links. (radar, dishes, military zones subject to special radio regulations, etc.)

ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

 User qualifications

• There are no specific restrictions on use of the product by unqualified personnel.
• However, we do not recommend leaving the product in operation when it is close to or touching the human body for continuous periods, even though there is no scientific evidence that this will affect human health.

ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

Information and responsibility

1. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment
2. The F6 family products, composed from 5802128245 – 137443008 – 5802105847 – 519901390 –5802423167 – 52134159 – 5802707245 – 5801714113, FCC ID: 2AXHC-F6.
3. Compliance Information: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
4. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•  Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CANADIAN REPRESENTATIVE LETTER OF ATTESTATION

Canadian Representative

• Company Name: Canadian Certification Consulting, Inc.
• ISED Company No.:10842A
• Contact Name: Jon Hughes, Pres ident
• Street Address: 2210 Horizon Drive, Suite 17
• City/Province/Zip: West Kelowna, BC V1Z 3L4, Canada
• Telephone No.:1-250-575-1719
• Facsimile No.:1-250-769-0045
• E-mail:i [email protected]

ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

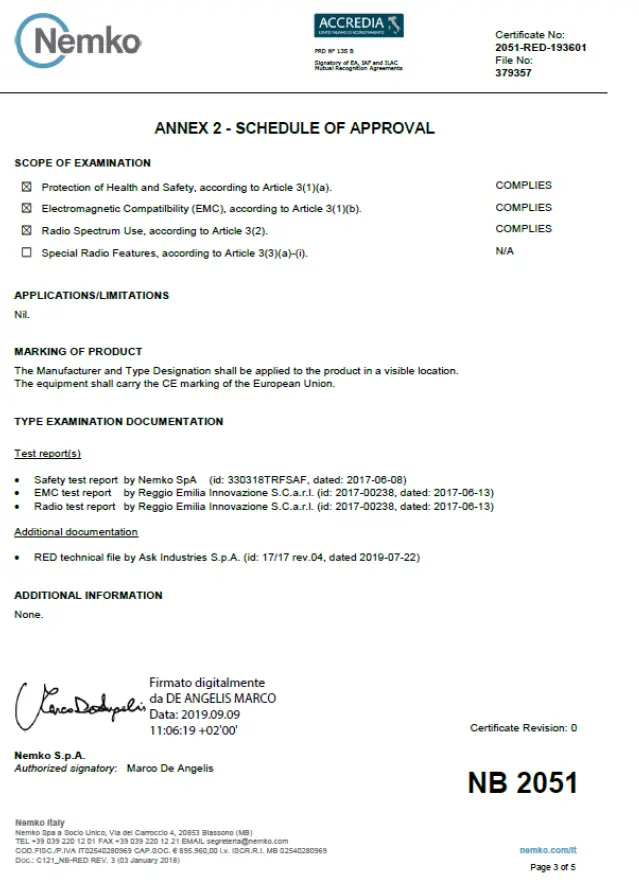

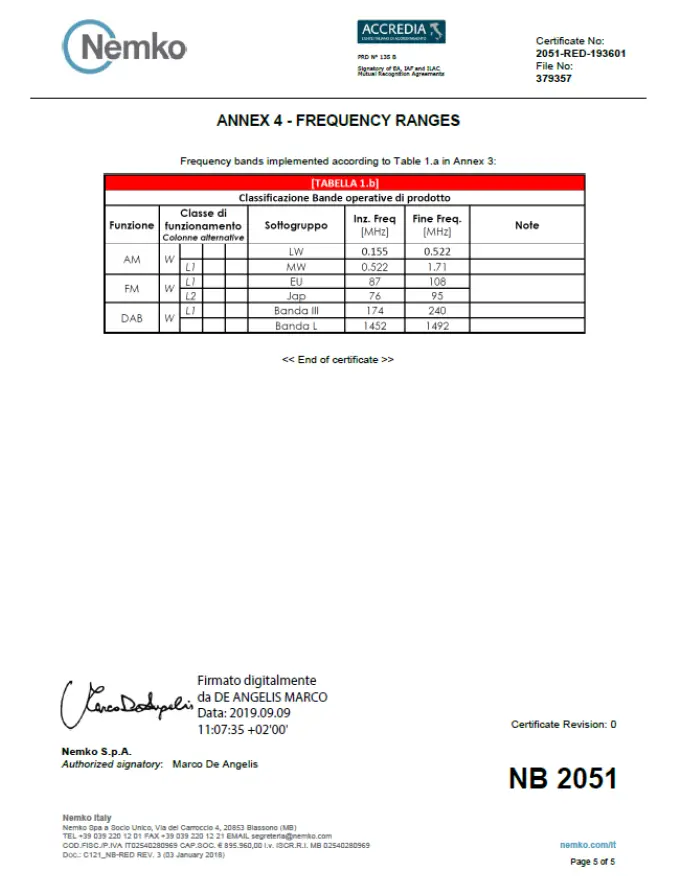

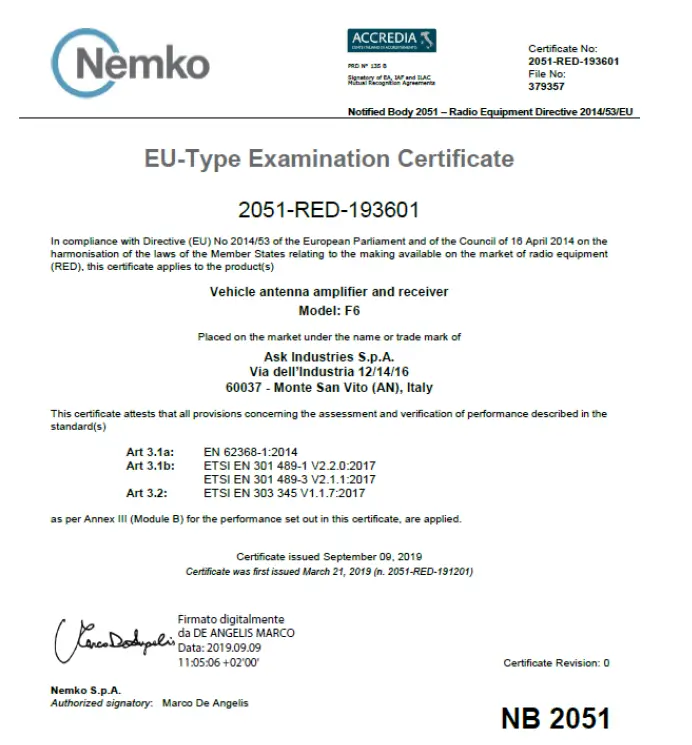

EU type certificate
ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

ALL RIGHTS RESERVED: The whole content of this document and its annexes (data, technical parameters, drawings and any other part of it) are propriety and/or protected by copyright. It is therefore to be considered confidential and intended exclusively for checks carried out by the relevant legal authorities. In accordance with both art. 616 of the Italian criminal code and Italian Legislative Decree no. 196/2003, the dissemination, distribution or copying of all or part of this documentation by any person other than the recipients or for purposes other than those intended is prohibited, unless specifically agreed.

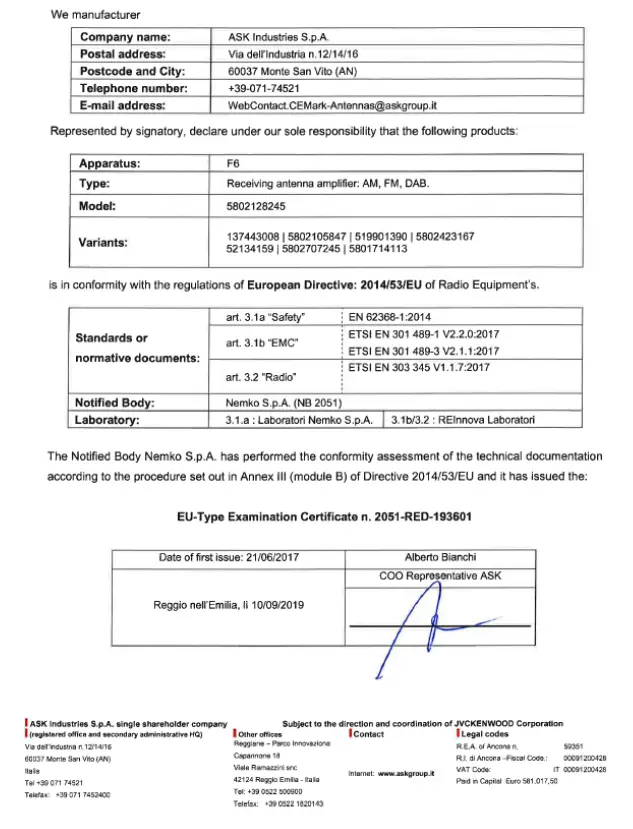

 Declaration of Conformity
