ethirteen TR / XCX / Helix Cassette Bushing
Product Information: CASSETTE ASSEMBLY INSTRUCTIONS

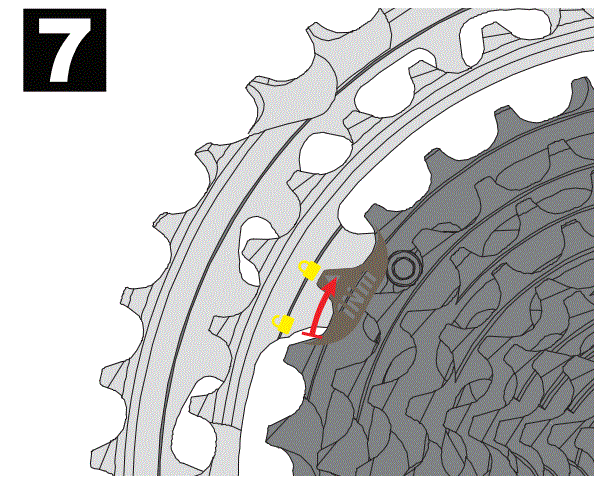

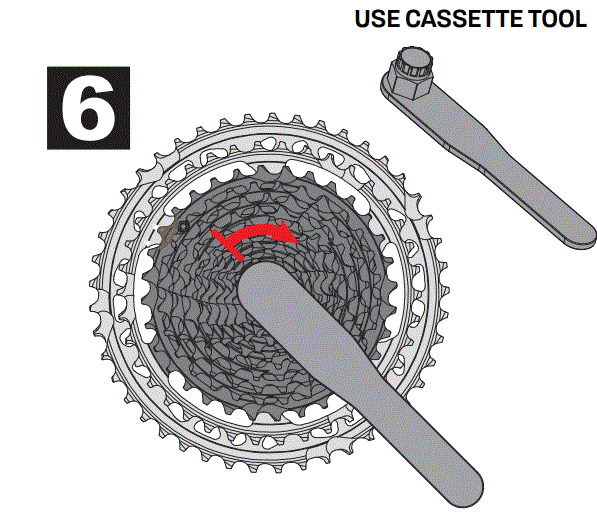

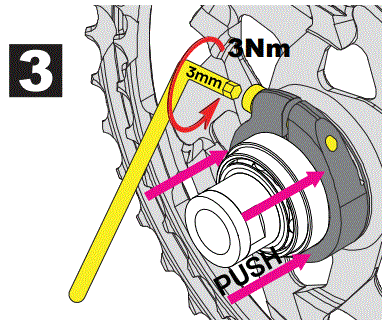

The cassette assembly requires a torque of 3Nm. When using XD-RTM, a 2mm spacer is required. For HopeTM or undersized XDTM driver, use shims. Please refer to the instructions available on the ethirteen.com/support page for more information. The cassette assembly also includes an engineered plastic bushing which should not be discarded. Use the provided cassette tool with the code C020722.
Product Usage Instructions: CASSETTE REMOVAL INSTRUCTIONS

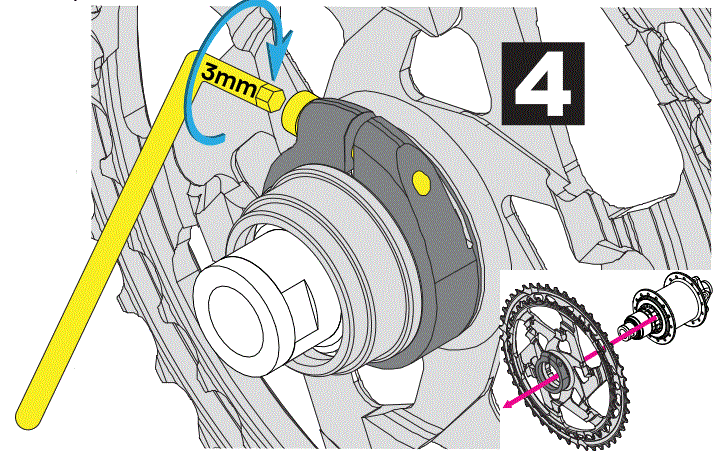

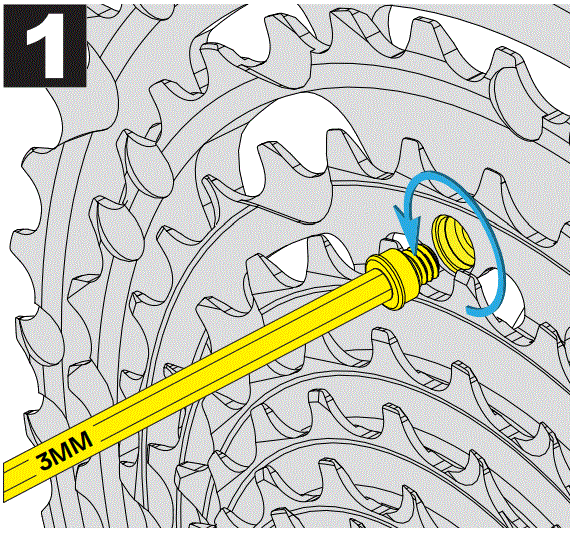

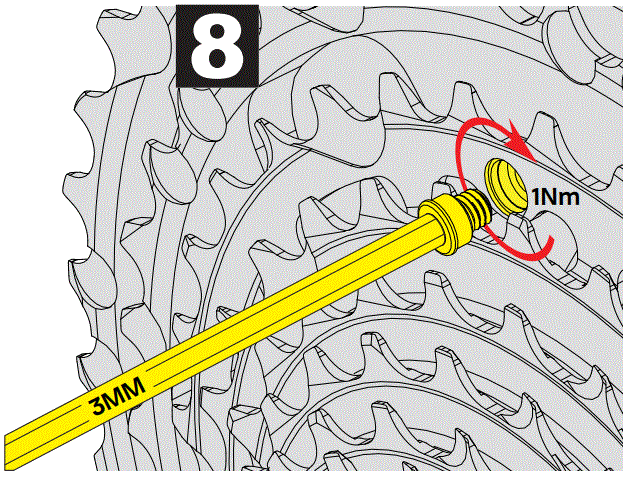

For removing the cassette, you will need a torque of 1Nm and a 3mm tool. Use a chain whip along with the cassette tool provided to remove the cassette.

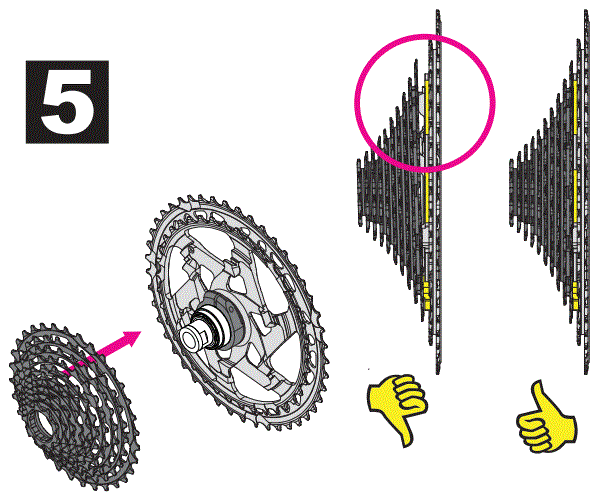

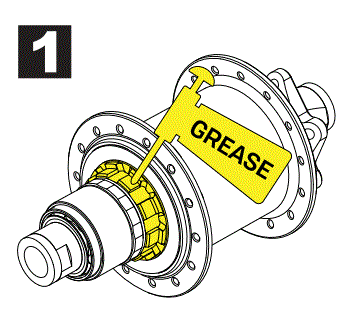

CASSETTE ASSEMBLY INSTRUCTIONS

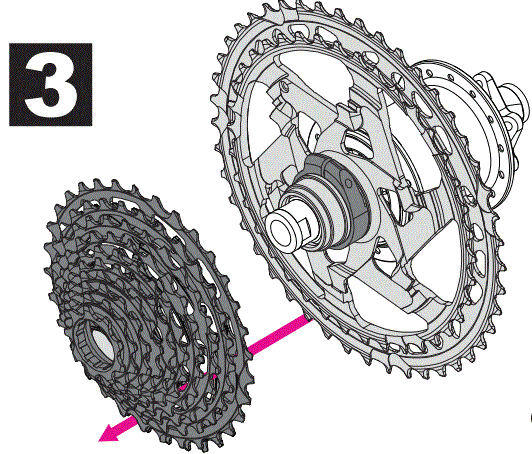

CASSETTE REMOVAL INSTRUCTIONS
contact information

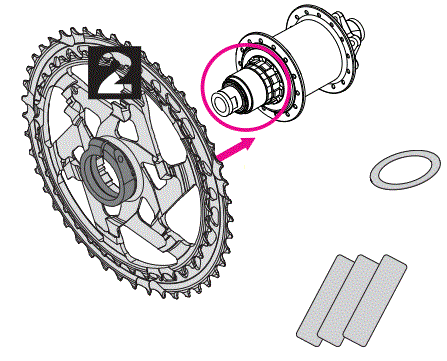

USE SHIMS for Hope™ or Undersized XD™ driver only. See ethirteen.com/support page for instructions
