VS5HI Voltmeter Sequencer
CONGRATULATIONS!
You have just purchased a product with the quality JFA Electronics, which was developed with technology advanced and unique design. Please read the operating instructions and installation in this guide ..
PRESENTATION

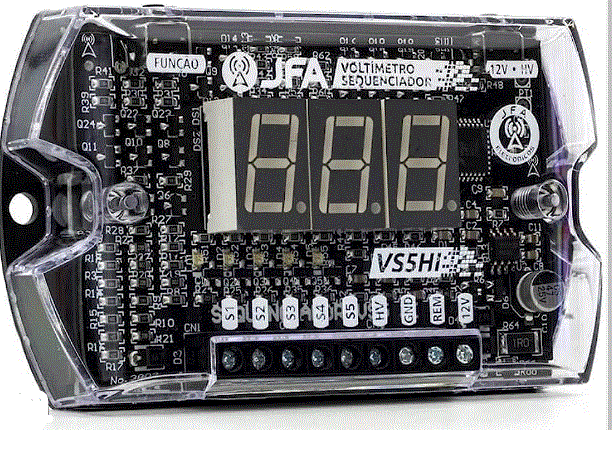

The voltmeter and sequencer VS5HI JFA was developed to perform three functions in the same equipment they are:
- Low voltage voltmeter to 17V;
- High-voltage voltmeter up to 500V;
- Remote command sequencer.
DESCRIPTION

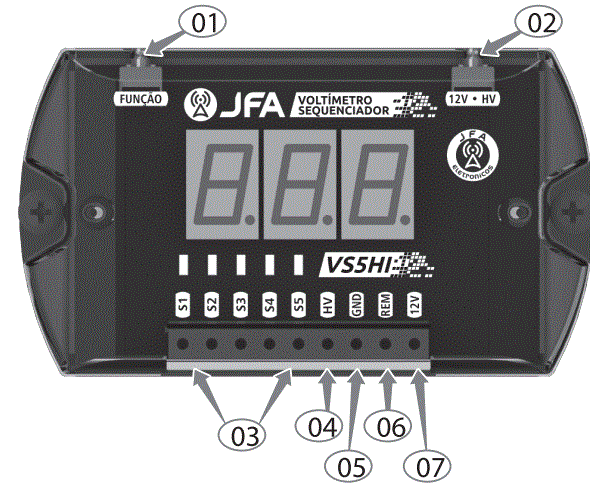

- Selector functions: HOL (Hold) – LIG (ON) – OFF
- Voltmeter selector: LOW – HIGH;
- Five remote control outputs;
- High input voltage (battery bank);
- GND;
- Remote control input;
- Low input voltage ( + 12V).

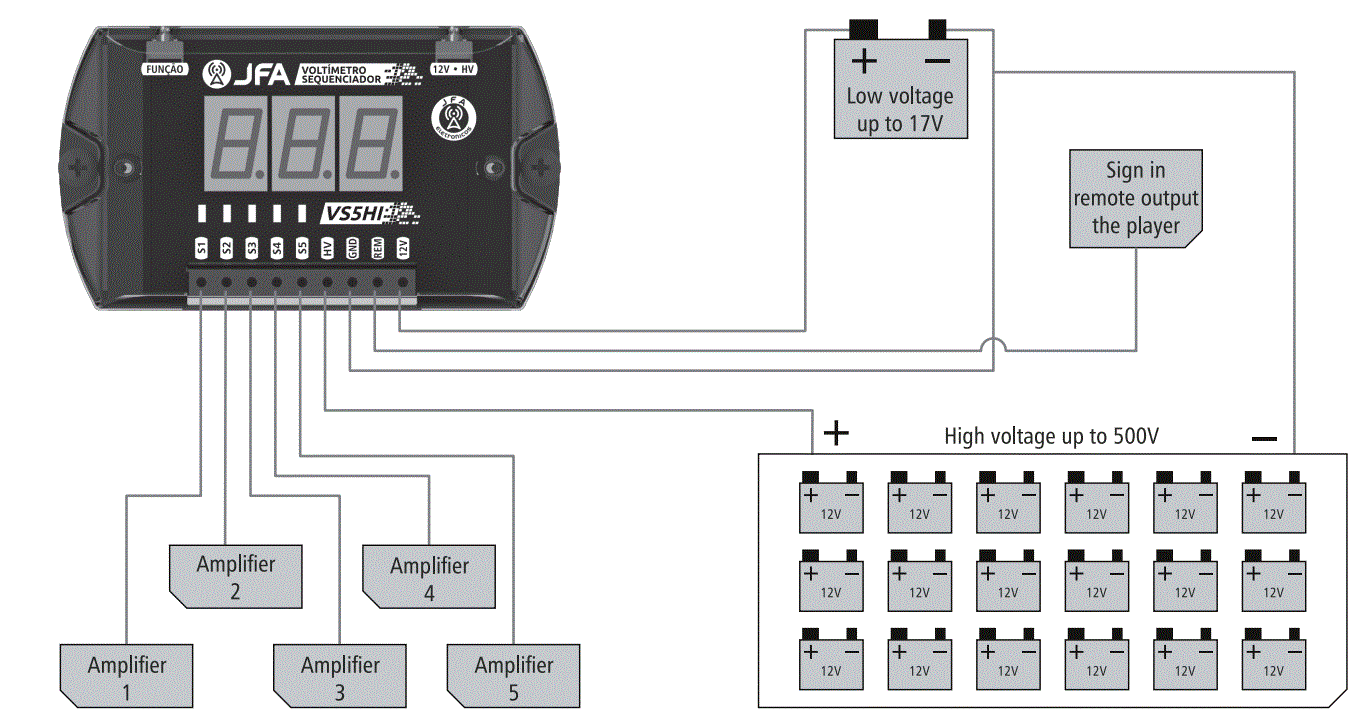

INSTALLATION EXAMPLE
Recommendations
- Due to the risk of shock high voltage, look for a specialized service to perform the installation of this equipment.
- Do not use cables with damaged insulation cover for this installation. Make sure the cables are not being pressed at any point of the installation.
TECHNICAL FEATURES
| VOLTMETER | |
| Low Voltage Measurement | Maximum 17V |
| High voltage measuring | Maximum 500V |
| SEQUENCER REMOTE CONTROL | |
| Current at output | 150 mA |
| Low voltage protection | <9,SV |
| against high voltage protection | > 17,0V |
| DIMENSIONS IN MM | 1Ox57x17 (WxHxD) |
See all products of the automotive line on our website.
