Inches Counter Depth French Door Refrigerator
Instruction Manual
480184 69 Inches Counter Depth French Door Refrigerator

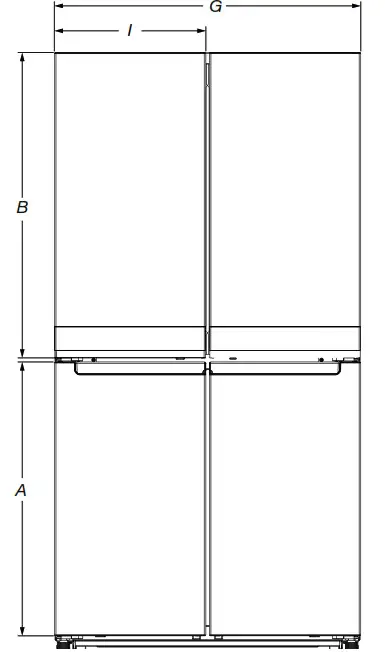

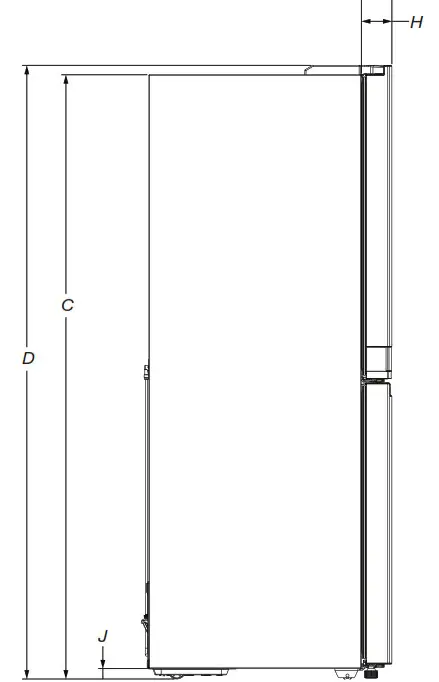

PRODUCT DIMENSIONS
| Description | Dimension | |
| A | Freezer door height | 317/8″ (809 mm) |
| B | Refrigerator door height | 351/2″ (902 mm) |
| C* | Height of recessed refrigerator | 681/2″ (1139 mm) |
| D* | Height of top of hinges | 691/2″ (1766 mm) |
| E | Depth with doors | 283/8″ (720.7 mm) |
| F | Depth without doors | 247/8″ (631.8 mm) |
| G | Cabinet width | 353/4″ (908.1 mm) |
| H | Doors thickness | 31/2″ (87.5 mm) |
| I | Doors width | 173/4″ (449 mm) |
| J* | Height of the cabinet wheels | VA” (30 mm) |

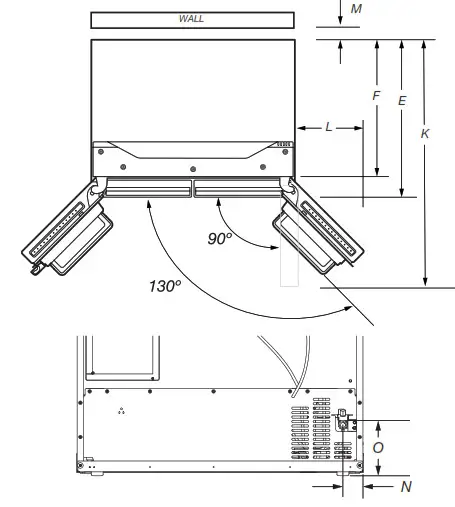

| K | Depth with doors open 90° | 145/8″ (1082.7 mm) |
| L | Width of door fully open 130° | 313/4″ (806.4 mm) |

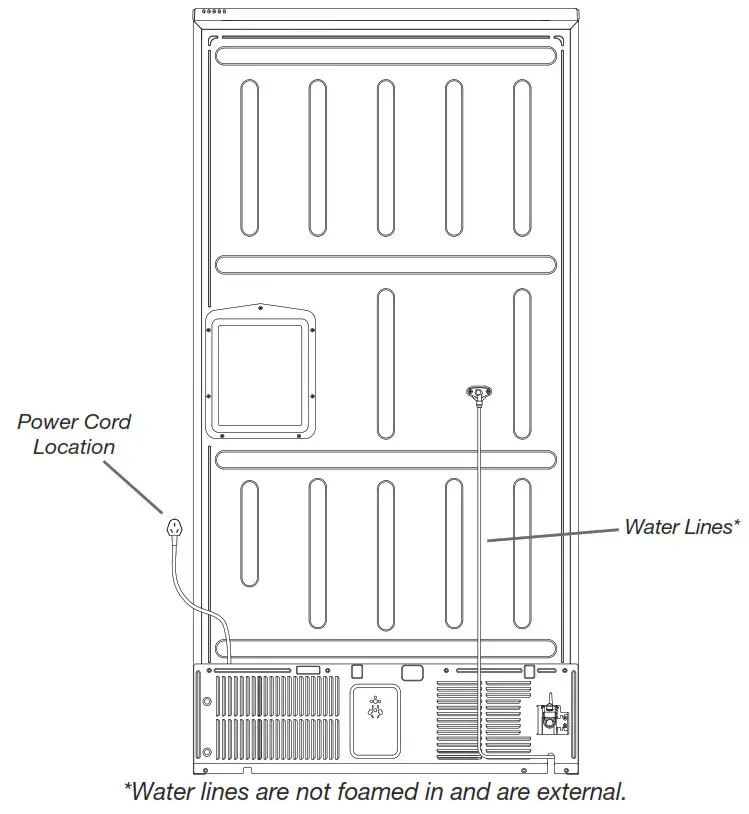

| M | Space required for water lines and power cord | 2″ (50.8 mm) |
| N | Water line location distance from side | 21/2″ (63.5 mm) |
| 0 | Water line location distance from bottom | 67/8″ (174.6 mm) |
*Add 1/2″ (12.7 mm) to height dimension when leveling legs are fully extended.
| Interior Dimensions | Width | Height |
| Refrigerator Compartment | 31½” (802 mm) | 31″ (788 mm) |
| Freezer Compartment and Convertible Compartment | 143/16″ (360.4 mm) | 28″ (711.2 mm) |
Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.
Electrical Requirements
WARNING
Electrical Shock Hazard.
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

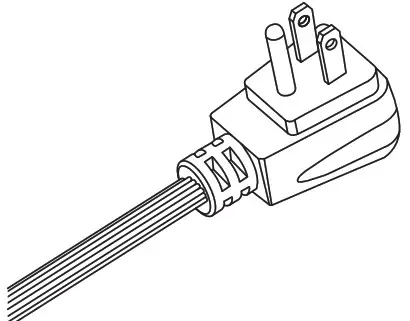

| Power Cord | ||
| Type | Length | |
| inches | mm | |
| Standard | 755/8″ | 1920 |
Electrical: A 115 V, 60 Hz AC only, 15 A or 20 A fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.
Water: A cold water supply with water pressure of between 30 psi and 120 psi (207 kPa and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure,call a licensed, qualified plumber.
Location Requirements
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
To ensure proper ventilation for your refrigerator, allow for a 1/2″ (12.7 mm) space on each side and at the top. Allow for a 1.97″ (50 mm) space behind the refrigerator. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When installing your refrigerator next to a fixed wall, leave a 3.74″ (95 mm) minimum space between the refrigerator and wall to allow the door to swing open.
NOTE: This refrigerator is intended for use in a location where the temperature ranges from a minimum of 50°F (10°C) to a maximum of 110°F (43°C). The preferred room temperature range for optimum performance, which reduces electricity usage and provides superior cooling, is between 60°F (15°C) and 90°F (32°C). It is recommended that you do not install the refrigerator near a heat source, such as an oven or radiator.
*Space from a side wall required to open the door at 118° and open the drawers and trays inside the bottom compartments.
PRODUCT DIMENSIONS

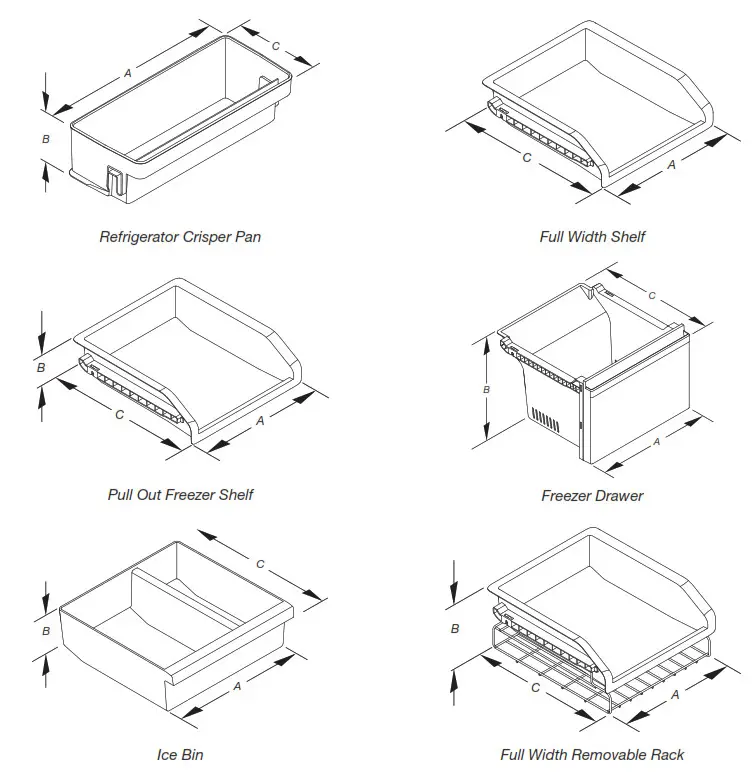

Refrigerator Compartment Features
| Description | A (width) | B (height) | C (depth) |
| Refrigerator Crisper Pan | 15½” (393.7 mm) | 67/8” (175 mm) | 127/8” (327 mm) |
| Full Width Shelf | 313/8” (797 mm) | NA | 14″ (356 mm) |
| Pull Out Freezer Shelf | 9¾” (248 mm) | 4″ (101.6 mm) | 13½” (343 mm) |
| Freezer Drawer | 9¾” (248 mm) | 7″ (178 mm) | 13½” (343 mm) |
| Ice Bin | 117/8” (302 mm) | 3¾” (95 mm) | 117/16” (290 mm) |
| Full Width Removable Rack | 12¾” (324 mm) | 5″ (127 mm) | 15¼” (387 mm) |
