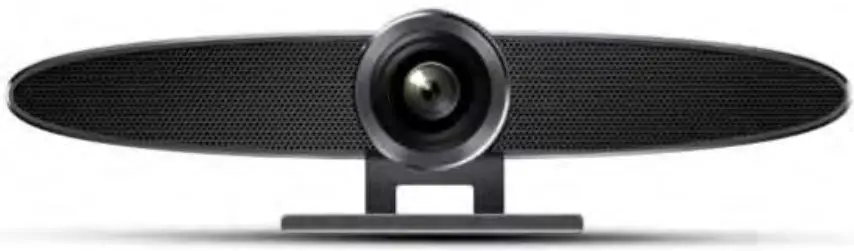

KNAUF VHD-M1000 Ultra HD Soundbar Instruction Manual
Main Features
- Built-in USB camera capable of outputting up to 4K60 frames, supporting HDMI output and USB3.0 output
- Built-in 4 microphones, support beam picking, can achieve 6 meters of pickup, requiring 1 meter and 3 meters’ volume drop less than 0.3dB.
- Can expand two external echo cancellation microphones (pitch radius 3 meters)
- Built-in speaker [email protected]
- Built-in lifting small PTZ, supporting 15° range of motion
- DC 12V power interface
- Built-in super wide-angle low distortion lens
Product Spec
| Camera | |
| Camera type | 1 /1.8’’ CMOS, Effective Pixel:8.29M |
| H/V resolution | 4K(3840*2160)@30fps |
| Scanning Mode | Progressive |
| Lens Mount | M12 |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual |
| Camera bracket | Bracket with damper |
| Backlight Compensation | Support |
| Audio | |
| Speaker | [email protected] |
| Built-in Microphone | 4 horizontally placed microphones for 6 meter pickup |
| External microphone interface | Can support access to two external microphones |
| USB Featured | |
| Operate System | Windows® 7 (only 1080p and below), Windows 8.1, Windows 10 or highermacOSTM 10.10 or higherGoogleTM ChromebookTM Version 29.0.1547.70 or higher Linux (requires support for UVC) |
| Hardware requirements | 2.4 GHz Intel® Core 2 Duo processor or higher 2 GB of memory or higherUSB 2.0 interface (4K requires USB 3.0) |
| Color System/Compression | H.264 / MJPEG /YUY2 /NV12 |
| Video Format | 4k@30fps/25fps, 1080p@30fps/25fps, 720p@30fps/25fps, 960x540p@30fps/25fps, 640x360p@30fps/25fps etc |
| UVC PTZ Protocol | UVC 1.0 |
| UVC PTZ Control | Support (EPTZ) |
| USB audio communication protocol | UAC2.0 one audio input, one audio output, 32K sampling rate even higher |
| Input/Output Interface | |
| USB Interface | 1x USB3.0, Type B Female jack |
| HDMI | 1x HDMI2.0 |
| Power | DC 12V 1.5A(MAX) |
| Dimensions | 700mm*60mm |
| Room Size | Small/medium/huddle room |
| Auto framing | YES |
