globalsources TC-3000DA-X1 Digital Villa Door Phone

Features & Function

• Call Resident
• Card Unlocking
• Leave Message
• High strength Acrlic panel

Description & Specification

• Installation: Surface Mounting
• Camera: Color CMOS 1.0Mega Pixel
• CPU: ARM 9
• Camera: Color CMOS 1.0 MP
• Physical interface: RJ45、Pulse unlock;
• Power Supply: DC 12V/1.5A；
• Working Temperature: -25℃ to +55℃；
• Humidity：10% ～ 90%RH

HOW TO USE

1. The basic structure of the door phone unit

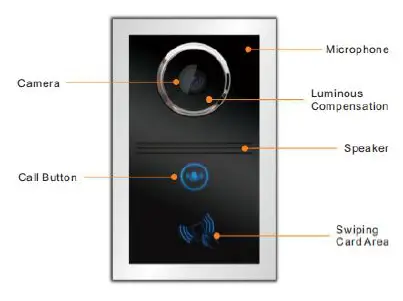

   1. The instruction for appearance and function module of door phone unit

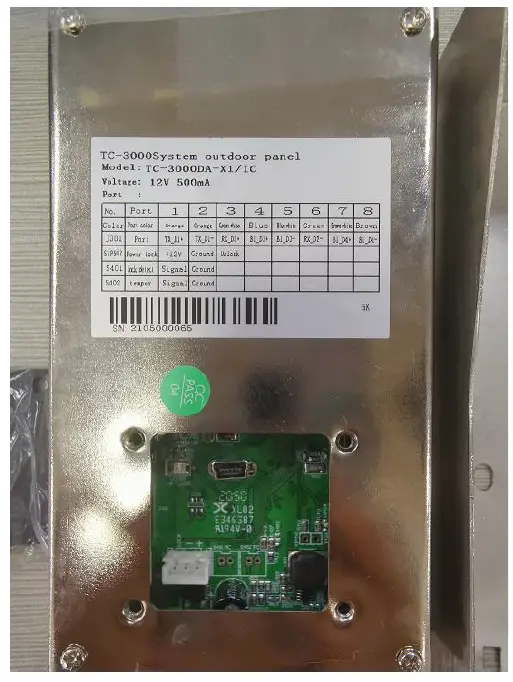

2. The basic interface type of door phone unit
   • The power interface
   • The network interface
   • The unlock interface

Note: RJ45 network port connect with 8 wire CAT-5 cable to the router
