USER’S MANUAL
Note: For sustainable development, we may modify machines when necessary and will not notify again. The actual product may vary slightly from the manual.
PLEASE DO NOT RETURN TO STORE
Please do not return this product to the retailer!!
We are able to assist you in ANY way.
If you find that you have any trouble with assembly or
missing or damaged parts, please contact the seller.

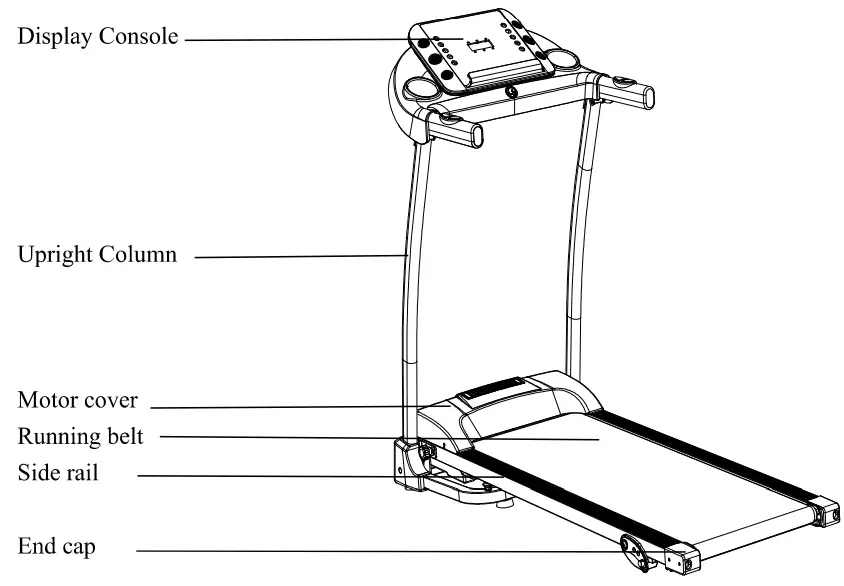

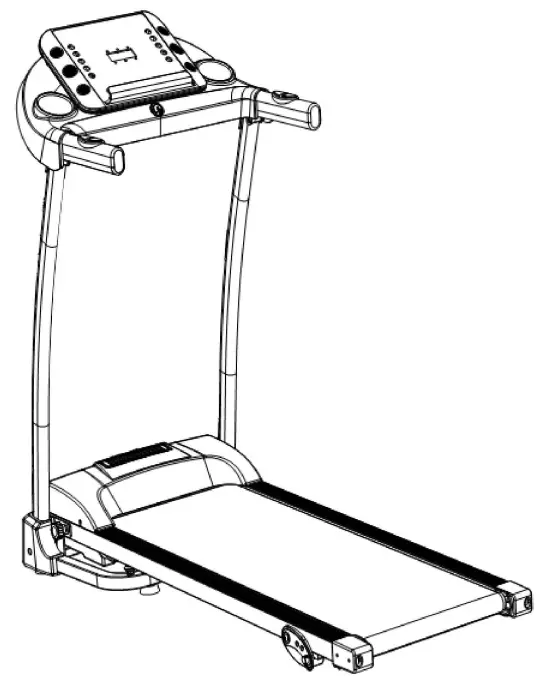

About Your Treadmill
Product name: Folding Electric Treadmill Motorized Running Machine
| Main technical parameters | ||||||||||
| No. | Parameters | Description | ||||||||
| 1 | Input Power Voltage | 110V ∼ (50-60Hz) | ||||||||
| 2 | Speed | 0.5-7.5 MPH | ||||||||
| 4 | Assembled Size | Approx. 59 * 25 * 48 inch | ||||||||
| Packing List | ||||||||||
| No. | Name | units | Qty | No. | Name | units | Qty | |||
| 1 | Main Frame | pcs | 1 | 3 | Accessory Bag | set | 1 | |||
| 2 | Side Cover | pcs | 2 | |||||||
| Accessory Bag List | ||||||||||
| No. | Name | units | Qty | No. | Name | units | Qty | |||
| 1 | ScrewsM8*22 | set | 2 | 6 | Plum Knob | set | 1 | |||
| 7 | Safety key | set | 1 | |||||||
| 2 | ScrewsM8*20 | set | 2 | |||||||
| 3 | Inner hexagon spanner 5 mm | set | 1 | 8 | Silicon oil | set | 1 | |||
| 4 | Inner hexagon spanner 6 mm | set | 1 | |||||||
| 9 | User manual | set | 1 | |||||||
| 5 | Combination wrench | set | 1 | 10 | MP3 Cable | set | 1 | |||
Security Precautions and Warnings
Notice: Please read the instructions carefully before use.
- Indoor using and storing the treadmill, avoid dampness, and cannot be spilled by water.
- Please wear suitable clothes and sneakers before exercise. Prohibited to exercise on the treadmill barefoot.
- High power plug must be grounded, the electric outlet should have a dedicated circuit, do not share with other electrical equipment.
- Keep children away from the machine to avoid accidents.
- Avoid the too long time and overload operation otherwise will cause motor and controller damage and will accelerate the deterioration of bearing, running belt, and running board. Should maintain the machine on a regular basis.
- Keep the machine away from dust to avoid strong static.
- Please cut the electric power off after using.
- Please maintain good ventilation when running.
- Please clamp the security lock cable on your clothing to make sure the machine stops at the emergency
- If you feel not very well when using this machine, please stop and consult a doctor.
- Silicone oil must be kept away from children after use.
- If the power cord is damaged, please contact our qualified maintenance personnel for service rather than disassemble it at your own discretion.
Forbidden
- Don’t use the machine in the status of the shell break in or break off (the internal structure exposed) or under the condition of welding-pans may fall off.
……Otherwise, an accident or injury may happen. - Don’t jump up and down in the process of movement.
—- May be injuries caused by the fall. - Don’t keep machines in or near moist spaces such as the bathroom.
- Don’t place machines in direct sunlight, or high-temperature places such as near a stove or a heating appliance.
–Otherwise may cause leakage and burst into Flames. - Don’t use it when the power cord is damaged or power plug pin is loose.
–Otherwise will lead to an electric shock, short circuit, or fire. - Don’t damage or bent by force or reverse the power cord. Don’t place heavy objects on machines. don’t clamp the power line.
—-Otherwise will cause fire or get an electric shock. - Don’t use a machine for more than 2 people at the same time, and don’t get close to the machine when it is in use.
— Or it may be an accident or injury due to falls. - People who can’t express their consciousness or can’t operate the machine by themselves cannot use the treadmill.
–May occur accident or injury.
Avoid drinking water or pouring water when operating.
— May cause electric shock and fire. Forbidden! - People who seldom do exercise shouldn’t suddenly do intense exercise.
- After eating or when feeling tired, do not use the machine.
— May lead to damage to your health. - This product is suitable for family use, does not apply to schools, gymnasiums, and so on.
— There is the danger of injury. - Don’t use when hard objects are in pants pockets.
—May cause accident or injury. - Don’t use it when the power plug is on the needle, garbage, or water.
–May cause electric shock, short circuit, or fire. Do not use wet hands! - when not in use, pull out the power plug from the socket
—The dust and moisture can age the insulation, and result in leakage fire.
Ground protection system!
- This product must be grounded. If the machine is dysfunctional, grounding will provide a good channel for electric current, in order to reduce the electric shock risk.
- This product is equipped with a power plug with a grounding conductor and plug. Completely insert the plug into the standard socket.
- If the equipment grounding conductor’s connection is improper, it will cause electric shock. If you have doubts about whether your product is grounded correctly or not, please entrust a professional to check.
- Please use the socket which has the same shape as the grounding plug. Don’t use a plug adapter.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Installation Instructions
When installing, simply fix all screws first, then tighten screws when the installation of the frame is done.
| NO. | Name | QTY | |
| 1 | Complete Machine | 1 PC |  |
| 2 | 6mm Inner Hexagon Wrench | 1 PC |  |
| 3 | 5mm Inner Hexagon Wrench | 1 PC | |
| 4 | Combination Wrench | 1 PC |  |
| 5 | Safety Key | 1 PC |  |
| 6 | Silicon Oil | 1PC |  |
| 7 | MP3 Cable | 1 PC |  |
| 8 | Screw M8*22 2PCS | 2PCS |  |
| 9 | Screw M8*20 | 2PCS |  |
| 10 | Plum ICnob(MI0*20) | 1PC |  |
| 11 | User’s Manual | 1PC |

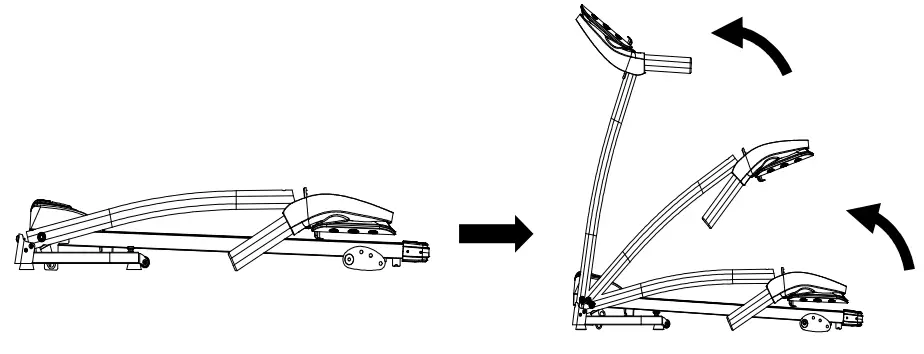

- Place the machine on the flat ground. Lift the supportive columns and console upward in the direction shown by the arrows in the picture below.

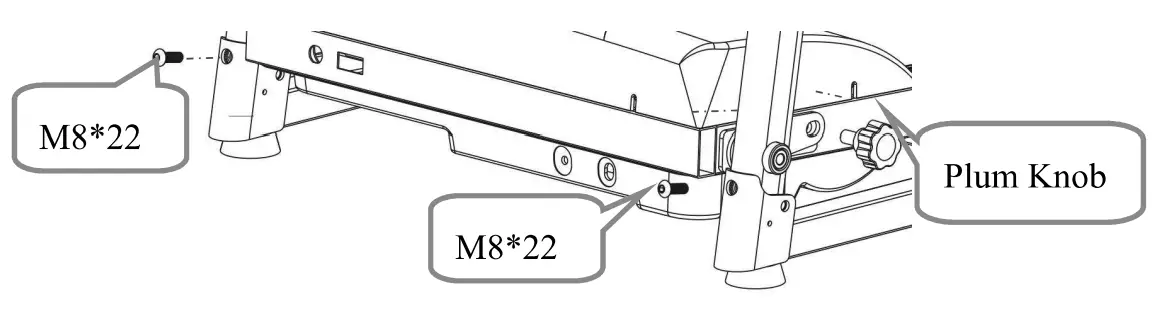

- Fix the column on the Use 5# inner hexagon wrench and screw the two M8*22 to lock the washer and nut and fix the column on the base.

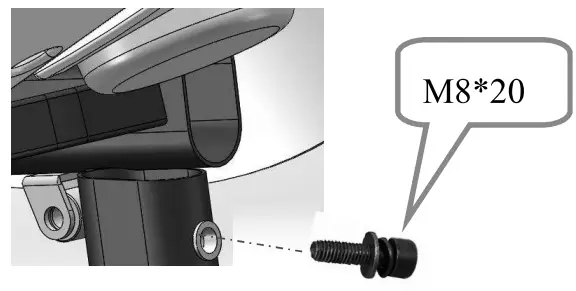

- Secure the console frame to the upright columns. Hold left& right columns, use 6# inner hexagon wrench and screw M8*20 to lock the console on the columns.

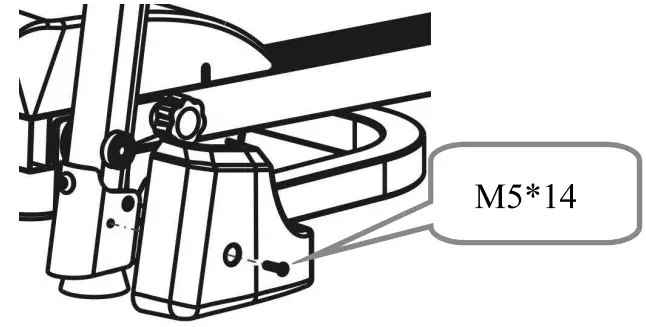

- Install the base corner covers on the base. M5*14 is pre-assembled on the frame. Unscrew it first, and then put the base cover in place, fix this part to the frame with M5* 14
- Put the safety key on the yellow circle of the console.
NOTE: Please confirm that all screws are locked uniformly according to the requirements after installation, and check no part is left out before plugging electricity.

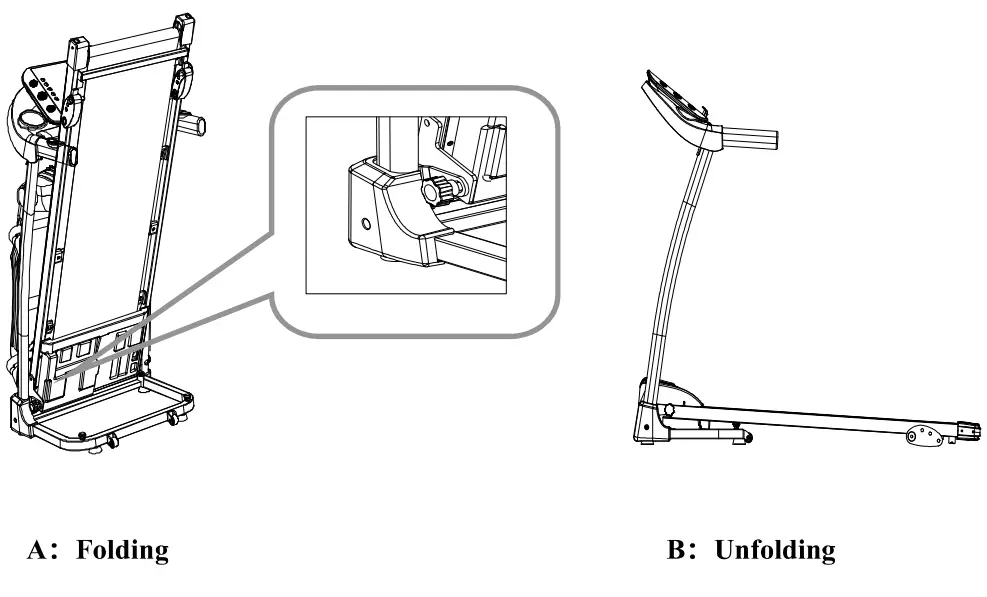

Folding: Before folding, turn off the power switch of the treadmill and unplug the power plug. Unscrew the knob (counterclockwise), use your hand to stabilize the treadmill, and slowly fold it up. After the holes are aligned, insert the knob and tight it clock wisely.
Unfolding: To lower the running deck, please hold the running deck while removing the plum knob. When the plum knob is fully removed, please lower the running deck slowly. Put the running deck on the floor, then install the plum knob back (Picture B). Please keep children away from the treadmill to avoid injuries.
Using Instructions
Using your treadmill

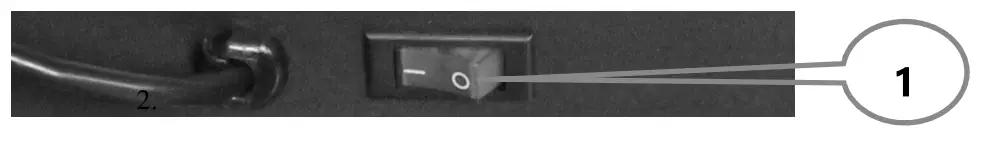

- Insert the power plug into a proper outlet and turn on the switch (in red color). When the light is on, you will hear a beep sound and the treadmill display will light up.
- Please keep the safety key away from children when the treadmill is not in use. Please put the silicon oil bottle in a place children cannot reach. If the silicon oil gets into the eyes or is ingested, please flush with running water and consult a doctor immediately.

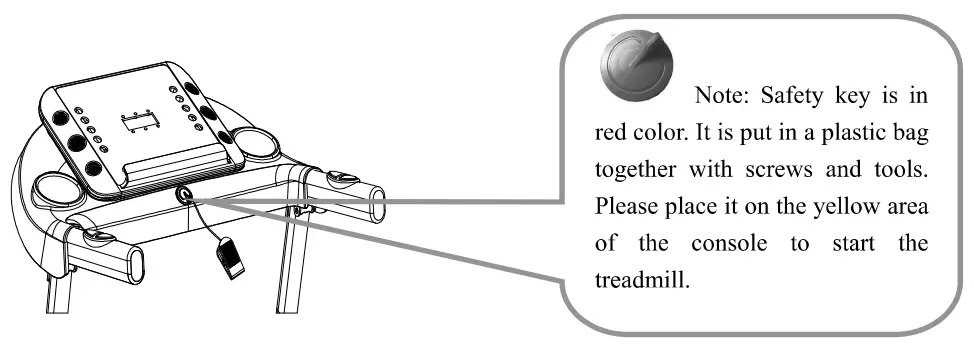

- Safety key Introduction
The treadmill can only start when the safety key is put on the yellow area
of the console. Clip the safety key on your clothes when using the treadmill to prevent accidents.
of the console. Clip the safety key on your clothes when using the treadmill to prevent accidents.Console Instructions
Button instructions
- Start-up
Normally start after 5 seconds of countdown. - Amount of programs
3 manual programs, 12 automatic programs. - Mode Key
In standby mode, press this key to cycle the options of 3 different countdowns running modes: time countdown running mode, distance countdown running mode, and calorie countdown running mode. - Speed + – Key
Use these keys to adjust the speed of the treadmill. Press speed + to increase the speed and press speed- to decrease the speed. - Speed Shortcut Key
When the treadmill is in a running state, press these keys to change the speed directly to 2/4/6 mile/h. - Voice + – key
Press volume+ to turn the volume up and press volume- to turn the volume down. If there’s no sound, please long press volume + and the volume will be turned on.
Display Function
- Speed Display
Display the current running speed value. - Time Display
Display the time of manual mode and the countdown time under automatic modes and programs. - Distance Display
Display cumulative distance under manual mode and programs. Display the distance countdown in automatic mode. - Calorie Display
Display cumulative calories under manual mode and programs. Display the calorie countdown in automatic mode. - Heart Rate Display
Heart rate signal will be detected, and the heart-shaped mark flashes while you place your hands on the heart rate monitor. This data is for reference only, it cannot be considered as medical data.
Treadmill Automatic programs
The treadmill has pre-set programs. Each program is divided into 10 segments while you are running. The time spent running during each segment throughout the duration of the program is evenly distributed. Users can adjust the overall duration of a segment by pressing the speed buttons.
| Time Program | Set time / 10 = home of each running segment | ||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | ||
| P 1 | SPEED | 3 | 3 | 6 | 5 | 5 | 4 | 4 | 4 | 4 | 3 |
| P2 | SPEED | 3 | 3 | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 4 |
| P3 | SPEED | 2 | 4 | 6 | 8 | 7 | 8 | 6 | 2 | 3 | 2 |
| P4 | SPEED | 3 | 3 | 5 | 6 | 7 | 6 | 5 | 4 | 3 | 3 |
| P5 | SPEED | 3 | 6 | 6 | 6 | 8 | 7 | 7 | 5 | 5 | 4 |
| P6 | SPEED | 2 | 6 | 5 | 4 | 8 | 7 | 5 | 3 | 3 | 2 |
| P7 | SPEED | 2 | 9 | 9 | 7 | 7 | 6 | 5 | 3 | 2 | 2 |
| P8 | SPEED | 2 | 4 | 4 | 4 | 5 | 6 | 8 | 8 | 6 | 2 |
| P9 | SPEED | 2 | 4 | 5 | 5 | 6 | 5 | 6 | 3 | 3 | 2 |
| P10 | SPEED | 2 | 5 | 7 | 5 | 8 | 6 | 5 | 2 | 4 | 3 |
| P I 1 | SPEED | 2 | 5 | 6 | 7 | 8 | 9 | 10 | 5 | 3 | 2 |
| P12 | SPEED | 2 | 3 | 5 | 6 | 8 | 6 | 9 | 6 | 5 | 3 |
TROUBLESHOOTING
| Error Code | Possible Causes | Solutions |
| E 1 | Communication Abnormal: When the power is on, the connection between lower controller and the console is abnormal. | Check the cable connection between the console and the control border to ensure that each core is fully plugged in. Replace the connection cable if it is damaged. |
| E2 | No detection of motor | 1. Check the motor cable to see whether it is connected well or not. If not, connect the motor wire again; 2. Check the motor cable, replace it if it is damaged or has a burnt smell. |
| E5 | Over Current Protection: While the treadmill is working, the lower controller detects the current to be over 6A for more than 3 seconds. | Overloading leads to excessive current, and the system stops out of self-protection, or some part is stuck, causing the motor to stop: 1. Adjust the treadmill and restart it. |
| E6 | Explosion-proof Protection: The abnormal voltage or motor causing the faulty circuit that drives the motor. | 1. Check if the power supply voltage is 50% lower than normal voltage, use the correct voltage and test the machine again 2. Check if the controller has a burnt smell and replace the controller; 3. Check if the motor cable is connected and connect the motor wire again. |
| E7 | No safety key | Put the safety key in the right place. |
Routine Maintenance
Warning: Before cleaning or maintaining products, please ensure the treadmill power plug is pulled out of the electric socket.
Cleaning: Thoroughly cleaning your treadmill will extend its useful life.
Remove dust periodically in order to keep the parts clean. Be sure to clean the running belt with both sides of the exposed portion, which will reduce the accumulation of impurities. Make sure to wear clean athletic shoes to avoid carrying the dirty matters into the running board and belt. Treadmill belts shall be cleaned by a damp cloth with soap. And please pay attention to avoid wetting the electrical components and running belt.
Warning: Ensure that the power plug is disconnected before removing the motor cover. Clean the motor at least once a year. Running Belt Lubricant This electric treadmill’s running board and the running belt have been lubricated in the factory. Friction between the running belt and running board has a great influence on the using life and the performance of the electric treadmill, therefore the regular application of lubricant is needed. We advise you to check the board regularly. If the board’s surface is damaged, please contact our customer service center. We advise using lubricant between running belt and running board with the following schedule: Lightweight user (use less than 3 hours a week) once per month; Heavyweight use (use more than 7 hours a week) once every half month.
- In order to better maintain your electric treadmill and extend the service life, it is recommended to turn off the machine and let it rest for 10 minutes after two hours of continuous usage.
- If the treadmill belt is too loose, there will be a skid phenomenon while running; if it’s too tight, it may reduce motor performance and harden the abrasion of the roller and the running belt. You can lift two sides of the running belt for 50-75mm when the tightness is appropriate.

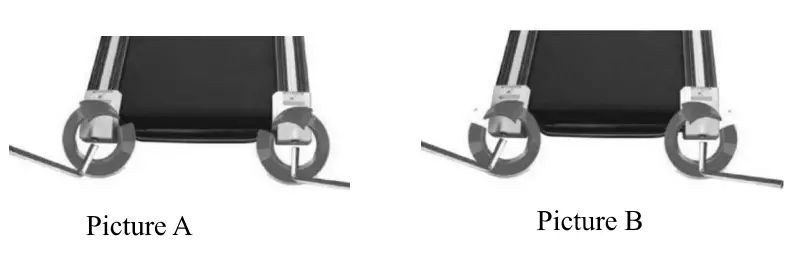

Running Belt Alignment
- Place the treadmill flat on the ground.
- Turn on the machine and let it run at about 3-4 miles/hour.
- If the running belt is closer to the right, rotate the right adjusting bolt with 1/2 turn clockwise, then rotate the left adjusting bolt with 1/2 turn counter-clockwise. (Picture A)
- If the running belt is closer to the left, rotate the left adjusting bolt with 1/2 turn clockwise, then rotate the right adjusting bolt with 1/2 turn counter-clockwise. (Picture B)

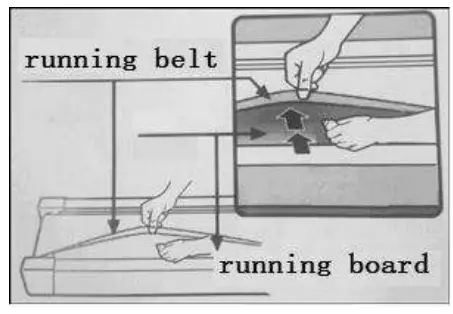

Applying the treadmill silicone oil
Step 1: Lift the treadmill belt slightly.
Step 2: Open the silicone oil bottle, squeeze the silicone oil on the side of the running board, as shown in the following picture:
