KingSmith Smart Foldable Treadmill User Manual
Before using this product, please read this User Manual carefully, and keep it well.

Model No. : TRF0FB

WARNING

1. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Correct Disposal of this product This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
   This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
   WARNING: keep young children away from this machine at all times. Contact with the moving surface may result in severe friction burns

Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

FCC& IC Radiation Exposure Statement:

This equipment complies with FCC and Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Welcome to use

Thank you for selecting the 2 IN 1 TREADMILL, hereinafter referred to as the Treadmill. It has an ingenious, simple, and innovative overall design so that you can enjoy the quality of life of healthy sports at home.

Products and Accessories

Please check carefully whether or not the treadmill is complete and intact. If there are any losses or damage, please contact the seller.

Main Product

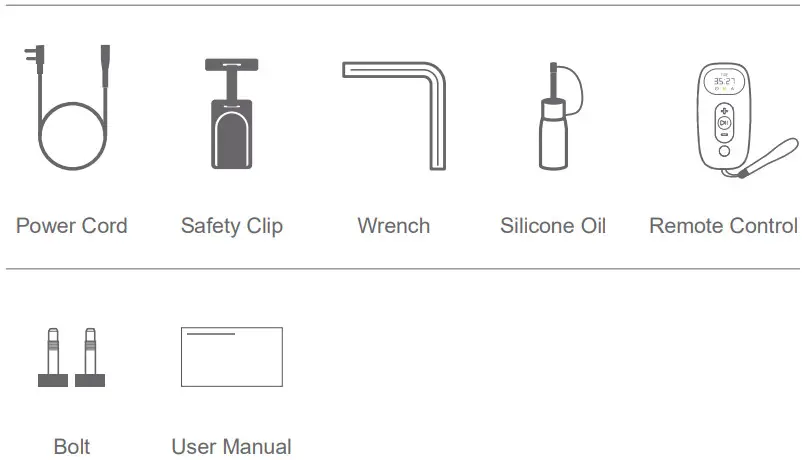

Accessories

Structural Plan

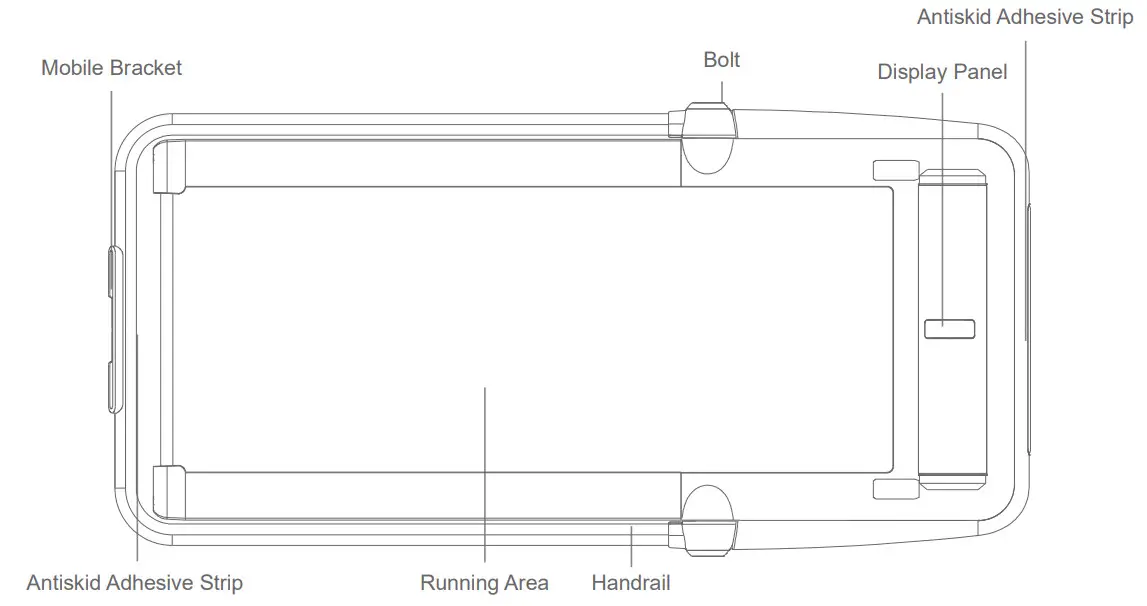

1. Front Side
2. Back Side

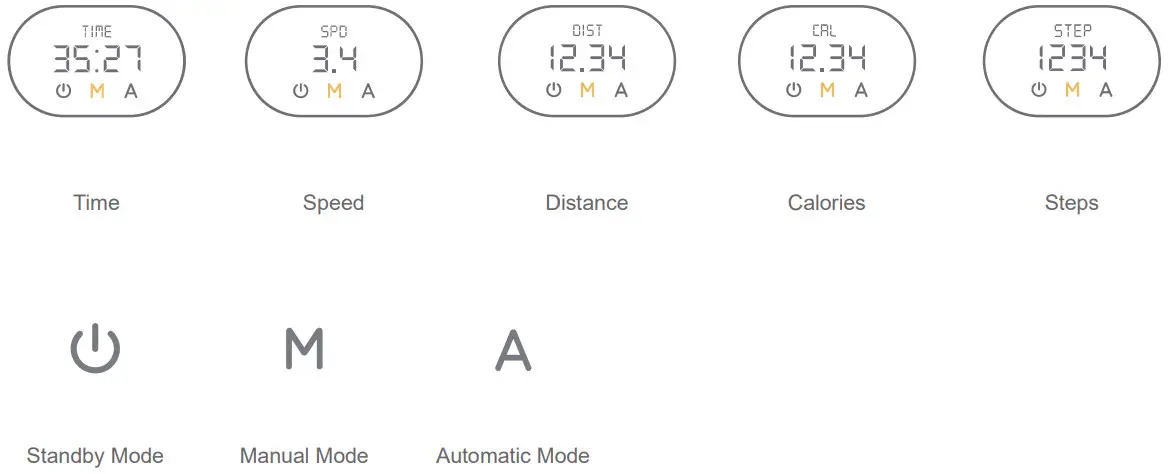

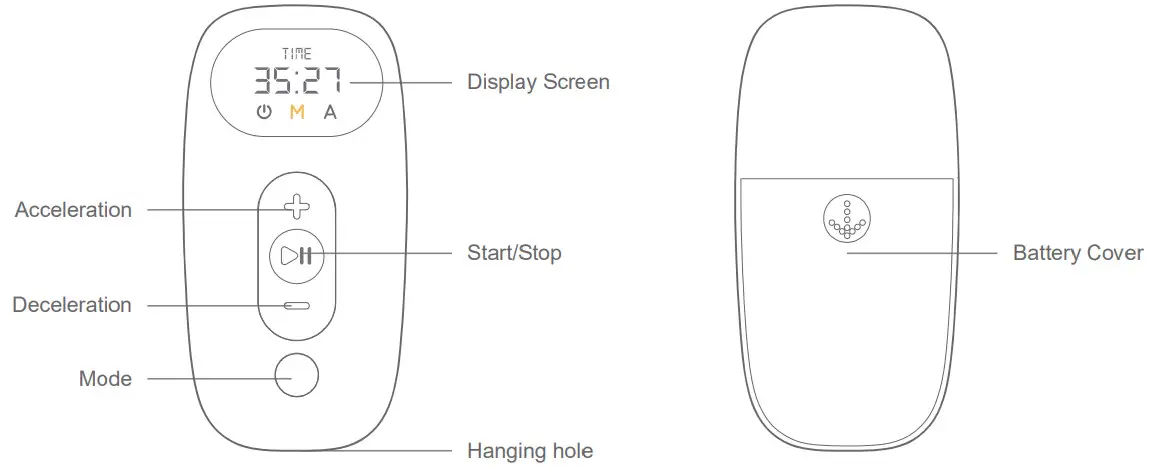

3. Remote Control

Novice Guide

Start to use this product for exercise according to your physical conditions, and do the exercise properly and regularly so as to ensure you have sufficient physical strength. The wrong or excessive exercise will not be conducive to your health.

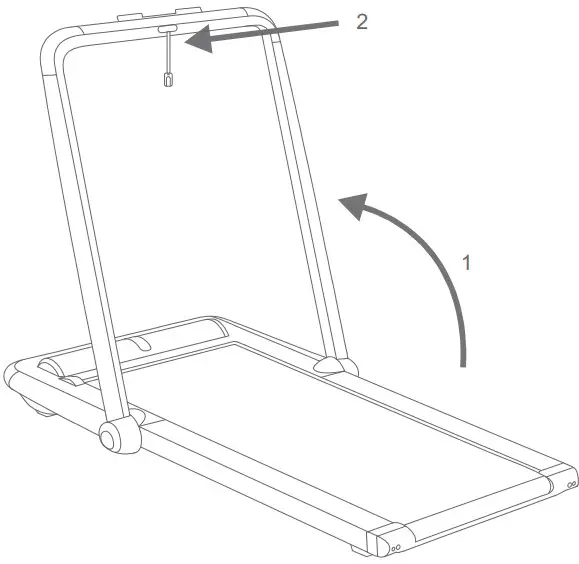

1. Lift up the handrail.
2. Take out the safety lock from the accessories box, and insert it into the safety lock seat in the middle of the handrail.
3. Take out the Bolts from the accessory box, insert them into the hole of the handrail shaft, and rotate clockwise to lock the handrails on both sides.
4. Connect the power cord, and turn on the switch.
5. Download APP “KS Fit” and complete the installation. If you would like to use the remote control directly, you can choose to skip Steps 5 and 6.


   https://www.kingsmith.com.cn/app.php

6. Open the APP and complete the registration. Connect the APP with the equipment step by step.

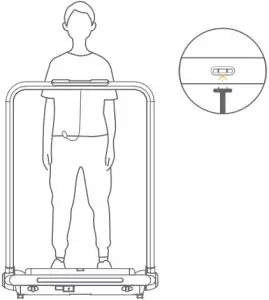

7. Insert the safe key into the safety socket and clip the other end to your clothes.
8. When pulling down the handrail, the user can start the treadmill without inserting it in the safety lock. Speed automatically will adjust to 0.8-6km/h, which is suitable for walking.
9. When lifting up the handrail, the user can start the treadmill only after inserting it in the safety lock. Speed automatically adjusts to 0.8-12km/h, which is suitable for running.

Learn to Use the Treadmill

1. Mode Introduction

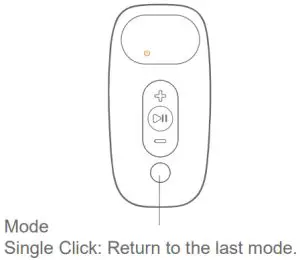

   	Standby Mode When the light is on, the electric motor and sensor stop functioning.
   	Manual Mode When the light is on, control the speed by the remote control or APP.
   	Automatic Mode Light of the automatic mode is on; Speed is controlled automatically by an intelligent algorithm. It follows the speed of walking.

2. Standby Mode

   Standby Mode
   In this mode, the treadmill stops functioning to prevent the non-users from triggering the Treadmill.
3. Introduction to the control of the fixed speed mode (beginner mode)

   Manual Control

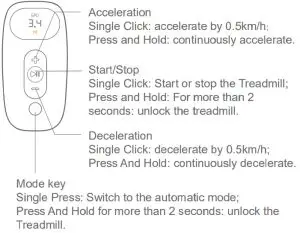

   Control the speed by using the remote control. We suggest beginners walk under this mode firstly, only start walking under automatic mode after proficiently using the Treadmill. In this mode, if the user leaves the Treadmill for more than 15 seconds, the Treadmill will stop automatically!
   • Lift up the handrail, maximum speed is 12km/h, which is suitable for running. Users can only use the machine after inserting the safety key in the safety lock.
   • Pull down the handrail, maximum speed is 6km/h, which is suitable for walking. Users can use the treadmill without inserting a safety key in the safety lock.
   • If the user stops using the treadmill for more than 10 minutes, it will be in Standby Mode automatically.

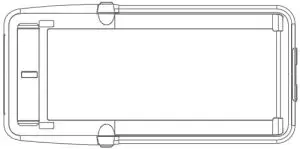

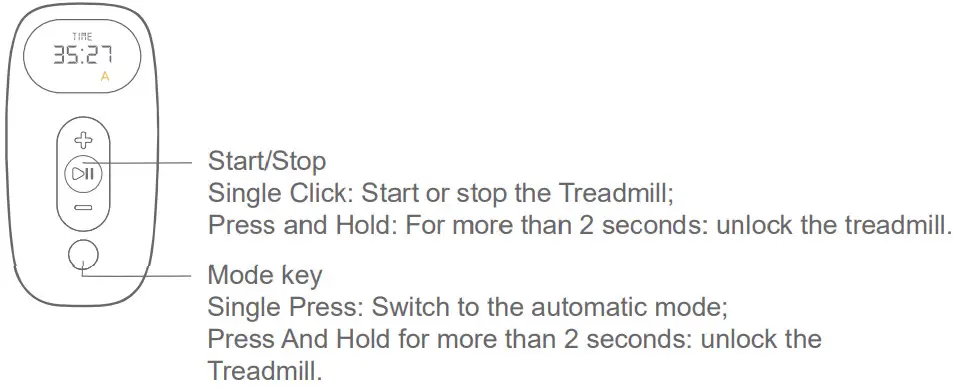

   When the machine stops, the user can lock the machine by pressing & holding the mode button for more than 2 seconds.
   To restart the treadmill, press and hold the Start or Mode button for more than 2 seconds for unlocking.
4. Automatic Mode (advanced mode)

   Automatic Mode

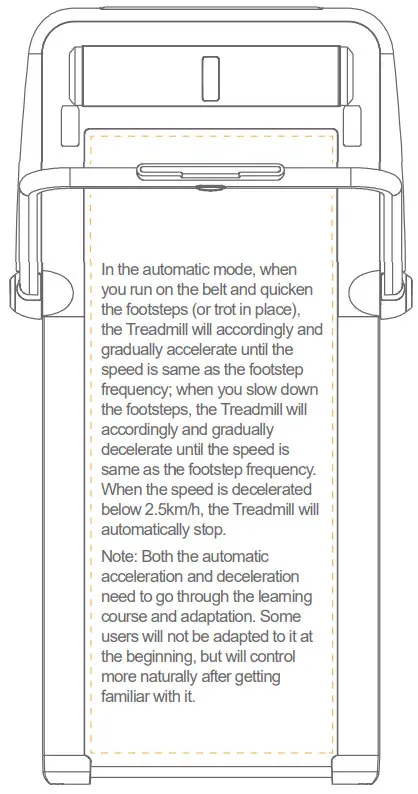

   This mode is the advanced mode with higher difficulty. After starting, the user can control the speed completely without the remote control. We only recommend those who have good sports skills or running experience to take the challenge.
   Lifting up Handrail, Maximum speed is 9km/h, which is suitable for running Pulling down the handrail, maximum speed is 6km/h, which is suitable for walking.
5. Remote Control Notice
   If the remote control has no response or you change the remote control, you need to pair it again.
   Pairing mode:
   Restart the power, press, and hold mode key on the remote control for 5 seconds, don’t release until you hear the “click–” sound, which indicates pairing is successful.

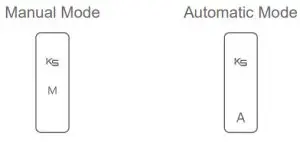

6. Introduction to the status displayKS symbol flashing: APP not connected.
   KS symbol normally on: APP connected.
7. Error Warning Light
   Error Warning Light on the display panel is off when “Walkingpad” works well. When an error occurs, Error Warning Light turns on and shows its error code.

   E01: Software overcurrent. E02: Hardware overcurrent. E03: IPM module overheat. E04: Undervoltage protection. E05: Overvoltage protection. E06: Motor phase loss protection.

   E01: Software overcurrent. E02: Hardware overcurrent. E03: IPM module overheat. E04: Undervoltage protection. E05: Overvoltage protection. E06: Motor phase loss protection.

8. Networking and firmware upgrading
   OTA firmware upgrading: in the “KS Fit APP” you may receive the updating prompt. Please view the updating introduction, and operate on your mobile phone according to the prompt to automatically complete the firmware upgrading.

Warm-up Exercises

The warm muscles can be stretched more easily and prevent sports injury, so you can warm up for 5~10 minutes before having sports. We recommend you to do the stretching exercises according to the following methods and repeat them after completing the sports.

1. Stretch downward: Bend your knees slightly, bend your body forward slowly, relax your back and shoulder, your hands touch your toes as much as possible, keep this gesture for 10~15 seconds, then relax. Repeat this process 3 times.
2. Stretch your hamstrings: Sit on the clean cushion, straighten one leg, and recover the other leg inward so as to make it cling to the inner side of the straightened leg. Your hands touch your toes as much as possible, keep this gesture for 10~15 seconds, then relax. Repeat this process on each leg 3 times.
3. Stretch your calves and foot tendons: Stand with hands on the wall, put one foot backward, keep the hind leg upright and the heel on the ground, lean to the wall directly, keep this gesture for 10~15 seconds, then relax. Repeat this process on each leg 3 times.
4. Stretch your quadriceps muscles: Put the left hand on the wall or table to balance yourself, extend your right hand backward, catch the right heel and pull it to your buttock slowly until you feel the front muscles of the thighs are tense, keep this gesture for 10~15 seconds, then relax. Repeat this process on each leg 3 times.
5. Stretch your sartorius muscles (muscles at inner thighs): Sit down with the soles opposite one to the other and the knees being outward. Use your hands to catch the feet and pull to the groin direction, keep this gesture for 10~15 seconds, then relax. Repeat this process 3 times.
   *If there is any abnormal condition during the course of using the Treadmill, you may put your hands on the handrail and do pull-ups with feet leaving the Treadmill belt, then jump outside the Treadmill.

Safety Instructions

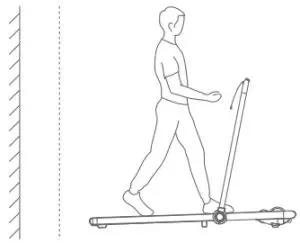

Keep the 2000mm×1000mm safety area between the Treadmill and the rear space.	You must wear sports shoes.	When using it, please clip the clamp of the safety lock on your clothes (in case of unexpected conditions, you may pull off the safety lock and suspend the running of the electric motor immediately).

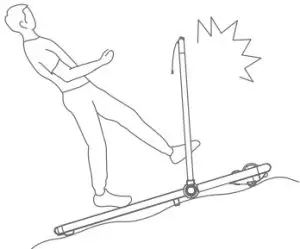

Keep the distance between the Treadmill and the space of both sides to be more than 500mm.	It is forbidden to put the Treadmill on uneven ground.	When the Treadmill is in idle status, please unplug the power cord to avoid uncontrolled use by the third party.
It is strictly forbidden to use the Treadmill with pets.	It is strictly forbidden to walk backward.	It is strictly forbidden to walk sideways.

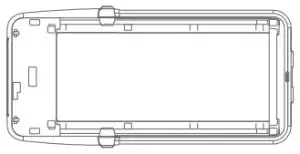

Prohibition of lateral placement.	It is strictly forbidden to have more than one person use the Treadmill simultaneously.	It is strictly forbidden to fold the Treadmill during the course of doing sports.

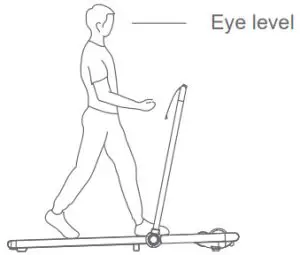

Keep the eyesight horizontal to avoid visual dizziness.	The elderly and the pregnant should use the Treadmill discreetly.	The juveniles should be accompanied and guided by the adult when using the Treadmill.
In order to prevent being caught in,  please do not tread on the Treadmill.	It is strictly forbidden to put the hands on both sides of the handrail when folded up so as to avoid hand pinching.

Maintenance

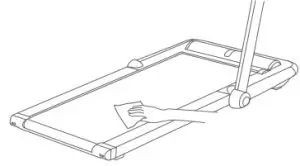

1. Cleaning• Turn off the machine and unplug the power cord.
   • Add several drops of detergent to a cotton rag or towel. Don’t pour the detergent on the belt directly, and don’t use acid or corrosive cleaners.
   • Wipe off dust and stains on the frame, front panel, and belt. Do not wipe the backside of the belt.
   • After using for a period, dust and stains may appear on the back part, which is a normal situation, and just clean them up.

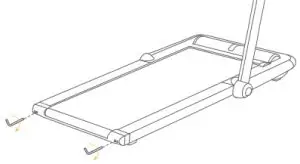

2. The Treadmill belt slipping and calibrating• If the belt deviates to the left: rotate the left adjustment screw clockwise for1/4 the circle.
   • If the belt deviates to the right: rotate the right adjustment screw clockwise for1/4 the circle.
   • The Treadmill belt slipping: simultaneously rotate the left and right adjustment screws together clockwise for half circle.
   • Keep the machine running for 1-2 minutes and check whether it needs to readjust.

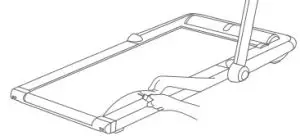

3. The Treadmill band lubricating• Shut down and unplug the Treadmill power cord.
   • Raise the Treadmill band edge and apply the silicone oil on the inner surface.
   • Reconnect the Treadmill power.
   • Let the Treadmill belt run for 10-20 seconds at the speed of 4km/h for use.
   • One lubricating operation needs 5-10 ml silicone oil. Excessive applying will cause the slipping phenomenon and affect normal use.
   • Add the silicone oil once every three months.

Declaration on the Harmful Substances

Component name	Harmful substances
	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent Chromium (Cr(VI)	Polybrominated biphenyl (PBB)	Polybrominated diphenyl ether (PBDE)
Electronic devices	×
Metal parts
Casing
Battery
Other components
This table is prepared in accordance with the provisions of the SJ/T 11364. : indicating the content of this harmful substance in all the homogeneous materials of this component is below the limit requirements stipulated by the GB /T 26572. ×: indicating the content of this harmful substance in some homogeneous material of this component exceeds the limit requirements stipulated by the GB /T 26572.

Trademark and Legal Declaration

When printing, this Manual has contained various function introduction and use instructions as possible. However, because of continuous improvement of product functions, design changes, etc., there will still have some inconsistencies with the product you purchased. Due to the product updating, this Manual will possibly have a deviation from the actual product in aspects such as color, appearance, etc. The actual product shall prevail.
Product implementation standards:
GB17498.1-2008
GB17498.6-2008

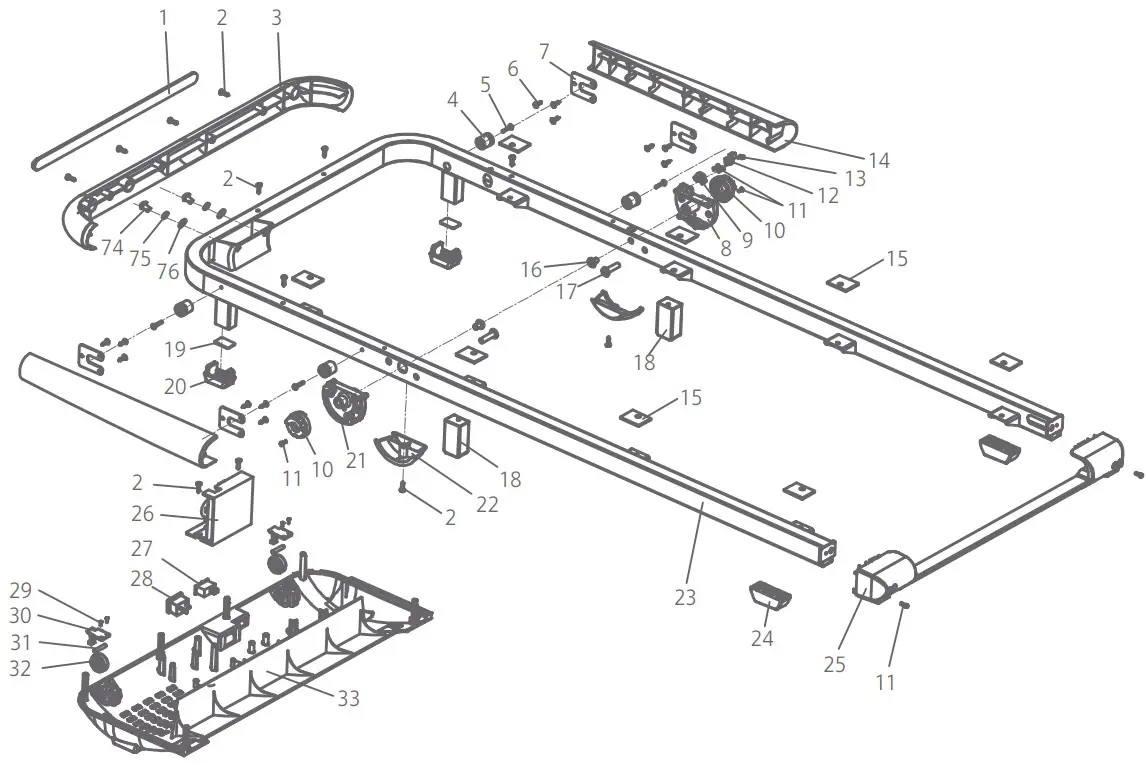

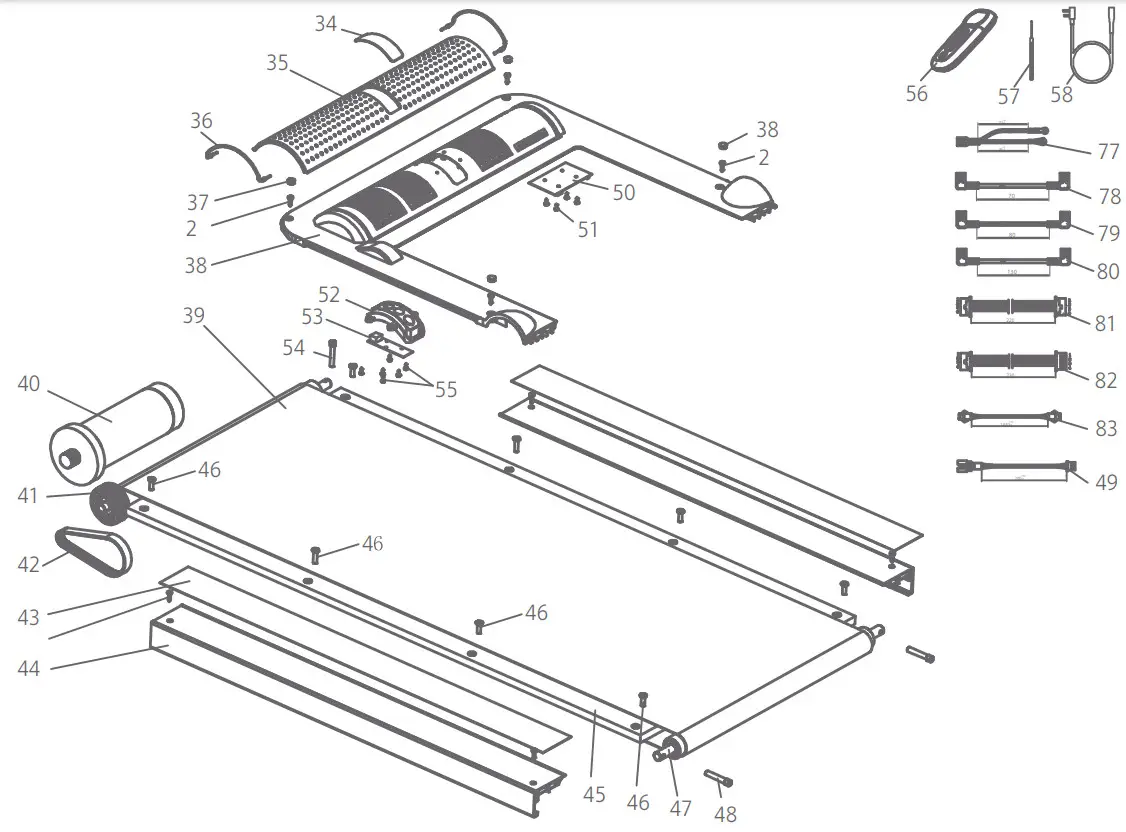

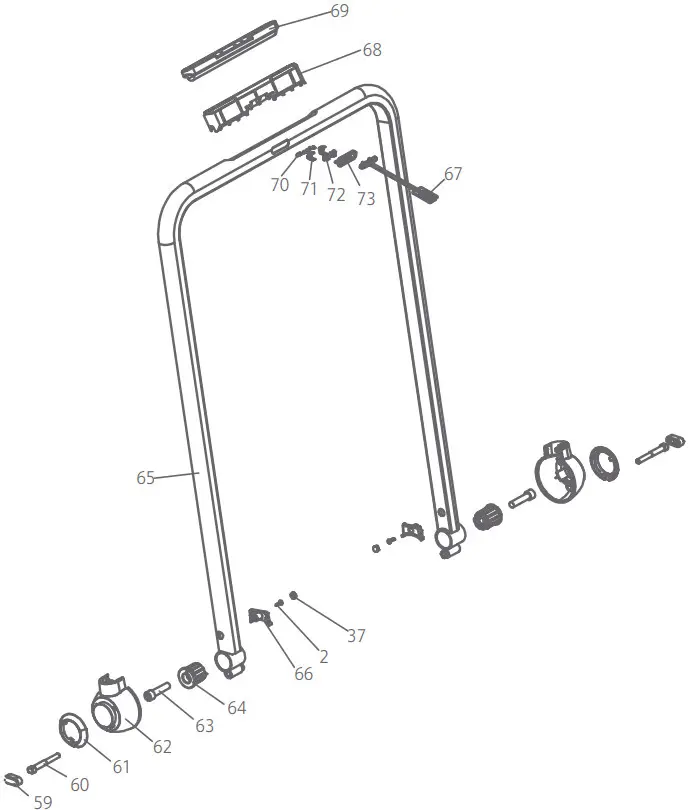

Exploded Drawing

Part List

Manufacturer/Importer: Beijing Kingsmith Technology Co., Ltd.
Address Floor 4, Building 25, Area 18, ABP Park, Fengtai, Beijing, China.
MADE IN CHINA
