B06TX Long Range Wireless Audio Transmitter
User Manual
In the box
In the box

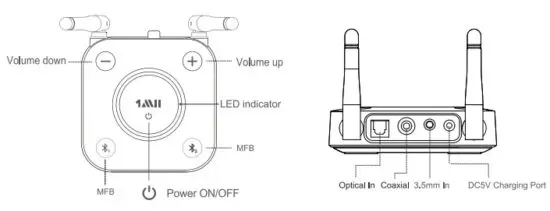

Product Overview
Product Overview
| Button/Function | Operation |
 Power ON/OFF | Press and hold 1 second to power ON/OFF |
 Pairing | Short press to pair the first Bluetooth device |
 Pairing | Short press to pair the second Bluetooth device |
 Volume up | Short press to volume up |
 Vdurne down | Short press to volume down |
| Restored factory default settings | Press and hold and 5 seconds |
| Switched to HD mode | Double dick to switch to HD mode |

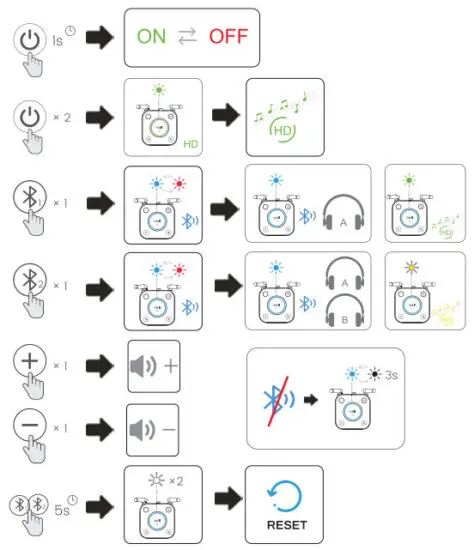

Control Functions
Control Functions

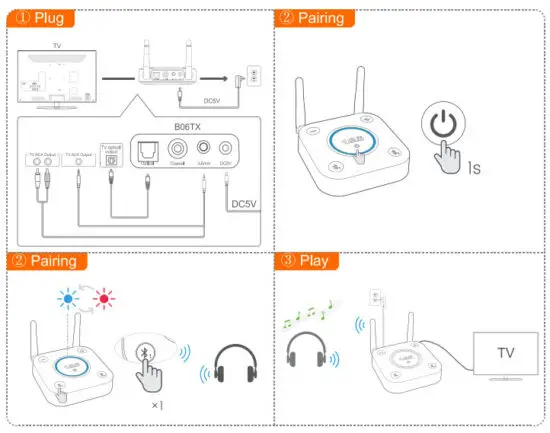

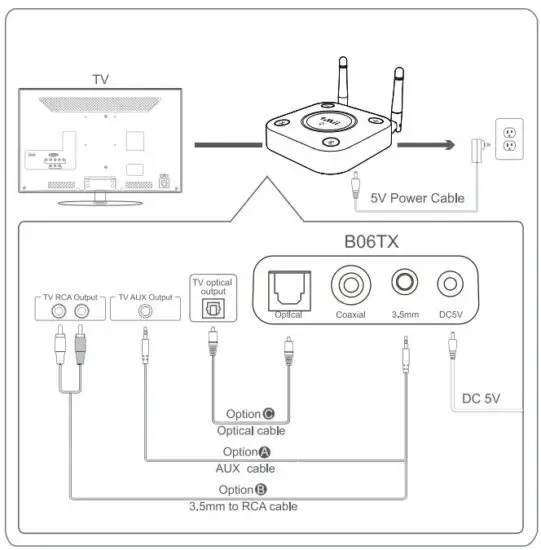

Step I) Connect the audio source (TV. DVD., etc.) to the 806TX ‘AUX / Optical” included Audio cable port (optical or AUX/RCA).
Step 2) Connect BO6TX to a power source (TV, PC USB socket, or power adapter) and USB cable.
Step 3) Press the button to turn on the power.
Step 4) Pairing-Pair the 1306TX with a Bluetooth-enabled headset/speaker.
- Set BO6TX to pairing mode, and the LED flashes blue/red alternately and rapidly.
– First use: BO6TX will automatically enter pairing mode (with clear memory). After that: Short press the
button to enter the pairing mode. - Refer to the user manual of the headset to set it to pairing mode.
- Wait until connected (for quick pairing, ifs best to put them 1 meter during pairing)
Step 5) Pair and connect two devices at the same time
- Follow the previous instructions to pair with the first device in the Installation Diagram” section.
- Pair with the second device
- Set the second headset/speaker to pairing mode.
- Short press the
button to set BO6TX to pairing mode again, the LED will flash blue and red. - Wait until connected.
Note: In order to improve compatibility and sound quality, it is recommended that you use a CSR chipset Bluetooth device.

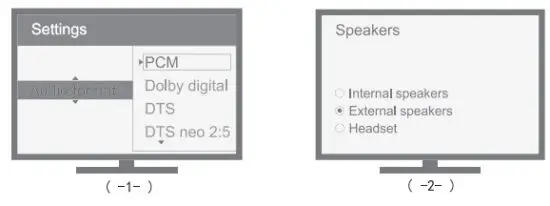

- Set your TV Audio format to ‘PCM'(IMPORTANT)
- Set your TV speaker to ‘External speaker
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by 1Mii Ltd. is under license. Other trademarks and trade names are those of their respective owners.
FCC:
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference. Changes or modifications not expressly approved by 1Mii Ltd. will void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an electrical outlet on a different circuit to that which the receiver is connected.
- Consult the manufacturer or an experienced radio/TV technician for help.
This product, like other radio devices, emits radiofrequency electromagnetic energy and operates within the guidelines found in radio frequency safety standards and recommendations. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.
CE
1Mii Ltd. hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.lmii.com
In accordance with Article 10(2) and Article 10(10), this product is allowed to be used in all EU member states.
1Mii Limited
Baoan District Shenzhen 518100 China
EU Importer:
eVatmaster Consulting GmbH
Bettina. 30,60325 Frankfurt am Main, Germany
Warranty
service is limited to normal use. Any man-made damages such as from connecting to an unsuitable power source, using an unsuitable device, or not following the instructions, as well as damages that did not occur during shipping, repairs, and adjustments not approved by the company, damages from misuse, inattention, or improper installation may cause the warranty to be ineffective immediately. This warranty does not include shipping fees.
Disposal
Always disposes of the used appliance at a recycling center. Do not dispose of the used appliance together with household waste.
eVatmaster Consulting GmbH
Bettina. 30
60325 Frankfurt am Main, Germany
[email protected]
Scan the code to get more information.
https://1mii.com/download-2/
Manufacturer: Shenzhen Ankit Electronics Limited Address: Runfeng Industrial Park, No. 4197 Baoan Blvd., Xixiang St., Baoan Dist., Shenzhen, China Operator: ShenZhen 1Mii Technologies Limited Address: Qianhai Complex A201, Qianwan Road 1, Qianhai Shenzhen-Hong Kong Cooperation Zone, Shenzhen, China We hope you never have the need, but if you do, our service is friendly and hassle-free.
