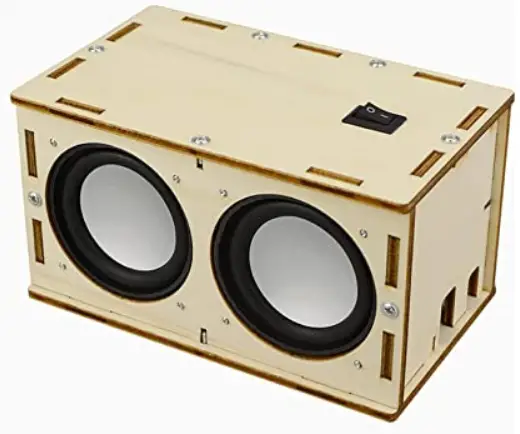

CYOEST100 DIY Bluetooth Speaker Box Kit Instruction

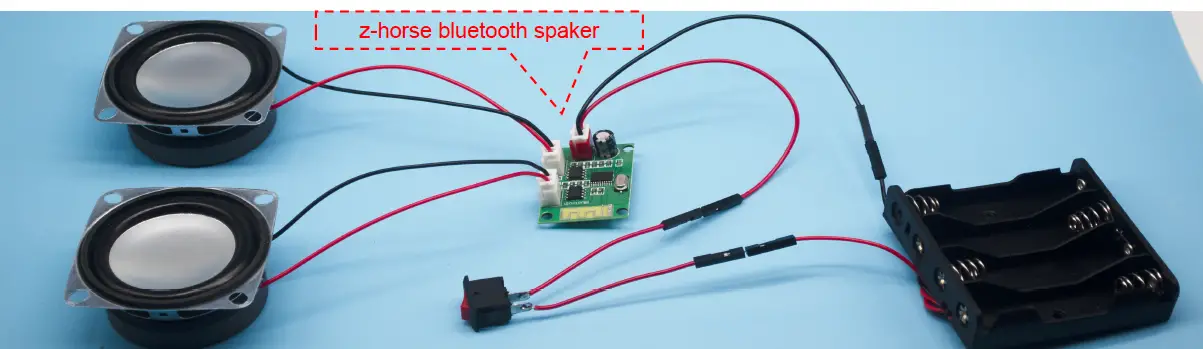

KEY POINT: Make sure you know how the circuit is connected before starting the installation

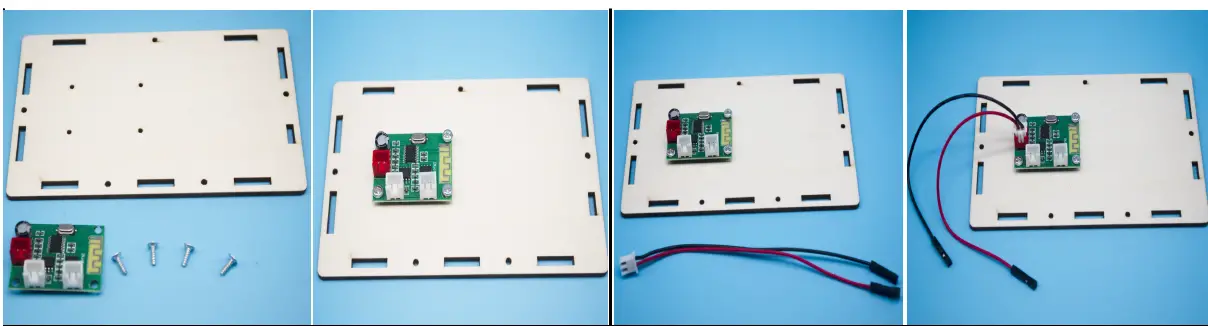

step1:Install the board with four 6MM(long) screws
step2:Insert the wire into the red terminal of the panel

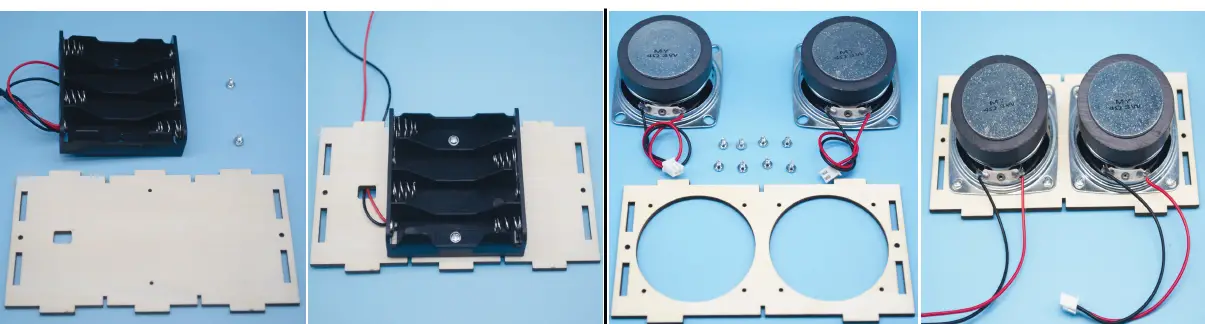

step3:Install the battery pack with two 4MM(short) screws
step4:Install the speakers with 4MM(short) screws
step5:Pay attention to the position of the red circle
step6:Install as Picture

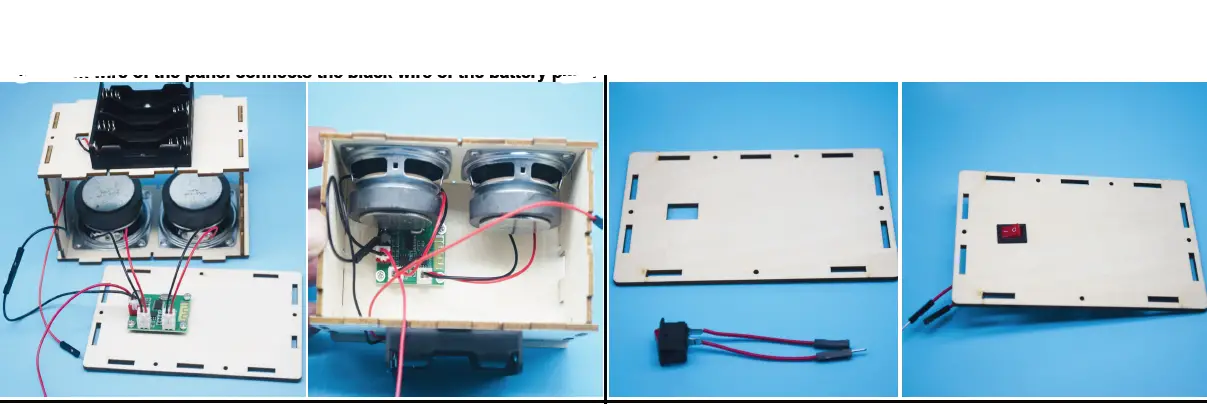

step7:The wires of speakers are plugged into the white terminals. The black wire of the panel connects the black wire of the battery pack.
step8:Install as Picture
step9:The remaining two wires are connected to the switch.

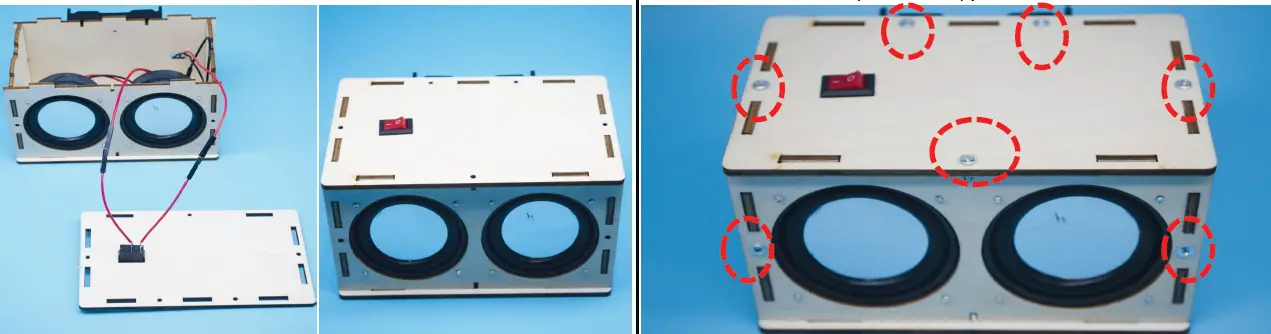

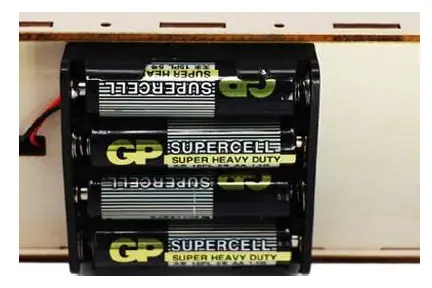

step10:Install 6MM screws in all small round holes. Install 4 batteries (not included),push the switch to ON.finished!

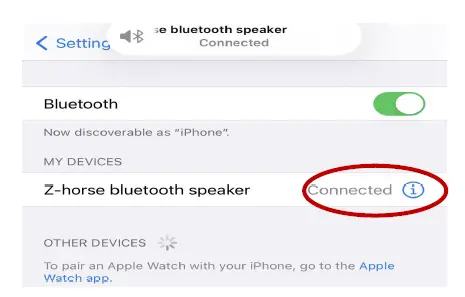

BLUETOOTH CONNECTION
- Install the batteries

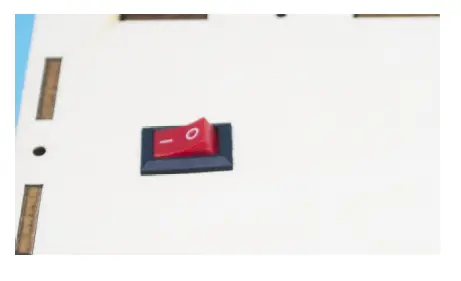

- push switch to “on”

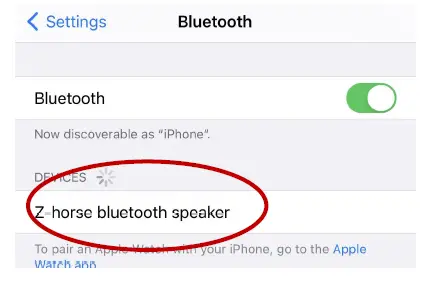

- find “Z-horse Bluetooth speaker”
- connected
