Siren Marine Sm-acc-infr Infrared Motion Sensor Instructions

Instructions

SM-ACC-INFR Infrared Motion Sensor

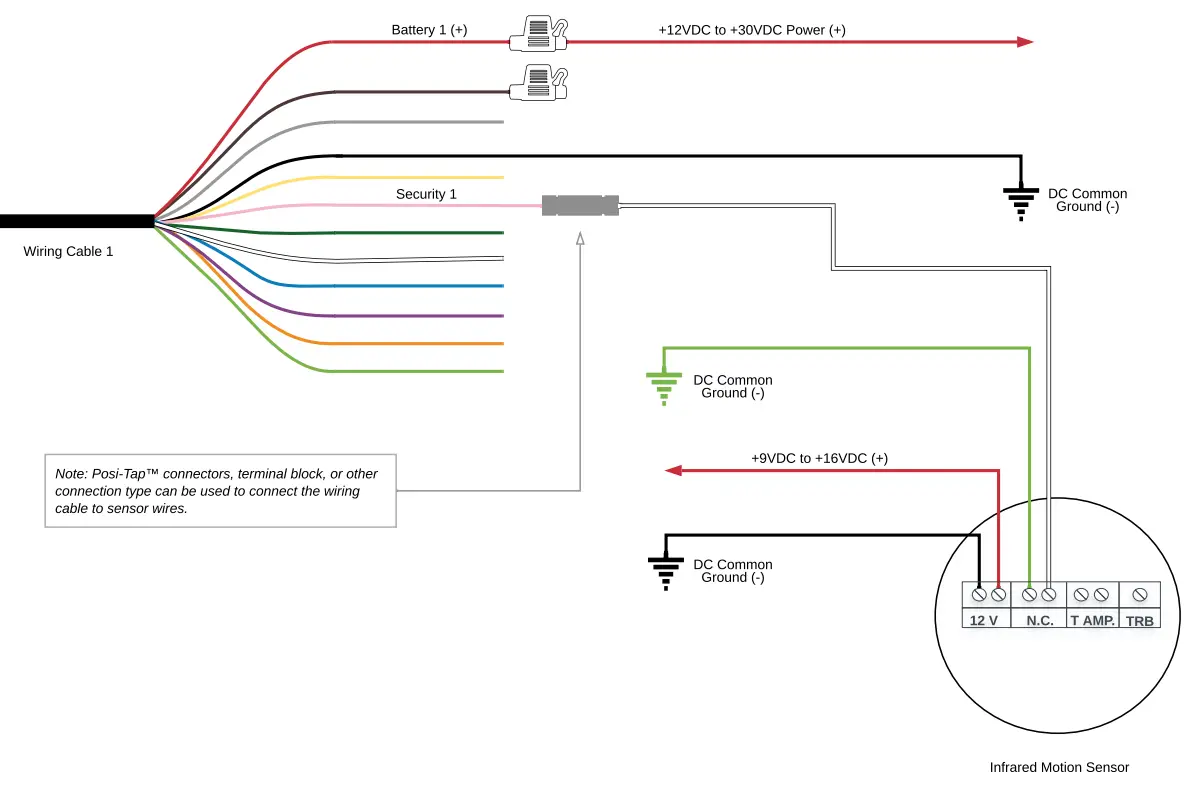

Infrared Motion Sensor Wiring Diagram (12 VDC System Only)

Installation Instructions:

1. Connect white sensor wire to Security 1 (pink) on the wiring cable.
2. Connect green sensor wire to DC common ground.
3. Connect black sensor wire to DC common ground.
4. Connect red sensor wire to +9VDC to +16VDC power source.
   (DO NOT EXCEED +16V DC).

Product SKU: SM-ACC-INFO
