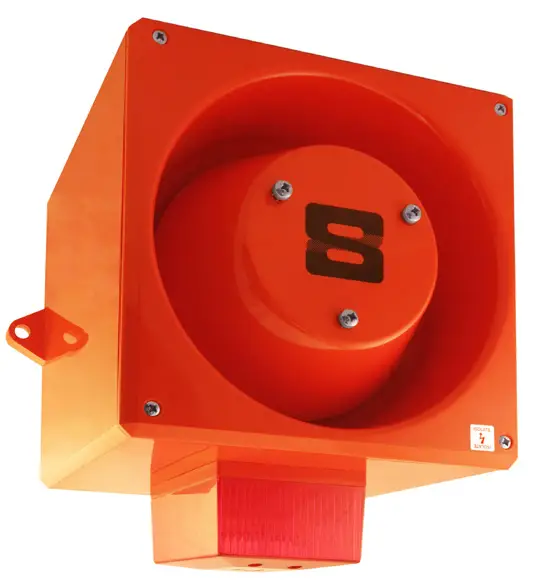

C S YO8 Super Yodalarm & Yodalight Series

C-S-YO8-Super-Yodalarm-&-Yodalight-Series-product

Installation

  • Installation must be carried out in accordance with the latest codes of practice by a qualified electrician.
  • Check that the power supply is correct for the voltage rating of the alarm to be installed.
  • Ensure that the power supply is disconnected prior to installation or maintenance to avoid electrical shock.
  • The unit should be mounted to a wall or bulkhead formed of suitable material using the two mounting lugs projecting from the side of the enclosure.
  • The lugs have a 10mm diameter mounting hole & sit on 250mm centers. The minimum recommended length of fixing screw is 30mm (not supplied).
  • Avoid mounting the alarm where it could be subject to excessive vibration levels.

Ingress Protection

To maintain the IP rating of the product, the below points must be observed.

  • An IP66 cable gland is supplied with the product. This gland (or other suitably rated) must be used.
  • When replacing the front cover, each of the four retaining screws must be torqued to 0.6Nm ±0.1Nm

Sound selection

  • Ensure the supply is OFF before proceeding.
  • All DC and AC units have selectable alarm sounds (see table on the back of the installation sheet for details) and are selectable via switch SW1.

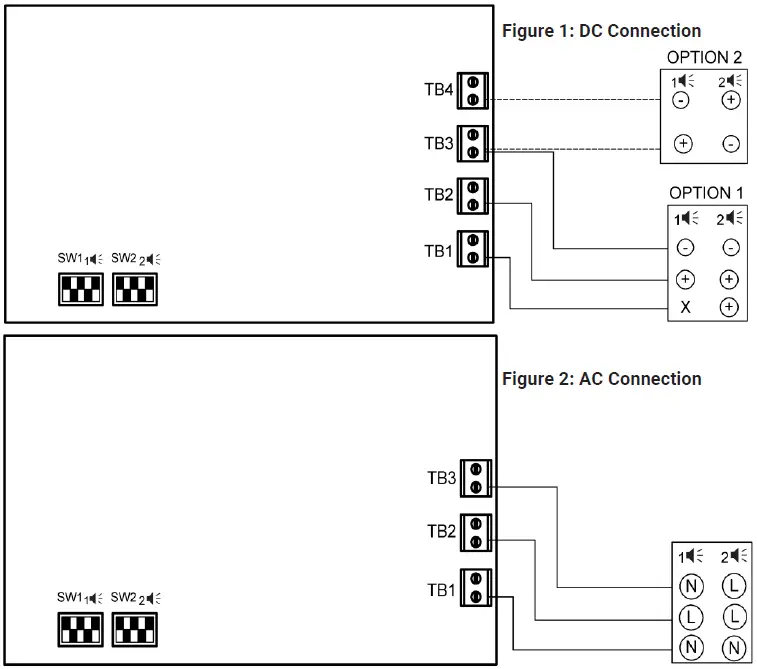

  • A second stage tone is made available via a third wire connected to terminal TB1/3 as shown in Fig. 1.
  • Alternatively, for DC units only, the 1st and 2nd stage sound signals can be generated by supply reversal see Figure 1, Option 2.
  • Manually selectable second-stage tones are available for YO8 units by using switch SW2.

Line integrity on DC systems

  • For 3 wire 2-stage alarm system, monitor via reverse polarity.
  • For 2 wire 2 stage alarm system, monitor via threshold, (applied voltage<1v) an end-of-line (E.O.L) resistor is required for line monitoring and should have a minimum resistance of 3k3 ohms and 0.5watts, wire-wound or metal film type.

AC Systems

  • As with the DC units, the AC units have a selectable tone via the SW1 DIP switch, see Figure 2.
  • A second stage can be activated by applying an additional “N” connection to the TB3 terminal on the PCB, as shown in Figure 2.

Additional Voltage Options

  • The Clifford and Snell YO8 Super series is also available in a 48vDC (F).
  • The wiring for this voltage is the same as for the 24vDC units shown in Figure 1.
  • Always confirm correct voltage is applied to relevant terminals.C-S-YO8-Super-Yodalarm-&-Yodalight-Series-fig-1

YO8 Super Yodalarm/Yodalight Series

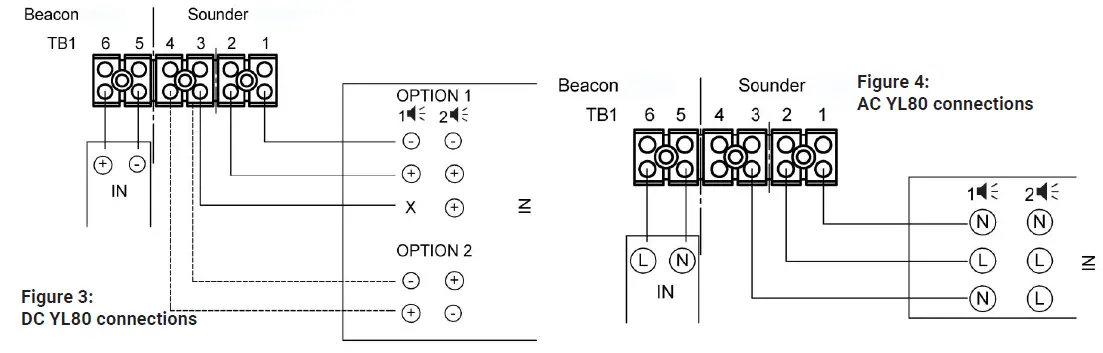

Consists of either the YA80 Super (Audible Unit only) or the YL80 Super (Combined Audible & Visual unit) Connections for the YL80 Super units are made via a 6-way Terminal Block mounted in the base of the unit as shown in Figure 3 (DC) & Figure 4 (AC) diagrams below. Using the connections shown, it is possible to independently control both Sounder and Beacon sections.C-S-YO8-Super-Yodalarm-&-Yodalight-Series-fig-2

Features Include

  • Termination: Upto 2.5mm2 cable
  • Operating Temperature: Standard Variants -25oC to +70oC EN54-3 Appr oved -25oC to +55oC
  • Enclosure Material: Fire Resistant & UV Stable UL94-5VB rated ABS
  • Lens Material: Fire Resistant & UV Stable Polycarbonate
  • Ingress Protection: Weatherproof to IP66
  • Sound Pressure Level: 120dB(A) Max.
  • Volume Control Adjustment: -18dB
  • AC Supply: 50/60 Hz

Tone Table

FrequencyRept.

Second

SwitchesdB(A)
ToneDescription(Hz)rateStage12345Special Application@ 1m

(± 3dB)

1*Alternating800-10000.53IIIIIFire Alarms116
2Alternating2500-31000.54OIIIISecurity Alarms111
3Alternating (fast)800-10000.257IOIIIIncreased urgency117
4Alternating (fast)2500-31000.258OOIIISecurity deterrent111
5*Alternating440-5540.4/0.114IIOIIAFNOR, France (NFS 32001)109
6Alternating430-470114OIOII109
7Alternating (v.fast)800-10000.1312IOOII118
8Alternating (v.fast)2500-32000.0713OOOII111
9Alternating440-554210IIIOITurn-out, Sweden111
10Continuous note7001OIIOIAll-clear, Sweden112
11*Continuous note100031IOIOI118
12Continuous note10007OOIOI118
13Continuous note23002IIOOI113
14Continuous note4409OIOOI107
15*Interrupted tone1000231IOOOI118
16*Interrupted tone4201.2530OOOOIAS2220, Australia108
17Interrupted tone10000.51IIIIO117
18Interrupted tone25000.254OIIIO113
19Interrupted tone25000.52IOIIO113
20Interrupted tone7006/1210OOIIOPre-vital mess, Sweden115
21Interrupted tone1000132IIOIO118
22Interrupted tone700410OIOIOAir-raid, Sweden115
23Interrupted tone7000.2510IOOIOLocal warning, Sweden115
24Interrupted tone7200.7/0.310OOOIOIndustrial alarm, Germany115
25Int,fast,rising volume14000.2526IIIOO114
26Fast siren250-12000.08511OIIOO116
27Rising constant, fall100010/40/1017IOIOOIndustrial alarm, Germany120
28*ISO 8201 Evacuation800-1000as std11OOIOOInt’l evacuation alarm118
29Fast whoop500-10000.1532IIOOO116
30*Slow whoop500-12004.512OIOOOEvacuation, The Netherlands120
31*Reverse sweep1200-500111IOOOOEvacuation, Germany118
32Siren500-1200326OOOOO118

Note: EN54-3 Compatible Tones are marked above.

Moflash Signalling Limited accepts no liability for any consequences following the use of this document. Any technical specifications and products referred to within this document are subject to change without notice due to continual improvement and product development policies. All dB(A) figures are subject to environmental conditions. The units are sold under Moflash standard conditions of sale, available on request. Additional resources, including installation sheet translations, certificates, and DoCs are available from the www.moflash.co.uk website.

Moflash Signalling Limited, 11 Upper Conybere Street, Highgate, Birmingham, B12 0EB, UK. [email protected].
