INSTALLATION GUIDE FOR
SYA536BN and SYA536MBK

Released Date: 2022-01-26

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

TOOLS REQUIRED

CARE AND MAINTENANCE

• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.

If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

PACKAGE CONTENTS


A Ceiling Canopy x 1       B 12″L Rod x 4

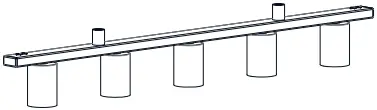

C 6″L Rod x4                  D Socket Assembly x 1

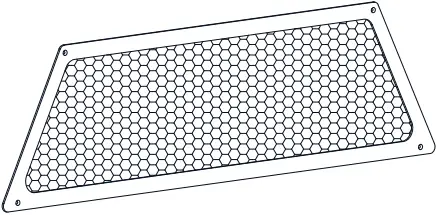

E Shade Panel x2

F Tube with Tab x2                G Tube x2

MOUNTING HARDWARE


AA  Crossbar Assembly x1         BB  Wire Connector  x 3

CC  Outlet Box Screw x 2

INSTALLATION

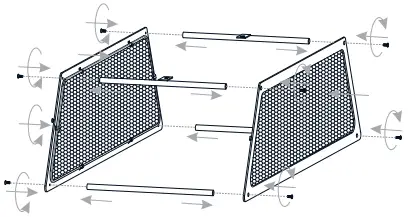

1 Install Shade Panels

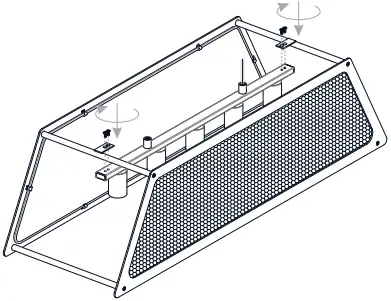

2 Install Socket Assembly

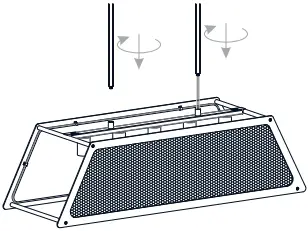

3 Install Rods


Optional Rods:
8 Feet Ceiling: (2) 12″L Rods each side.
9 Feet Ceiling: (2) 6″L Rods + (2) 12″L Rods each side.

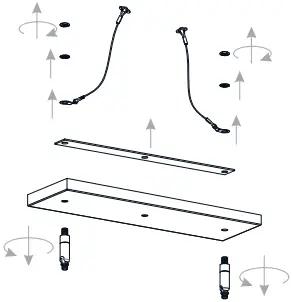

4 Separate Swivels from Ceiling Canopy

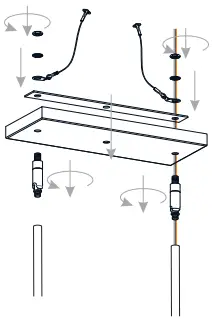

5 Install Swivels and Ceiling Canopy to Upper Rods

1. Swivel
2. 90 Degree

For angled ceilings, Swivels opening towards wall.

* Make sure two swivels opening are in the same direction while assembling.

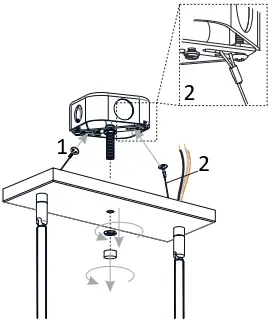

6 Install Crossbar Assembly

7 Install Lanyards

1. Button Stop
2. Lanyard

8 Wiring

1. White wire from supply
2. Ribbed side of wire from fixture identified with the label “N”
3. Black (or red) wire from supply
4. Smooth side of wire from fixture identified with the label “L”
5. Ground wire from supply
6. Ground wire from fixture identified with the label “G”
7. Green ground wire

9 Install Ceiling Canopy

10 Install Bulbs

Install five correct bulbs referring to fixture markings and/or labels for maximum wattage.

Recommended Bulb type (not included):

BULB BASE TYPE
Medium (E26)

BULB TYPE
TYPE A

Your installation is now complete! Restore electricity and save this sheet for future reference.
