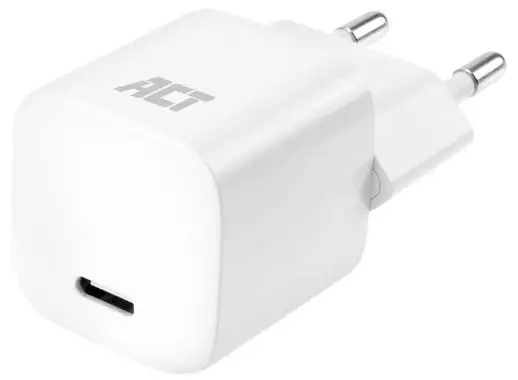

ACT AC2120 USB-C PD 20W Charger
Power

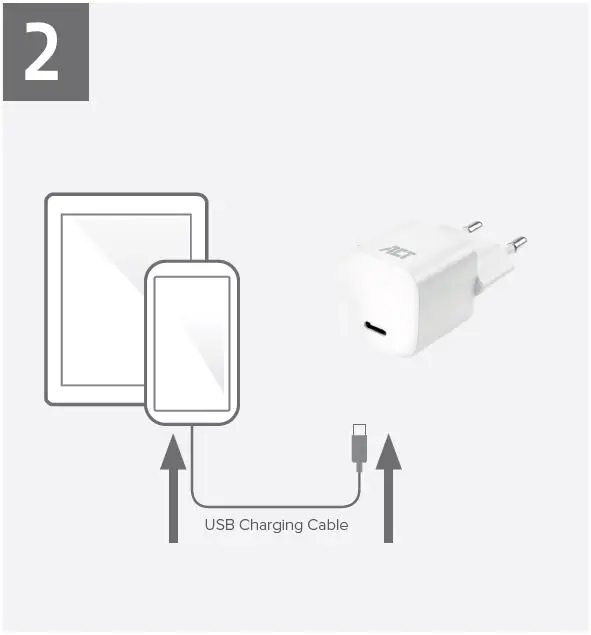

USB Charging Cable
- You can find safety information at www.act-connectivity.com/safety.
- For service, manuals, firmware or updates visit www.act-connectivity.com.
Safety Instruction
- For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible.
Warranty
5 Year Warranty
Specification
- Input: 100-240V~50/60Hz, 0.7A Max.
- Total USB Output:
- 5.0V == 3.0A, 15.0W Max.
- 9.0V == 2.22A, 20.0W Max.
- 12.0V == 1.67A, 20.0W Max.
ERP/ECO DESIGN 2019/1782/EU COMPLIANT STATEMENT
Compliant with (EU) 2009/125
THE PRODUCT MENTIONED BELOW IS COMPLIANT WITH THE NEW STANDARD FOR ERP CERTIFICATION (EU) 2019/1782 (SOMETIMES REFERRED TO AS ECO DESIGN) OF EXTERNAL POWER ISSUED BY THE EUROPEAN UNION, REPEALING COMMISSION REGULATION(EC) NO 278/2009 FROM 1 APRIL 2020.
Value and precision
| Value and precision | Unit | |
| Model number | AC2120 | – |
| Input voltage | 100-240 | V |
| Input frequency
| 50/60 | Hz |
| Max. output voltage | 5.0 9.0 12.0 | V |
| Max. output current | 3.0 2.22 12.0 | A |
| Max. output power | 15.0 20.0 20.0 | W |
| Average active efficiency | 85.2 | % |
| Efficiency at low load (10%) | 72.38 | % |
| No-load power consumption | 0.10 | W |
SIGNED FOR AND ON BEHALF OF:
| Manufacturer’s name | ACT Koolhovenstraat 1E 3772 MT Barneveld The Netherlands | ||
| Commercial registration | K.v.K. 09068548 | ||
| Place and date of issue: Barneveld, 14 April 2022 | Signature:
| Name, function:
Marc Swolfs, Managing director | |
ACT, Koolhovenstraat 1E, 3772 MT Barneveld, The Netherlands. www.act-connectivity.com.
Made in China.
