AC2115 Mobile Device Charger White Indoor
User Guide

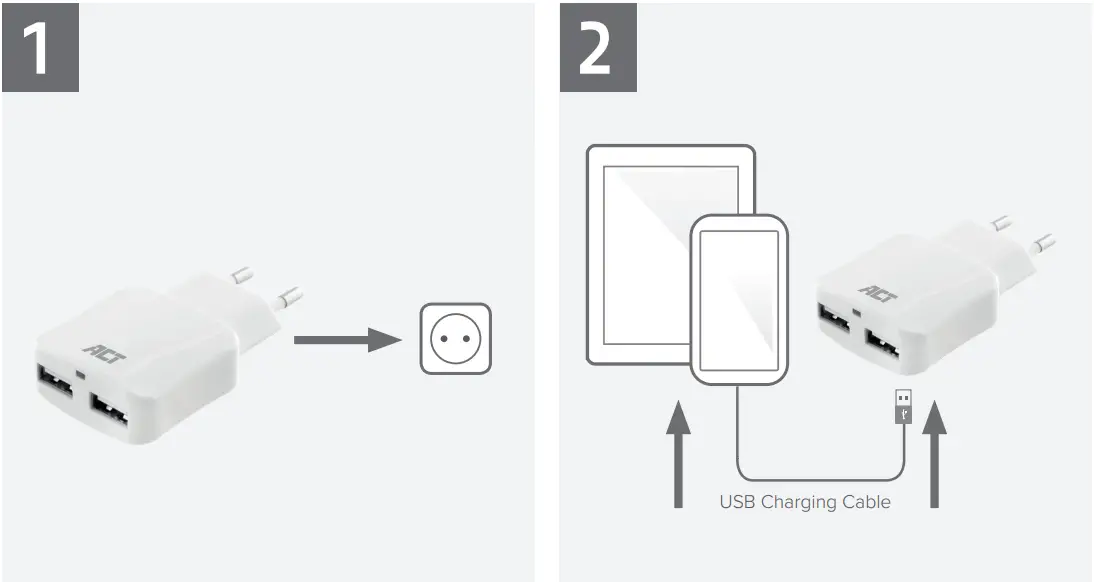

Quick Install
AC2115

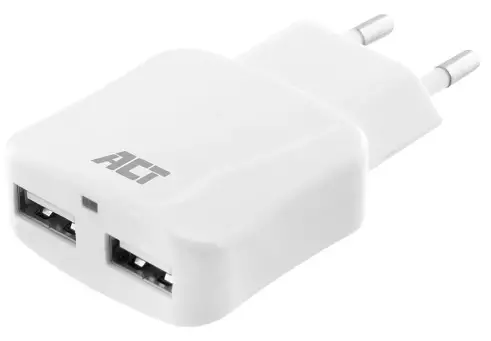

AC2115 Mobile Device Charger White Indoor
USB Fast Charger 2 Port
Smart Charging
You can find safety information at www.act-connectivity.com/safety
For service, manuals, firmware or updates visit www.act-connectivity.com
2 Year Warranty
ACT, Koolhovenstraat 1E, 3772 MT Barneveld, The Netherlands
Safety Instruction:
For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible
Made in China
Input: 110-240V~50/60Hz, 0.25A Max.
Single USB output: 5.0V
2.4A Max.
Total USB output: 5.0V2.4A Max.
Power: 12.0Watt
Caution For Indoor Use Only
ERP/ECO DESIGN 2019/1782/EU CO MPLIANT STATEMENT
Compliant with (EU) 2009/125
THE PRODUCT MENTIONED BELOW IS COMPLIANT WITH THE NEW STANDARD FOR ERP CERTIFICATION (EU) 2019/1782 (SOMETIMES REFERRED TO AS ECO DESIGN) OF EXTERNAL POWER ISSUED BY THE EUROPEAN UNION, REPEALING COMMISSION REGULATION(EC) NO 278/2009 FROM 1 APRIL 2020.
| Value and precision | Unit | |
| Model number | AC2115 | – |
| Input voltage | 100-240 | V |
| Input frequency | 50/60 | Hz |
| Max. output voltage | 5.0 | V |
| Max. output current | 2.4 | A |
| Max. output power | 12.0 | W |
| Average active efficiency | 80.9 | % |
| Efficiency at low load (10%) | 79.6 | % |
| No-load power consumption | 0.1 | W |
SIGNED FOR AND ON BEHALF OF:
| Manufacturer’s name | ACT Koolhovenstraat 1E 3772 MT Barneveld The Netherlands | |
| Commercial registration | K.v.K. 09068548 | |
| Place and date of issue: Barneveld, 10 January 2022 | Signature: | Name, function: Marc Swolfs, Managing director |
ACT, Koolhovenstraat 1E, 3772 MT
Barneveld, The Netherlands
www.act-connectivity.com
