AC2125 USB Fast Charger 2 Port Quick Charging

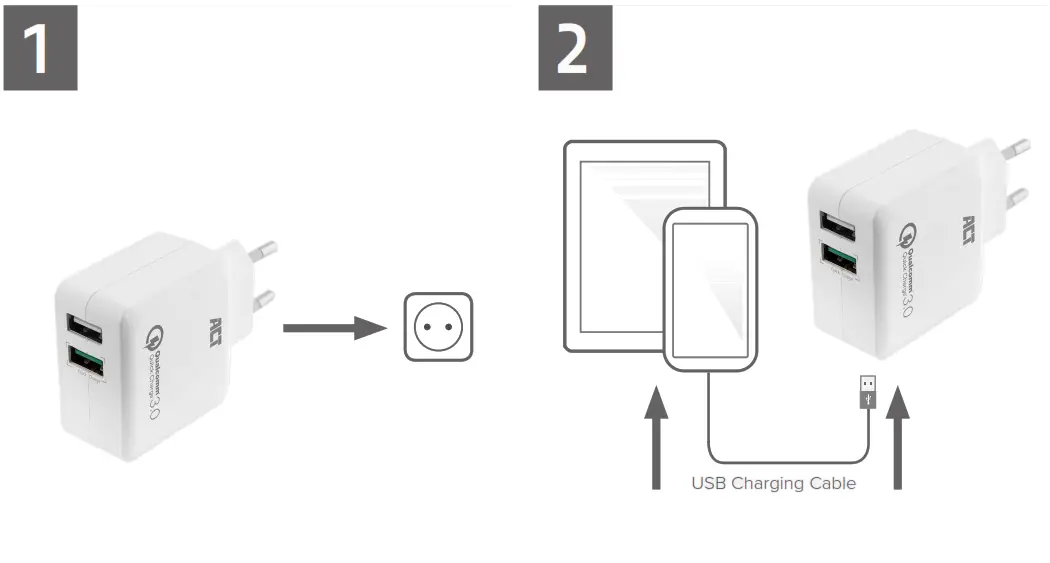

Installation Guide
AC2125 USB Fast Charger 2 Port Quick Charging
You can find safety information at www.act-connectivity.com/safety
For service, manuals, firmware or updates visit www.act-connectivity.com
ACT, Koolhovenstraat 1E, 3772 MT Barneveld, The Netherlands 5 Year Warranty
Safety Instruction:
For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible
Made in China
Input: 110-240V~50/60Hz, 0.9A Max.
Output USB-A Quick Charge:
5.0V
3.0A, 15.0W Max.
9.0V 2.0A, 18.0W Max.
12.0V 1.5A, 18.0W Max.
Output USB-A:
5.0V 2.4A, 12.0W Max.
Power: 30.0Watt
Caution For Indoor Use Only
ERP/ECO DESIGN 2019/1782/EU CO MPLIANT STATEMENT
Compliant with (EU) 2009/125
THE PRODUCT MENTIONED BELOW IS COMPLIANT WITH THE NEW STANDARD FOR ERP CERTIFICATION (EU) 2019/1782 (SOMETIMES REFERRED TO AS ECO DESIGN) OF EXTERNAL POWER ISSUED BY THE EUROPEAN UNION, REPEALING COMMISSION REGULATION(EC) NO 278/2009 FROM 1 APRIL 2020.
| Value and precision | Unit | |
| Model number | AC2125 | |
| Input voltage | 100-240 | V |
| Input frequency | 50/60 | Hz |
| Max. output voltage | USB1 USB2 5.0 5.0 9.0 12.0 | V |
| Max. output current | USB1 USB2 3.0 2.4 2.0 1.5 | A |
| Max. output power | USB1 USB2 15.0 12.0 18.0 18.0 Total: 30.0 | W |
| Average active efficiency | 82.7 | % |
| Efficiency at low load (10%) | 71.2 | % |
| No-load power consumption | 0.30 | W |
SIGNED FOR AND ON BEHALF OF:
| Manufacturer’s name | ACT Koolhovenstraat 1E 3772 MT Barneveld The Netherlands | ||
| Commercial registration | K.v.K. 09068548 | ||
| Place and date of issue: Barneveld, 10 January 2022 | Signature: | Name, function: Marc Swolfs, Managing director | |
ACT, Koolhovenstraat 1E, 3772 MT Barneveld, The Netherlands
www.act-connectivity.com
