Soundking G210 Active Speaker User Manual
Introduction

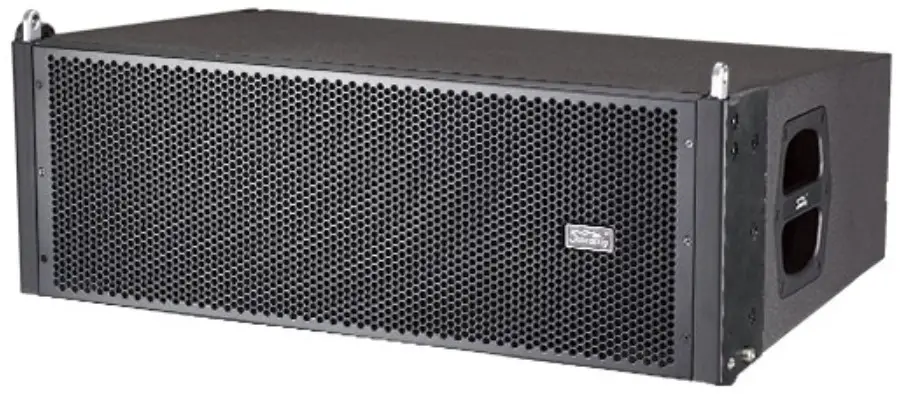

G210 line array is the two way system which features 70Hz-20KHz frequency range, flat Frequency response and phase response, two 44mm Nd magnet compression units and two 10 inch Nd magnet LF units To offer high headroom & sound pressure/volume ratio and lower the weight. G210 LF part uses two 10 inch LF units with premium cones. HF part uses two 44mm Nd magnet compression units, converting dome waves into equal phase wave to reduce HF interference and improve sound clearness. With a 120 degree constant directivity horn together, it generates a wave plane.
The trapezoidal cabinet of G210 minimizes the gaps between cabinets, and reduces the ineffective Sound area, and minimizes the side lobe. G210 is designed with accurate Al suspension system. The cabinet angle can be adjusted freely in a range 0 degree to 10 degree to meet the requirement of different applications. Two handles are designed for easy transportation.
Application
- touring show
- various stadiums
- theatre and auditorium
Specification
| model | G210 |
| type | 2 way line array |
| frequency response | 70Hz -20kHz |
| coverage | 120(H)x10(V) |
| LF unit | 2×10″/Nd magnet |
| HF unit | 2×1.75″ compression driver/Nd magnet |
| sensitivity(1W@1m) | HF: 110dB / LF: 102dB |
| rated impedance | HF: 160 / LF:8Q |
| power | HF: 560W / LF: 1600W |
| max SPL | HF: 137dB / LF: 135dB |
| dimension(WxHxD) | 810×290*90(mm) |
| weight | 28kg |
| angle | 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 degree adjustable |
