LG LED LCD Computer Monitor Owner’s Manual

Disclaimer: LG LED Monitor applies LCD screen with LED backlights. This product is a computer monitor and not for television purpose.

Please read this manual carefully before operating your set and retain it for future reference.

LED LCD MONITOR MODEL

• 22MN430M

• 24ML44B

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive:

• This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.
• To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby

ASSEMBLING AND PREPARING

CAUTION

• Always use genuine components to ensure safety and product performance.
• The product warranty will not cover damage or injury caused by the use of counterfeit components.
• It is recommend that use the supplied components.
• If you use generic cables not certified by LG, the screen may not display or there may be image noises.
• Illustrations in this document represent typical procedures, so they may look different from the actual product.
• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
• Do not carry the monitor upside down by just holding the base. This may cause the monitor to fall off the stand and could result in personal injury.
• When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.
• For wave pattern on appearance, unlike the general method of coating, it’s applied to added glittering material in raw material.With no peeled-off appearance, it has good durability. Please use it with confidence because there is no problem in using the product at all.

NOTE

• Note that the components may look different from those shown here.
• Without prior notice, all information and specifications in this manual are subject to change to improve the performance of the product.
• To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product.
• The power cord provided may differ depending upon the region.

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Component and Button Description

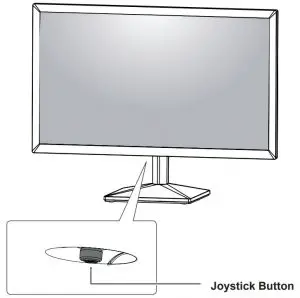

How to Use the Joystick Button

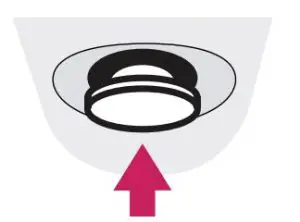

You can easily control the functions of the monitor by pressing the  joystick button or moving it left/right with your finger.

Basic Functions

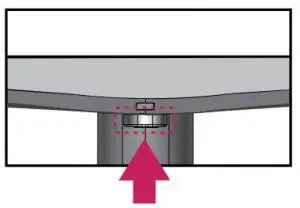

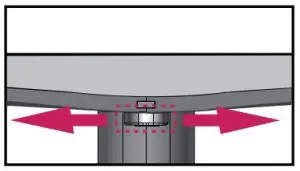

		Power on	Press the joystick button once with your finger to turn on the monitor.
		Power of	Press and hold the joystick button once with your finger to turn off the monitor.

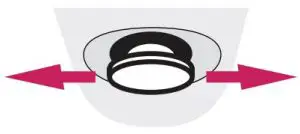

		Volume Control	You can control the volume by moving the joystick button left/right. (for HDMI only)

NOTE

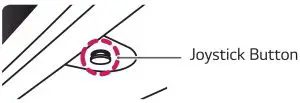

The joystick button is located at the bottom of the monitor.

Moving and Lifting the Monitor

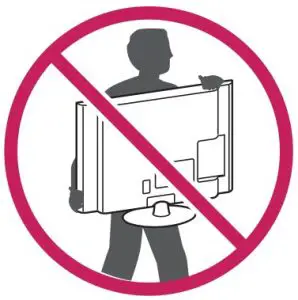

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation regardless of its shape or size.

• It is advisable to place the monitor in the original box or packing material before attempting to move it.
• Before moving or lifting the monitor, disconnect the power cord and all cables.

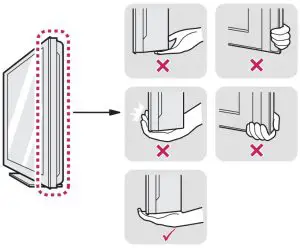

• Hold the top and bottom of the monitor frame firmly. Do not hold the panel itself.

• When holding the monitor, the screen should face away from you to prevent it being scratched.

• When moving the monitor, avoid any strong shock or vibrations to the product.
• When moving the monitor, keep it upright, never turn the monitor on its side or tilt it sideways.

CAUTION

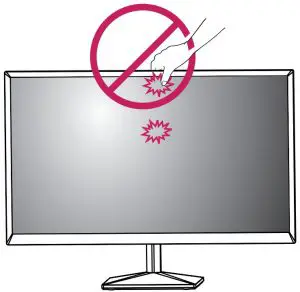

• As far as possible, avoid touching the monitor screen. This may result in damage to the screen or some of the pixels used to create images.

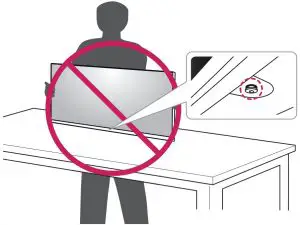

• If you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.


Mounting on a table

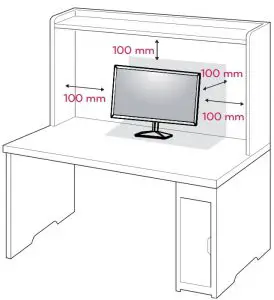

• Lift and tilt the Monitor set into its upright position on a table. Leave a 100 mm (minimum) space from the wall for proper ventilation.

  CAUTION
• Unplug the power cord prior to moving or installing the monitor. There is risk of electric shock.
• Make sure to use the power cord that is provided in the product package and connect it to a grounded power outlet.
• If you need another power cord, please contact your local dealer or the nearest retail store.

WARNING

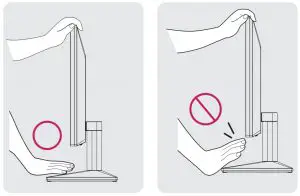

When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.

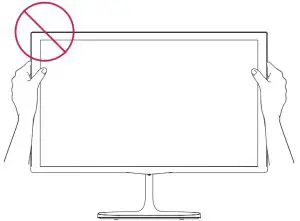

Do not touch or press the screen when adjusting the angle of the monitor

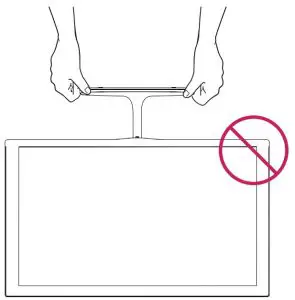

Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body

NOTE

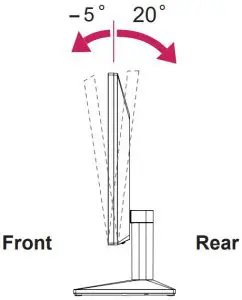

The angle of the screen can be adjusted forward or backward from -5° to 20° for a comfortable viewing experience.

Using the Kensington security system

The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www. kensington.com.

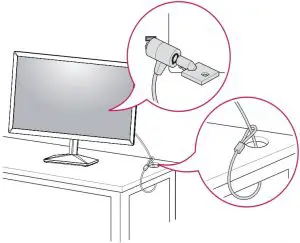

Connect the Kensington security system cable between the Monitor set and a table.

NOTE

• The Kensington security system is optional. You can obtain it from most electronics stores.

Mounting on a wall

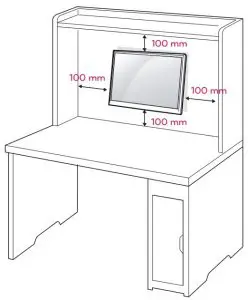

For proper ventilation, allow a clearance of 100 mm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set.

When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

1. If you use screw longer than standard, the monitor might be damaged internally.
2. If you use improper screw, the product might be damaged and drop from mounted position.
   In this case, LG Electronics is not responsible for it.

   Wall Mount (A x B)	75 x 75
   Standard screw	M4
   Number of screws	4

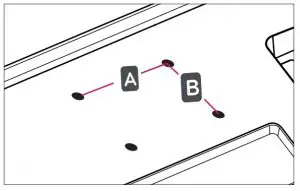

   • Wall Mount (A x B)


CAUTION

• Disconnect the power cord first, and then move or install the Monitor set. Otherwise electric shock may occur.
• If you install the Monitor set on a ceiling or slanted wall, it may fall and result in severe injury.
• Use only an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the Monitor set and void your warranty.
• Use only screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

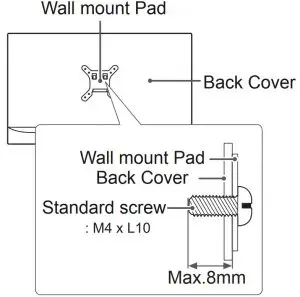

• Screw length from outer surface of back cover should be under 8mm.

  NOTE
• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit will include an installation manual and necessary parts.
• The wall mount bracket is optional. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Be sure to use the proper length.
• For more information, refer to the instructions supplied with the wall mount.

USING THE MONITOR SET

Connecting to a PC

• Your Monitor set supports Plug & Play*. *Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

D-SUB connection

Transmits analog video from your PC to the Monitor set.

NOTE

• When using a D-Sub signal input cable connector for Macintosh



• Mac adapter

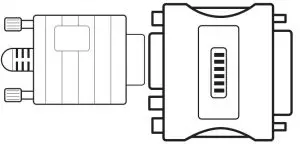

  For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector

HDMI connection

Transmits the digital video and audio signals from your PC to the Monitor set.

NOTE

• If you use HDMI PC, it can cause compatibility problem.
• Use a certified cable with the HDMI logo attached.
  If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types
• – High-Speed HDMI®/ TM Cable
• High-Speed HDMI® / TM Cable with Ethernet
  NOTE
• When you want to use two PC in our Monitor, please connect the signal cable(D-SUB/HDMI) respectively in Monitor set.
• If you turn the Monitor set on while it is cold, the screen may flicker. This is normal.
• Some red, green, or blue spots may appear on the screen. This is normal.

Connecting Peripherals

Connect peripherals to the monitor via the headphones port.

NOTE

• Peripheral devices are sold separately.
• If you use angled headphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight headphones.

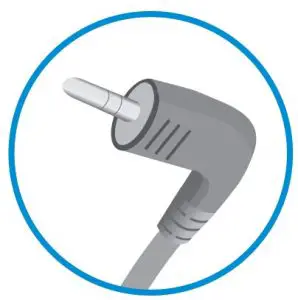

  Angle Type

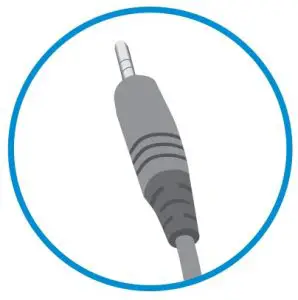

  Straight Type
• Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.

CUSTOMIZING SETTINGS

Activating the Main Menu

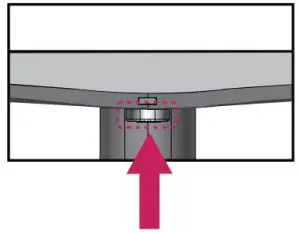

1. Press the joystick button on the bottom of the monitor.
2. Move the joystick up/down ( ) and left/right() to set the options.
3. Press the joystick button once more to close the main menu.


Button	Menu Status		Description
	Main menu disabled		Enables the main menu.
	Main menu enabled		Close the main menu. (Long press the button to turn off the monitor)
		Main menu disabled	Adjusts the monitor volume level. (for HDMI only)
		Main menu enabled	Enters the input features.
		Main menu disabled	Adjusts the monitor volume level. (for HDMI only)
		Main menu enabled	Enters the Settings feature.
		Main menu disabled	Displays the information on the current input.
		Main menu enabled	Turns off the monitor.
		Main menu disabled	Displays the information on the current input.
		Main menu enabled	Enters the picture mode feature. (for HDMI only)

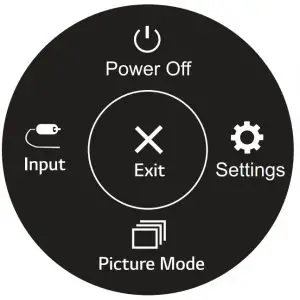

Main Menu Features

(for HDMI only)

Customizing settings

NOTE

• This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen, please turn off this function.
• This function can’t distinguish some colors in some images.

NOTE

Saving Data depends on the Panel. So, those values should be different from each panel and panel vendor. If you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower or higher depend on source.

TROUBLESHOOTING

Check the following before calling for service.

CAUTION

• Check Control Panel Display Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.
• If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
• The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.
• Keep proper posture when using the monitor, otherwise the screen may not be optimized.

SPECIFICATIONS

22MN430M

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

• The power consumption level can be different by operating condition and monitor setting.
• The On mode power consumption is measured with LGE test standard(Full White pattern , Maximum resolution).
• The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).

24ML44B

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

• The power consumption level can be different by operating condition and monitor setting.
• The On mode power consumption is measured with LGE test standard(Full White pattern , Maximum resolution).
• The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).

Preset Modes (Resolution)

D-sub PC Timing

HDMI PC Timing

The model and serial number of the SET is located on the back and  one side of the SET. Record it below should you ever need service.

MODEL______________________________
SERIAL_______________________________
