OWNER’S MANUAL
LED LCD MONITOR
(LED Monitor*)

* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.

35WN65C

www.lg.com
Copyright © 2020 LG Electronics Inc. All rights reserved.

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

	The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
	The superspeed USB Trident logo is a registered trademark of UsB Implementers Forum, Inc.
	MaxxAudio and additional MAXX trademarks are trademarks and/ or registered trademarks of waves Audio Ltd.

* UsB Type-CTM and UsB-CTM are trademarks of USB Implementers Forum.

OPEN SOURCE SOFTWARE NOTICE INFORMATION

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers, and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected].
This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

ASSEMBLING AND PREPARING

CAUTION

• Always use genuine LG components to ensure safety and product performance.
• The product warranty will not cover damage or injury caused by the use of unauthorized components.
• It is recommended that use the supplied components.
• If you use generic cables not certified by LG, the screen may not display or there may be image noises.
• Illustrations in this document represent typical procedures, so they may look different from the actual product.
• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
• Do not carry the monitor upside down by just holding the base. This may cause the monitor to fall off the stand and could result in personal injury.
• when lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.

NOTE

• The components may look different from those illustrated here.
• without prior notice, all product information and specifications contained in this manual are subject to change to improve the performance of the product.
• To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer from which you purchased the product.
• The power cord provided may differ depending upon the region.

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

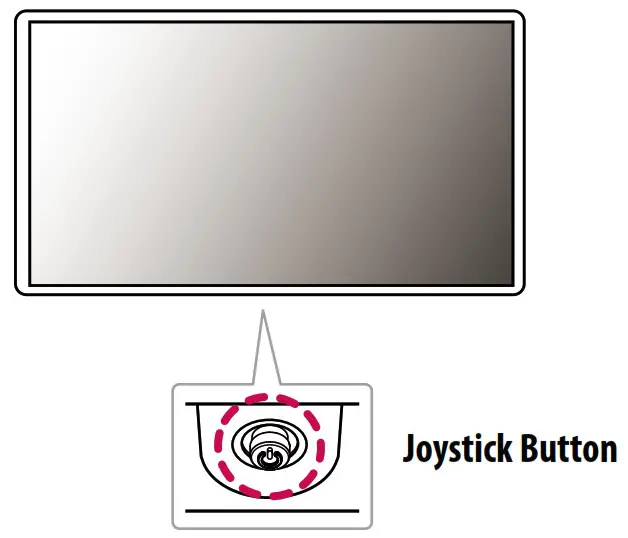

Product and Button Description

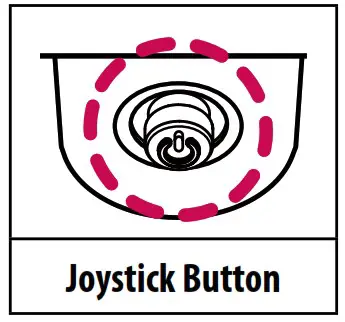

How to use the Joystick button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/down with your finger.

Basic functions

		power on	Press the joystick button once with your finger to turn on the monitor.
		power off	Press and hold the joystick button once more than 3 seconds with your finger to turn off the monitor.
		Volume control	You can control the volume by moving the joystick button left/right.

NOTE

• The joystick button is located at the bottom of the monitor.

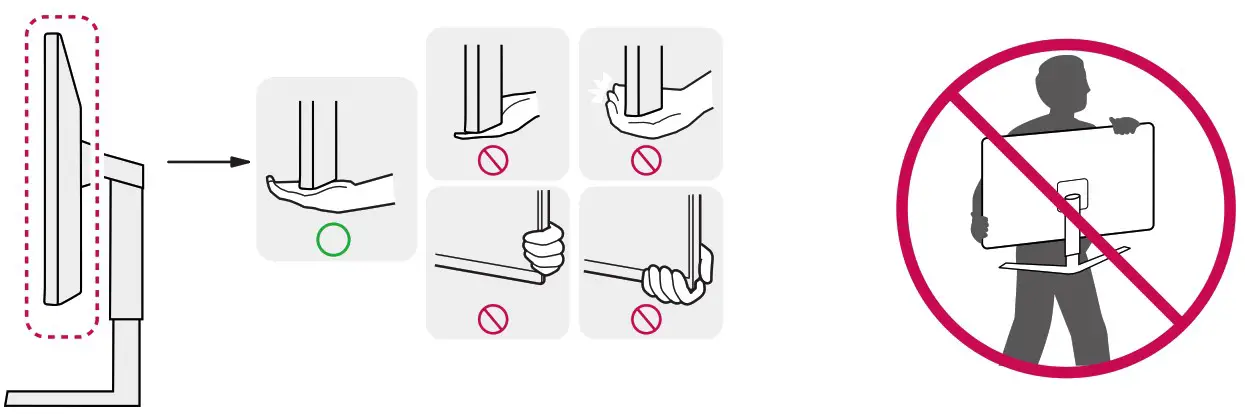

Moving and Lifting the Monitor
when moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size.

• Place the monitor in the original box or packing material before attempting to move it.
• Before moving or lifting the monitor, disconnect the power cord and all other cables.
• Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
• when holding the monitor, the screen should face away from you to prevent it from being scratched.
• when transporting the monitor, do not expose the monitor to shock or excessive vibration.
• when moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.

CAUTION

• Avoid touching the monitor screen as much as possible.
  – This may result in damage to the screen or some of the pixels used to create images.
• If you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.

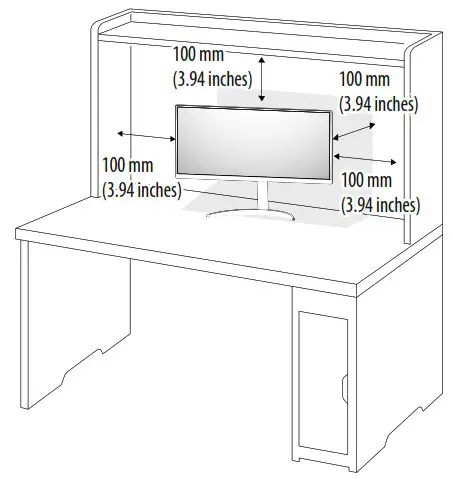

Installing on a Table

• Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm (3.94 inches) away from the wall to ensure sufficient ventilation.

CAUTION

• Unplug the power cord before moving or installing the monitor. There is risk of electric shock.
• Make sure to use the power cord that is provided in the product package and connect it to a grounded power outlet.
• If you need another power cord, please contact your local dealer or the nearest retail store.

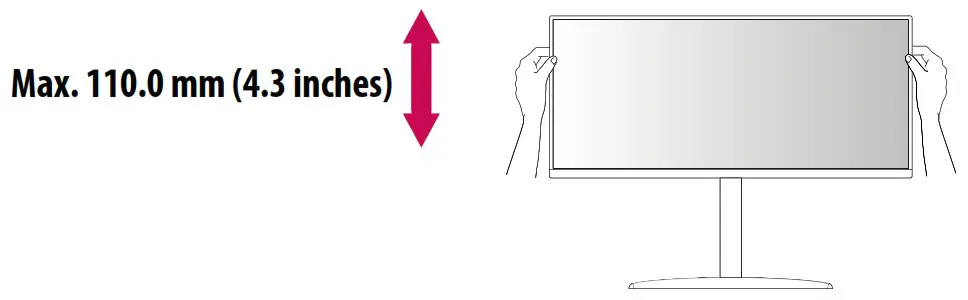

Adjusting the Stand Height

1. Place the monitor mounted on the stand base in an upright position.
2. Handle the monitor with both hands for safety.

WARNING

• when adjusting the screen height, do not place your hand on the stand body to avoid injury to your fingers.

Adjusting the Angle

1. Place the monitor mounted on the stand base in an upright position.
2. Adjust the angle of the screen.

The angle of the screen can be adjusted forward or backward from -5° to 20° for a comfortable viewing experience.

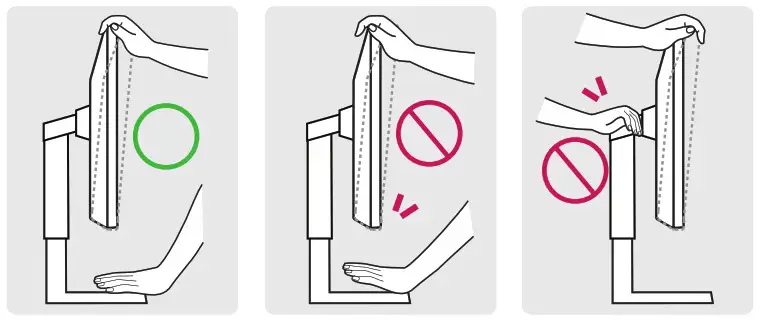

WARNING

• To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor’s frame as illustrated below.
• Be careful not to touch or press the screen area when adjusting the angle of the monitor.

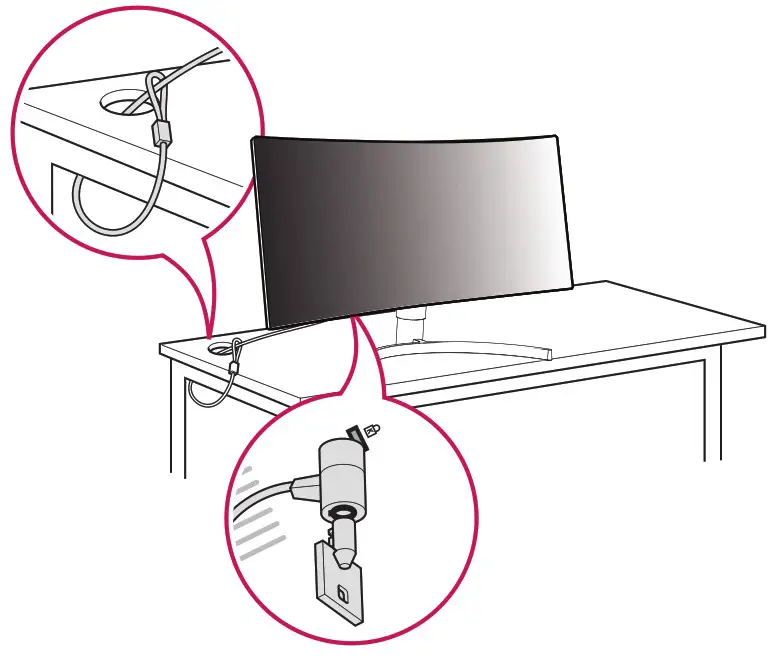

Using the Kensington Lock
The connector for the Kensington security system is located at the back of the monitor.
For more information on installation and usage, refer to the Kensington lock owner’s manual or visit the website at http://www.kensington.com.
Connect the monitor to a table using the Kensington security system cable.

NOTE

• The Kensington security system is optional. You can obtain optional accessories from most electronics stores.

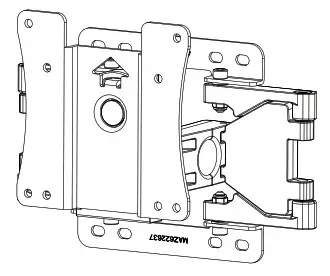

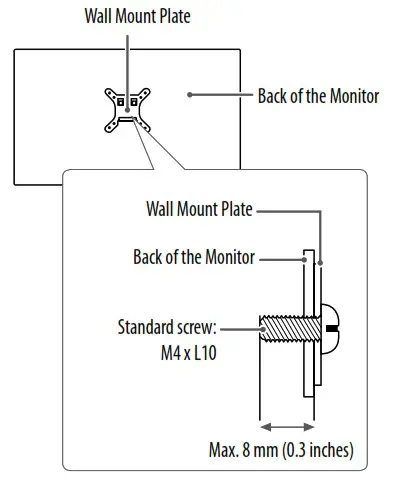

Installing the Wall Mount Plate
This monitor meets the specifications for the wall mount plate or other compatible devices.

NOTE

• The wall mount plate is sold separately.
• For more information on installation, refer to the wall mount plate’s installation guide.
• Be careful not to apply too much force while mounting the wall mount plate as it may cause damage to the screen.
• Remove the stand before installing the monitor on a wall mount by performing the stand attachment in reverse.

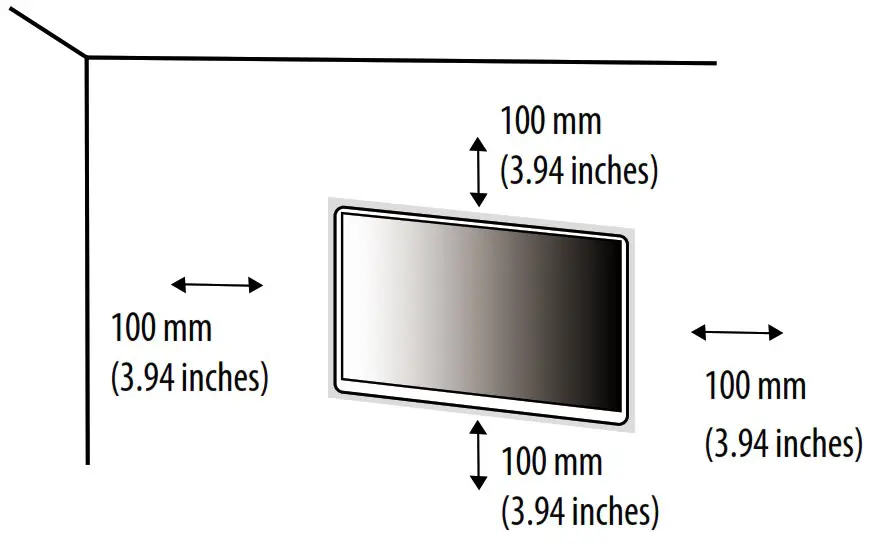

Installing on the Wall
Install the monitor at least 100 mm (3.94 inches) away from the wall and leave about 100 mm (3.94 inches) of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. Alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket.

To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.

NOTE

• A non-VEsA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws.
• The wall mount kit includes the installation guide and all necessary parts.
• The wall mounting bracket is optional. You can obtain optional accessories from your local dealer.
• The length of the screw may differ for each wall mounting bracket. If you use screws longer than the standard length, it may damage the inside of the product.
• For more information, please refer to the user manual for the wall mounting bracket.

CAUTION

• Unplug the power cord before moving or installing the monitor to avoid electric shock.
• Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
• Use the wall mounting bracket and screws that conform to VEsA standards. Damage caused by the use or misuse of inappropriate components will not be covered by the product warranty.
• when measured from the back of the monitor, the length of each installed screw must be 8 mm (0.3 inches) or less.

USING THE MONITOR

• Illustrations in this manual may differ from the actual product. Press the joystick button, go to Settings→ Input, and then select the input option.

CAUTION

• Do not press the screen for a prolonged time. This may cause image distortion.
• Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a PC screensaver if possible.
• when connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power outlet.
• The monitor may flicker when turned on in an area where the temperature is low. This is normal.
• sometimes red, green, or blue spots may appear on the screen. This is normal.

Connecting to a PC

• This monitor supports the *Plug and Play feature.
  * Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure anything or install any manual drivers.

HDMI Connection
Transmits digital video and audio signals from your PC to the monitor.

CAUTION

• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types
  • High-speed HDMI®/™ cable
  • High-speed HDMI®/™ cable with Ethernet

DisplayPort Connection
Transmits digital video and audio signals from your PC to the monitor.

NOTE

• There may be no video or audio output depending on the DP (DisplayPort) version of the PC.
• If you are using a Mini DisplayPort output graphics card, use a Mini DP to DP (Mini DisplayPort to DisplayPort) cable or gender that supports DisplayPort1.2 or 1.4. (sold separately)

Connecting AV Devices
HDMI Connection
HDMI transmits digital video and audio signals from your AV device to the monitor.

NOTE

• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types
  • High-speed HDMI®/TM cable
  • High-speed HDMI®/TM cable with Ethernet

Connecting Peripherals

USB Device connection
The USB port on the product functions as a USB hub.

NOTE

• It is recommended you install all windows Updates to keep your windows up-to-date before connecting to the product for use.
• Peripheral devices are sold separately.
• A keyboard, mouse, or USB device can be connected to the USB port.
• The charging speed may vary depending on the device.
• To use USB Downstream port of monitor, user must connect Upstream port of monitor to Host PC using USB C-C or USB C-A cable.
• when the USB C-C cable is connected between Upstream port of monitor and Host PC, the Downstream port of monitor support USB 2.0 device.
• when the UsB C-A cable is connected between Upstream port of monitor and Host PC, the Downstream port of monitor support USB 3.0 device. However, Host PC must support USB 3.0 function.

CAUTION

Cautions when Using a USB Device

• A USB device with an automatic recognition program installed, or that uses its own driver, may not be recognized.
• Some USB devices may not be supported or may not work properly.
• It is recommended to use a USB hub or hard disk drive with power supplied. (If the power supply is not adequate, the USB device may not be recognized properly.)

Headphones Connection
Connect peripherals to the monitor via the headphones port.

NOTE

• Peripheral devices are sold separately.
• Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.

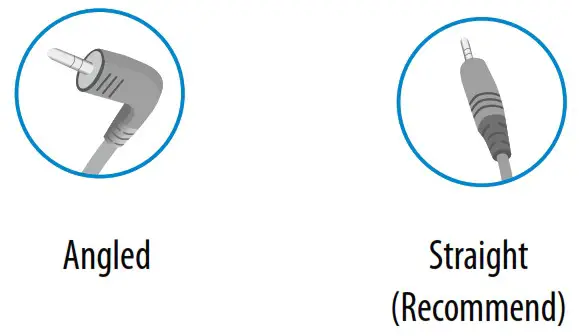

• If you use angled earphones, it may cause a problem with connecting another external device to the monitor.
  Therefore, it is recommended to use straight earphones.

USER SETTINGS

NOTE

• Your monitor’s OSD (On-screen Display) may differ slightly from that shown in this manual.
• when Beep Guide is activated, pressing the joystick button will take you to Settings right away.

Activating the Main Menu

1. Press the joystick button on the bottom of the monitor.
2. Move the joystick up/down and left/right to set the options.
3. Press the joystick button once more to exit the main menu.

Button	Menu Status		Description
	main menu disabled		Enables the main menu.
	main menu enabled		Exits the main menu. (Holding down the button more than 3 seconds to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
		main menu disabled	Adjusts the monitor volume level.
		main menu enabled	Enters the Input features.
		main menu disabled	Adjusts the monitor volume level.
		main menu enabled	Enters the Settings feature.
		main menu disabled	Enters the accessibility menu.
		main menu enabled	Turns off the monitor.
		main menu disabled	Enters the accessibility menu.
		main menu enabled	Enters the picture mode feature.

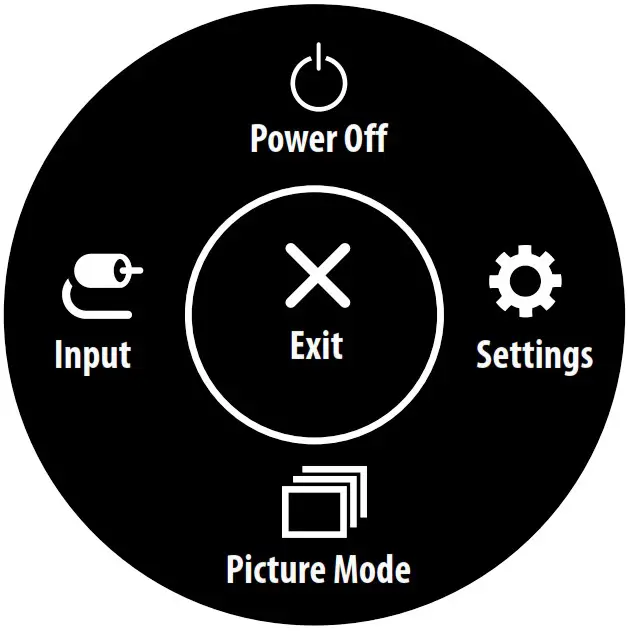

Main Menu Features

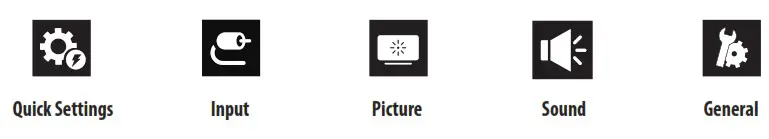

Menu Settings

1. To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Settings.
2. Move the joystick up/down and left/right to set the options.
3. To return to the upper menu or set other menu items, move the joystick to or pressing ( ) it.
4. If you want to exit the OSD menu, move the joystick to until you exit.

Quick Settings

Settings > Quick Settings	Description
Brightness	Adjusts the contrast and brightness of the screen.
Contrast
Volume	Adjusts the volume.
	NOTE • You can adjust Mute / Unmute by moving the joystick button to in the Volume menu.
Waves MaxxAudio	On	MaxxAudio by waves, recipient of a Technical GRAMMY Award” is a suite of studio-quality sound tools fora superior listening experience.
	Off	Disables the MaxxAudio function.
Color Temp	Custom	The user can adjust it to red, green, or blue by customization.
	Warm	Sets the screen color to a reddish tone.
	Medium	Sets the screen color between a red and blue tone.
	Cool	Sets the screen color to a bluish tone.
	Manual	The user can fine-tune the color temperature.

Input

Settings > Input	Description
Input	Input List	Selects the input mode.
	Auto Input Switch	When automatic input switch is set to On, display will automatically switch to new input when connected.
		On	Enables Auto Input Switch.
		Off	Disables Auto Input Switch.
	Aspect Ratio	Adjusts the aspect ratio of the screen.
		Full Wide	Displays the video in widescreen, regardless of the video signal input.
		Original	Displays video according to the aspect ratio of the video signal input.
		NOTE • The display may look the same for Full Wide and Original options at the recommended resolution. (3440 x 1440)


NOTE

• The Picture Mode that can be set depends on the Input signal.

[Picture Mode on SDR (Non-HDR) signal]

Settings > Picture	Description
Picture Mode	Custom	Allows the user to adjust each element.
	Vivid	Heightens contrast, brightness and sharpness to display vivid images.
	HEIR Effect	Optimizes the screen for high dynamic range.
	Reader	Optimizes the screen for viewing documents. You can brighten the screen in the OSD menu.
	Cinema	Optimizes the screen for video.
	FPS	This mode is optimized for FPS games.
	RTS	This mode is optimized for RTS Game.
	Color Weakness	This mode is for users who cannot distinguish between red and green. It enables users with color weakness to easily distinguish between the two colors.
	NOTE • If the Picture Mode is changed in the DP (DisplayPort) input, the screen may flicker or the resolution of your PC screen may be affected.

[Picture Mode on HDR signal]

Settings > Picture	Description
Picture Mode	Custom	Allows the user to adjust each element.
	Vivid	Optimized the screen for HDR vivid colors.
	Cinema	Optimized the screen for HDR video.
	FPS	This mode is optimized for FPS games.lt is suitable for very dark FPS games.
	RTS	This mode is optimized for RTS Game.
	NOTE • HDR content may not display correctly depending on VVi ndowl 0 OS settings, please check HDR On/Off settings in Windows. • When the HDR function is tumed on, the characters or picture quality may be poor according to Graphic card performance. • While the HDR function is on, screen flickering or cracking may occur when changing the monitor input or power on/off according to Graphic card performance.

Settings > Picture	Description
Picture Adjust	Brightness	Adjusts the contrast and brightness of the screen.
	Contrast
	Sharpness	Adjusts the sharpness of the screen.
	SUPER RESOLUTION+	High	Optimizes the screen for crystal clear images. Best for high-definition video or games.
		Middle	Optimizes the screen for comfortable viewing, with images at the middle level between the low and high modes. Best for UCC or SD videos.
		Low	Optimizes the screen for smooth and natural images. Best for still images or images with less movement.
		Off	Displays in the most common setting. Disables SUPER RESOLUTION+.
		NOTE • Because this is a function to increase the sharpness of low-resolution pictures, it is not recommended to use the function for normal text or for desktop icons. Doing so may result in unnecessarily high sharpness.
	Black Level	Sets the offset level (for HDMI only). • Offset: as a reference for a video signal, this is the darkest color the monitor can display.
		High	Keeps the current contrast ratio of the screen.
		Low	Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
	DFC	On	Adjusts the brightness automatically according to the screen.
		Off	Disables the DFC feature.

Settings > Picture	Description
Game Adjust	Response Time	Sets a response time for displayed pictures based on the movement of the picture on the screen. For a normal environment, it is recommended that you use Fast. When there is a lot of motion, it is recommended that you use Faster. Setting to Faster may cause image sticking.
		Faster	Sets the response time to faster.
		Fast	Sets the response time to fast.
		Normal	Sets the response time to normal.
		Off	Does not use the response time improvement feature.
	FreeSync	Provides seamless and natural images by synchronizing the vertical frequency of the input signal with that of the output signal. CAUTION • Supported Interface: DisplayPort, HDMI • Supported Graphic Card: A graphic card that supports AMD’s FreeSync is necessary. • Supported Version: Make sure to update the graphic card to the latest driver. • For more information and requirement, refer to AMD website at http://www.amd.com/FreeSync
		On	FreeSync function on.
		Off	FreeSync function off.
	Black Stabilizer	You can control the black contra t to have better visibility in dark scenes. Increasing the Black Stabilizer value brightens the low gray level area on the screen. (You can easily distinguish objects on dark game screens.) Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic contrast on the screen.

Sound

Settings > Sound	Description
Volume	Adjusts the volume level. NOTE • You can adjust Mute / Unmute by moving the joystick button to in the Volume menu.
Waves MmotAudio®	On	MaxxAudio° by waves, recipient of a Technical GRAMMY Award’ is a suite of studio-quality sound tools for a superior listening experience.
	Off	Disables the MaxxAudio function.

General

Settings > General	Description
Language	Sets the menu screen to the desired language.
SMART ENERGY SAVING	Conserve energy by using luminance compensation algorithm.
	High	Saves energy using the high-efficiency SMART ENERGY SAVING feature.
	Low	Saves energy using the low-efficiency SMART ENERGY SAVING feature.
	Off	Disables the feature.
	NOTE • The value of energy saving data may differ depending on panel and panel suppliers. • If you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower or higher depend on source.
Power LED	On	The power LED turns on automatically.
	Off	The power LED turns off.
	NOTE • When the Power LED function is turned on, it operates as follows: – On Mode: White – Sleep Mode (Standby Mode): White Blinking – Off Mode: Off
Automatic Standby	Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H,and8H)
DisplayPort Version	Set DisplayPort Version to the same version as the connected external device. (1.4,1.2) To use the HDR function, set to 1.4.

Settings > General	Description
HDMI Compatibility Mode	HDMI Compatibility Mode feature can recognize the legacy equipment that does not support HDMI 2.0.
	On	Enables HDMI Compatibility Mode.
	Off	Disables HDMI Compatibility Mode.
	NOTE • If the connected device does not support HDMI Compatibility Mode . the screen or sound may not work properly. • When HDMI Compatibility Mode is on, HDR function is not supported. • Some older graphics cards do not support NMI 2.0,but you can select HDMI 2.0 resolution in the control panel of window. This may cause the screen to appear abnormally.
Buzzer	This feature lets you set the sound generated from Buzzer when your monitor powers on.
	On	Enables your monitor’s Buuer.
	Off	Disables your monitor’s Buzzer.
OSD Lock	This feature disables the configuration and adjustment of menus.
	On	Enables OSD Lock.
	Off	Disables OSD Lock.
Information	The following display information will be shown: Total Power On Time. Resolution.
Reset to Initial Settings	Do you want to reset your settings?
	Yes	Returns to the default settings.
	No	Cancel the reset.

TROUBLESHOOTING

NOTE

• LED can be lighted with set OsD Menu.
  settings – General – Power LED – On

PRODUCT SPECIFICATION

35WN65C

Color Depth	8-bit color is supported.
Resolution	Max Resolution	HDMI	3440x 1440@ 85 Hz
		DisplayPort	3440x 1440@ 100 Hz
	Recommended Resolution	HDMI	3440x 1440@ 85 Hz
		DisplayPort	3440 x 1440 @ 100 Hz
Power Sources	Power Rating	19V 3.3 A
	Power Consumption	On mode: 45 WTyp. (Outgoing condition) * Sleep Mode 5 0.5W ” Off Mode 5 0.3 W
AUDC adaptor	DA-65G19, manufactured by Asian Power Devices Inc. or LCAP39, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or ADS-65FAI-19 19065EPG-1, manufactured by SHENZHEN HONOR ELECTRONIC or ADS-65FAI-19 19065EPK-1, manufactured by SHENZHEN HONOR ELECTRONIC or ADS-65FAI-19 19065E10-1, manufactured by SHENZHEN HONOR ELECTRONIC Output 19 V 3.42 A
Environmental Conditions	Operating Conditions	Temperature	0 °C to 40 °C (32 °F to 104 °F)
		Humidity	Less than 80 %
	Storing Conditions	Temperature	-20 °C to 60 °C (-4°F to 140 °F)
		Humidity	Less than 85 %
Dimensions	Monitor Size (Width x Height x Depth)
	With Stand	831.6 x 573.0 x 250.9 (mm)	32.7 x 22.5 x 9.8 (inches)
	Without Stand	831.6 x 372.7 x 94.1 (mm)	32.7 x 14.6 x 3.7 (inches)

The specifications are subject to change without notice.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).

Factory Support Mode (Preset Mode, PC)

DisplayPort

HDMI

HDMI Timing (Video)

Beep Guide

Supplier’s Declaration of Conformity

The model and serial number of the product are located on the back and on one side of the product.
Record them below in case you ever need service.

Model………………………………………………………………………………………………………..
serial no……………………………………………………………………………………………………..

References

• LG Open Source
• FreeSync™ Technology | FreeSync Premium Pro HDR Games | AMD
• Computer Products & Accessories: Locks & Docks | Kensington
• LG Electronics & Home Appliances | Shop Now | LG USA
