QUICK REFERENCE GUIDE > AS90PFDHRA-SET
Pinnacle Air Conditioner, 9kW
Hi Wall
White

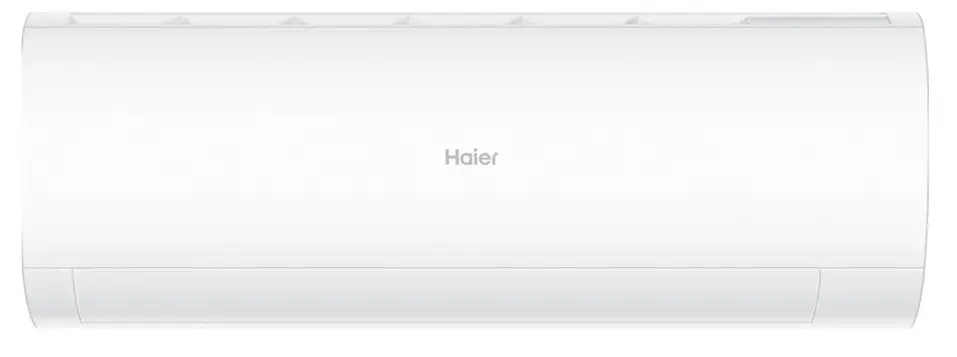

AS90PFDHRA-SET 9kW Pinnacle Air Conditioner
Maintain the perfect temperature with clean, fresh air and even more control of your air conditioner thanks to Wi-Fi and voice control.
- UV Protect in Health mode helps to kill airborne pathogens, with antibacterial and anti-viral rates above 91%*
- Self-cleaning function for continual fresh, clean air
- Wi-Fi enabled for use with the SmartHQ™ app and smart home voice control
- Sleep mode for optimal comfort throughout the night
FEATURES & BENEFITS
UV Protect sterilisation
UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that kill airborne Staphylococcus aureus bacteria and the H3N2 virus at more than 91% effectiveness under specific test conditions.*
Healthier air
Your Pinnacle air conditioner will continue working efficiently to produce clean air, with a Self-clean function that stops dirt from accumulating on the heat exchanger, and reduces the growth of mould and bacteria. Other innovations such as a carbon filter and anti-bacterial silver ion coating also help to filter and kill bacteria.
Voice and remote control
Use the SmartHQ™ app to turn on your air conditioner from anywhere to ensure the perfect temperature when you get home, or use your Wi-Fi enabled Pinnacle with Google Home or Amazon Alexa voice control.
Sleep mode
Sleep mode supports your ideal sleeping environment, raising, lowering or maintaining the temperature throughout the night to ensure maximum comfort.
Easy installation and maintenance
Designed to help your installer get the job done fast, Pinnacle air conditioners come with simple positioning specifications. The control board and motor are also easily accessible for maintenance.
Turbo mode
With the Turbo function, the motor and fan work at a higher frequency so you can enjoy a cool or warm room within a much shorter time.
SPECIFICATIONS
Capacity
| Cooling capacity (kW) | 9.0kW |
| Heating capacity (kW) | 9.5kW |
Consumption
| COP | 3.57 / 3.54 |
| EER | 3.40 / 3.37 |
| HSPF-RES (Hot/Average/Cold) | 4.481 / 3.908 / 3.392 |
| Star-Cool (Hot/Average/Cold) | 4.5 / 3.5 / 4.0 |
| Star-Heat (Hot/Average/Cold) | 2.5 / 2.0 / 1.5 |
| TCSPF-RES (Hot/Average/Cold) | 6.078 / 5.394 / 5.746 |
Features
| 24 Hour timer | • |
| 56°C Steri-clean | • |
| Anti-bacterial silver ion coating | • |
| Auto restart | • |
| Auto swing-up and down | • |
| Blue fin coils | • |
| Built-in Wi-Fi smart control | • |
| Concealed LED display | • |
| DC inverter | • |
| DRED (Demand Response) ready | • |
| Dry mode | • |
| Intelligent air | • |
| Internal and external heat | • |
| MEPS approved | • |
| Refrigerant factory charge | 1.55 |
| Self diagnostics | • |
| Standard controller | wireless |
| UV Protect | UVC sterilisation |
| Voice control via Google Home or | • |
Installation
| Indoor unit model | AS90PFDHRA |
| Indoor unit weight | 21.5kg |
| Liquid line | Pipe size 6.35 |
| Maximum pipe run | 25m |
| Outdoor unit model | 1U90XADFRA |
| Outdoor unit weight | 51kg |
| Suction line | Pipe size 15.88 |
Performance
| DC inverter | • |
| R32 Refrigerant | • |
| Sound power SWL (outdoor) | 69dBA |
| Sound pressure SPL (indoor) | 48 / 42 / 36 / 30dBA |
| Sound pressure SPL (outdoor) | 56dBA |
| Working temperature cooling | -10°C ~ 46°C |
| Working temperature heating | -15°C ~ 24°C |
Power Requirements
| Power phase | 1 |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Product dimensions
| Indoor unit depth | 275 mm |
| Indoor unit height | 365 mm |
| Indoor unit width | 1316 mm |
| Outdoor unit depth | 370 mm |
| Outdoor unit height | 815 mm |
| Outdoor unit width | 950 mm |
Warranty
| Parts and labour | 5 years |
| SKU | 51642 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
