QUICK REFERENCE GUIDE > AS90QFDHRA-SET
Quartz Air Conditioner, 9kW
White

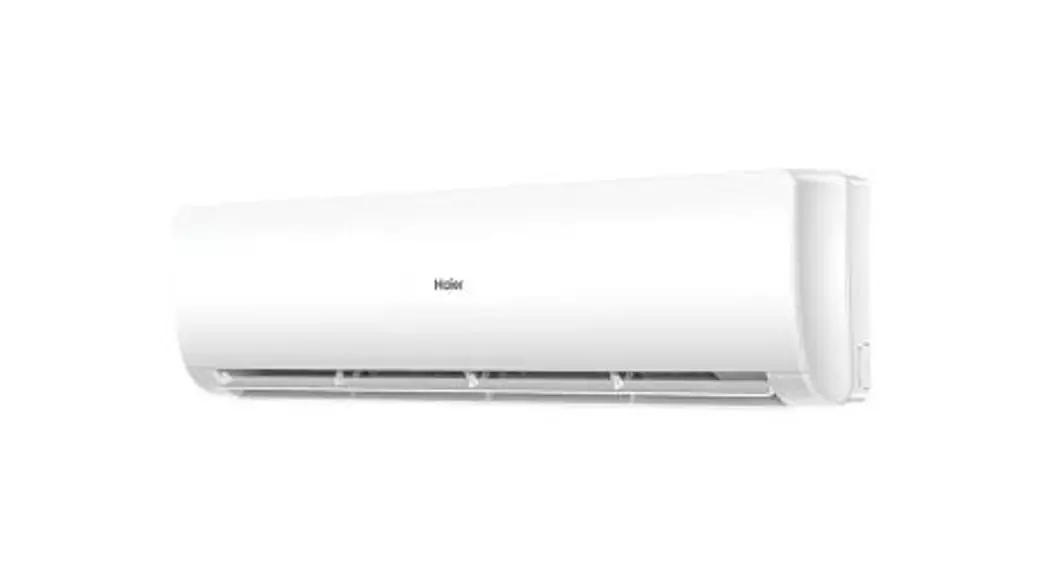

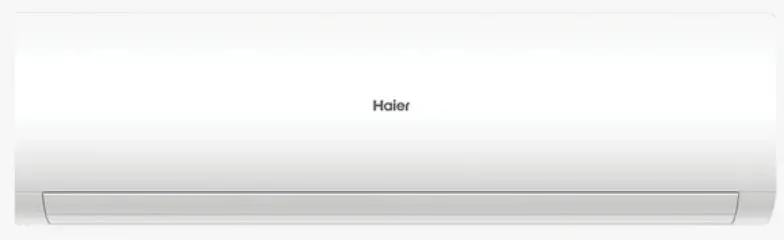

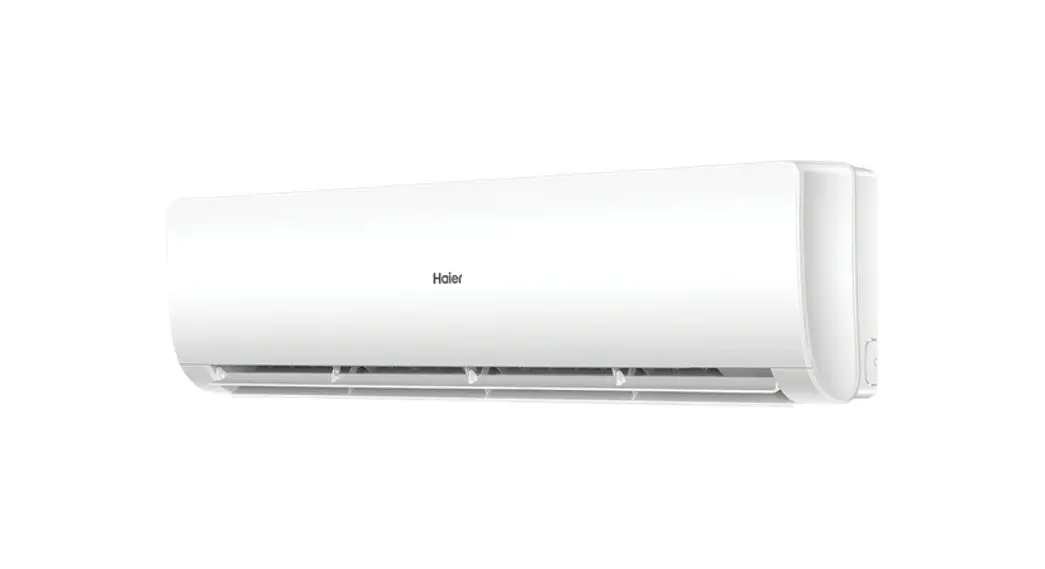

AS90QFDHRA-SET 9kW Quartz Air Conditioner
With a premium, sleek design, this smart air conditioner delivers effective heating and cooling with anti-viral, anti-bacterial UV Protect.
- UV Protect in Health mode helps to kills airborne pathogens, with antibacterial and anti-viral rates above 91%*
- Self-cleaning function for continual fresh, clean air
- Wi-Fi enabled for use with the SmartHQ™ app and smart home voice control
- Turbo mode helps you quickly cool or heat your room
FEATURES & BENEFITS
UV Protect sterilisation
UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that kill airborne Staphylococcus aureus bacteria and the H3N2 virus at more than 91% effectiveness under specific test conditions.*
Self-cleaning technology
Your Quartz air conditioner will continue working efficiently to produce clean air, with a Self-clean function that flushes away dirt from the evaporator and reduces the growth of mould and bacteria. This process also cleans the outdoor unit, helping to clear salt and debris that can lead to corrosion.
Smart control
Use the SmartHQ™ app to turn on your air conditioner from anywhere to ensure the perfect temperature when you get home, or use your Wi-Fi enabled Quartz with Google Home or Amazon Alexa voice control.
Easy installation and maintenance
Designed to help your installer get the job done fast, Quartz air conditioners come with simple positioning specifications. The control board and motor are also easily accessible for maintenance.
Sleep mode
Sleep mode supports your ideal sleeping environment, raising, lowering or maintaining the temperature throughout the night for maximum comfort.
Turbo mode
With the Turbo function, the motor and fan work at a higher frequency so you can enjoy a cool or warm room within a much shorter time.
SPECIFICATIONS
| Capacity | |
| Cooling capacity (kW) | 9.0kW |
| Heating capacity (kW) | 9.5kW |
| Consumption | |
| COP | 3.57 / 3.54 |
| EER | 3.40 / 3.37 |
| HSPF-RES (Hot/Average/Cold) | 4.481 / 3.908 / 3.392 |
| Star-Cool (Hot/Average/Cold) | 4.5 / 3.5 / 4.0 |
| Star-Heat (Hot/Average/Cold) | 2.5 / 2.0 / 1.5 |
| TCSPF-RES (Hot/Average/Cold) | 6.078 / 5.394 / 5.746 |
| Features | |
| Blue fin coils | • |
| Built-in Wi-Fi smart control | • |
| Compressor type | Rotary |
| Concealed LED display | • |
| DC inverter | • |
| DRED (Demand Response) ready | • |
| Google Home | • |
| Infrared remote control | • |
| Refrigerant factory charge | 1.55kg |
| Standard controller | YR-HJ |
| Installation | |
| Indoor unit model | AS90QFDHRA |
| Indoor unit weight | 21.5kg |
| Liquid line | 6.35mm |
| Maximum pipe run | 25m |
| Outdoor unit model | 1U90QADFRA |
| Outdoor unit weight | 51kg |
| Suction line | 15.88mm |
| Performance | |
| Airflow | 320L/S |
| DC inverter | • |
| R32 Refrigerant | • |
| Sound power SWL (outdoor) | 69dBA |
| Sound pressure SPL (indoor) | 48 / 42 / 36 / 30dBA |
| Sound pressure SPL (outdoor) | 56dBA |
| Working temperature cooling | -10℃ ~ 46℃ |
| Working temperature heating | -15℃ ~ 24℃ |
| Power Requirements | |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
| Product dimensions | |
| Indoor unit depth | 275 mm |
| Indoor unit height | 365 mm |
| Indoor unit width | 1316 mm |
| Outdoor unit depth | 370 mm |
| Outdoor unit height | 815 mm |
| Outdoor unit width | 950 mm |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 51660 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
