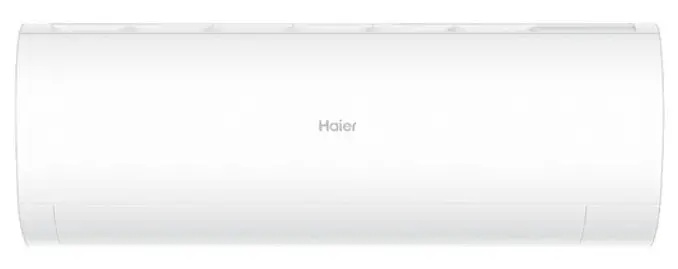

AS26PBDHRA-SET Pinnacle Air Conditioner
User Guide
Maintain the perfect temperature with clean, fresh air, and even more control of your air conditioner thanks to Wi-Fi and voice control.
- UV Protect in Health mode kills airborne hazards, with anti-bacterial and anti-virus rates above 91%*
- Self-cleaning function for continued clean, fresh air
- Wi-Fi enabled, for use with the SmartHQ™ app and smart home voice control
- With Coanda Plus technology for far-reaching, even airflow around the room
FEATURES & BENEFITS
Intelligent design
Modern in appearance and performance, with Wi-Fi connectivity and UV Protect for a healthy home.
UV Protect to kill bacteria & viruses
UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that eliminate airborne staphylococcus aureus bacteria and the H3N2 virus at more than 91% effectiveness, under specific test conditions*.
Healthier air
Your Pinnacle air conditioner will continue working efficiently to produce clean air, with a Self-clean function that stops dirt from accumulating on the heat exchanger, and reduces the growth of mold and bacteria. Other innovations such as a carbon filter and anti-bacterial silver ion coating also help to filter and kill bacteria.
Voice and remote control
Use the SmartHQ™ app to turn on your air conditioner from anywhere to ensure the perfect temperature when you get home or use your Wi-Fi-enabled Pinnacle with Google Smart home or Amazon Alexa voice control.
Airflow to every corner
Coanda Plus airflow technology sends warm or cool air from the ceiling to the floor and to every corner of the room – with air circulating evenly.
Easy installation and maintenance
The Pinnacle is designed to help your installer get the job done fast, with simple positioning specifications and other features. The control board and motor are also easily accessible for maintenance.
Sleep mode
A Sleep mode supports your ideal sleeping environment, raising, lowering, or maintaining the temperature throughout the night to ensure maximum comfort during the night.
Turbo mode
With the Turbo function the motor and fan work at a higher frequency, so you can enjoy a cool or warm room within a much shorter time.
SPECIFICATIONS
| Capacity | |
| Cooling capacity (kW) | 2.5kW |
| Heating capacity (kW) | 3.0kW |
| Consumption | |
| COP | 4.41 |
| EER | 4.46 |
| HSPF-RES (Hot/Average/Cold) | 5.457 / 4.505 / 3.788 |
| HSPFCOM (Hot/Average/Cold) | 5.493 / 4.917 / 4.263 |
| Star-Cool (Hot/Average/Cold) | 4.5 / 4.0 / 4.0 |
| Star-Heat (Hot/Average/Cold) | 3.5 / 3.0 / 2.0 |
| TCSPF-COM (Hot/Average/Cold) | 6.538 / 6.614 / 7.046 |
| TCSPF-RES (Hot/Average/Cold) | 6.068 / 5.519 / 5.674 |
| Features | |
| 24 Hour timer | • |
| 56°C Steri-clean | • |
| Anti-bacterial silver ion coating | • |
| Auto restart | • |
| Auto swing-up and down | • |
| Bluefin coils | • |
| Built-in Wi-Fi smart control | • |
| Concealed LED display | • |
| DC inverter | • |
| DRED (Demand Response) is ready | • |
| Dry mode | • |
| Intelligent air | • |
| Internal and external heat | • |
| Long-distance air supply | 12 |
| MEPS approved | • |
| Refrigerant factory charge | 0.8 |
| Self-diagnostics | • |
| Standard controller | wireless |
| UV Protect | UVC sterilization |
| Voice control via Google Home or | • |
| Installation | |
| Indoor unit model | AS26PBDHRA |
| Indoor unit weight | 8.7kg |
| Liquid line | Pipe size 6.35 |
| Maximum pipe run | 15 |
| Outdoor unit model | 1U26MADFRA |
| Outdoor unit weight | 29.7kg |
| Suction line | Pipe size 9.52 |
| Performance | |
| DC inverter | • |
| R32 Refrigerant | • |
| Sound power SWL (outdoor) | 59dBA |
| Sound pressure SPL (indoor) | 40 / 36 / 32 / 21dBA |
| Sound pressure SPL (outdoor) | 51dBA |
| Power Requirements | |
| Power phase | 1 |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
| Product dimensions | |
| Indoor unit depth | 200 mm |
| Indoor unit height | 292 mm |
| Indoor unit width | 805 mm |
| Outdoor unit depth | 275 mm |
| Outdoor unit height | 553 mm |
| Outdoor unit width | 800 mm |
| Warranty | |
| Parts and labor | 5 years |
| SKU | 51613 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
Other product downloads available at haier.com
 | User Guide |
| Product Brochure |
| Service & Warranty Booklet |
| Installation Guide |
