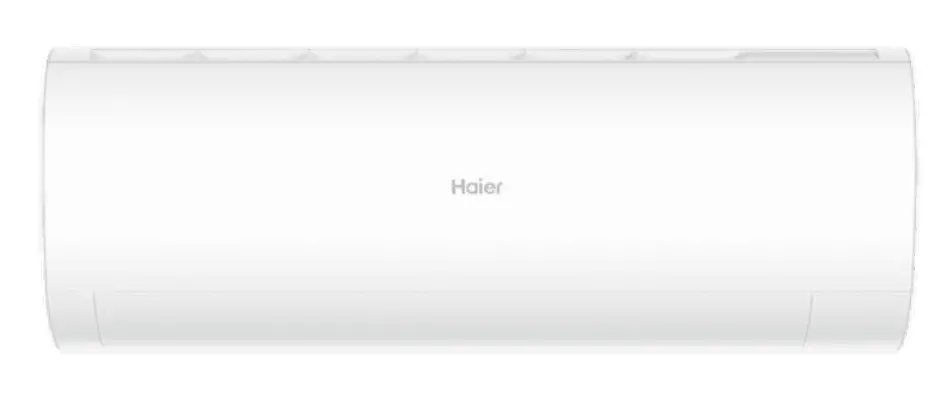

Haier AS53PDDHRA-SET Pinnacle Air Conditioner, 5.0 kW
INTRODUCTION
Maintain the perfect temperature with clean, fresh air, and even more control of your air conditioner thanks to Wi-Fi and voice control.
- UV Protect in Health mode kills airborne hazards, with anti-bacterial and anti-virus rates above 91%*
- Self-cleaning function for continued clean, fresh air
- Wi-Fi enabled, for use with the SmartHQ™ app and smart home voice control
- With Coanda Plus technology for far-reaching, even air flow around the room
FEATURES & BENEFITS
UV Protect sterilisation
UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that kill airborne Staphylococcus aureus bacteria and the H3N2 virus at more than 91% effectiveness under specific test conditions.*
Voice and remote control
Use the SmartHQ™ app to turn on your air conditioner from anywhere to ensure the perfect temperature when you get home, or use your Wi-Fi enabled air conditioner with Google Home or Amazon Alexa voice control
Coanda Plus airflow
Engineered to send airflow further, an aerodynamic louvre design helps to circulate air evenly throughout room.
Sleep mode
Sleep mode supports your ideal sleeping environment, raising, lowering or maintaining the temperature throughout the night to ensure maximum comfort.
Turbo mode
With the Turbo function, the motor and fan work at a higher frequency so you can enjoy a cool or warm room within a much shorter time.
Healthier air
Your air conditioner will continue working efficiently to produce clean air with innovations such as a carbon filter and anti-bacterial silver ion coating that help to filter and kill bacteria.
Easy installation and maintenance
Designed to help your installer get the job done fast, your air conditioner comes with simple positioning specifications. The control board and motor are also easily accessible for maintenance.
SPECIFICATIONS
Capacity
| Cooling capacity (kW) | 5.0kW |
| Heating capacity (kW) | 5.5kW |
Consumption
| COP | 3.93 |
| EER | 3.85 |
| HSPF-RES (Hot/Average/Cold) | 4.667 / 4.129 / 3.595 |
| HSPFCOM (Hot/Average/Cold) | 4.675 / 4.350 / 3.889 |
| Star-Cool (Hot/Average/Cold) | 3.5 / 3.0 / 3.5 |
| Star-Heat (Hot/Average/Cold) | 3.0 / 2.5 / 2.0 |
| TCSPF-COM (Hot/Average/Cold) | 5.568 / 5.687 / 6.080 |
| TCSPF-RES (Hot/Average/Cold) | 5.212 / 4.908 / 5.108 |
Features
| 24 Hour timer | • |
| 56°C Steri-clean | 56°C Steri-clean |
| Anti-bacterial silver ion coating | • |
| Auto restart | • |
| Auto restart | • |
| Auto swing-up and down | • |
| Blue fin coils | • |
| Built-in Wi-Fi smart control | • |
| Concealed LED display | • |
| DC inverter | • |
| DRED (Demand Response) ready | • |
| Dry mode | • |
| Intelligent air | • |
| Internal and external heat | • |
| Long distance air supply | 15 |
| MEPS approved | • |
| Refrigerant factory charge | 1.02 |
| Self diagnostics | • |
| Standard controller | Wireless |
| UV Protect | UVC sterilisation |
| Voice control via Google Home or | • |
Installation
| Indoor unit model | AS53PDDHRA |
| Indoor unit weight | 11.6kg |
| Liquid line | Pipe size 6.35 |
| Maximum pipe run | 20 |
| Outdoor unit mode | 1U53WADFRA |
| Outdoor unit weight | 43.2kg |
| Suction line | Pipe size 12.7 |
Performance
| DC inverter | • |
| R32 Refrigerant | • |
| Sound power SWL (outdoor) | 66dBA |
| Sound pressure SPL (indoor) | 47 / 43 / 37 / 33dBA |
| Sound pressure SPL (outdoor) | 47dBA |
Power Requirements
| Power phase | 1.0 |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Product dimensions
| Indoor unit depth | 220 mm |
| Indoor unit height | 320 mm |
| Indoor unit width | 970 mm |
| Outdoor unit depth | 340 mm |
| Outdoor unit height | 705 mm |
| Outdoor unit width | 890 mm |
Warranty
| Parts and labour | 5 years |
| SKU | 51615 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
