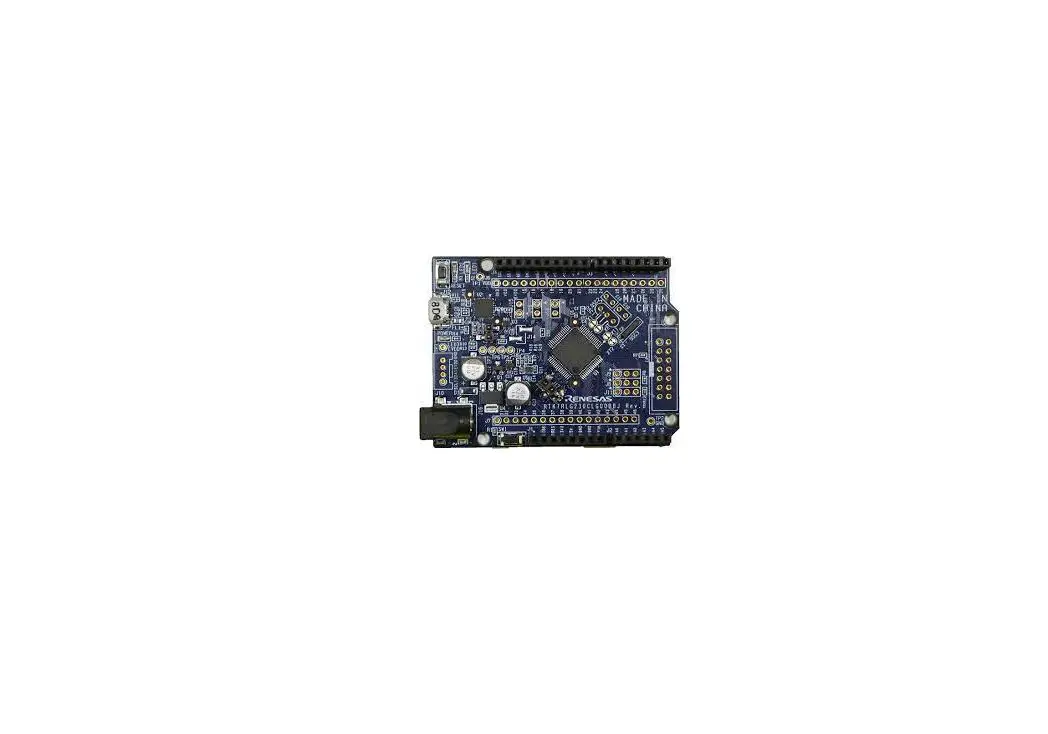

MOUSER RL78 Fast Prototyping Board
Downloading the user’s manual
Download the user’s manual from the Web site below and check the full specifications before using the board. URL: https://www.renesas.com/rl78g23-64p_fpb
Package components
RL78/G23-64p Fast Prototyping Board (RTK7RLG230CLG000BJ) and Quick Start Guide (this document)
Table of board specifications
| Item | Specification |
| Evaluation MCU RL78/G23 with 64 pins | Part No.: R7F100GLG2DFB; package: 64-pin LFQFP |
| On-chip memory: 128-KB ROM, 16-KB RAM, 8-KB data flash memory | |
| Push switches | Reset switch x 1, user switch x 1 |
| LED | Power indicator: green x 1, user: green x 2 |
| Arduino™ UNO connectors | Connectors: 6 pins x 1, 8 pins x 2, 10 pins x 1 The interfaces are compatible with Arduino™ UNO R3. |

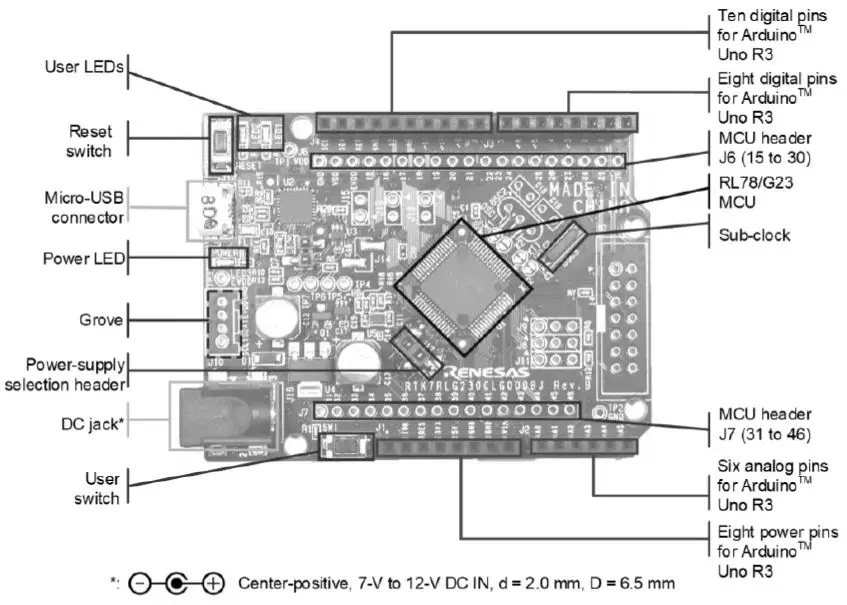

Parts layout

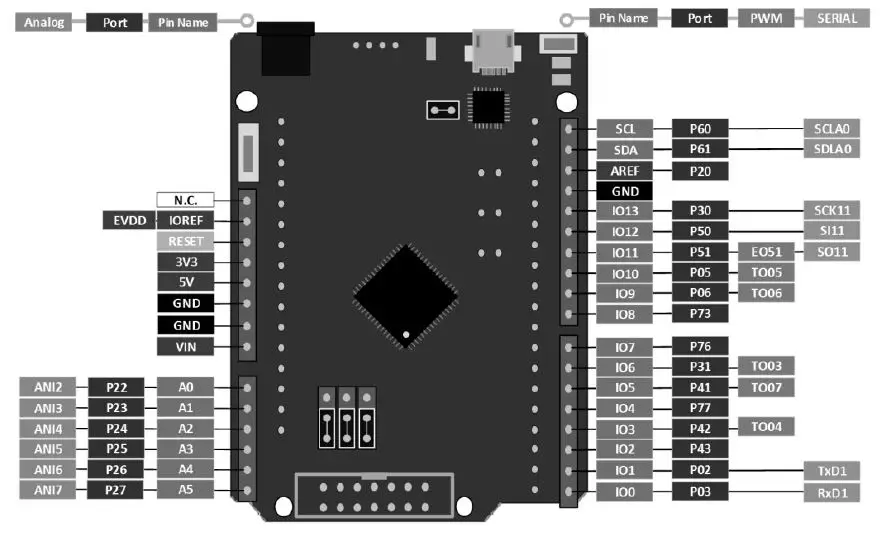

Arduino interface
