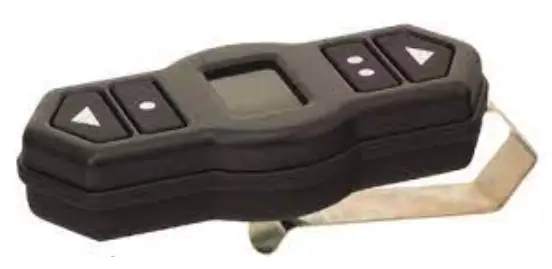

Air Lift AD-946 Wireless Controller
REPLACING BATTERIES IN THE WIRELESS CONTROLLER

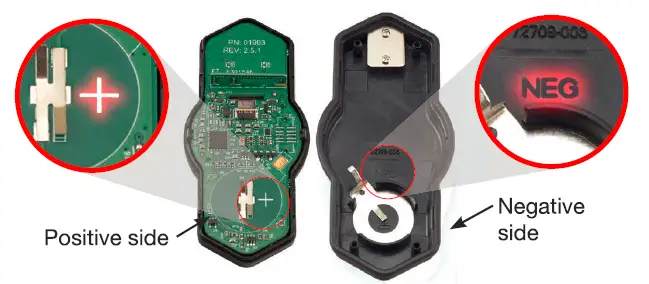

- To install the two CR2032 batteries in the wireless controller, use a small flat screwdriver to separate the two halves of the controller by prying apart the internal clip locations.
- Stack the batteries positive to negative inside the rear cover with the positive end pointed in the direction of the circuit board. Take note of “NEG” on the case and”+” symbol on the circuit board.
- Snap the front cover/circuit board onto the rear cover.
FCC AND INDUSTRY CANADA INFORMATION TO USER
This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Note: Changes or modifications not expressively approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Remote
FCC ID: 2ANLC-OMQ22817
IC: 23130-0MQ22817
Manifold
FCCID:2ANLC-HJL71117
IC:23130-HJL71117
