Tefal Yt40xx Automatic Garment Steamer User Manual

Automatic Garment Steamer
User ManualYT40XX / 1820010489/02

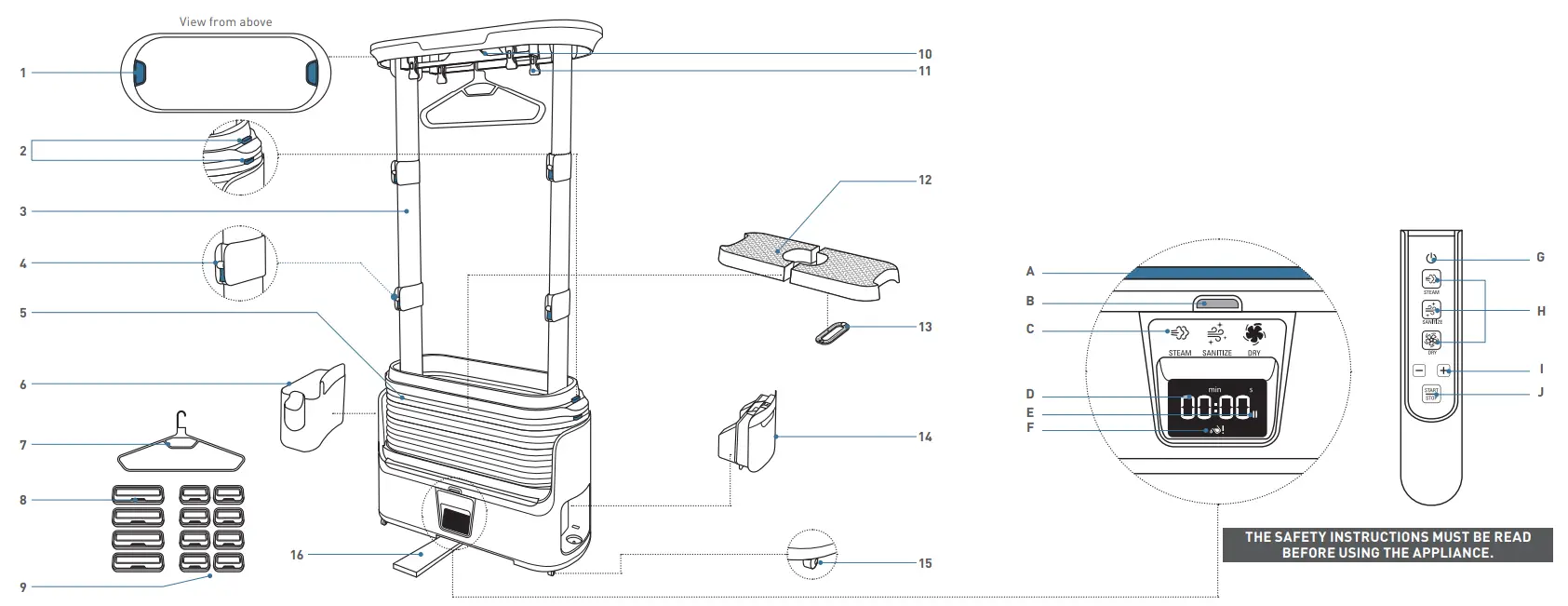

PRODUCT OVERVIEW

PRODUCT HANDLING

1. Handle for adjusting height of posts
2. Switch for locking/unlocking shutter
3. Posts
4. Lock
5. Shutter
   ACCESSORIES
6. pace for storing straighteners and remote control
7. Hanger x3
8. Large straighteners x4
9. Small straighteners x8
10. Rail
11. Built-in clasps
    OTHER
12. Shelf
13. Filter
14. Water container
15. Wheels
16. Stabiliser

https://eqrcode.co/a/jK3oJI

INTERACTIVE DISPLAY
A Light-up strip
B Infrared receiver
C Program indicators
D Time remaining indicator
E Pause indicator
F Water container empty or incorrectly positioned indicator
G « on/off » button
H Program selection (see «Which program should I choose?» section)
I Time adjustment
J « start/stop » button

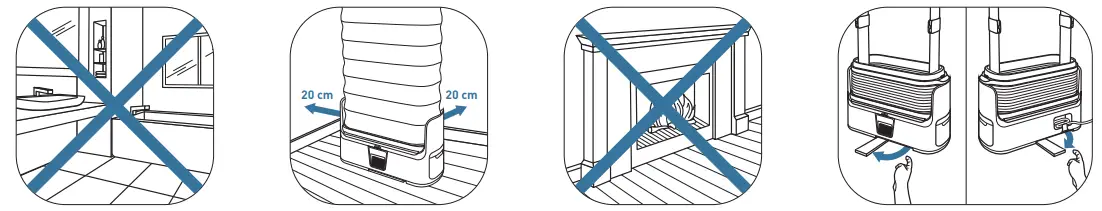

INSTALLING THE PRODUCT

Do not install Care For You in a bathroom or any other damp location.	Allow 20 cm of clear space around the product.	Do not install Care For You near a heat source.	Pull out the stabilisers at the front and back of Care For You.

WHICH PROGRAM SHOULD I CHOOSE?

STEAM
You can adjust the steam time in five-minute increments. The longer the cycle, the more steamed your garment will be.
10 min: Light and fast steaming.
20 min: Optimal steaming for most garments.
30 min: For garments that are difficult to de-crease.

straighteners are recommended for best results.

SANITIZE
20 min: Light sanitation. Reducesodours.
40 min: Full sanitation. Effectively eliminates odours that are embedded in the garment and kills up to 99.99%* of viruses(1) bacteria and germs (2).
*In sanitise mode — 40 min. Test carried out by an external laboratory in Oct. 2020 on cotton.
(1) Coronavirus H COV-229E and Murine Norovirus.
(2) S. Aureus, K.Pneumoniae, E.Coli.

It is not necessary to use straighteners in sanitise mode.

GENTLE DRY
Perfect for delicate garments that can’t be tumble dried.
The cycle time can be adjusted between 10 and 90 min.
For wet clothes, please make sure that the clothes have been wrung out first.

It is not necessary to use straighteners in drying mode.

HOW DO I POSITION MY CLOTHES?

Using straighteners will help you achieve better steaming results.
However, for garments that easily lose their shape (e.g. chunky knit jumpers, viscose, thin t-shirts etc.) use the STEAM cycle without straighteners.
Depending on the results, you may need to reposition the weights on the clothes, or add or remove weights.

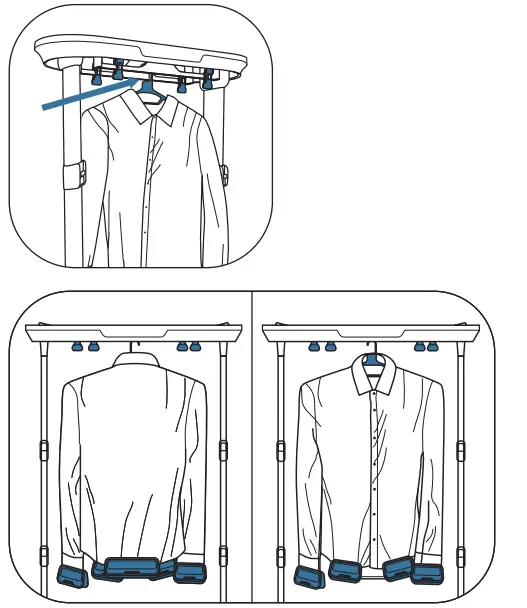

SHIRTS
Place up to two shirts on a hanger and hang on the rail.
If you want to steam a shirt, button it up to the top.

To steam, place a large straightener on the back of the shirt, a small straightener on each sleeve and two small straighteners on the front of the shirt.
Depending on the results, you may need to reposition the weights on the clothes, or add or remove weights.

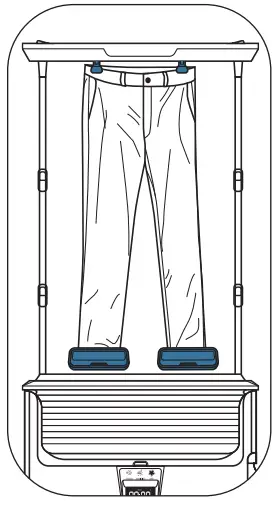

TROUSERS

Use the built-in clasps to hang your trousers in Care For You.
To steam, put a large straightener on the end of each trouser leg.
Make sure to empty the pocket of your garments.

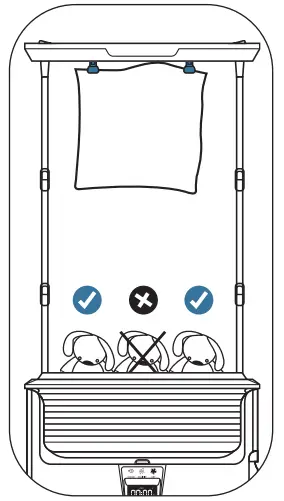

OTHER

Use the built-in clasps and shelf to place cuddly toys, pillows and linen into Care For You.

USING THE PRODUCT

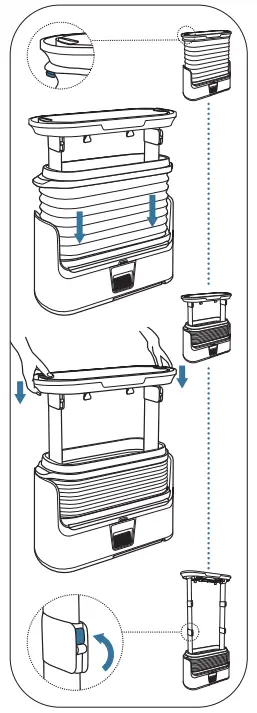

Pull the switch for locking/unlocking the shutter to lower it.
Press the up/down handles for adjusting the height of the posts and adjust them until you hear the locking mechanism click into place.
Engage the four locks, starting from the bottom.

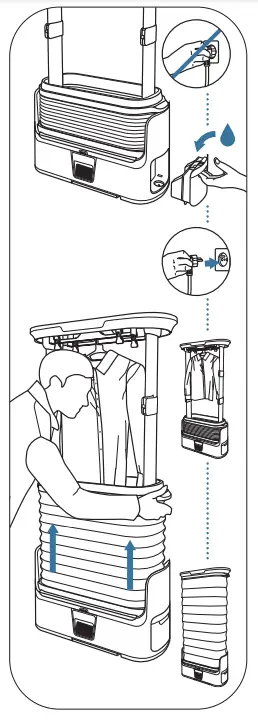

Make sure that the power cord is unplugged.
Remove the container and fill it with water.
Plug the appliance in.
You can dewrinkle up to five garments at a time and sanitize up to three garments. (See « How do I position my clothes ? » section).
Close the shutter.
Always close the shutter before you start a cycle.

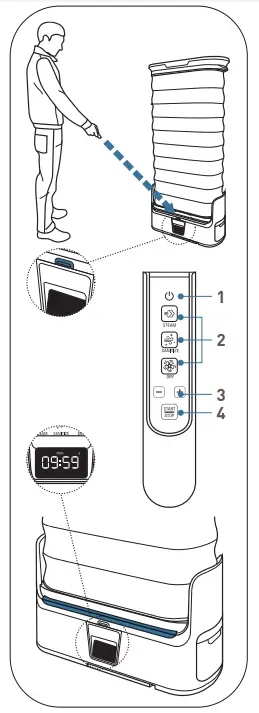

Point the remote control at the infrared receiver..

1. Press the « on/off » button on the remote control.
2. Select one of the three available programs. An indicator at the bottom of Care For You will light up to confirm the selected program.
3. Use the « + » et « – » buttons to adjust the time displayed on the bottom of Care For You.
4. Start the selected program by pressing the « start/stop » button.

The strip along the bottom of the product will light up as it heats up.

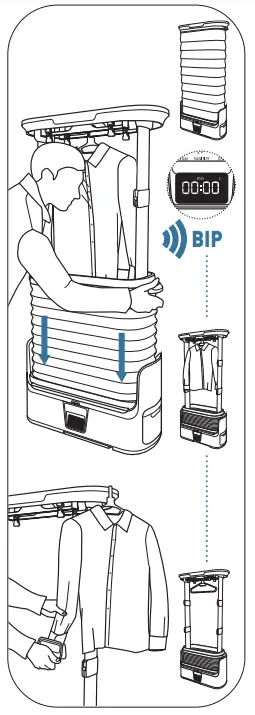

While your program is running, the screen will display the time remaining for the cycle.
Do not open the shutter while the program is running.
A beeping sound will indicate that theprogram has finished.
Press the switch for locking/unlocking the shutter to lower it.
Remove the garments(s) and any straighteners used.

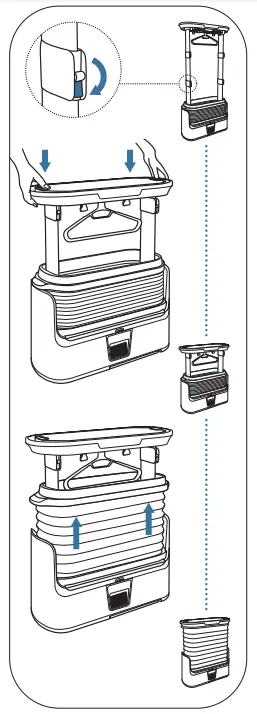

Optional: To fold up your product for storage, release the locks, starting from the top.
Press on the handles for adjusting the height of the posts while applying pressure to lower them.
Lift the shutter.

WHAT KIND OF GARMENTS SHOULD I USE WITH CARE FOR YOU?

All three Care For You programs are suitable for use with most fabrics. If in doubt, refer to the symbols on your garment’s care label.
Do not put shoes or gloves in Care For You.

CATEGORY	SYMBOL	MEANING	CFY
WASHING SYMBOLS		Hand wash only	✓
		Machine wash normal	✓
		Synthetics cycle	✓
		Gentle cycle	✓
		Do not wash	✓
TUMBLE DRYING SYMBOLS		Tumble dry allowed	✓
		Permanent press	✓
		Delicate	✓
		Do not tumble dry	✓
		Do not dry	X
		Line dry	✓
		Drip dry	✓
		Dry flat	✓
RECOM- MENDED TUMBLE DRYER SETTINGS		Tumble dry on high heat	✓
		Tumble dry on medium heat	✓
		Tumble dry on low heat	✓
		Tumble dry, no heat	X

✓ :Suitable for use with Care For You.
X :Do not use with Care For You.

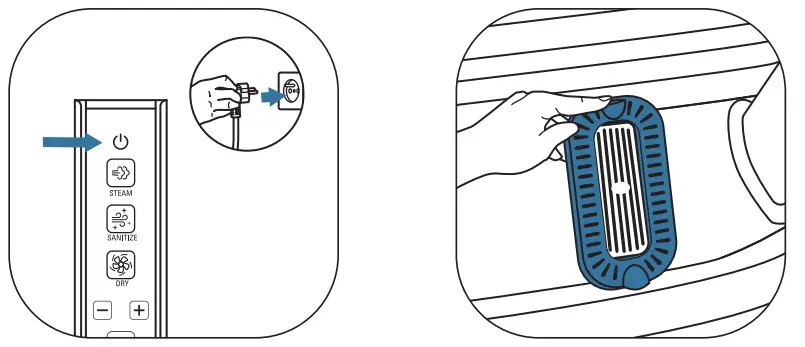

CLEANING THE PRODUCT

Turn off and unplug the appliance. Wait one hour for the appliance to cool down completely.
SLift out the shelf, remove the ilter and remove any residue that may be there with a sponge.

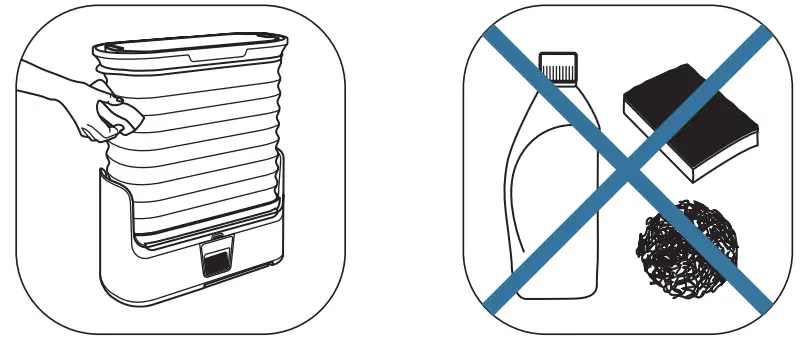

Clean the shutter using a damp cloth or well wrung-out sponge.
Never use abrasive agents or products to clean or descale the appliance.
Take care not to scratch the infrared receiver or transmitter on the remote control.

TROUBLESHOOTING

If you have any problems with this product, do not hesitate to contact customer service.

PROBLEMS	CAUSES	SOLUTION
I am not satisfied with the steaming results.	The selected time and/or number of straighteners is not suitable for the garment(s).	Restart a 30-minute STEAM cycle, button the garment up to the top where applicable and consider using straighteners if possible with your garment (see «How do I position my clothes?” section)
Depending on the results, you may need to reposition the weights on the clothes, or add or remove weights.	The position or number of weights is not suitable for the garment.	Follow these steps: 1/ Reposition the weights 2/ Add or remove weights.
Using the straighteners has stretched my garment.	You used the straighteners on a garment that easily loses its shape.	Wash your clothes again. In most cases, this is enough for it to regain its original shape. In the future, use Care For You without the straighteners for this garment.
When the program is finished, the inside of the shutter is wet.	The drying cycle at the end of the program was not finished.	– Startah a cloth or – Dry wit 10-minute drying program or – Leave to dry naturally.
There is too much steam coming out of the top of my product.	The shutter is not correctly positioned.	Make sure that the shutter is properly clipped onto the top of the product.
The product has stopped responding to the remote control.	The remote control is not pointed at the infrared receiver or has run out of battery.	Point the remote control at the infrared receiver at the bottom of the product and check its batteries.
My product will not stay in the raised position.	The posts are not being raised up high enough to activate the locking mechanism.	Lift the posts to maximum height to activate the locking mechanism.
I am seeing this symbol:	Tank is empty or incorrectly positioned.	Fill the water container and check that it properly clipped on.
Your appliance turns itself off.	After a few minutes, the appliance switches off automatically to save energy.	You can turn your appliance back on using the remote control.
I am not satisfied with the drying results.	Your garments are too wet.	Spin your clothes before putting them into Care For You.
It leaves damp patches on the wall or ceiling.	You have not left enough space between Care For You and the wall during use, the room is not sufficiently ventilated or you have not closed the shutter fully.	Move Care For You at least 50 cm away from the wall during use or place he appliance in a larger room with better ventilation and more moderate temperature. Ensure that the shutter is properly closed.

www.calor.com
www.tefal.com
