Tefal Dt81xx Clothes Steamer User Manual

DT81XX/DT82XX Clothes Steamer
User Manual

DT81XX Clothes Steamer

Depending on model

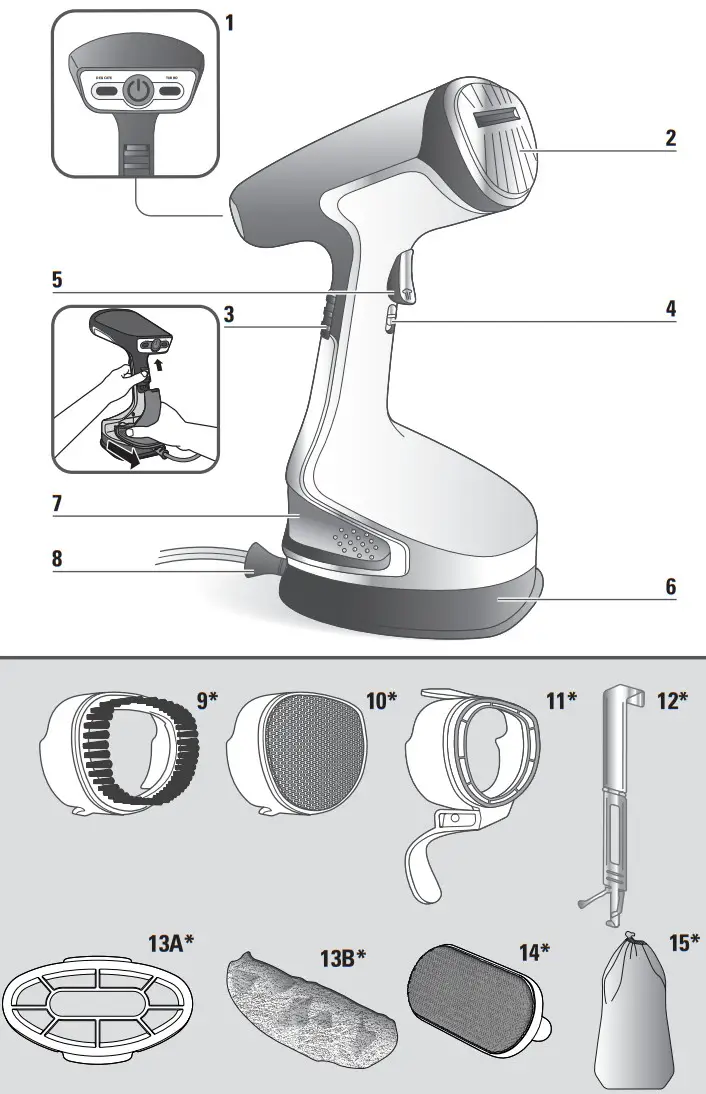

PRODUCT DESCRIPTION

1. Control panel: On/off and steam level buttons
2. Heated soleplate
3. Water tank lock
4. Continuous steam lock switch
5. Steam trigger
6. Standing base
7. Removable water tank
8. Cord exit
9. Fabric brush
10. Steam bonnet
11. Crease Attachment
12. Door hook
13. A. Micro-fiber brush support
    B. Micro-fiber
14. Lint pad
15. Travel bag

BEFORE USE

Unlock and remove the water tank.Remove the water inlet stopper.Fill the water tank with untreated tap water.
Close the water inlet stopper.Return the water tank to its place on the appliance. Make sure that the water tank is fully set in place and locked.
Hang your garment on a clothes hanger.

ACCESSORIES

Before removing or attaching accessories, unplug your appliance and allow it to cool down, for one hour. The door hook allows to hang your garment for steaming.The fabric brush* opens the weaves of the fabrics for better steam penetration.The steam bonnet* protects garments from the heated plate. This accessory must be used for delicate fabrics. The crease attachment* is used to press trousers easily. Put your fabric in the space between the two accessory parts. Move the crease attachment in a downwards motion starting from the top. The micro-fiber brush* is composed of a support and a micro-fiber. Wrap the micro-fiber around the support, release steam and softly scrub it with up and down movement on the textile in order to remove impregnated dust. When the micro-fiber is dirty, it can be cleaned, please refer to MAINTENANCE section. Never use the support without micro-fiber.  The lint pad* is used to remove animal hair and lint from textiles.  The travel bag* can be used to tidy the appliance. Before using the travel bag, unplug your appliance and allow it to cool down, for one hour.

USE

Warning: Never steam a garment while it is being worn.Plug-in the appliance.Switch on the appliance.Wait until the light stops flashing. When the light is steady the appliance is ready to use.Press the steam button with the appliance facing away from you holding it in a vertical position.For optimal use, move the steam jets over your garment from top to bottom.Delicate mode: a lower steam output for your most delicate textiles.Turbo mode: Ideal for heavy fabrics and to remove the stubborn creases.
To activate the boost, push for more than 2 seconds on this button. The boost will last approximately 3 seconds, and cannot be repeated more than 3 times a minute, every 20 seconds.For continous steam, lock the steam trigger by pushing the locker switch down. To release it, push it up.Press and hold the On/Off button for 3 seconds to switch the appliance off.Unplug the appliance.Warning: Never touch the soleplate of the appliance.

STANDBY/AUTO-OFF MODE

1. For your safety, the appliance is fitted either with a standby monitoring system or auto-off system.
2. In case of standby system: it is activated after approximately 8 minutes without use. The ON/OFF button flashes slowly. To re-activate it, press the ON/OFF button once and wait to release steam.
3. In case of auto-off system: it is shutting off the appliance after approximately 8 minutes without use. To re-activate it, press the ON/OFF button once and wait to release steam.

AFTER USE

Unlock and remove the water tank.Empty the water tank completely.Return the water tank to it’s place on the appliance. Make sure the water tank is fully set in place and locked. Wait for an hour for your appliance to cool before storing.

EASY DESCALING

Do this operation in a vented room.
Unlock and remove the water tank.Fill the water tank with 50% water and 50% white vinegar.
Do not use other descaling products.

Return the water tank to its place on the appliance. Make sure the water tank is fully set in place and locked.
Plug in and switch on the appliance, then wait until the light stop flashing.
Put the steam trigger in the locked position thanks to the locker.
Place the product on a flat, stable, horizontal and heat resistant surface.
Allow the appliance to run until the water tank has completely emptied.

Press and hold the On/Off button for 3 seconds to switch the appliance off.	Unplug the appliance and pull the water tank out.
Remove the water inlet stopper and fill the water tank with untreated tap water.	Return the water tank to its place on the appliance. Make sure the water tank is fully set in place.

Plug in and switch on the appliance, then wait until the light stop flashing.Put the steam trigger in the locked position.
Place the product on a flat, stable, horizontal and heat resistant surface.Allow the appliance to run until the water tank has completely emptied.

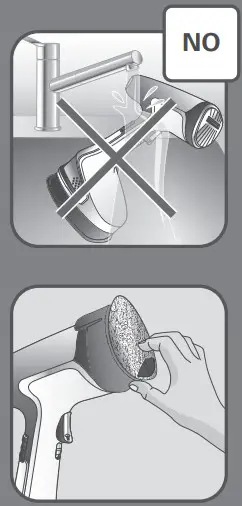

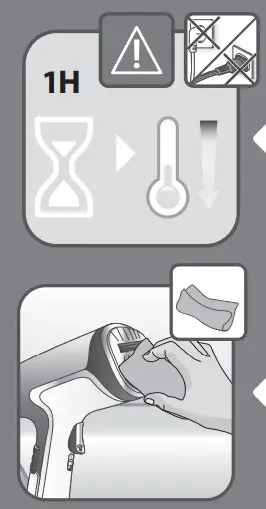

MAINTENANCE

Wait an hour for complete cool down. Only use a dry cloth to clean. Do not use any detergent product.	Never wash or rinse appliance directly over a sink. To clean the micro-fiber* remove it from its support. Follow the instruction set on the micro-fiber label to clean it in the correct way.

9100028253/04 – 12/22
