SERENA AND TRIATHLON WOOD BLINDS
BUTT AND PASS TYPICAL DETAILS

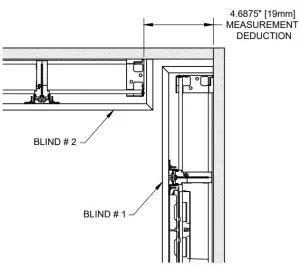

FOR CORNER MOUNTING APPLICATIONS, BUTT AND PASS NOT RECOMMENDED. USE CORNER TO CORNER INSTEAD. IF BUTT AND PASS IS REQUIRED,BE ADVISED THAT BLIND #1 SHOULD BE COMPLETELY INSTALLED BEFORE BRACKETS FOR BLIND # 2 ARE INSTALLED, AS THE BRACKETS FOR BLIND #2 WILL INTERFERE WITH THE INSTALLATION OR REMOVAL OF BLIND #1.
REFERENCE SECTION DRAWING FOR DETAILED MOUNTING REQUIREMENTS
AUXILIARY VIEWS
| SERENA AND TRIATHLON WOOD BLINDS | 085691 | |
| SCALE: 1/5 | PAGE: 1 | REVISION: A |
