Asus Rs720-e9 Series Servers And Workstations Instructions

RS720-E9 Series

Service Part List

The illustrations below show the components of the RS720-E9 series. (Illustration model may not be the same, for more detailed information, please refer to the SN)

Component	Description	Part No.

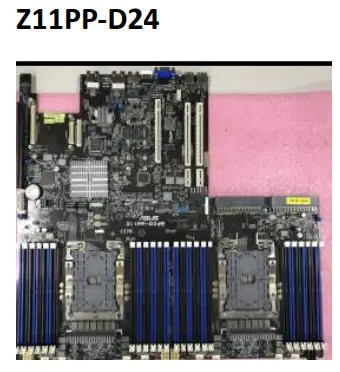

	Motherboard	M: 90SB05N0-M0XXN1 S: 90SB05N0-M0XBX0 S: 90SB05N0-M0XBX1 S: 90SB05N0-M0XXN0

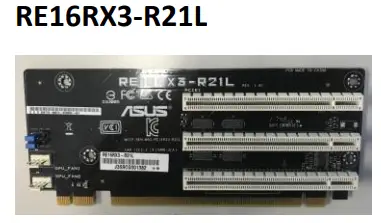

	Riser card	M: 90SC08G0-M0XXN0 S: 90SC08G0-M0XBN0

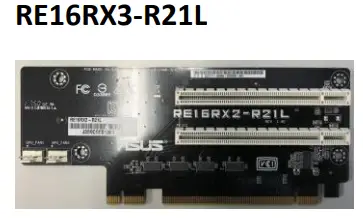

	Riser Card	M: 90SC08G0-M0XBN1 S: 90SC08G0-M0XXN1

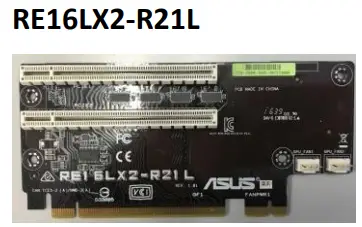

	Riser Card	M: 90SC08H0-M0XXN0 S: 90SC08H0-M0XBN0

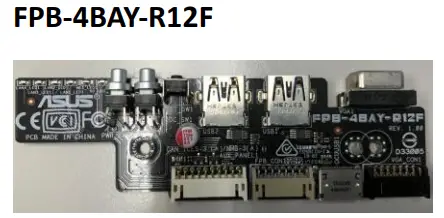

	Front panel board	M: 90SC09E0-M0XXN0 S: 90SC09E0-M0XBN0

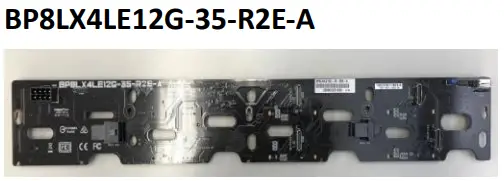

	HDD Backplane	M: 90SC09U0-M0XXN0 S: 90SC09U0-M0XBN0
	RS12-E BP (Only for RS720-E9-RS12-E)	M: 90SC09V0-M0XXN0 S: 90SC09V0-M0XBN0

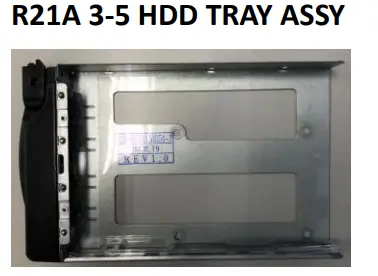

	HDD Tray	M: 13GS1I0AM061-1 S: 13GS1I0AM063-1 S: 13GS1I0AM054-1 S: 13GS1I0AM052-1

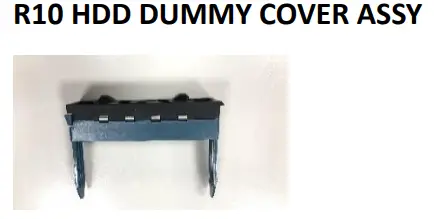

	HDD Dummy	13GS020AP022-1

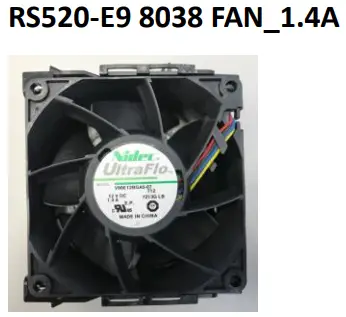

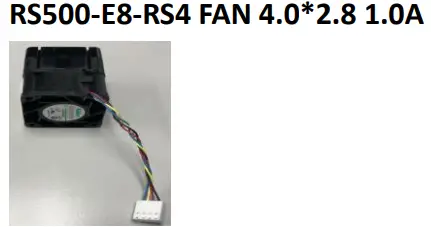

	System Fan	13070-01360000

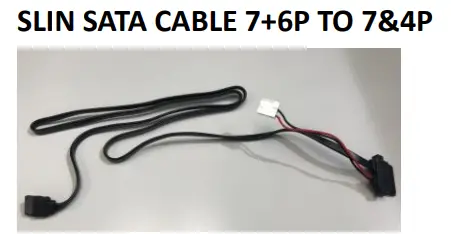

	Optical Drive SATA/Power Cable	14G000112303

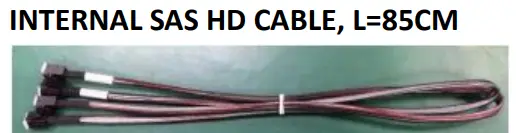

	Internal SAS HD Cable	M: 14011-00480500 S: 14011-00480400
	GPU Fan (Only for RS720-E9-RS8-G)	13070-00790000
	GPU Fan cable (Only for RS720-E9-RS8-G)	14011-00100300

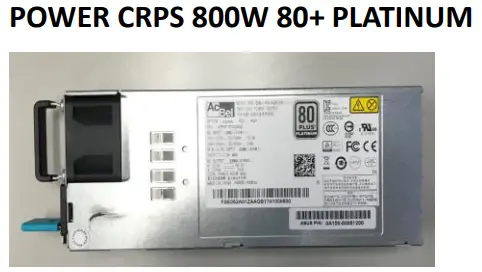

	Power Supply	M: 0A100-00081500 S: 0A100-00081200
	1200W Power (Only for RS720-E9-RS8-G)	0A100-00271100

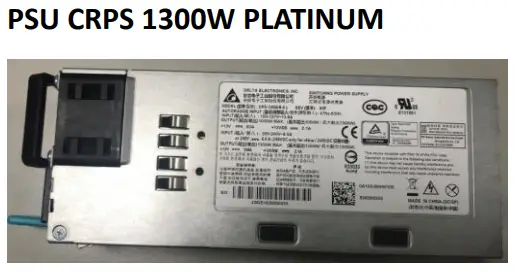

	1300W Power (Only for RS720-E9-RS8-G)	0A100-00400100

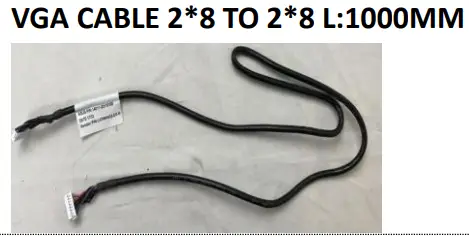

	Front VGA Cable	14011-00110400

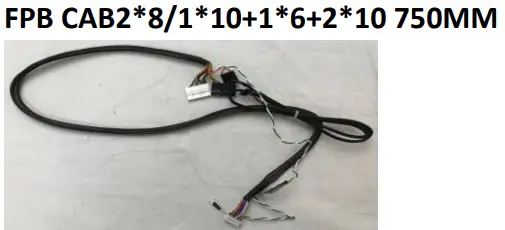

	Front Panel Cable	14001-00800400
	Optical Drive SATA/Power Cable	14G000112303

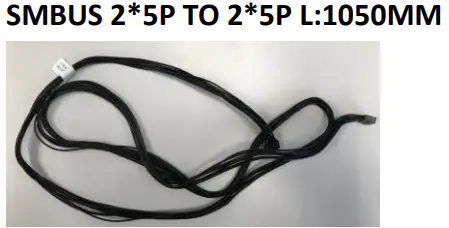

	SMBUS Cable	14011-02380100

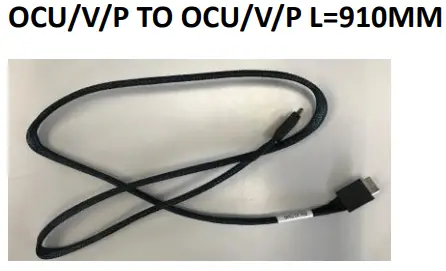

	HDD Backplane OCUPCIE1 Cable	M: 14011-02260600 S: 14011-02261500
	HDD Backplane OCUPCIE1 Cable	M: 14011-02260600 S: 14011-02261500

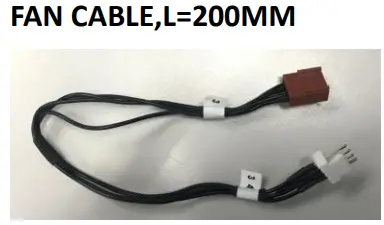

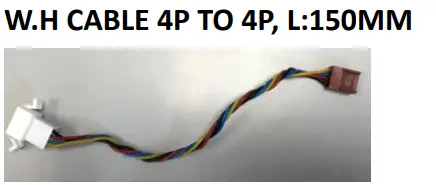

	System Fan Cable	14G030011552

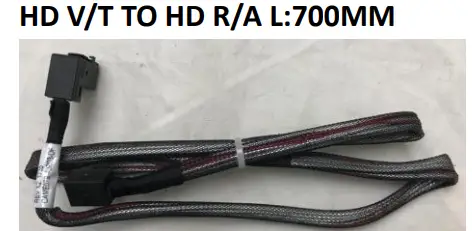

	Mini SAS HD Cable	14011-00610900
