Asus Pro E500 G7 Servers And Workstations Owner's Manual

PRO E500 G7 Servers and Workstations
Owner’s Manual

Service Part List

The illustrations below show the components of PRO E500 G7/WS750T.
(Illustration model may not be the same, for more detailed information, please refer to the SN)

Component	Description	Part No.

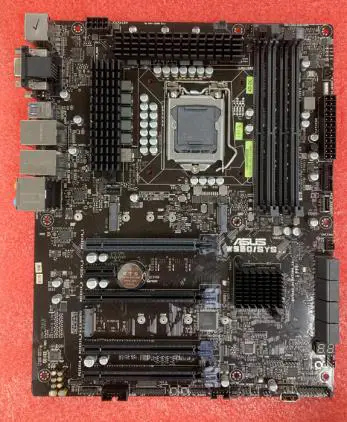

W580/SYS	Motherboard	90SB09S0-M0XBN0

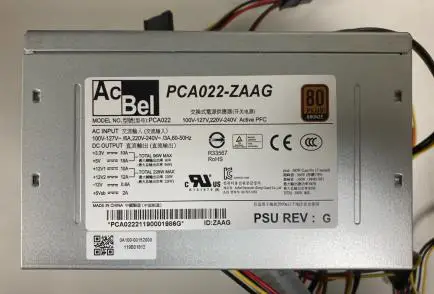

PSU ATX 300W PCA022-ZAAG REV:G	Power Supply	0A100-00152000

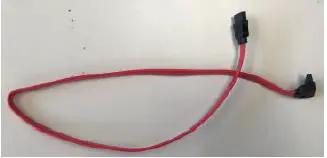

SATA CABLE 7P 90-180,L:500mm	SATA Cable	14G000100101
SATA 6G CABLE 7P G/F BLA 500MM	SATA Cable	14G000130233
T11 FIO CABLE MODULE(TYPE C)	Front IO Cable Module	14011-05370000

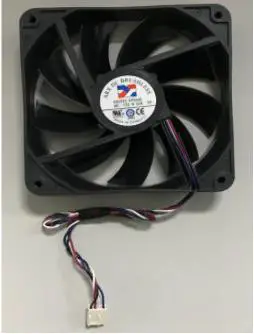

ARX 12025 2BALL FAN	System Fan	13G074166000

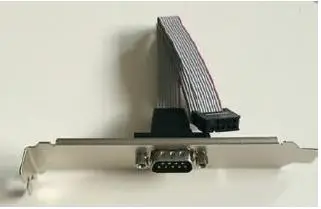

COM1 CABLE 9P,L:260MM	COM Port Cable	14G000020096
T4A F S30346	Cage Assy	13SV000LAM0701
