KF1815E
TECHNICAL MANUAL
TECHNICAL DATA
| Outside dimensions | :1800x1500x2010mm |
| Inside dimensions | :1640x1340x1850mm |
| Packing dimensions | :2000x1350x1200mm |
| Door internal dimensions | :700x1845mm |
| Inside volume | : 12,34-m3 |
| Gross weight | : 260 kg |
| Net weight | : 280 kg |
| Housing | : 0,50 mm PVC coated galvanized white sheet |
| Insulation material | : Polyurethane |
| Insulation | : 80 mm |
| 360mm Shelf | : T36RF3021A |
| 460mm Shelf | : T46RF3021A |
| Insulation density | : 42 Kg / m3 +/-1 |
| Certifications | : TS 2225 EN 60335-2-4 |
| Serial No | : On the packaging |
| Package | : Wooden pallet , Packed in carton and nylon |

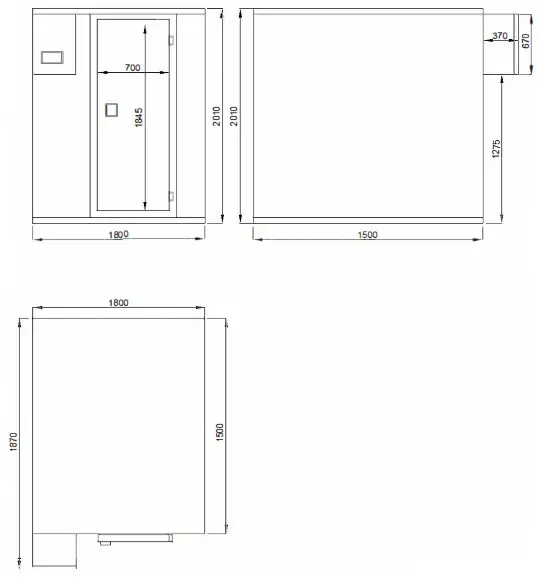

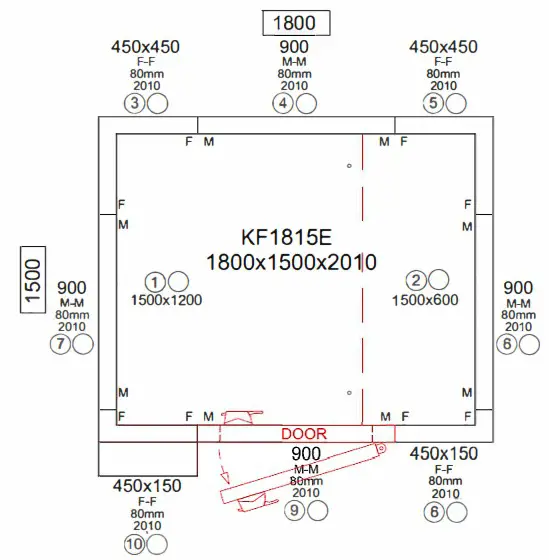

INSIDE , OUTSIDE DIMENSIONS
OUTSIDE DIMENSIONS = 1800x1500x2010
INSIDE DIMENSIONS = 1640x1340x1850
DOOR INTERNAL DIMENSIONS = 1845×700

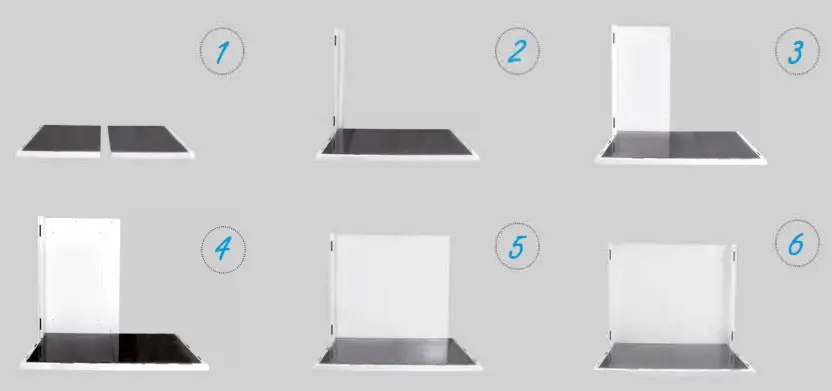

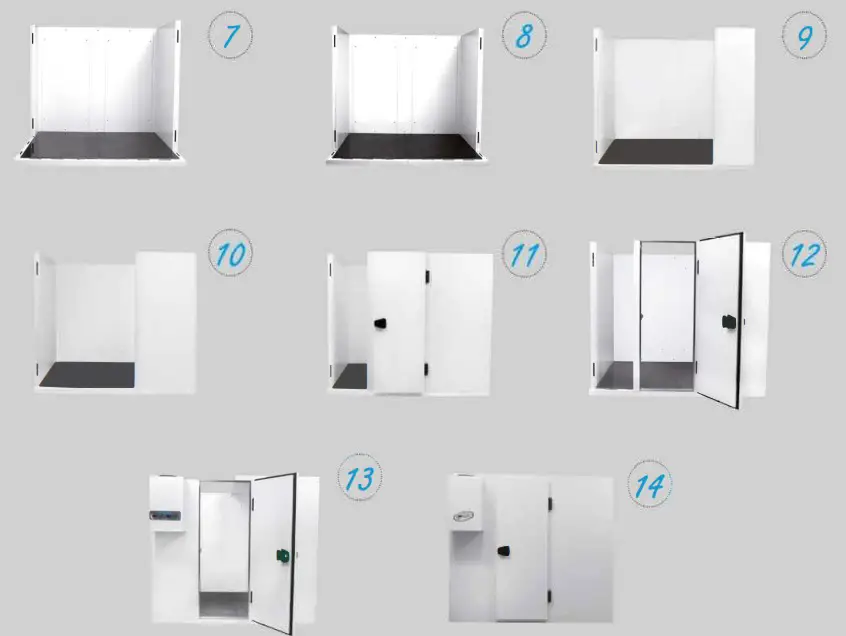

ASSEMBLY
