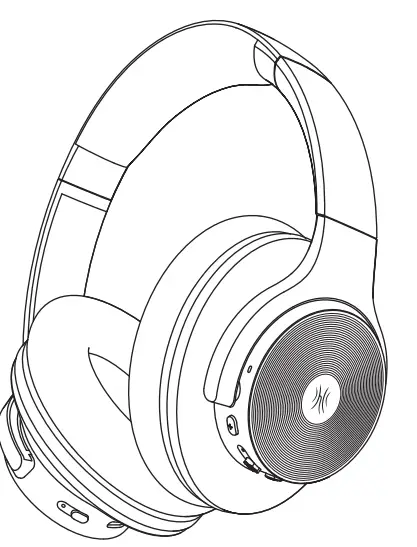

OneOdio A10 Hybrid ANC Headphones

OneOdio A10 Hybrid ANC Headphones-PRODUCT

A10 Hybrid ANC Headphones

The A10 Hybrid ANC Headphones are a high-quality audio device that offers both Active Noise Cancellation (ANC) and Transparency Modes. These headphones come with a charging cable, two audio cables, and a user manual. They have a long battery life of up to
35 hours with both ANC and Bluetooth enabled and up to 50 hours with only ANC enabled. The headphones have a range of up to 10 meters or 33 feet and feature a sensitivity of -35 dB and a speaker diameter of 40mm.

Product Usage Instructions

  1. Charge the headphones using the included charging cable for two hours.
  2. Connect the headphones to your device using one of the included audio cables or via Bluetooth.
  3. Press the power button to turn on the headphones.
  4. Press the ANC button to activate Active Noise Cancellation Mode.
  5. To activate Transparency Mode, press the Transparency Mode button.
  6. To use Voice Assistant, press the Voice Assistant button.
  7. To switch between current and call on hold during a three-way call, use the call switch button.
  8. To reset the headphones, press and hold the Volume up and Volume down buttons simultaneously for 5 seconds while in pairing mode.

Please refer to the user manual for more detailed instructions on how to use your A10 Hybrid ANC Headphones.

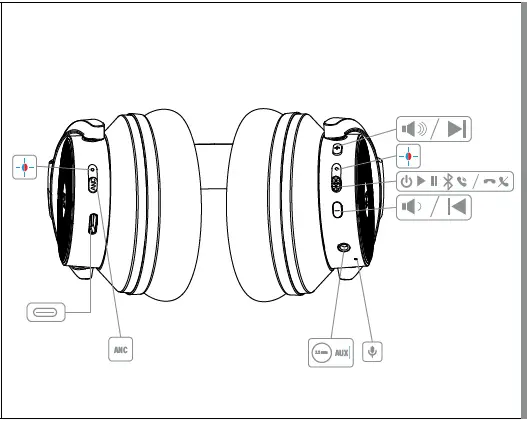

PRODUCT OVERVIEW

OneOdio A10 Hybrid ANC Headphones-FIG12

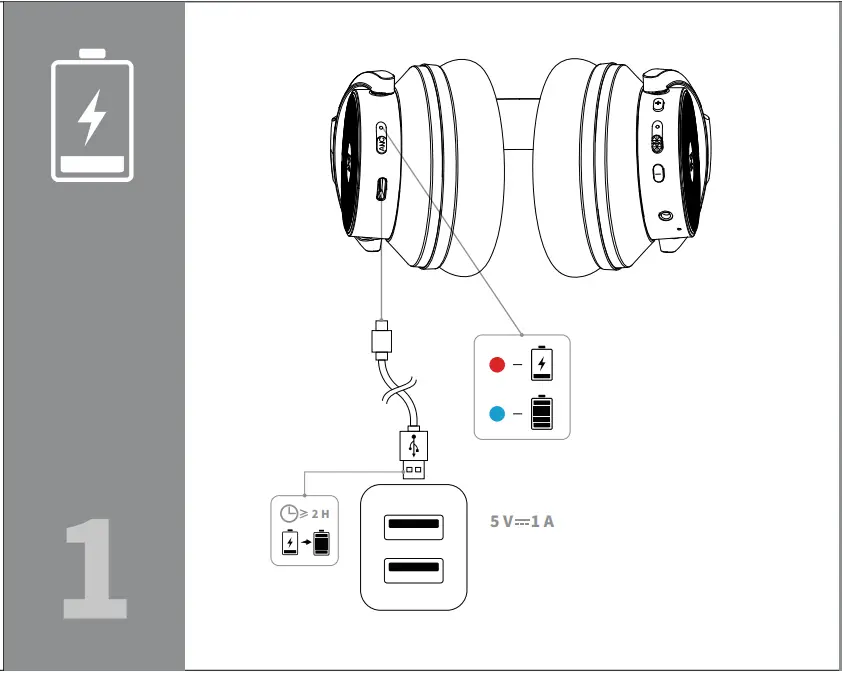

POWER

OneOdio A10 Hybrid ANC Headphones-FIG1

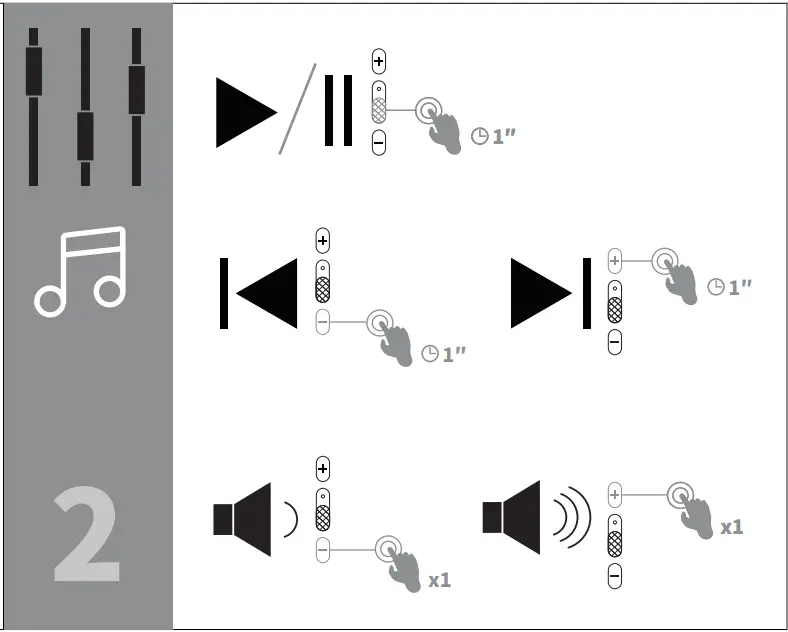

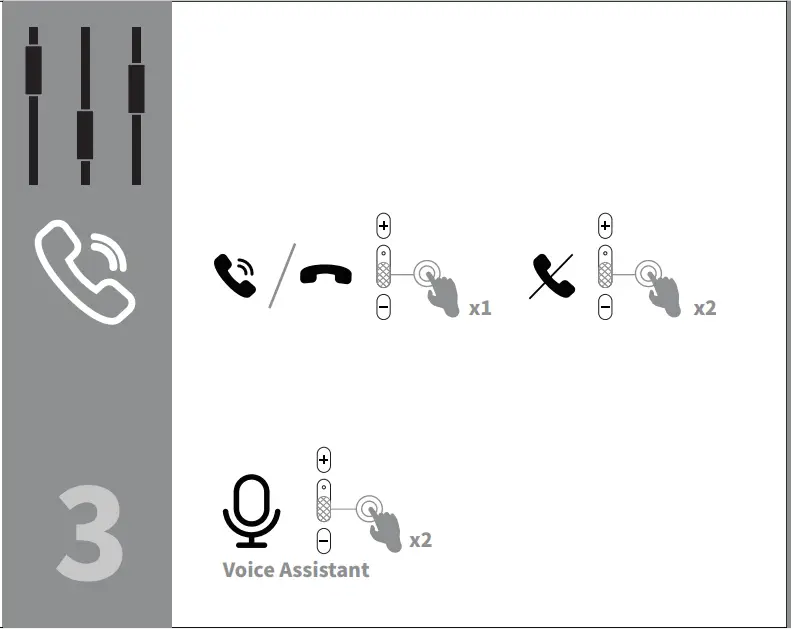

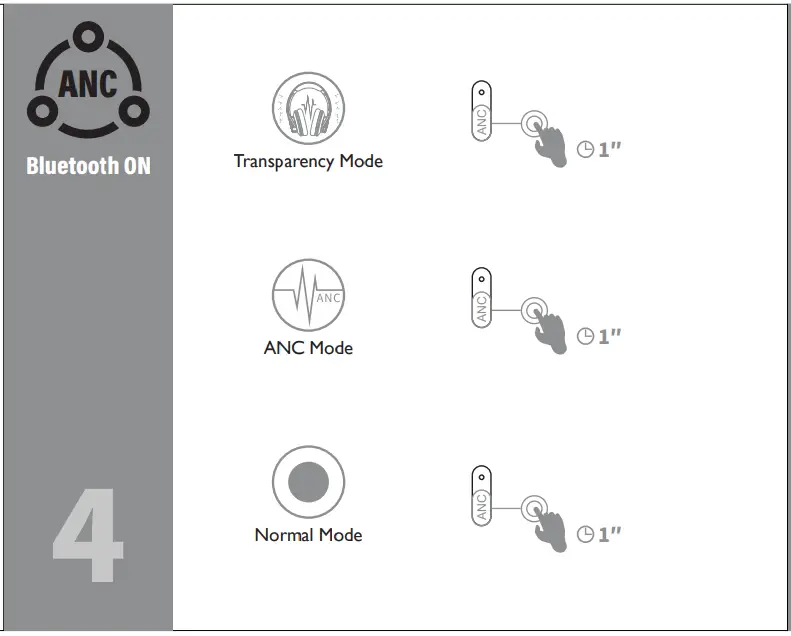

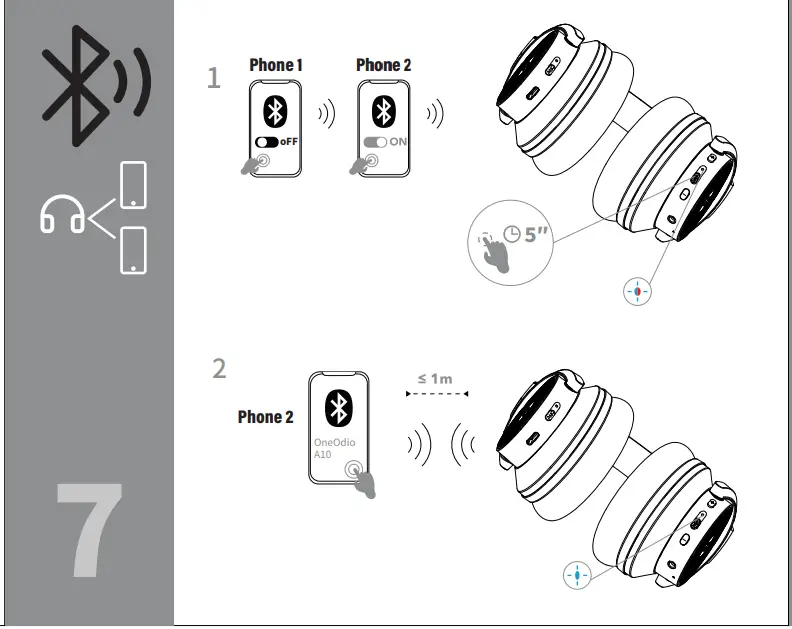

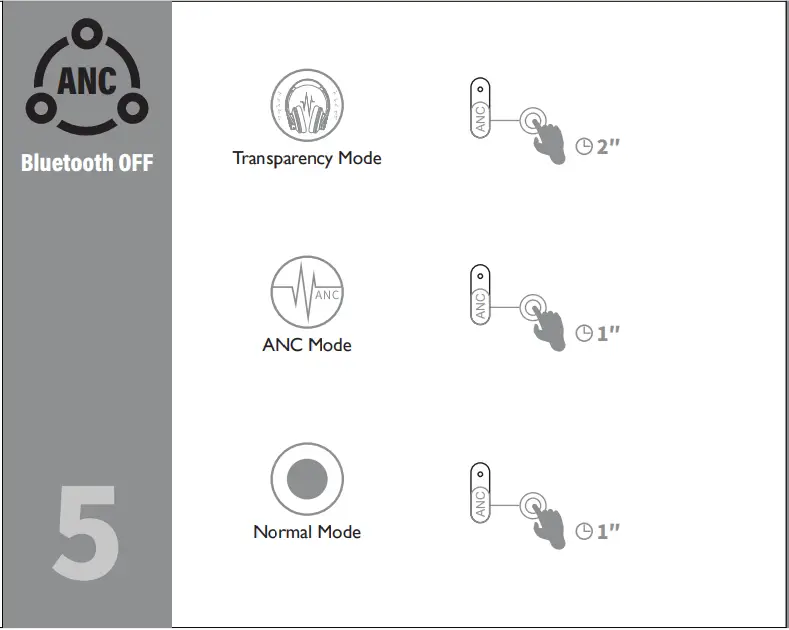

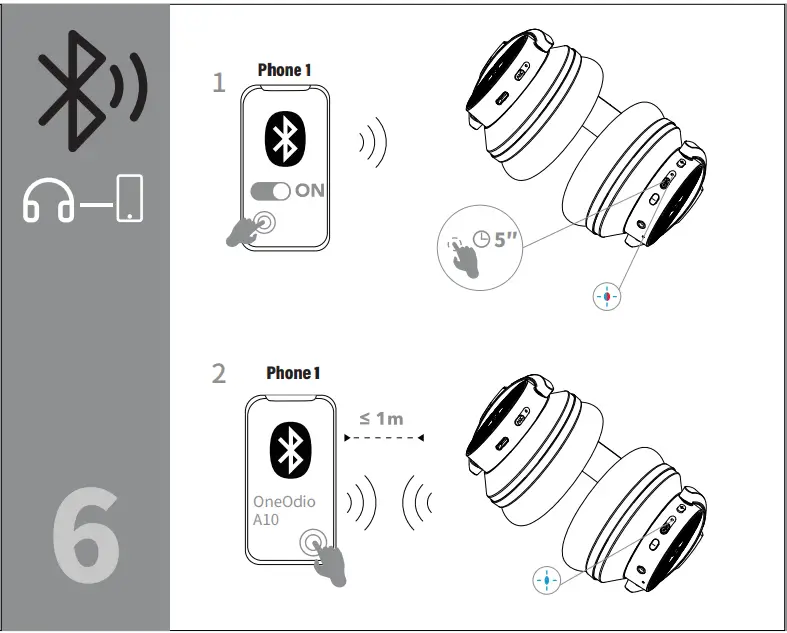

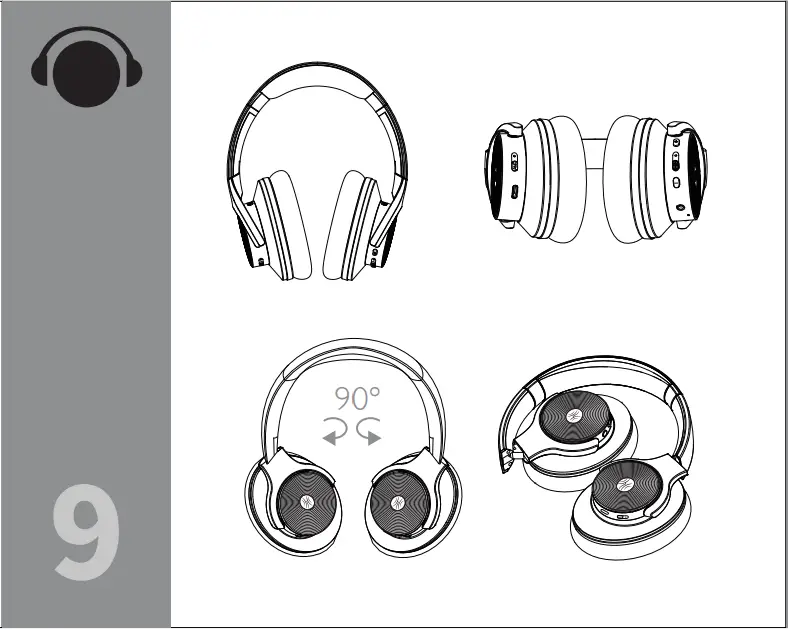

FUNCTIONS

OneOdio A10 Hybrid ANC Headphones-FIG2OneOdio A10 Hybrid ANC Headphones-FIG3OneOdio A10 Hybrid ANC Headphones-FIG4OneOdio A10 Hybrid ANC Headphones-FIG5OneOdio A10 Hybrid ANC Headphones-FIG6OneOdio A10 Hybrid ANC Headphones-FIG7OneOdio A10 Hybrid ANC Headphones-FIG9OneOdio A10 Hybrid ANC Headphones-FIG10

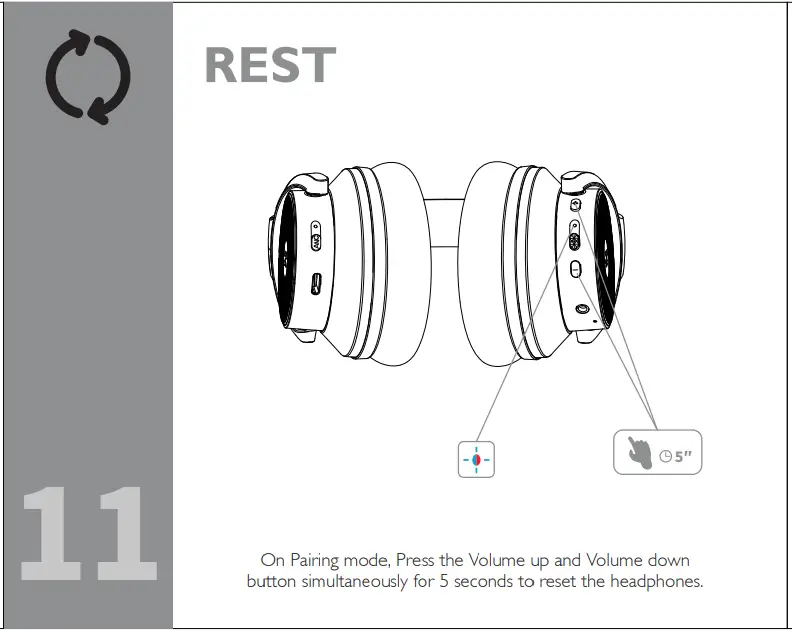

REST

OneOdio A10 Hybrid ANC Headphones-FIG11

On Pairing mode, Press the Volume up and Volume down button simultaneously for 5 seconds to reset the headphones.

Specifications

  • Model: A10
  • Input: 5 VDC, 560 mA
  • Using Time: 35 hours (ANC + BT)
  • Using Time3: 50 hours (ANC only)
  • Noise Reduction Depth: -35 dB
  • Speaker diameter: 40 mm
  • Sensitivity: -42 ± 3 dB
  • Impedance: 32 Ω ± 15%
  • Frequency response: 20 Hz – 40 kHz
  • Net Weight: 295 g

Packing list

  • 1× OneOdio A10 Hybrid ANC Headphones
  • 1× EVA Case
  • 1× 3.5mm Audio Cable
  • 1× Type-c Charging Cable
  • 1× User Guide
