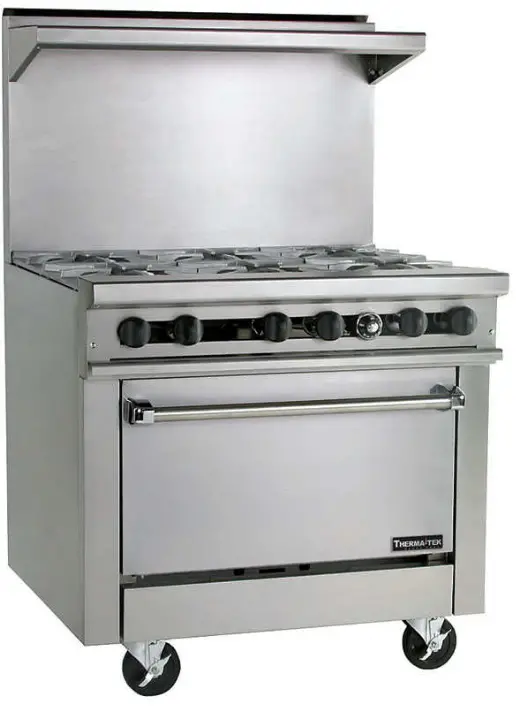

THERMA-TEK Restaurant Ranges
Product Information
The product consists of various parts and components that are used in commercial ovens. These parts include orifices, valves, burners, racks, panels, igniters, tubing, legs, casters, door liners, and frames. Each part has a unique item number and part number for identification purposes. The product is designed to be used in commercial ovens only.
Product Usage Instructions
- Before using the product, ensure that all the parts are properly installed and secured in the oven.
- To adjust the gas flow, use the pilot adjust valve or the manual gas valve as per the requirement.
- The oven thermostat should be installed with the brass elbow 90 fitting and a capillary bulb bracket.
- Use the thermostat BJ bezel assembly and knob to adjust the temperature settings of the oven.
- The pilot tube should be connected to the open top pilot tube WA air shutter for proper functioning.
- The front and rear venturi should be installed with the top grate support for commercial burner heads.
- Use the drip pans and handles to collect any excess grease or food particles during cooking.
- The oven racks should be properly clipped in with the rack guide and slide TMD for easy removal and insertion.
- The piezo igniter should be mounted on the bracket for easy access.
- The TS11 safety valve should be installed with the bracket for safety purposes.
- Use the orifices as per the gas type (Nat or LP) and oven type (open top, space saver, or range base).
- The door liner and frame assembly should be installed for proper insulation and safety.
- Always refer to the user manual or seek professional help for installation and maintenance of the product.
EXPLODED DIAGRAM AND CHARTS
| Item Number | Part No. | Description |
| 1 | 81022-40 | Open Top Orifice #40 (Nat) |
| 81022-53 | Open Top Orifice #53 (LP) | |
| 2 | 81003-01 | 1/8 NPT Pipe Plug |
| 3 | 81018 | Pilot Adjust Valve Open Top |
| 4 | 80030-01 | Manual Gas Valve Full Brass |
| 5 | 81015 | Brass Elbow 90 3/8CC x 1/4 NPT (Oven Thermostat Fitting) |
| 6 | 80019 | Tee Thermostat |
| 7 | 80014 | BJ Bezel Assy (Oven) |
| 8 | 80015-02 | BJ Oven Knob |
| 9 | 80017-02 | BJWA Oven Thermostat |
| 10 | 30273 | Oven Bulb Clamp |
| 11 | 31033 | Range Capillary Bulb Bracket |
| 12 | 30955-03 | Burner Rest 36 TMD |
| 30955-02 | Burner Rest 24 TMD | |
| 30955-01 | Burner Rest 12 TMD | |
| 13 | 30473 | Open Top Pilot Tube WA |
| 14 | 80029-01 | Air Shutter |
| 15 | 82048 | Front Venturi |
| 16 | 82051 | Top Grate Commercial |
| 17 | 82050 | Burner Head |
| 18 | 82049 | Rear Venturi |
| 19 | 30962 | Top Grate Support |
| 20 | 90038-03 | 3/16″ X 25″ Pilot Tip Assy (REPLACES PN 90002) |
| 21 | 80026-01 | Regulator 5″ NAT |
| 80026-02 | Regulator 10″ LP | |
| 22 | 30266-01 | 36″ SDHS Rear Panel |
| 30266-02 | 60″ SDHS Rear Panel | |
| 30266-03 | 24″ SDHS Rear Panel | |
| 30266-04 | 48″ SDHS Rear Panel | |
| 30266-05 | 72″ SDHS Rear Panel | |
| 23 | 30963-02 | 36″ SDHS Shelf |
| 30963-01 | 24″ SDHS Shelf | |
| 30963-03 | 48″ SDHS Shelf | |
| 30963-04 | 60″ SDHS Shelf | |
| 30963-05 | 72″ SDHS Shelf | |
| 24 | 30968-02 | 36″ SDHS Front Panel |
| 30968-03 | 48″ SDHS Front Panel | |
| 30968-04 | 60″ SDHS Front Panel | |
| 30968-05 | 60″ RGB SDHS Front Panel | |
| 30968-01 | 24″ SDHS Front Panel | |
| 30968-06 | 72″ SDHS Front Panel | |
| 25 | 30110-01 | 36″ Drip Pan Handle |
| 30110-02 | Drip Pan Handle (TMD36-24G-2- 1) | |
| 30110-03 | Center Drip Pan Handle 60″ | |
| 30110-04 | Drip Pan Handle 60″ | |
| 30110-05 | RGB Drip Pan Handle |
| 30110-06 | RGB Center Drip Pan Handle 60″ | |
| 30110-07 | Drip Can Handle 24″ RGB | |
| 30110-08 | Drip Pan Handle 24″ | |
| 26 | 30111-01 | 36″ Drip Pan |
| 30111-02 | Drip Pan (TMD36-24G-2-1) | |
| 30111-03 | Drip Pan 60″ | |
| 30111-04 | Center Drip Pan 60″ | |
| 30111-07 | 36″ CRB/RB Drip Pan | |
| 30111-08 | 24″ Drip Pan | |
| 30111-09 | 24″ CRB/RB Drip Pan | |
| 30111-10 | 12″ Broiler Drip Pan | |
| 30111-11 | Center 60″ Drip Pan (TMD60-4- 36CRB) | |
| 30111-12 | 60″ Drip Pan (TMD60-4-36CRB) | |
| 27 | 80021-02 | Oven Pilot (NAT) |
| 80021-01 | Oven Pilot (LP) | |
| 27A | 80122-04 | Oven Pilot Bell .010 LP |
| 80122-03 | Oven Pilot Bell .018 NAT | |
| 28 | 82022 | Straight Tube Burner |
| 29 | 30436 | Straight Tube Burner Bracket |
| 30 | 80001 | Commercial Oven Rack 30″ Oven |
| 80045 | Commercial Oven Rack 24″ Oven | |
| 31 | 80002 | Oven Rack Side |
| 30974 | Rack Guide TMD (Includes 30975- Rack Slide TMD) | |
| 32 | 30086 | Oven Rack Clip Assy |
| 33 | 30107 | Lower Front Panel 30″ (PRE- 2011) |
| 30976-01 | Lower Front Panel 30″ (2011 TO PRESENT) | |
| 30107-01 | Lower Front Panel 24″ (PRE- 2011) | |
| 30976-02 | Lower Front Panel 24″ (2011 TO PRESENT) | |
| 34 | 30094 | Front Air Shield 36″ |
| 30094-01 | Front Air Shield 24″ | |
| 35 | 80031 | Piezzo Igniter |
| 36 | 30129 | Piezzo Igniter Bracket |
| 37 | 90008 | Oven Pilot Tubing (TS11 to Pilot) |
| 38 | 80018 | TS11 Safety Valve |
| 39 | 30126 | TS11 Safety Valve Bracket |
| 40 | 81022-39 | Oven Orifice Nat #39 |
| 81022-52 | Oven Orifice LP #52 | |
| 81022-42 | Space Saver Oven Orifice Nat #42 | |
| 81022-53 | Space Saver Oven Orifice LP #53 | |
| 81022-37 | Range Base Oven Orifice Nat #37 |
| 81022-52 | Range Base Oven Orifice LP #52 | |
| 41 | 30977 | Lower Front Panel Bracket |
| 42 | 30967-01 | Body Side LH TMD36/72 |
| 31013-01 | Body Side LH TMD24/60 | |
| 43 | 30967-02 | Body Side RH TMD36/72 |
| 31013-02 | Body Side RH TMD24/60 | |
| 44 | 80012 | 6″ Leg |
| 45 | 80025-01 | 6″ Swivel Caster |
| 46 | 80025-02 | 6″ Swivel Caster W/Brake |
| 47 | 30015 | Door Liner 30″ WA |
| 31010-01 | Door Liner 24″ WA | |
| 48 | 30117-01 | Door Frame Assembly 30″ |
| 30117-01C | Door Frame Assembly 30″ (Convection Oven) | |
| 30117-02 | Door Frame Assembly 24″ | |
| 50 | 30130-05 | Oven Door Insulation 30″ |
| 30130-08 | Oven Door Insulation 24″ | |
| 51 | 87006 | Pal Nut |
| 52 | 82009 | Logo Therma-Tek Range Corp |
| 53 | 30116 | Door Handle Stiffener Bracket 30″ |
| 30116-01 | Door Handle Stiffener Bracket 24″ | |
| 54 | 30016 | Door Panel 30″ |
| 30016-01 | Door Panel 24″ | |
| 55 | 30231-01 | Door Handle 30″ |
| 30231-02 | Door Handle 24″ | |
| 56 | 82004-02 | Door Handle End |
| * | 30131 | Oven Door Assy 36″ ( Includes 47 thru 55) |
| 30131-01 | Oven Door Assy 24″ ( Includes 47 thru 55) | |
| 57 | 30012-01 | Oven Flame Spreader |
| 58 | 30735-02 | Oven Bottom 30″ |
| 30736-02 | Oven Bottom 20″ | |
| 59 | 80000 | Plastic Knob (Black) |
| 80000-03 | Plastic Knob (Burgundy) | |
| 80083 | CHROME KNOB | |
| TEK-001 | Aluminum Red/Metal Knob | |
| 60 | 30964-02 | Front Rail TMD 24 |
| 30964-03 | Front Rail TMD 36 | |
| 30964-04 | Front Rail TMD 48 | |
| 30964-05 | Front Rail TMD 60 | |
| 30964-06 | Front Rail TMD 72 | |
| 60A | 30105-01 | Endcap STD LH |
| 30105-02 | Endcap STD RH | |
| 61 | 30966-XX | Front Panel (Model number required for correct panel) |
| 62 | 80011 | Thermocouple 12″ |
