USER MANUAL

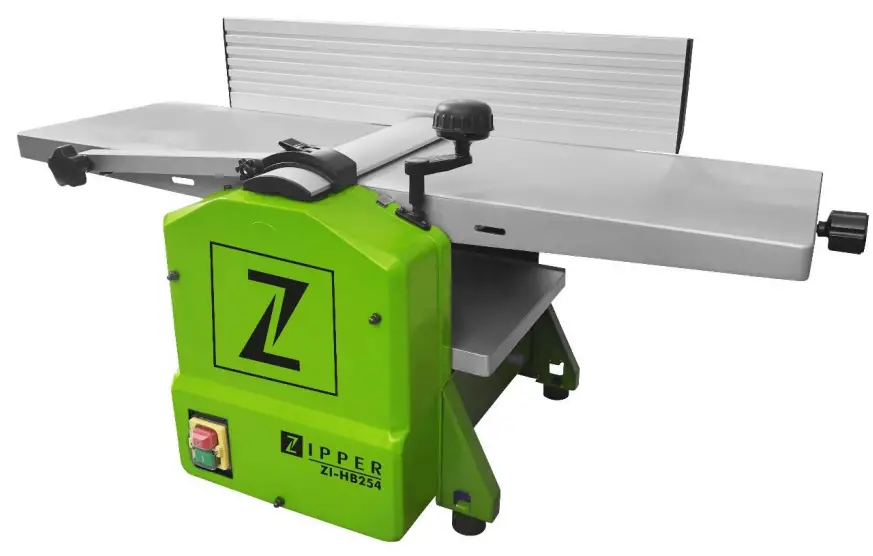

ZIPPER ZI HB254 Combined Planer and Thicknesser-

ZI-HB254
EAN: 9120039233475
ZIPPER -icon
CE SYMBOL

SAFETY SIGNS

CE SYMBOL EC-CONFORM: This product complies with the EC-directives.
ZIPPER -icon1 READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and avoid injuries and machine defects.
NOTE ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.
ZIPPER -icon2 General note
ZIPPER -icon3 Protective clothing!ZIPPER -icon4
ZIPPER -icon5 Stop and pull out the power plug before any break and engine maintenance!
Electric Warning IconHigh voltage!
ZIPPER -icon12 Warning about cut injuries!

TECHNIC

3.1 Technical date

ZI-HB254
 Voltage230V/50Hz/1PH
 engine power1.5kW
shaft speed 8500 U/min
 planer table size 920x254mm
thickenesser table size 380x254mm
 dimension fence 635x127mm
 angle range 90°-135°
dust exhaust port ø 76mm
 blade size (2x) 258 x 22 x 2mm
 max. planing width 254mm
 min-max workpiece thickness 6 – 120mm
 max. depth of cut (planer) 0 – 2mm
 max. depth of cut (thicknesser) 0 – 2mm
 weight Peso (neto/bruto) 27/32 kg
 Sound-power level 102dB(A) k=3dB(A)
Sound-pressure level90dB(A) k=3dB(A)

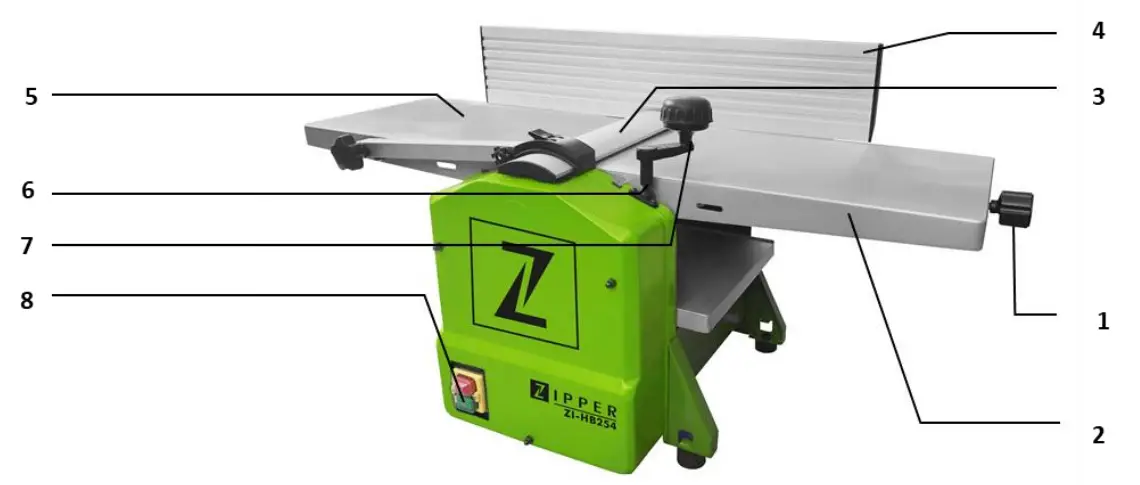

3.2  Components

ZIPPER ZI HB254 Combined Planer and Thicknesser-fig1

1.  Handle for adjusting cutting depth Ajuste2. Planer table (inlet)
3.  Angle stop4.  Blade guard
5.  Planer table (outlet)6.  Planer scale
7. Height adjustment thickenesser8. Switch unit

Technical data, as well as design, can change as part of product development. Therefore, changes are subject to change.

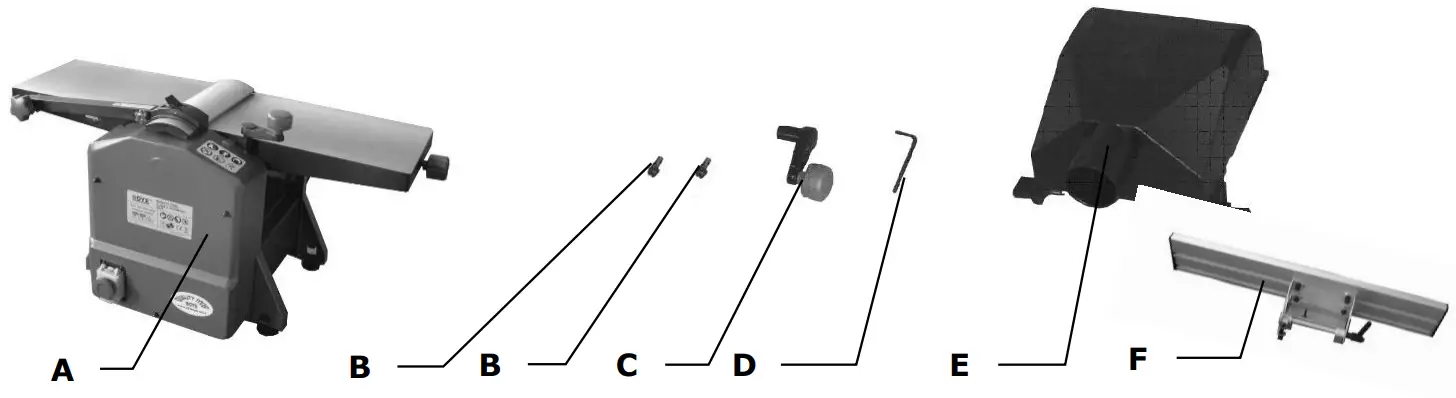

3.3 Delivery content

Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.

ZIPPER ZI HB254 Combined Planer and Thicknesser-fig2

A Planer and Thickenesser ZI-HB254D4mm Hex wrench Llave
B Socket head boltE Dust chute
CHandle assemblyF Angle fence Palograma Guide
Gadditional planer bade

PREFACE

Dear Customer!

This manual contains important information and advice for the correct and safe use and maintenance of the Compined planer and thicknesser ZI-HB254.
Following the usual commercial name of the device (see cover) is substituted in this manual with the name “machine”.
The manual is part of the machine and may not be stored separately. Read it profoundly before the first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.
Please follow the security instructions!

ZIPPER -icon Please read the entire manual, to prevent misunderstandings, machine damage, or even injuries! Due to the continuous development of our products illustrations, pictures might differ slightly. If you however find errors in this manual, please inform us.
Technical changes excepted!

Copyright law
© 2018
This manual is protected by copyright law – all rights reserved. Especially the reprinting as well as the translation and depiction of pictures will be prosecuted by law. The Court of jurisdiction is the Landesgericht Linz or the competent court for 4707 Schlüsslberg, AUSTRIA.

Customer Support

ZIPPER MASCHINEN GmbH
Gewerbepark 8, 4707 Schlüsslberg
AUSTRIA
Tel.: +43 7248 61116-700
Fax: +43 7248 61116–720
Mail: [email protected]

SAFETY

11.1 Intended Use
The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse.
To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.
All people who use and service the machine have to be acquainted with this manual and must be informed about the machine’s potential hazards.
It is also imperative to observe the accident prevention regulations in force in your area.
The same applies to the general rules of occupational health and safety.
The machine is used for:
Planing of wood in compliance with technical data. Specified maximum depth of cut (planer 2mm, thicknesser 1.5mm) and material dimensions.
Any manipulation of the machine or its parts is a misuse, in this case, ZIPPER-MASCHINEN and its sales partners cannot be made liable for ANY direct or indirect damage.

NOTE W ARNI NG

  • Only use the planer knives that are permissible for this machine!
  • Never use a damaged planer knife!
  • Use the machine never with defective or without mounted guard
    HIGHEST RISK OF INJURY!

Ambient conditions
The machine may be operated:
humidity max. 70%
temperature +5°С to +40°С (+41°F to +104°F)
The machine shall not be operated in areas exposed to increased fire or explosion hazards.

Prohibited use

  • The operation of the machine outside the stated technical limits described in this manual is forbidden.
  • The use of the machine not according to the required dimensions is forbidden.
  • The use of the machine not being suitable for the use of the machine and not being certified is forbidden.
  • Any manipulation of the machine and parts is forbidden.
  • The use of the machine for any purposes other than described in this manual is forbidden.
  • The unattended operation of the machine during the working process is forbidden!
  • It is not allowed to leave the immediate work area during the work is being performed. Security instructions

Missing or non-readable security stickers have to be replaced immediately!
The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!

To avoid malfunction, machine defects, and injuries, read the following security instructions!

  • NOTEKeep your work area dry and tidy! An untidy work area may cause accidents. Avoid slippery floors.
  • Make sure the work area is lighted sufficiently
  • Do not overload the machine
  • Provide good stability and keep a balance at all times
  • ZIPPER -icon2Avoid abnormal working postures! Make sure you stand squarely and keep a balance at all times.
  • Keep away from the running tool!
  • ZIPPER -icon6Always stay focused when working. Reduce distortion sources in your working environment. The operation of the machine when being tired, as well as under the influence of alcohol, drugs, or concentration influencing medicaments is forbidden.
  • Respectively trained people only and only one person shall operate the machine. Do not allow other people, particularly children, to touch the machine or the cable. Keep them away from your work area.
  • ZIPPER -icon7Make your workshop childproof.
  • Make sure there is nobody present in the dangerous area. The minimum safety distance is 2m
  • Wear suitable work clothes! Do not wear loose clothing or jewelry as they might get caught in moving parts and cause severe accidents! Wear a hair net if you have long hair.
  • ZIPPER -icon8Use personal safety equipment: safety gloves, dust mask, ear protectors, and safety goggles when working with the machine.
  • Never leave the machine running unattended! Before leaving the working area switch the machine off and wait until the machine stops.
  • ZIPPER -icon9Always disconnect the machine prior to any actions performed at the machine.
  • Avoid unintentional starting
  • Do not use the machine with a damaged switch
  • ZIPPER -icon10The plug of an electrical tool must strictly correspond to the socket. Do not use any adapters together with earthed electric tools
  • Each time you work with an electrically operated machine, caution is advised! There is a risk of electric shock, fire, cutting injury;
  • Protect the machine from dampness (causing a short circuit)
  • Use power tools and machines never in the vicinity of flammable liquids and gases (danger of explosion)
  • Check the cable regularly for damage
  • When working with the machine outdoors, use extension cables suitable for outdoor use
  • Electric Warning IconDo not use the cable to carry the machine or to fix the workpiece
  • Protect the cable from heat, oil, and sharp edges
  • Avoid body contact with earthed
  • Before starting the machine remove any adjusting wrenches and screwdrivers
  • ZIPPER -icon11Parts can cause severe cut injuries
  • Keep any machine that is not being used out of reach of children

11.2 Remaining risk factors

NOTEWARNING
It is important to ensure that each machine has remaining risks. In the execution of all work (even the simplest) greatest attention is required. A safe working depends on you!

Even if the machine is used as required it is still impossible to eliminate certain residual risk factors totally. The following hazards may arise in connection with the machine´s construction and design:

  • Risk of injury to the hands/fingers by the tool and tool mount during operation.
  • Risk of injury due to sharp edges of the workpiece, especially in non-fixed with a suitable tool/device workpiece.
  • Risk of injury: hair and loose clothing, etc. can be captured and wound up! Safety regulations must be observed with regard to clothing.
  • Risk of injury due to contact with live electrical components.
  • Risk of injury due to dust emissions, treated with harmful agents workpieces
  • Risk of injury to the hearing by prolonged labor without hearing protection
  • Risk of injury to the eye by flying debris, even with safety goggles.

These risk factors can be minimized through obeying all security and operation instructions, proper machine maintenance, proficient and appropriate operation by persons with technical knowledge and experience.

ASSEMBLY

12.1 ASSEMBLY / ADJUSTMENT
Angle fence

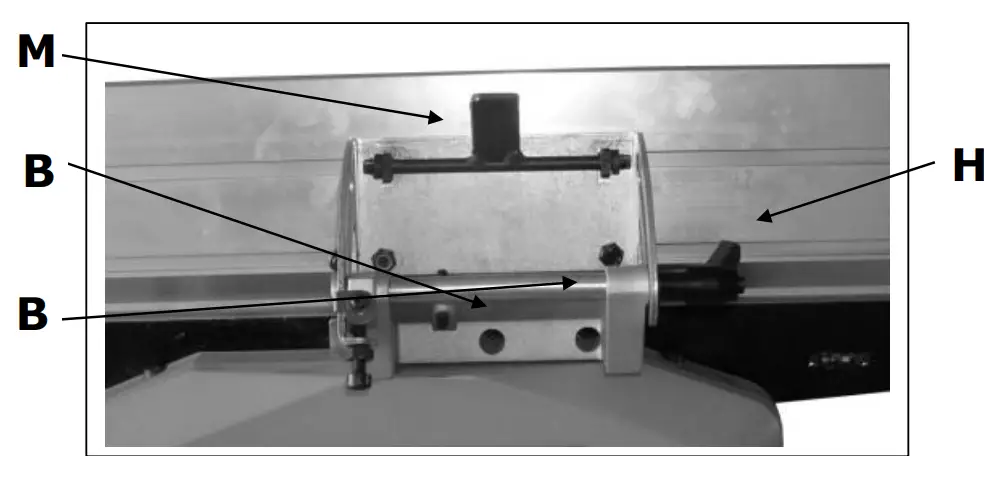

Fix the angle fence with 2 Socket head bolts (B) onto the machine. Then loosen the handle (H) to adjust the angle fence in position. Turn (M) down, angle fence can be moved to leave or right.

ZIPPER ZI HB254 Combined Planer and Thicknesser-fig3

ZIPPER ZI HB254 Combined Planer and Thicknesser-fig4

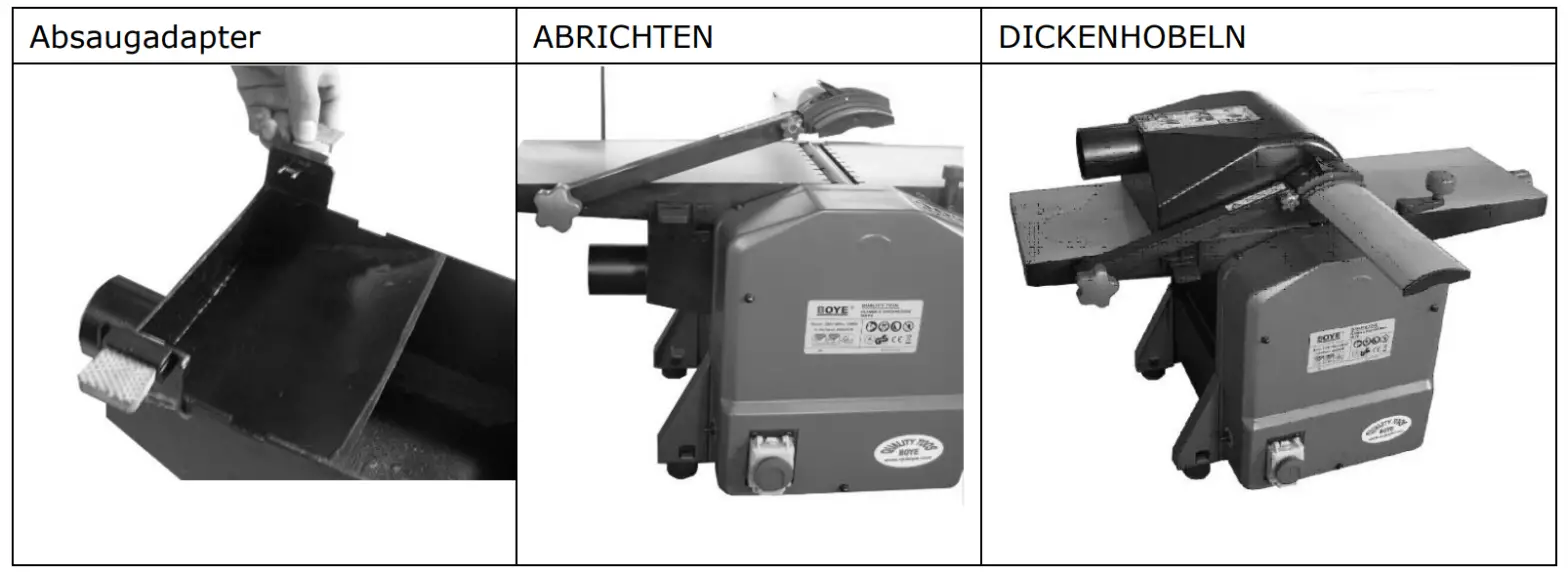

The dust chute has two keys that allow it to be attached to the table. For planers, install the adapter below the table. In the case of thick planes, remove the blade guard and then place the dust chute on the planing shaft and fix it with the keys in the holes provided for it.

NOTE ACHTUNG
For a clean operation, the connection of the Zi-HB254 to a dust collector is recommended in any case. In enclosed rooms the connection to an exhaust system is obligatory.

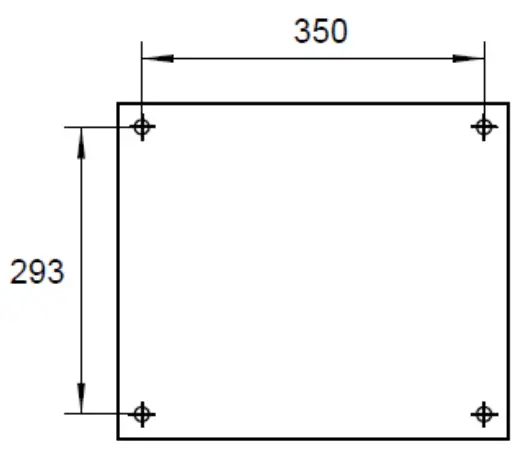

Machine Mounting
Attach the machine to a stable surface, such as a workbench. For good working results, the machine must be fixed in order to prevent unnecessary vibrations and the movement of the machine during operation. When using the machine to assemble furniture etc., ensure a suitably adapted and stable base.

ZIPPER ZI HB254 Combined Planer and Thicknesser-fig5

OPERATION

Device to be operated in a perfect state only. Inspect the device visually every time it is to be used. Check in particular the safety equipment, electrical controls, electric cables, and screwed connection for damage and if tightened properly. Replace any damaged parts before operating the device.

ZIPPER -icon9 W AR NI NG
Perform all machine settings with the machine being disconnected from the power supply!Electric Warning Icon

ZIPPER -icon2 Notice
Dust Collector must be connected, otherwise, the machine will not start.

13.2 Planing

ZIPPER ZI HB254 Combined Planer and Thicknesser-fig6

Lift up the blade arm A so that the longitude holes B are exposed; Pull out the key C on both sides of the dust chute D; Move down the thickness table to the lowest position, and insert the dust chute D; The dust chute D is so positioned that both keys C are in line with the longitude holes B. Then push both keys C into the longitude holes B.

The planing of thin workpieces

In the case of thin workpieces, the planing shaft Guard is over the whole planing shaft. A feed of the workpiece indirectly with sliding wood. Sets secure stand and guides the workpiece standing over the planer shaft. Never stand Right or directly behind the planning shaft.

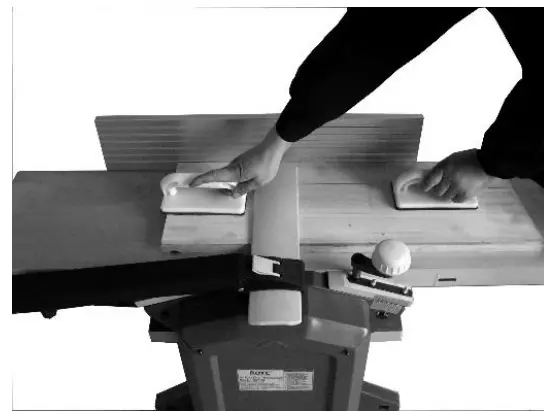

The planing of small workpieces or Planks
Set the planing shaft cover so that only the part of the planer shaft remains free, which is required for the planning process. Parallel stop to 90 °, adjust the depth of cut and slide
workpiece as shown on the picture over the worktable.

ZIPPER ZI HB254 Combined Planer and Thicknesser-fig8

NOTE A t t e n t i o n
This manual does not replace professional training in working with planer machines.

13.3 Thicknesser
Connecting dust chute.

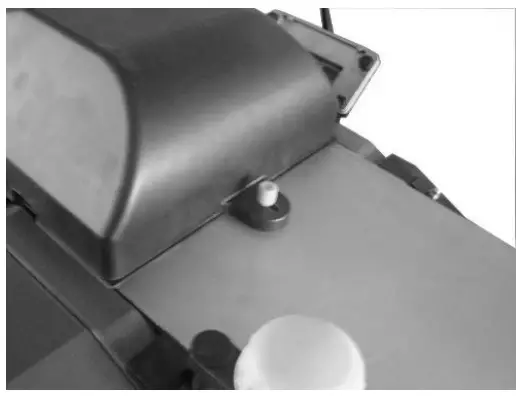

Slide the fence to right side and turn to 135°. Remove the blade guard and place the dust chute. The dust chute is so positioned that both keys are in line with the longitude holes. Then push both keys into the longitude holes.

.ZIPPER ZI HB254 Combined Planer and Thicknesser-fig9

  • Adjust the desired height by means of the hand crank. A full rotation is a 3mm height difference.
  • When setting the inlet height, observe the maximum depth for a cut of 2.0 mm.
  • Always ensure low friction of the thickness planing table by using special lubrication oil for planing.
  • Stuck workpieces may only be removed after the machine has been switched off and disconnected from the power supply.
  • Workpieces that are too short should not be processed.

NOTE A C H T U N G
Always assemble the dust chute (planing or thick planing) and ensure that the keys are pushed (this press the safety switch!)!

MAINTENANCE

ZIPPER -icon9 AT TEN TI ON
Perform all maintenance machine settings with the machine being disconnected from the power supply! Serious injury due to unintentional or automatic activation of the machine!NOTE

The machine does not require extensive maintenance. If malfunctions and defects occur, let it be serviced by trained persons only. Store the machine in a closed, dry location.

NOTICE

Clean your machine regularly after every usage – it prolongs the machine’s lifespan and is a prerequisite for a safe working environment.
Repair jobs shall be performed by respectively trained professionals only!

14.1 Maintenance plan

Inspections for the maintenance of the machine
Loose or missing screwsDaily before starting
Damage to any part Daily before startingDaily before starting
Clean the machine Daily before startingDaily before starting
Inspection of bladeDaily before starting
Cleaning of machineDaily after working

After appro. 10 hours of operation we commend to lubricate the following parts: bearings of the feed-in and feed-out rollers, bearings of pulley, and gear wheel of the belt. Check

14.2 Replacing blades

  • Unplug the planer-thicknesser from a power source and turn the switch to the “off” position.
  • -Block the blade guard from closing down.
  • -Loosen and remove three-blade lock screws securing the blade and blade clamp.
  • -Lift blade and blade clamp from cutterhead.
  • -Clean any sawdust and resin buildup from the cutter head and blade clamp.
  • -Place the blade clamp against the replacement blade and replace it in the cutter head.
  • -Secure blade and blade clamp using three blade lock screws. Do not over-tighten blade lock screws first.
    Note: Check blade height at both blade
  • -Tighten blade lock screws.
  • -Recheck blade adjustment and make sure the blade is still level with the outfeed table.
  • -Repeat the procedure to replace the other blade.
  • -Remove the scrap wood and release the blade guard.
  • -Make sure all the blade lock screws are tight and snug.
    NOTE:
  • -The blades used with the tool may be replaced or re-sharpened.
  • -If the blades are re-sharpened, the re-sharpenings should be not more than 3 times with 0.05mm max. each time.
  • -the blades used in this tool can not be used to rebate.

14.3 Storage

Never store the machine outdoors!
Storage is permitted only at temperatures between + 5 ° and + 40 ° Celsius, at + 40 ° Celsius the humidity must not be higher than 60%. Store in a dry and clean place.

14.4 Cleaning
After each work shift, the machine has to be cleaned. Remove chips etc. with a suitable tool. Do not remove them by hand (cutting injury!). Remove dust as well.

ZIPPER -icon2 NOTICE
The usage of certain solutions containing ingredients damaging metal surfaces as well as the use of scrubbing agents will damage the machine surface! Clean the machine surface with a wet cloth soaked in a mild solution

14.5 Disposal

Dustbin IconDo not dispose the machine in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old one.

TROUBLESHOOTING

Disconnect the machine from the power supply prior to any checks performed at the machine itself!

TroublePossible causeSolution
Machine does not start.On-Switch not pushed• Check if ON-Switch is pushed
Damaged or incorrect connected extension cable• Check extension cable with another machine.
Voltage supply (Voltage, frequency).• Power supply to the requirements of technical data operating voltage.



Malfunction of ON/OFF switch• This should be checked by an electrician and replaced if defective.



Material kickbackCutting depth to high• Reduce cutting depth
Bad surface condition after operating–  Wrong adjusted blade,
–   blunt blade
• Exchange / re-adjust blade

MANY MALFUNCTIONS AND DEFECTS CAN BE AVOIDED BY LETTING THE MACHINE BE CONNECTED TO YOUR POWER SUPPLY BY A CERTIFIED ELECTRICIAN.

ZIPPER -icon2 NOTICE
Should you in necessary repairs not able to properly to perform or you have not the prescribed training for it always attract a workshop to fix the problem.

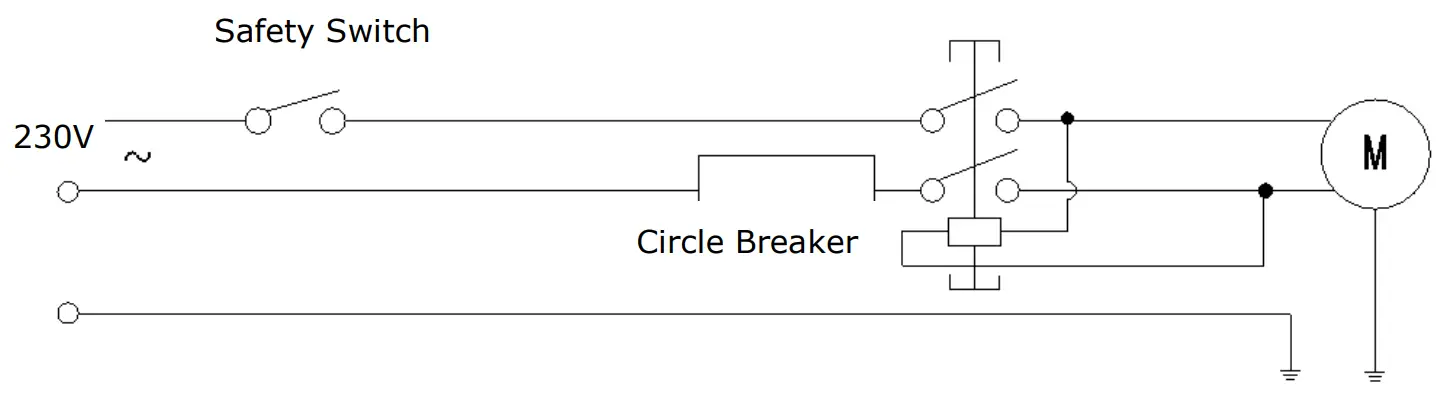

WIRING-DIAGRAM

ZIPPER ZI HB254 Combined Planer and Thicknesser-fig10

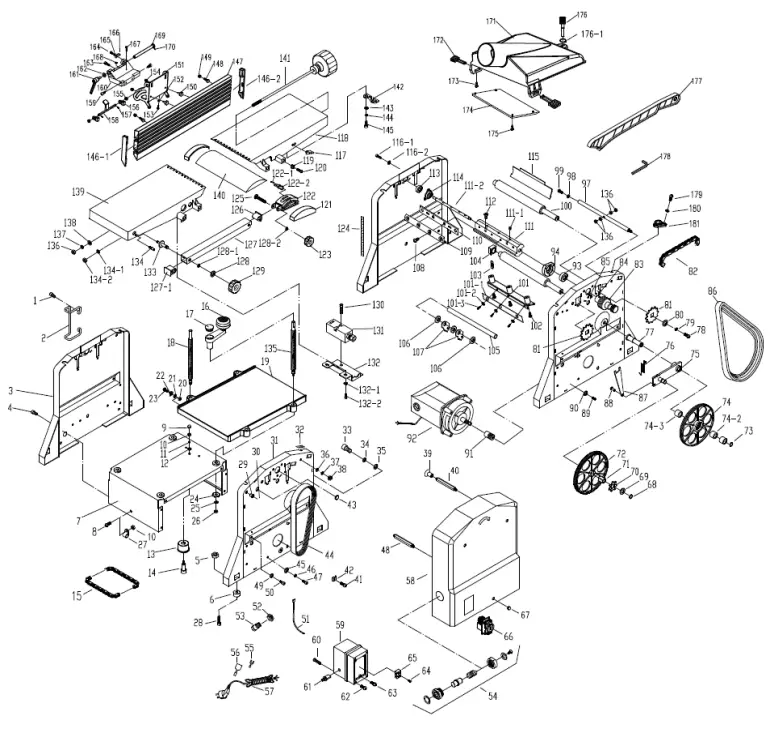

EXPLODED VIEW

ZIPPER ZI HB254 Combined Planer and Thicknesser-fig11

NO.

1

DescreptionQTY

4

NO.

67

DescreptionQ’TY

3

NO.

125

DescreptionQ’TY
1
Socket head screwAcorn nutCarriage bolt
2Cord hook268Retaining ring1126Arm cap1
3Rear wall plate169Flat washer1127Support arm1
4Socket head screw870Sprocket1127-1Cal,1
sHex nut471Square bushing1128Flat washer1
6Foot472Gear1128-1Retaining ring1
7Base173Retaining ring1128-2Retaining ring1
8Pan head screw174Pulley with pinion1129Knob1
gAcorn nut174-2Bushing1130Socket head screw2
10Hex nut274-3Needle roller bearing2131Interlock switch1
11Lock washer175Mounting plate assembly1132Switch fixing plate1
12Flat washer176Spring1132-1Flat washer4
13Chain tension wheel177Shaft1132-2Socket head screw4
14Shaft178Socket head screw2133Shaft1
15Chain179Lock washer2134Pin1
16Crank handle assembly180Flat washer2134-1Lock washer1
17Handle cap181Sprocket2134-2Hex nut1
aScrew382Chain1135Lifting screw1
19Thicknesser table183Spindle pulley1136Hex nut1
20Hex nut184Set screw2137Lock washer1
21Flat washer185Socket head screw3138Flat washer1
22Pointer186Belt1139Outfeed table1
23Pan head screw187Support plate1140Cutterblock guard1
24Sprocket488Rivet1141Table adjusting screw1
25Flat washer489Pan head screw2142Fixing plate1
r

26

Lock nut490Serrated washer2143Flat washer2
27Cord clarmp191Motor pulley1144Lock washer2
28Socket head screw492Motor1145Socket head screw2
29Positioning sleeve493Ball bearing1146-1Fence cover A

1

30Socket head screw494Bearing house1146-2Fence cover B1
31Front wall plate197Rod1147Fence1
32Scale198Flat washer1148Hex head bolt2
33Socket head screw199Socket head screw1149Lock nut2
34Lock washer1100Feed roller2150Guide screw2
35Flat washer1101Limit plate1151Angle support2
36Flat washer1101-1Adjusting plate1152Hex nut1
37Lock washer1101-2Flat washer3153Socket head screw1
38Hex nut1101-3Socket head screw3154Lock nut2
39Rivet nut3102Socket head screw3155Locking block2
40Hex bar2103Spring3156Guide screw2
41Pan head screw4104Bearing block5157Pin2
42Cord clarmp3105Shaft1158Locking handle2
43Rubber bushing2106Spacer27159Positioning screw2
44Belt1107Kick-back pawl26160Fence support base1
45Flat washer4108Socket pan head screw8161Locking handle1
46Lock washer4109Blade cbmper2162Flat washer1
47Socket head screw4110Blade2163Socket head screw2
48Hex bar1111Cutter block1164Pan head screw1
49Flat washer4111-1Set screw4165Flat washer1
50Socket head screw4111-2Spindle shaft1166Pointer1
51Cable tie1112Adjusting screw4167Socket head screw1
52Plastic nut3113Ball bearing1168Hex nut1
53Cord bushing3114Bearing house1169Rod1
54Reset button assembly1115Apron1170Pin1
55Quick connecting terminal6116-1Socket head screw3171Dust chute1
56Insulation sleeve6116-2Lock washer3172Key2
57Power cord1117Pointer1173Thread forming screw2
58Cover1118Infeed table1174Dust chute cover1
59Switch box1119Guide bushing4175Thread forming screw4
60Thread forming screw2120Socket head screw4176Knob1
61Circuit breaker1121Guard cover2176-1Retaining ring1
62Thread forming screw4122Guard support1177Push stick1
63Thread forming screw3122-1Pin1178Hex wrench1
64Thread forming screw2122-2Knob1179Pan head screw2
65Terminal1123Knob1180Flat washer2
66Switch1124Scale1181Guide block1

SPARE PARTS

54.1 spare parts order

With original ZIPPER spare parts, you use parts that are attuned to each other to shorten the installation time and elongate the lifespan of your machine.
I M P O R T A N T
The installation of other than original spare parts voids the warranty!
So you always have to use original spare parts
When you place a spare parts order please use the service formula you can find in the last chapter of this manual. Always take a note of the machine type, spare parts number, and part name. We recommend copying the spare parts diagram and marking the spare part you need. You find the order address in the preface of this operation manual.

WARRANTY GUIDELINES

  1. Warranty:
    Company ZIPPER Maschinen GmbH grants mechanical and electrical components a warranty period of 2 years for amateur use; and a warranty period of 1 year for professional use, starting with the purchase of the final consumer. In case of defects during this period, which are not excluded by paragraph 3, ZIPPER will repair or replace the machine at its own discretion.
  2. Report:
    In order to check the legitimacy of warranty claims, the final consumer must contact his dealer. The dealer has to report in written form the occurred defect to ZIPPER. If the warranty claim is legitimate, ZIPPER will pick up the defective machine from the dealer. Returned shipping by dealers which have not been coordinated with ZIPPER, will not be accepted and refused.
  3. Regulations:
    a) Warranty claims will only be accepted, when a copy of the original invoice or cash voucher from the trading partner of ZIPPER is enclosed in the machine. The warranty claim expires if the accessories belonging to the machine are missing.
    b) The warranty does not include free checking, maintenance, inspection or service works on the machine. Defects due to incorrect usage of the final consumer or his dealer will not be accepted as warranty claims either. Some examples: usage of wrong fuel, frost damage in water tanks, leaving fuel in the tank during the winter, etc.
    c) Defects on wear parts are excluded, e.g. carbon brushes, collection bags, knives, cylinders, cutting blades, clutches, sealings, wheels, saw blades, splitting crosses, riving knives, riving knife extensions, hydraulic oils, oil/air/fuel filters, chains, spark plugs, sliding blocks, etc.
    d) Also excluded are damages on the machine caused by incorrect or inappropriate usage, if it was used for a purpose which the machine is not supposed to, ignoring the user manual, force majeure, repairs or technical manipulations by not authorized workshops or by the customer himself, usage of non-original ZIPPER spare parts or accessories.
    e) After inspection by our qualified personnel, resulting costs (like freight charges) and expenses for not legitimated warranty claims will be charged to the final customer or dealer.
    f) In case of defective machines outside the warranty period, we will only repair them after advance payment or dealer’s invoice according to the cost estimate (incl. freight costs) of ZIPPER.
    g) Warranty claims can only be granted for customers of an authorized ZIPPER dealer who directly purchased the machine from ZIPPER. These claims are not transferable in the case of multiple sales of the machine.
  4. Claims for compensation and other liabilities:
    The liability of company ZIPPER is limited to the value of goods in all cases. Claims for compensation because of poor performance, lack, damages, or loss of earnings due to defects during the warranty period will not be accepted. ZIPPER insists on its right to the subsequent improvement of the machine.

Product experience form
We observe the quality of our delivered products in the frame of a Quality Management policy. Your opinion is essential for further product development and product
choice. Please let us know about your:
– Impressions and suggestions for improvement.
– experiences that may be useful for other users and for product design
– Experiences with malfunctions that occur in specific operation modes We would like to ask you to note down  your experiences and observations and send them to us via FAX, E-Mail, or by post:

My experiences:

N a m e :
p r o d u c t :
p u r c h a s e d a t e :
p u r c h a s e d f r o m :
e – m a i l :
T h a n k y o u f o r y o u r k i n d c o o p e r a t i o n !

KONTAKTADRESSE / CONTACT:
Z.I.P.P.E.R MASCHINEN GmbH
A-4707 Schlüsslberg, Gewerbepark 8
Tel :+43 7248 61116 700
Fax:+43 7248 61116 720
[email protected]

SERVICE FROM

Please tick one box from below:
service inquiry spare part inquiry guarantee claim 1. senders information (* required)
first name, family name street, house number
* PLZ, Ott / ZIP code, place
* Staat / country
* (Mobil)telefon / (mobile) phone International numbers with country code
* E-Mail Fax 2.
2. tool information
machine type:
2.1 required spare parts

Part No°descriptionnumber

2.2 problem description
Please describe amongst others in the problem: What has caused the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked your electric supply and the machine already by a certified electrician?

3. Additional information
INCOMPLETELY FILLED SERVICE FORMS CAN NOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES / DELIVERY RECEIPT OTHERWISE IT CAN NOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE. THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCEL-LERATES THE HANDLING OF YOUR INQUIRY. THANK YOU FOR YOUR COOPERATION!

ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at
ZI-HB254 85

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
