HUMANTECHNIK A33030 Vibrating Pad For Lisa System
INSTALLATION INSTRUCTIONS
Setup

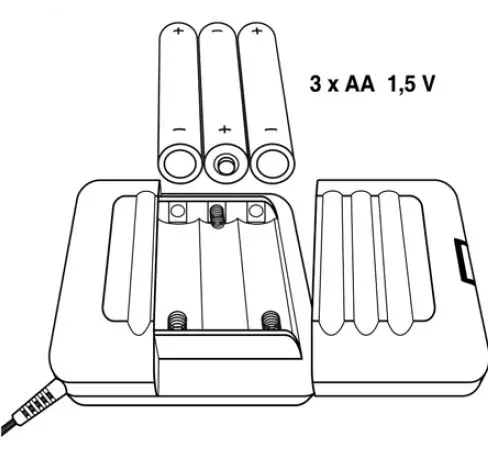

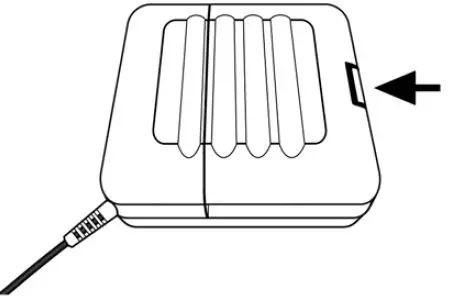

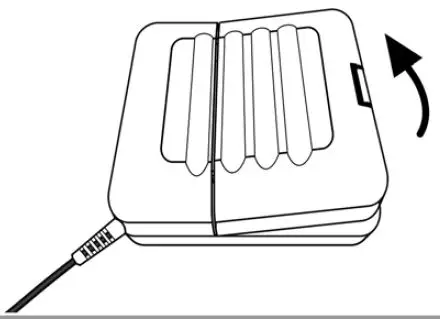

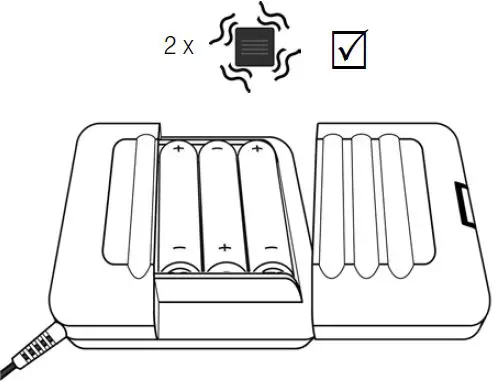

Setup- Insert batteries: See pages 1 to 5. The device vibrates twice to confirm its function.

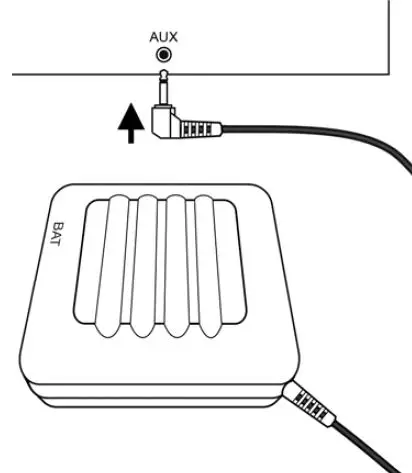

- Connect the plug with the AUX-socket of a lisa- or signolux-receiver (page 6).
Status indication „Low battery“
Depleted batteries are indicated by the following signs:
- The status-LED „BAT“ blinks every 4 seconds
- When activating the pad, vibration is as follows: Please replace the batteries as soon as possible!
Using rechargeable batteries
The vibrating pad can also be powered by rechar-geable batteries of size AA. The different voltages of normal batteries and rechargeable ones make the following adjustment necessary:
- Open the battery compartment
- Remove the batteries

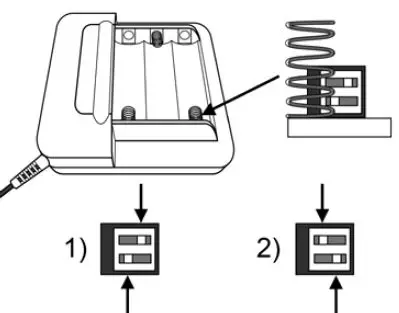

- Underneath the front contact spring is an opening with a small adjuster switch, as depicted on the next page:
Position 1): When using regular batteries Position 2): When using rechargeable batteries With the help of a pointed object, change the posi-tion of the small switches accordingly. Please note: Depleted rechargeable batteries need to be recharged in an external battery charger. Should regular batteries be used again, please re-set the adjustment switch accordingly.
This device complies with the following EC directives:
- 2011 / 65 / EC RoHS-directive
- 2012 / 19 / EC WEEE-directive
- 2014 / 30 / EC EMC-directive
- 2014 / 35 / EC LVD-directive
The complete declaration of conformity is available at www.humantechnik.com
This product must not be handled as ordinary household waste! Please dispose of used batteries according to your local regulations!
