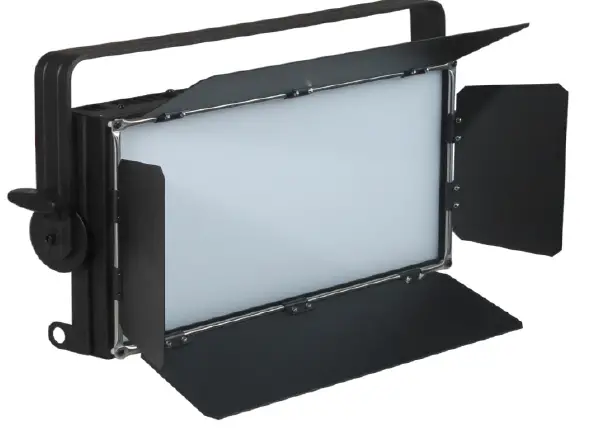

SHOWLIGHT SL-480-WA Theatrical Spotlights
INTRODUCTION
Thank you for having chosen LED Panel Light .Please read the user manual carefully before you initially start-up,
Tips: Before using the lamp, please check whether the local city voltage meets the range of AC90-240V

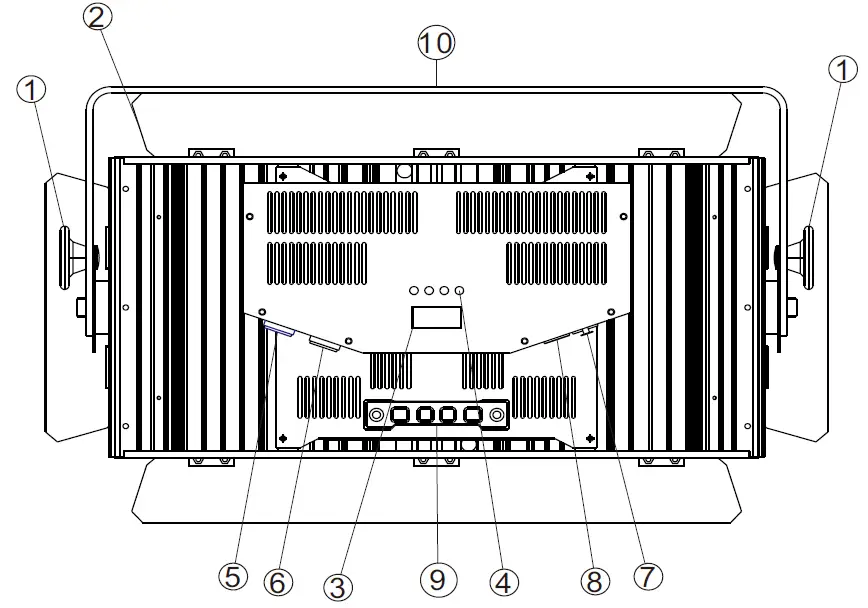

Description of the fixture
- Fixation screws
- Barndoors
- LCD Display
- Functon knob
- Power IN
- Power Out
- DMX Out
- DMX IN
- Insulated handle
- Installstion stand
Dimensions
Channels Funtion

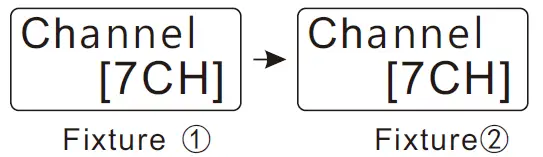

This fixture has 7-channel mode/4-channel mode for selection In DMX512 mode,If more than two fixtures have different settings,should check whether the channe functions are consistent. as show below â‘ â‘¡,Factory setting [7CH]
RDM Function
If use the RDM function, you must use the console to search each fixture and change the fixture address code in the DMX 512 mode. Identification Code: each fixture has an identification code as shown below①, the identification code of each fixture is device code：10000001 different , Please check he fixture label. device ID:01A1.10000001
DMX512 Function

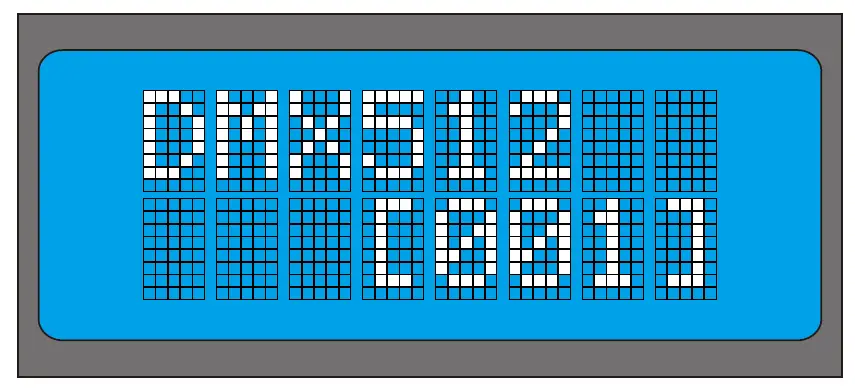

In DMX mode, the LED display screen flicker is normal when where is no DMX 512 signal input, and the LED display is lights up when the DMX 512 signal is input
Technical Specifications
| LED SOURCE | LEDs: 3200K 0.5Wx240pcs Edison LEDs 5600K 0.5Wx240pcs Edison LEDs. CRI> 90 |
| Beam Angle | Beam angle 170 with hight- efficiency optical system |
| Control | 1.DMX512 2. RDM 3.Master/ Slave Operation |
| DMX Channels | 4CH/ 7CH（available） |
| Connection | PowerCON IN & OUT; 3- Pin DMX In& Out(5 – Pin DMX available) |
| Voltage | Electronic full- range AC 100-240V 50/60Hz |
| Working Temperature | Indoor IP20 |
| – 20℃- 40℃（- 4°F- 104°F) | |
| Power Consumption | 200W |
| Dimensions ( LxWxH) | 62.2X12.8X26.4cm |
| Weight | 11.15Kg |
Dimming、Brightness Function
Before using the fixture,you should check whether (Dimming, brightness function) is turned on ,As shown in figureâ‘ ; the factory setting is on .This function should be checked when the fixture does not turn on when the lamp is turned on. It is not affected by this function in DMX mode
ColorTemperature Function

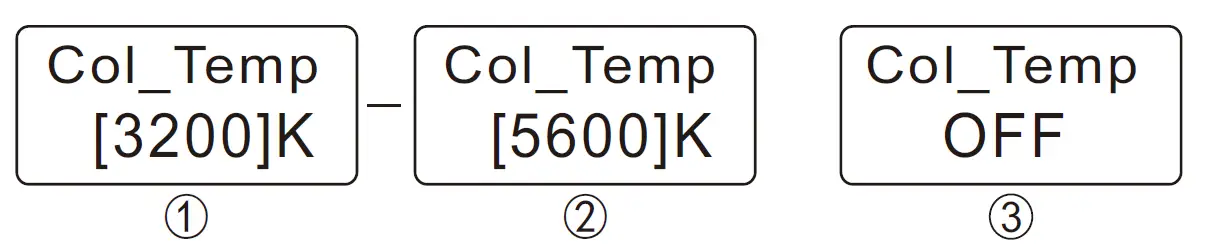

In master-slave mode,Colortemp(color temperature function)can be adjusted from 3200K-5600K.As shown in figureâ‘ â‘¡,the factory settin <OFF> is shown in figured.(Turn on Colortemp(Color temperature function );WW;CW function can not be used alone,use WW;CW function need to close Colortemp

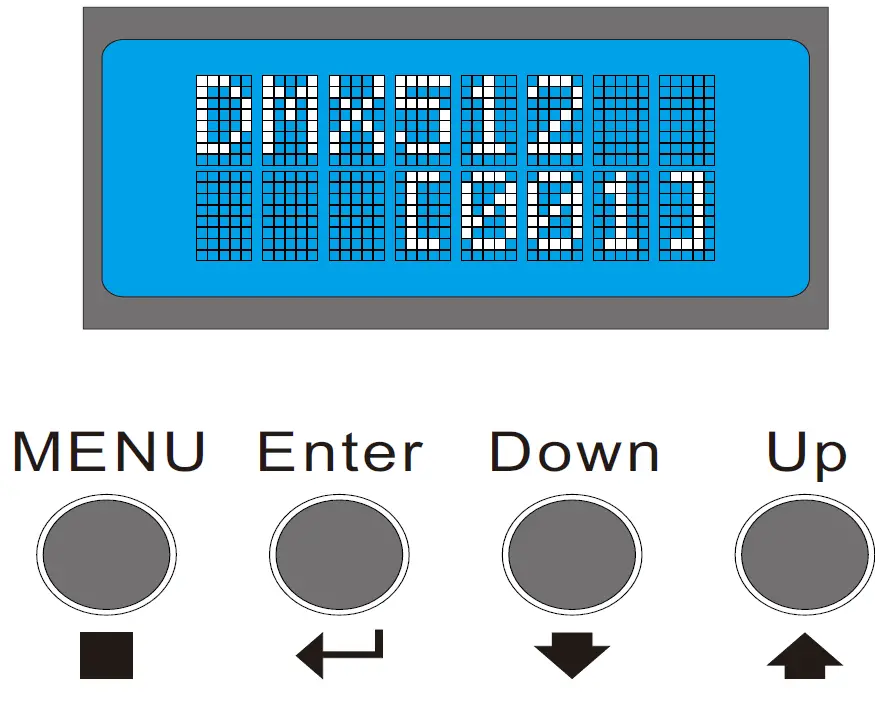

Control Board
- Adjust the key setting function on the control panel
- Press“MENU”—>Display first -level menu—>
- Press“Enter”—>Display second-level menu—>
- Press“Down”&“Up”to adjust relevant function->
- Press“Enter”and“MENU”to quit current menu
- Press“Enter”—> To next first-level menu.
Operation
Master/Slave Setting
- Master:Dimming mode/Strobe mode
- All Salves:DMX001(as below)
| e mode,Colortemp( As shown in figure① rtemp( Color tempe | color temperature funct ②, the factory settin < rature function ); WW; | on)c OFF> CW | an be adjusted from is shown in figure function can not be | d.3 | |
| e WW;CW function | nee | d to close Colortem | p | ||
| Col_Temp | Col_Temp | Col_Temp | |||
| [3200]K | [5600]K | OFF | |||
| ① | ② | 3 | |||
| 5/ 6 | 2/6 | ||||
IIIumination Diagram
DMX Channels
DMX ChannelsThis fixture has two DMX channel mode options; 7channel mode ; 4channel mode
DMX 7 Channels Function
| Channel 1- 3200K | 000- 255 levels dimming |
| Channel 2- 5600K | 000- 255 levels dimming |
| Channel 3- CCT | 000- 255 levels dimming, available in color temperatures of 3200K- 5600K |
| Channel 4-STROBE | 000- 009 levels without function |
| 010- 255 levels strobe function | |
| Channel 5- Dim4 | 000- 063 first- level dimming delay function |
| 064- 127 second- level dimming delay function | |
| 128-191 third-level dimming delay function | |
| 192- 255 fourth- level dimming delay function | |
| Channel 6- DIMMING | 000- 255 levels master dimming |
| Channel 7- DIM Fine | 000- 255 levels dimming fine |
DMX 4 Channels function
| Channel 1-3200k | 000-255 levels dimming |
| Channel 2-5600k | 000-255 levels dimming |
| Channel 3-CCT | 000-255 levels dimming, available in color temperatures of 3200K-5600K |
| Channel4-DIMMING | 000-255 levels master dimming |
Remarks：(ColourTemperature) contrast value
| DMX levels | CCT DATA | DMX levels | CCT DATA |
| 000↔012 | 3200K↔3300K | 128↔139 | 4400K↔4500K |
| 012↔022 | 3200K↔3400K | 139↔149 | 4500K↔4600K |
| 022↔033 | 3400K↔3500K | 149↔160 | 4600K↔4700K |
| 033↔044 | 3500K↔3600K | 160↔171 | 4700K↔4800K |
| 044↔055 | 3600K↔3700K | 171↔181 | 4800K↔4900K |
| 055↔066 | 3700K↔3800K | 181↔192 | 4900K↔5000K |
| 066↔075 | 3800K↔3900K | 192↔203 | 5000K↔5100K |
| 075↔086 | 3900K↔4000K | 203↔213 | 5100K↔5200K |
| 086↔096 | 4000K↔4100K | 213↔224 | 5200K↔5300K |
| 096↔107 | 4100K↔4200K | 224↔235 | 5300K↔5400K |
| 107↔118 | 4200K↔4300K | 235↔245 | 5400K↔5500K |
| 118↔128 | 4300K↔4400K | 245↔255 | 5500K↔5600K |
