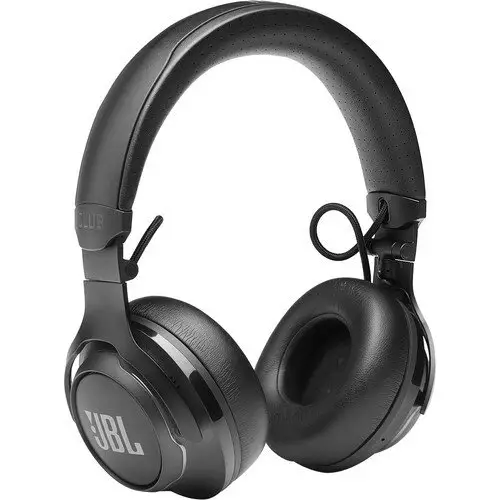

JBLCLUB700BTBLKAM Club 700BT Wireless On-Ear Headphones User Guide

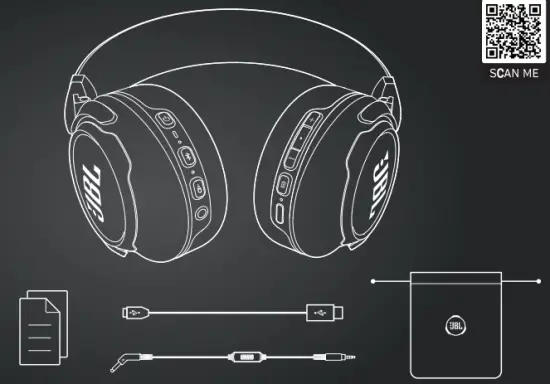

WHAT THE IN BOX

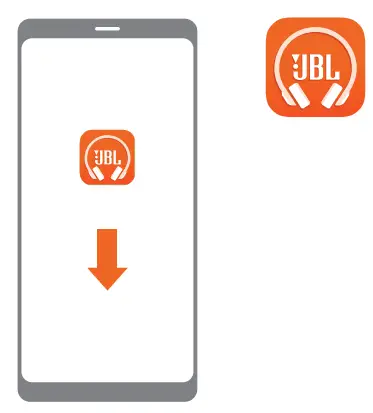

APP
Headphones JBL
EXPERIENCE LISTENING YOUR OF PERSONALIZATION AND CONTROL MORE EVEN GET .APP FREE THIS WITH

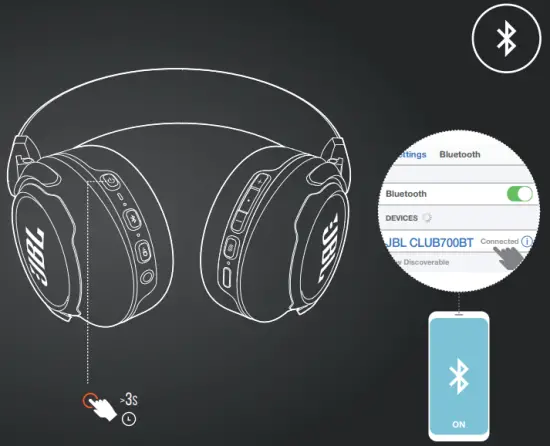

Power on & connect
AMBIENT AWARE/ TALKTHRU

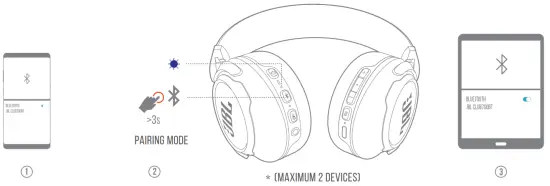

Multi – Point Connection

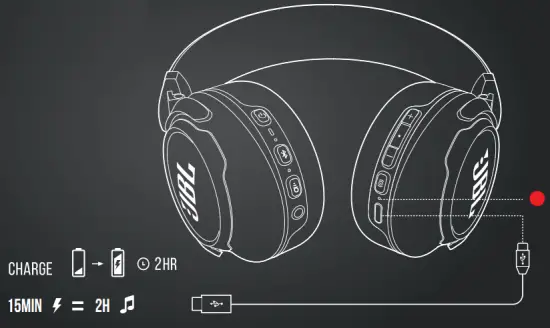

Charging

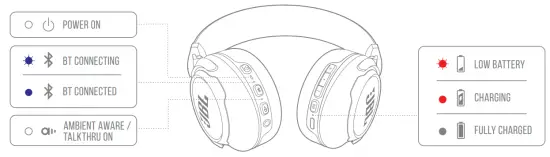

LED Behaviors
TECH SPEC
- DRIVER SIZE: 40 mm dynamic driver
- FREQUENCY RESPONSE [PASSIVE): 16 Hz – 40 kHz
- FREQUENCY RESPONSE [ACTIVE): 16 Hz – 22 kHz
- SENSITIVITY: 100 dB SPLP. 1 kHz / 1 mW
- MAXIMUM SPL: 93 dB
- MAXIMUM INPUT POWER (PASSIVE): 1000 mW
- MICROPHONE SENSITIVITY: -24 dBVglkHz/Pa
- IMPEDANCE: 32 ohm
- BLUETOOTH TRANSMITTED POWER: <4 dbm
- BLUETOOTH TRANSMITTED MODULATION: GFSK, n/4 DQPSK, 8DPSK
- BLUETOOTH FREQUENCY: 2.402 GHz – 2.480 GHz
- BLUETOOTH PROFILE VERSION: A2DP 1.3, AVRCP 1.5, HFP 1.6
- BLUETOOTH VERSION: V5.0
- BATTERY TYPE: LITHIUM ION POLYMER BATTERY( 3.7 V / 610 mAh)
- POWER SUPPLY: 5 V = 1 A
- CHARGING TIME: <2 hrs
- MUSIC PLAY TIME WITH BT ON: 50 hrs
- WEIGHT: 283 g
The Bluetooth” word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries. Incorporated is under license. Other trademarks and trade names are those of their respective owners.
Google and Google Play are trademarks of Google LLC.

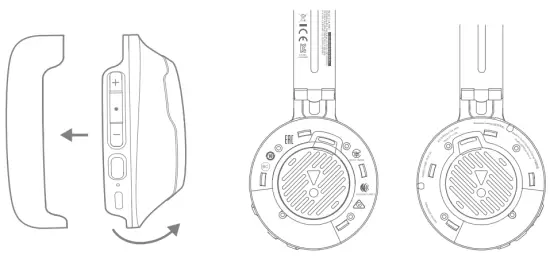

Compliance Information On Ear Cup
Scan
