006409

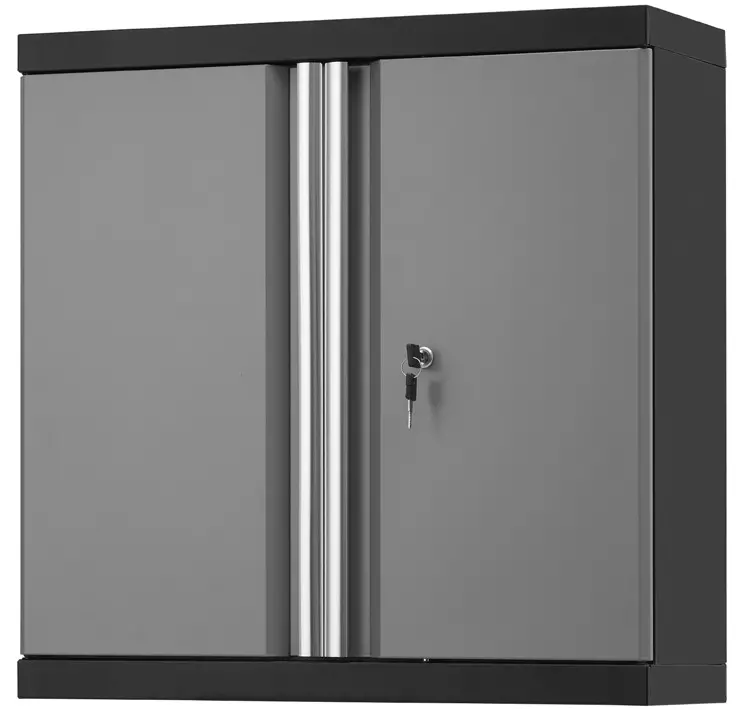

WALL CABINET 2 DOORS
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions),
SAFETY INSTRUCTION
WARNING!
Do not climb, or stand on the product — risk of personal injury.
- The maximum loading capacity is 115 kg (45 kg per shelf). Do not overload the product.
- Do not mount the product on the back of a lorry or other moving surface.
- Close the doors before moving the cabinet.
TECHNICAL DATA
| Size | 680 x 680 x 300 mm |
| Weight | 16 kg |
DESCRIPTION
- Part of Hard Head’s modular storage series.
- Made of powder-coated sheet metal.
- Lockable (2 keys).
- Doors with gas damper.
- Left-hand door
- Left side
- Top
- Back
- Right side
- Right-hand door
- Base
- Bottom shelf
- Shelf

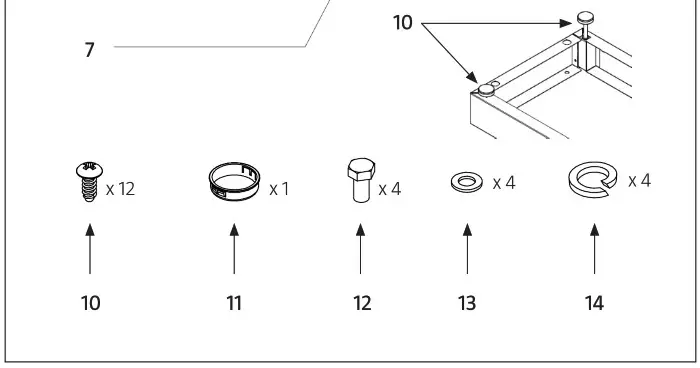

- Screw S15 x 12mm
- Cord inlet
- Hex screw M8 x 16
- Flat washer Ø 8
- Spring washer Ø8

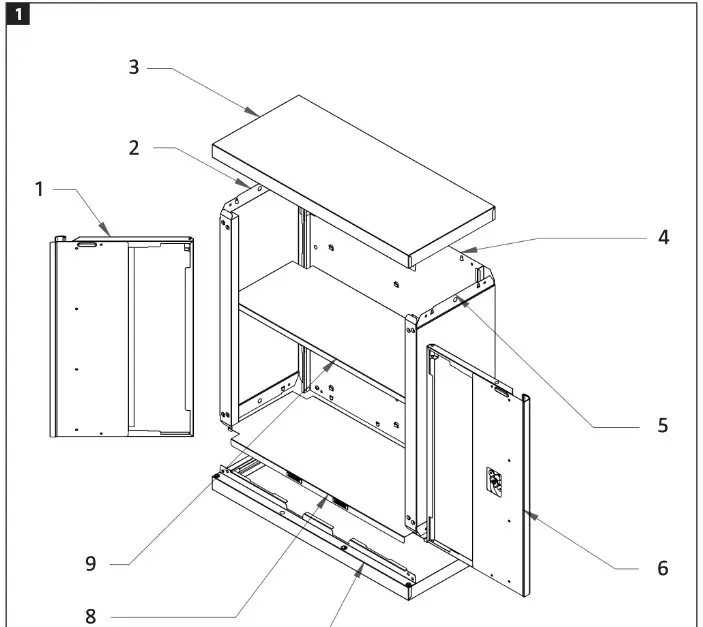

FIG. 1
ASSEMBLY
The following instructions refer to the list of components under the heading Description.

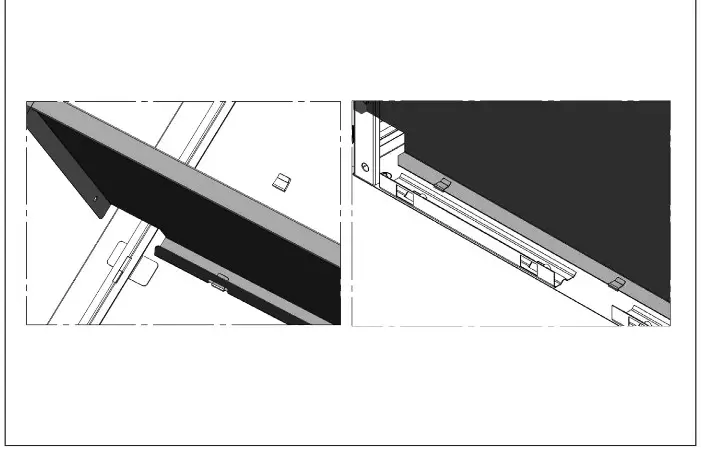

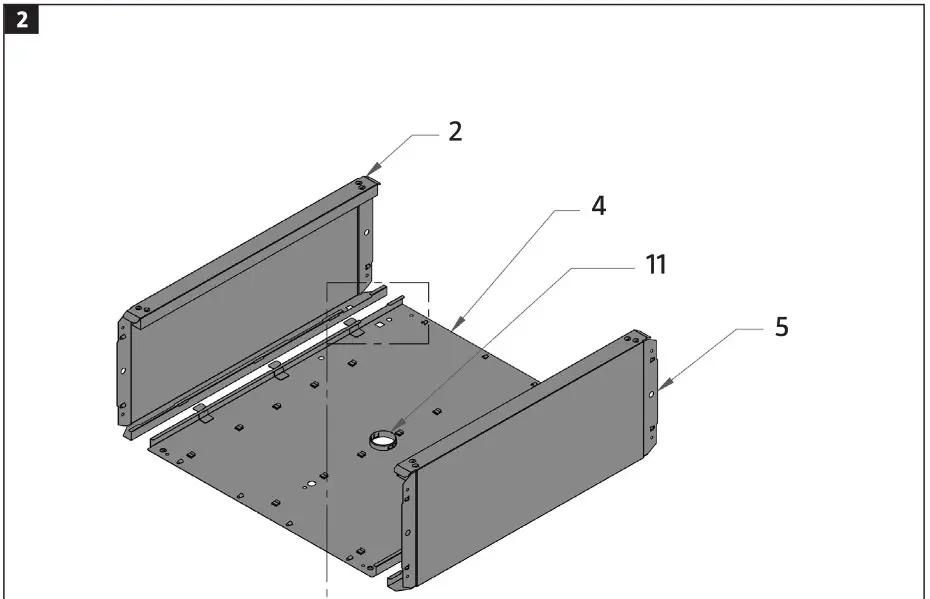

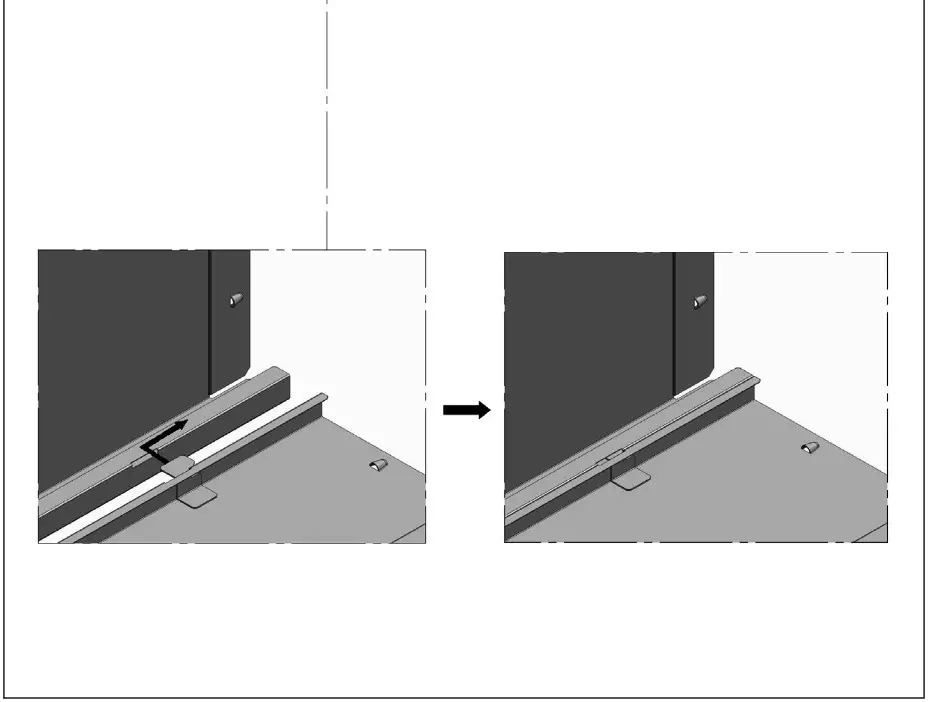

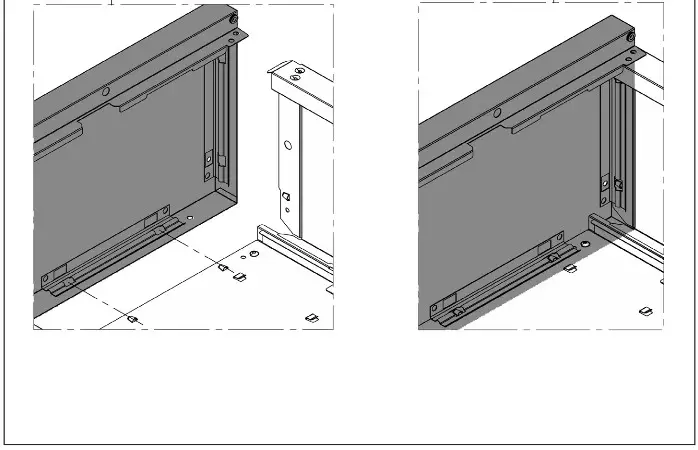

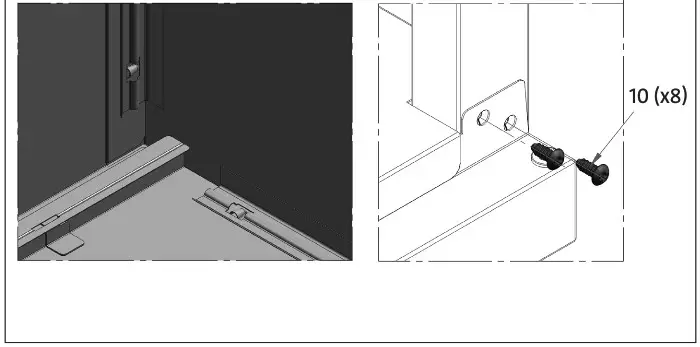

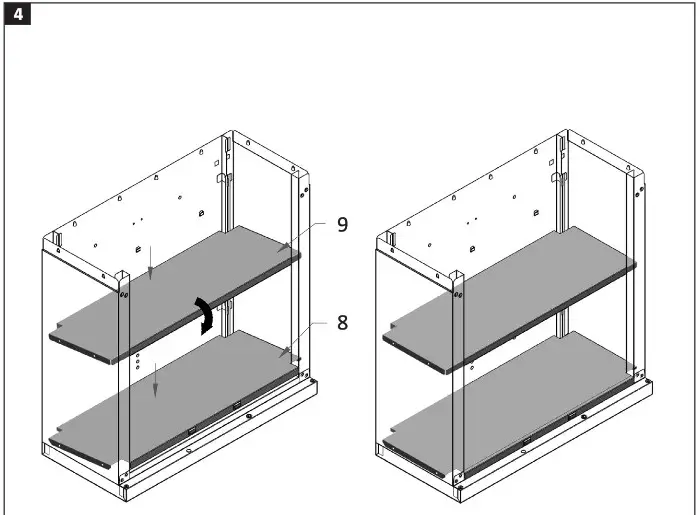

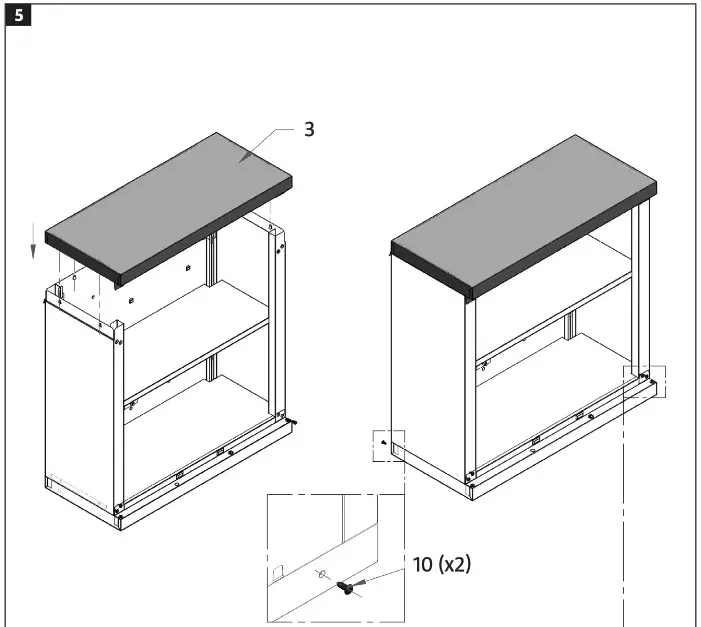

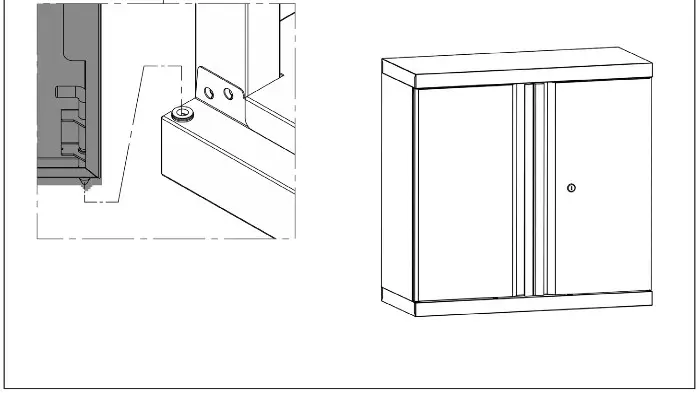

FIG. 2-5
Jula reserves the right to make changes.
For latest version of operating instructions, see www,jula.com
JULA AB, BOX 363, SE-532 24 SKARA 2022-01-13
© Jula AB
