Blozi Ed0213 Electronic Shelf Label User Manual

BLOZI ED0213 Electronic Shelf Label

Electronic Price Label introduction

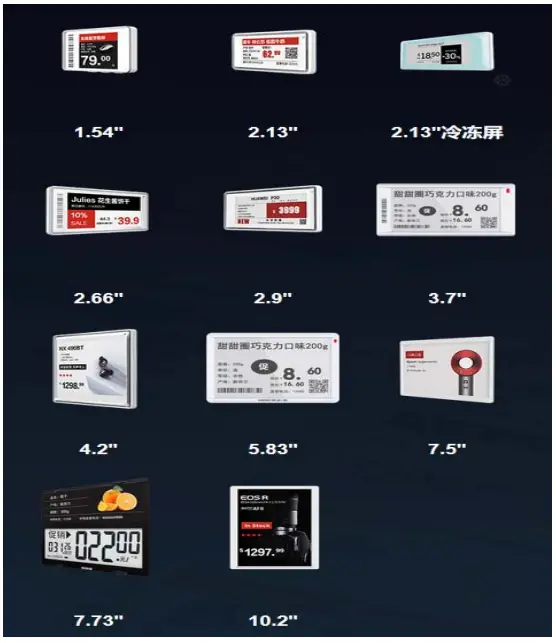

Blozi ESL Electronic Price Label is a high‐end electronic price tag independently developed and produced by  Shanghai baozi  Intelligent  Technology  Co.,  Ltd. based on  2.4G  wireless communication technology and using electronic dot matrix screen, electronic segment code and LCD screen as the display part. It has many advantages, such as ultra‐low power consumption, ultra‐long service life,  full view,  high contrast and high stability.  The price tag communication mode adopts the private communication protocol developed by the insurance company, which has high security,  fast and stable connection.  The asset protection electronic price tag adopts  PCB onboard antenna to transmit and receive data, and uses one or more button batteries to supply power. It can be widely used in various supermarkets, shopping malls, storage systems, etc.  At  present,  the  main  models  include  ENDOR  series  dot  matrix  ed0154,  ed0213,  ed0266,  ed0290, ed0420, ed0750, ed1020, segment code ed0773, etc.

Electronic Price Label parameter

Installation method

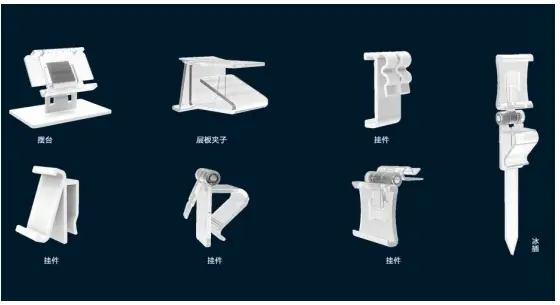

1. Gimbal：
   Applicable  to  common  laminates,  fruit  and  vegetable  areas  and  fruit  and  vegetable baskets
2. Swing table
   Applicable to all countertops and multiple scenes3.
3. Guide:
   Applicable to standard shelves, laminates, etc
4. hook
   Suitable for t‐hook, snack area, etc
5. Ice insertion
   Applicable to freezing area

Function description

1. The price tag has led prompt function. Observing the change of LED color can judge the inventory of goods and other information.
2. The price has  NFC  function,  which can quickly change the price and cut pages through the handheld terminal device or the mobile phone with NFC function (the mobile phone needs to download the blozi binding assistant APP).
3. The price tag has a  24‐hour  machine brushing function,  which does not require the participation of the BTS. It can even be brushed offline. Used to prevent the price tag screen from being red (the current price tag template is used as the display template).
4. The price tag has the function of page cutting.  It supports five types of templates in advance and then uses short instructions to quickly switch.
5. The price tag improves the anti-falling performance through precise structural design. The price tag supports waterproof, dustproof and low temperature, and can be used in complex environments.

Principle description

The electronic price tag needs to be used in conjunction with the electronic price tag system, including ESL server, base station, electronic price tag and intelligent handheld terminal equipment. The commodity information in the database is encoded by the ESL server, and then the price and other information to be updated is transmitted to the base station through  Ethernet; The base station then sends the commodity data information to the whole store (the base station is usually arranged on the ceiling of the store and surrounds the whole store building, limiting the coverage of RF wireless signals to a specific enclosed space); The electronic price tag is a wireless data receiver with ID code, which can restore the received RF signal to an effective digital signal and display it.
The electronic shelf label system has two communication functions:  point‐to‐point and group sending, that is, the server can not only transfer data to a specified label but also control all labels at one time.  Each electronic price tag stores multiple pieces of information of corresponding commodities, and the salesperson can easily query and check with the help of intelligent handheld terminal equipment.  The shelf label is place in a  special installation strip fixed on the shelf, and can also be set in a variety of installation methods such as hanging type. The electronic price tag also supports remote control,  and the headquarters can manage the unified price of commodities in its chain branches through the network. Multiple pieces of information of corresponding commodities are stored internally, and the salesperson can easily query and check with the help of intelligent handheld terminal equipment.

Technical indicators

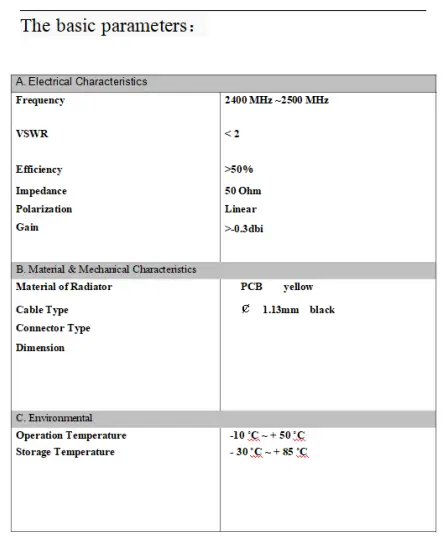

ANT（ED0213）

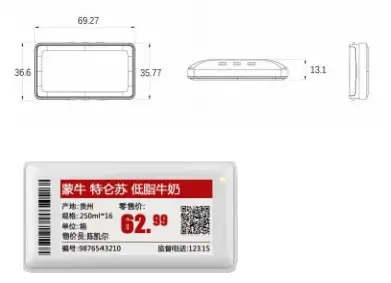

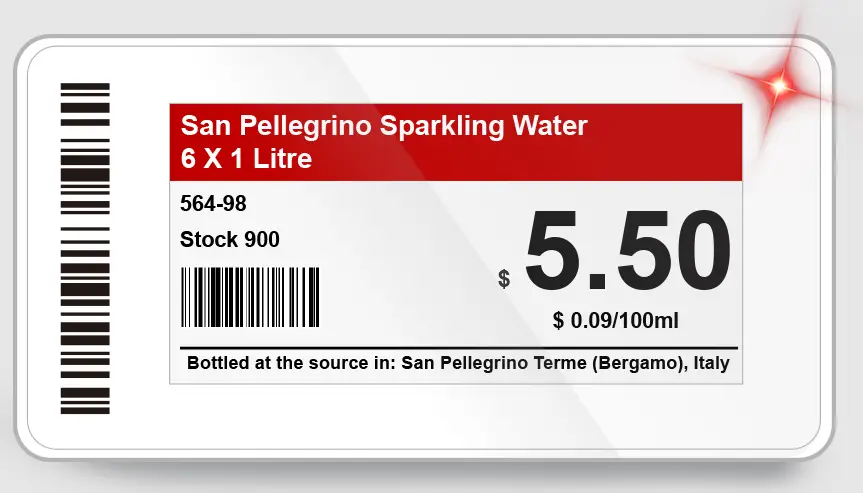

Product show

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution:
Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF Exposure Information
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.

ISED Statement

This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
