ALLYNK AKC42V Electronic Shelf Label
What is Electronic Shelf Label
The best way to replace traditional price tag

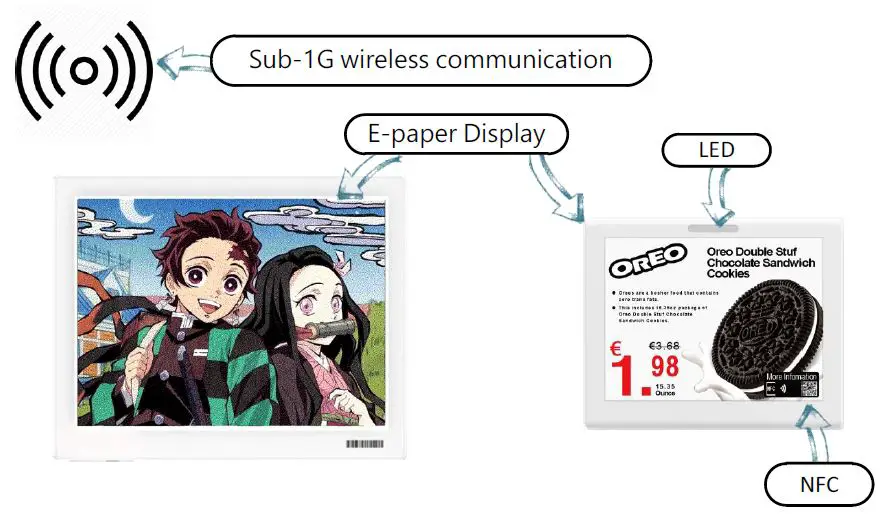

| E-paper display | Ÿ Wide view angle Ÿ Ease of reading Ÿ Low power consumption |
| LED | Ÿ Locate product or ESL Ÿ Highlight special event |
| NFC | Ÿ Product traceability Ÿ Customer self-checkout |
| Wireless Communication | Ÿ Less infrastructure investments Ÿ More flexibilities |
ESL SOLUTON INTRODUCTIONS

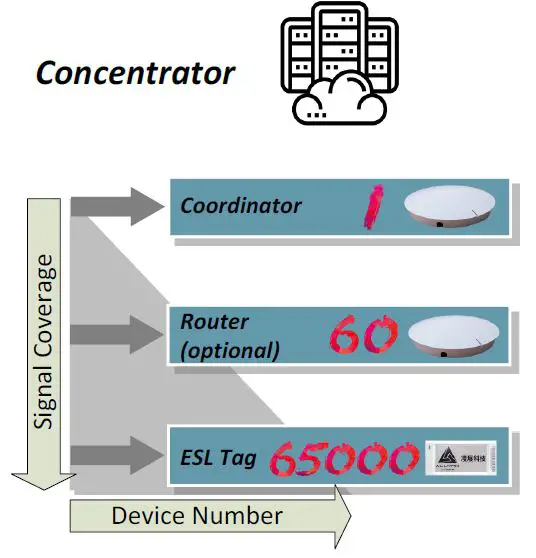

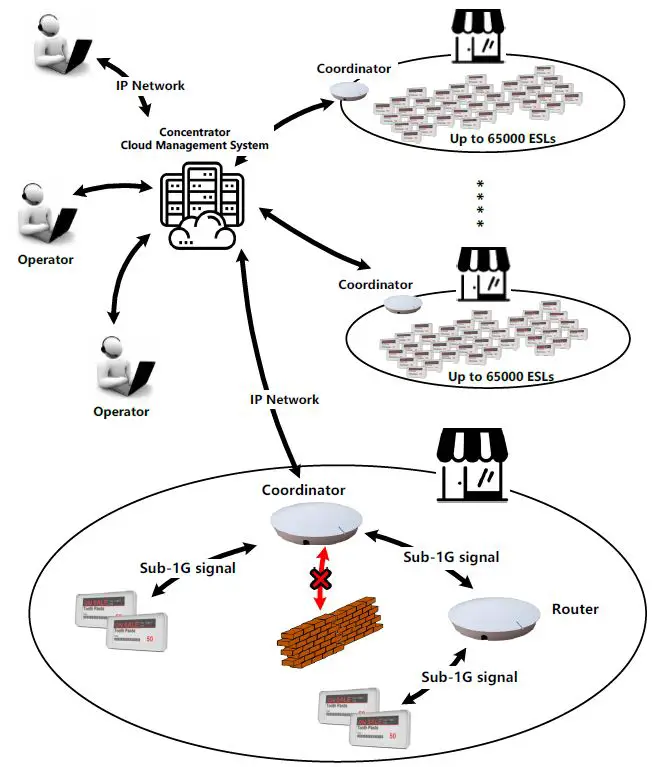

Solution Architecture
Role in Solution
| Concentrator | Ÿ Manage Coordinators via IP network Ÿ Provide management interface to operator |
| Coordinator | Ÿ Receive command from Concentrator Ÿ Manage Routers and ESLs via sub-1g wireless communication Ÿ Mandatory device in each ESL network |
| Router | Ÿ Forward sub-1g signal to ESL or Coordinator Ÿ Optional device in each ESL network |
| ESL | Ÿ Receive data from Coordinator via Sub-1g wireless communication |

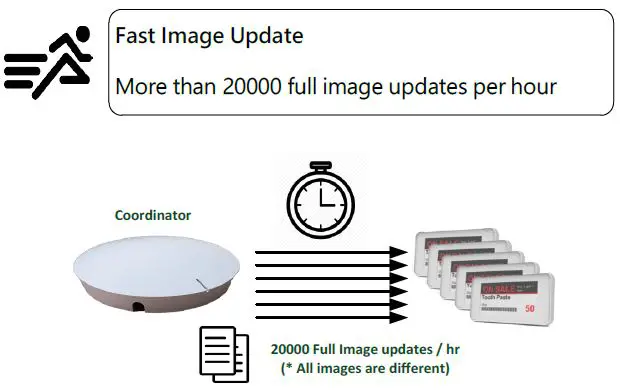

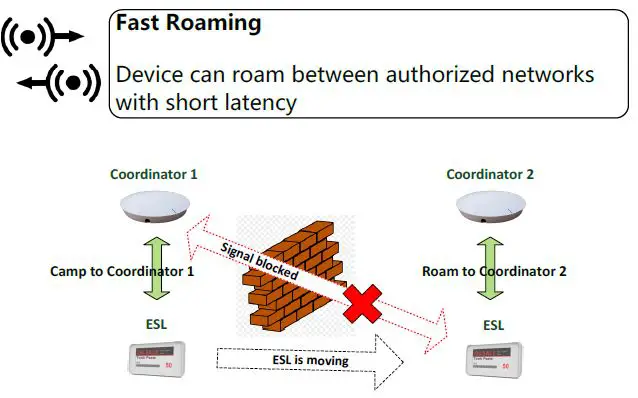

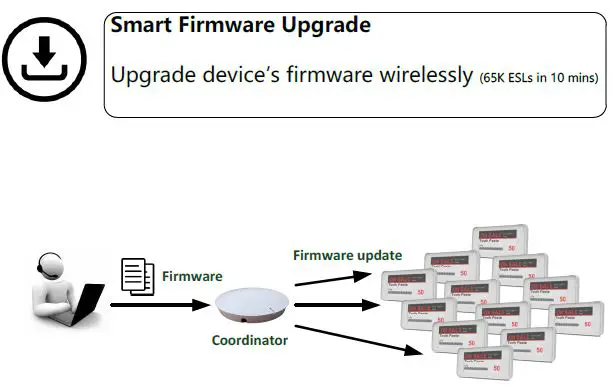

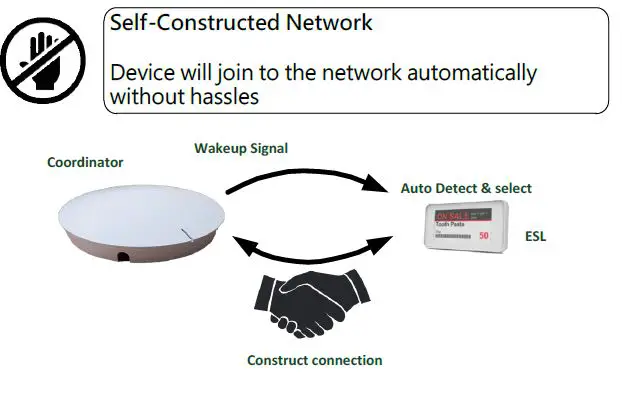

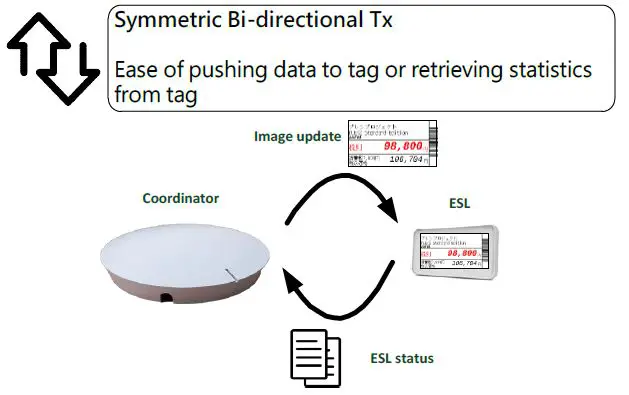

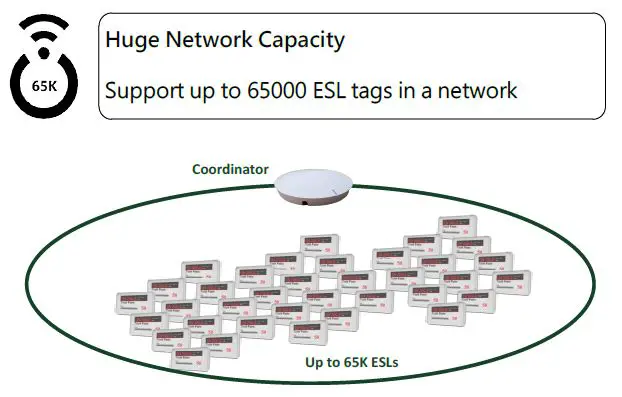

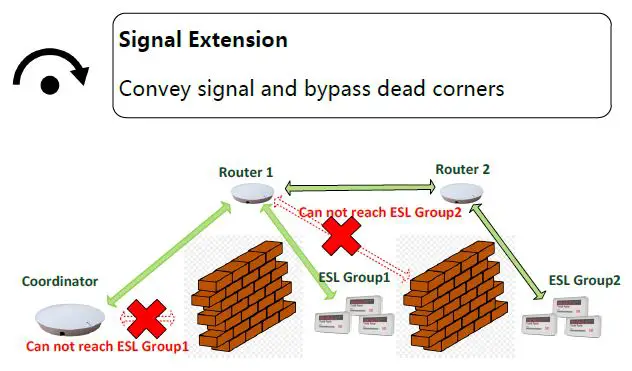

Solution Highlights

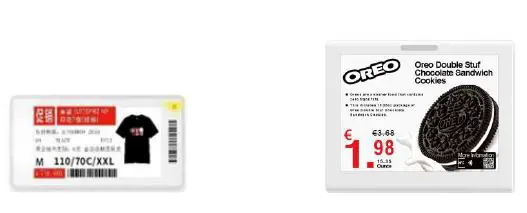

Product Specifications
| Model Name | AKC26V | AKC42V |
| Dimensions | 83 x 41 x 11.6 mm | 105.3 x 94.5 x 12.3 mm |
| Display | 2.66″ Epaper (296×128 pixels) Black/White/Red | 4.2″ Epaper (400×300 pixels) Black/White/Red |
| Transmission range | ~30m indoors | ~30m indoors |
| Connectivity | Sub-1G wireless (902~928Mhz) NFC | Sub-1G wireless (902~928Mhz) NFC |
| I/O | LED x 1 | LED x 1 |
| Power supply | CR2450 x 2 | CR2450 x 2 |
| Battery life | 7 years (2 updates/day) | 5 years (2 updates/day) |

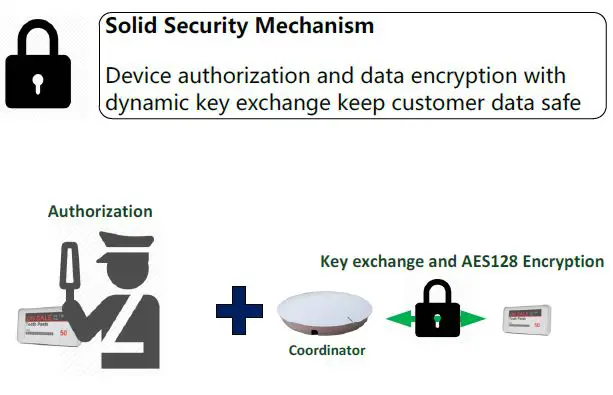

| Security | Device authentication AES128 + key exchange | Device authentication AES128 + key exchange |
| Model Name | AKE58V | AKC58V |
| Dimensions | 135.4 x 109.5 x 8.5 mm | 135.4 x 109.5 x 8.5 mm |
| Display Size | 5.65″ 7-Color Epaper (600 x 448 pixels) | 5.65″ 3-Color Epaper (600 x 448 pixels) |
| Display Color | Black / White / Green / Blue / Red / Yellow / Orange | Black / White / Red |
| Transmission range | ~30m indoors | ~30m indoors |
| Connectivity | Sub-1G wireless (902~928Mhz) NFC | Sub-1G wireless (902~928Mhz) NFC |
| Power supply | CR2430 x 4 | CR2430 x 4 |
| Battery life | 5 years (2 updates/day) | 5 years (2 updates/day) |
| Security | Device authentication AES128 + key exchange | Device authentication AES128 + key exchange |
| Model Name | CO900D | RT900D |
| Key Feature | Network management | Signal forwarding |
| Dimensions | 160 x 160 x 20 mm | 160 x 160 x 20 mm |
| Transmission range | ~30m indoors | ~30m indoors |
| Connectivity | Sub-1G wireless (902~928Mhz) 10/100Mbps Ethernet | Sub-1G wireless (902~928Mhz) |
| I/O | LED x 3 | LED x 3 |
| Power supply | POE / MicroUSB | POE / MicroUSB |
| Security | Device authentication AES128 + key exchange | Device authentication AES128 + key exchange |
| Model Name | CONCENTRATOR |
| Descriptions | Site management Software |
|

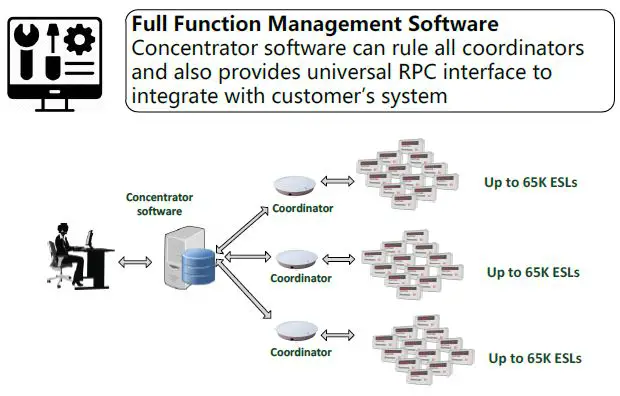

Features | • For both Windows and Linux platform • Cloud-Ready • Manage multiple networks • Device & Application data management • Data-to-image generation engine • RPC Interface for integration • Support C# / Java / Node.JS / Ruby /Go / C++… |
