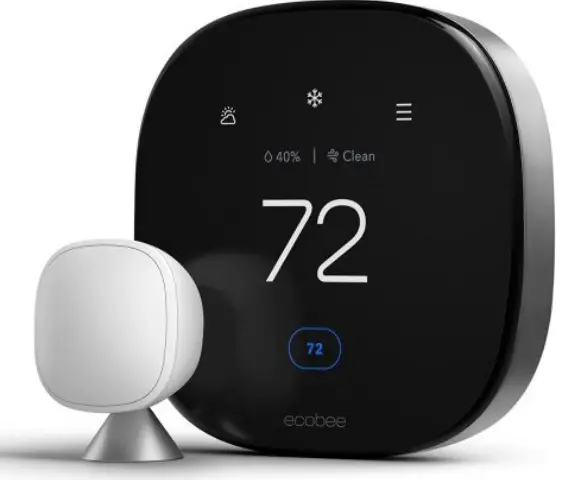

ecobee Smart Thermostat Premium User Guide
ecobee Smart Thermostat Premium User Guide
WELCOME!
If you have questions, we have answers.
Visit ecobee.com/support for tutorials, how-to videos, and FAQs. Technical support is also available by email or by phone:
[email protected]
1-866-518-6740
COMPATIBLE SYSTEMS
Smart Thermostat Premium works with most centralized residential heating and cooling systems.
Heating: Up to 2 stages
Cooling: Up to 2 stages
Heat pumps: Air, Water, and Geothermal with up to 2 stages, and 2 stages of AUX heat.
Accessories: Dehumidifier, humidifier, or ventilation device.
Fan coil units: 2- and 4-Pipe with up to 3 fan speeds. Pipe sensors supported.
Packaged Terminal Air Conditioners (PTAC): Up to 3 fan speeds
TERMINAL DESCRIPTIONS
| G | Fan |
| Rc | Cool transformer |
| Rh | Heat transformer |
| O/B | Heat pump reversing valve |
| Y1, Y2 | Used for 1-2 stages of conventional A/C or 1-2 stages of heat pump compressor |
| W1, W2 | Used for 1-2 stages of conventional heat or 1-2 stages of auxiliary heat with a heat pump |
| C | 24VAC common |
| ACC+/– | Used for dehumidifiers, humidifiers, ventilators, HRVs, or ERVs |
| PEK+ | Power Extender Kit (PEK), which extends a C-wire when a physical wire is not available. PEK is sold separately for Pro Builder models. |
 | IMPORTANT — TURN OFF THE POWER Power off the HVAC system with the master switch or circuit breaker box. |
| WARNING! ecobee Smart Thermostat Premium is designed for 24VAC with a 2A maximum current. Do not connect it to line (high) voltage or millivolt systems. |

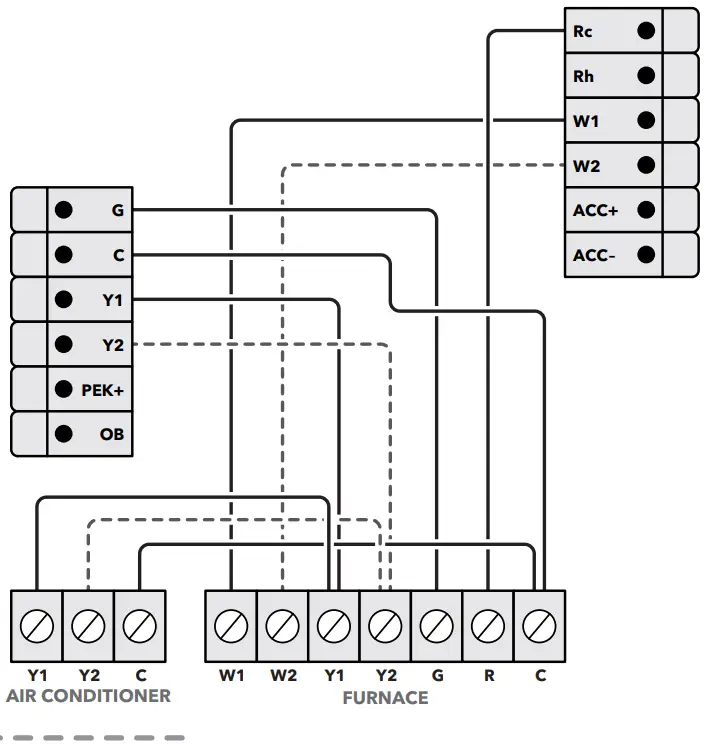

CONVENTIONAL HEATING AND COOLING (UP TO 2 STAGES EACH)
Stage 2 heat and cool, if applicable
HEAT PUMP (AIR OR GEOTHERMAL) WITH AUXILIARY HEAT
Stage 2 compressor, if applicable
NOTE: Heat pumps use an internet-based weather feed and do not require an outdoor temp sensor and/or a dual-fuel kit.

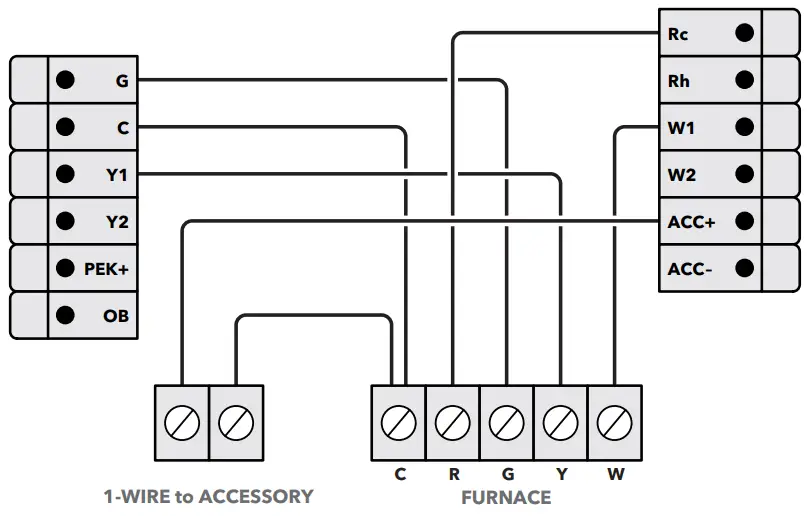

1-WIRE ACCESSORY
NOTE: Self-powered 24V accessories can be controlled using the ACC+ and ACC− terminals.

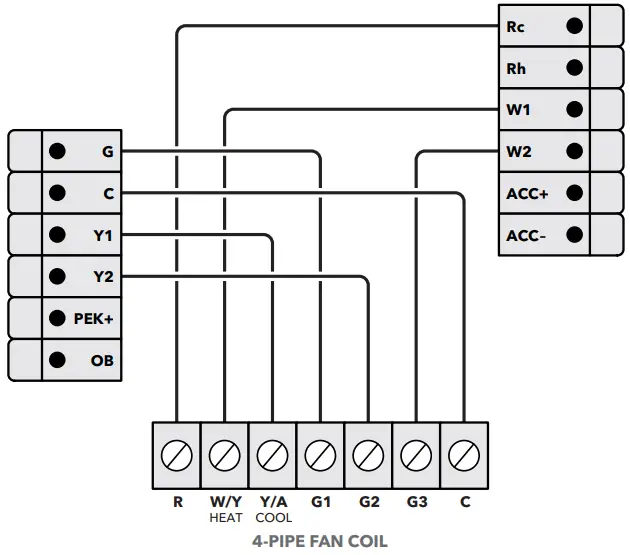

4-PIPE FAN COIL UNIT
NOTE: G1, G2, and G3 may also be labeled as GL, GM, GH

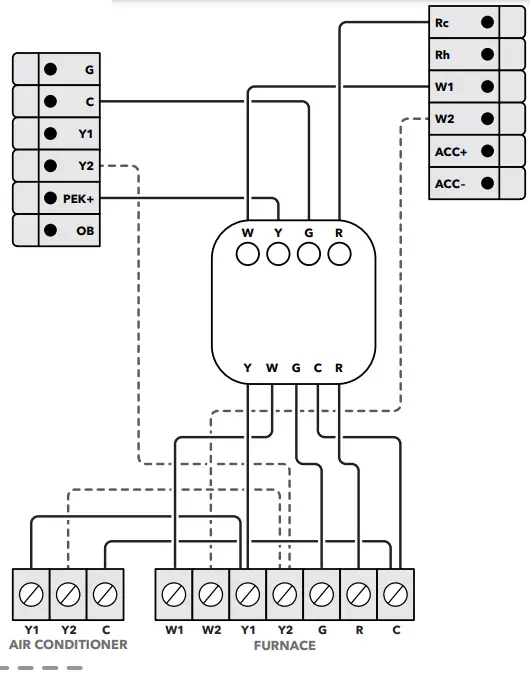

CONVENTIONAL HEATING AND COOLING (WITH PEK)
Stage 2 heat and cool, if applicable
NOTES:
- When using a PEK with a heat pump system, the O/B terminal is wired directly to the thermostat.
- The PEK is not compatible with dual transformer or fan coil units.

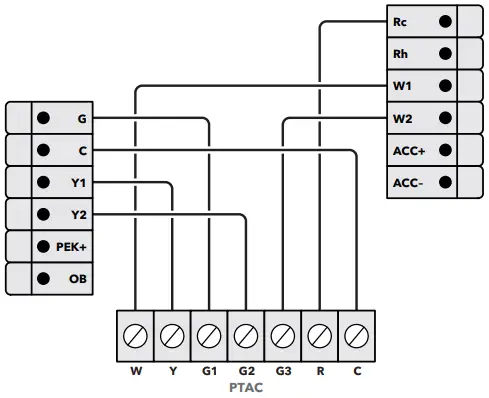

PACKAGED TERMINAL AIR CONDITIONER (PTAC) WITH MULTISPEED FAN
NOTE: G1, G2, and G3 may also be labeled as GL, GM, GH

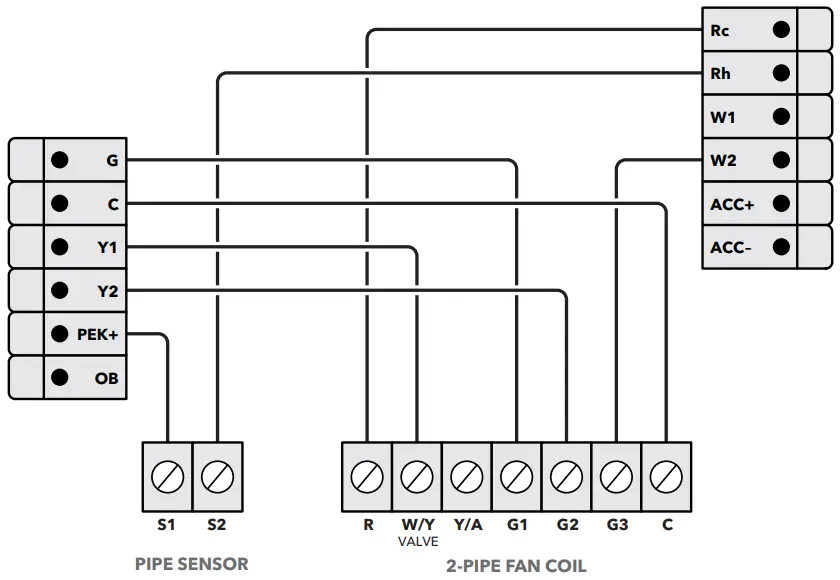

2-PIPE FAN COIL UNIT WITH AUX HEAT (PIPE SENSORS OPTIONAL)
NOTE: G1, G2, and G3 may also be labeled as GL, GM, GH
BOILER OR RADIANT SYSTEM
Installation Settings
THRESHOLD SETTINGS
Menu > Settings > Installation Settings > Thresholds
| SETTING NAME | DESCRIPTION | DEFAULT |
| Conventional & Hoatpwnp Systems | ||
| Auto Heat/Cool | In Auto Mode, the thermostat will engage both your heating and cooling as necessary. | Enabled |
| Heat/Cool Min Delta | The minimum temperature difference between the desired Heat and Cool set points in Auto mode. | SF |
| Configure Staging | Configure staging Manually, to select and customize values such as dissipation time, temperature deltas, and runtimes for both your heating and cooling equipment (See *Manual Setting Options) | Automatic |
| Compressor Min Cycle Off Time | The amount of time the compressor remains off between cycles. | 300 seconds |
| Compressor Min Outdoor Temperature | The AC or Heatpump compressor will not run below this outdoor temperature. AC- 35F / | Heatpump – User defined |
| AC Overcool Max | Will allow the air conditioner to overcool (above the Cool setpoint) by this value to help decrease humidity. | Disabled |
| Heat Min On Time | The minimum amount of time the furnace/boiler will stay on during a call for heat | 5 minutes |
| Compressor Min On Time | The minimum amount of time the compressor will stay on. | 5 minutes |
| Temperature Correction | If the thermostat sensor reading is incorrect, a correction may be applied to achieve an accurate reading. | +0F |
| HumidityCorrection | If the thermostat sensor reading is incorrect, a correction may be applied to achieve an accurate reading. | +0% |
| Thermal Protect | The minimum temperature reading difference between sensors will trigger the algorithm to ignore the inaccurate sensor reading. | Disabled |
| Installer Code | When enabled, this restricts access to Installation Settings (Code 3262 permits access) | Disabled |
| Heatpump only Systems | ||
| Aux Savings Optimization | This setting simplifies Heatpump to A tor Heating staging based on Savings vs. Comfort. Comfo The higher the temperature setting will sacrifice comfort for savings. | 2 F |
| Aux Heat Max Outdoor Temperature | The Auxiliary Heat will not run above this outdoor temperature. | 35 F |
| Aux Min On Time | The minimum amount of time your auxiliary heat will stay on during a call for aux heat. | 5 minutes |
| Compressor To Aux Temperature Delta | The minimum number of degrees from the current temperature vs. setpoint before engaging the auxiliary heat. | Auto |
| Compressor to Aux Runtime | The minimum number of minutes the Heatpump compressor will run for before switching to auxiliary heat. | Auto |
| Aux Reverse Staging | When enabled, aux heat will be engaged if the current temperature is greater than the value designated in the Compressor to Aux Temperature Delta setting. | off |
| *Manual Setting Options | ||
| Heat Differential Temperature | The minimum temperature differential before engaging heating. | 0.5F |
| Heat Dissipation Time | The amount of time the fan will continue to run once the heating cycle is completed. | Auto |
| Cool Differential Temperature | The minimum temperature differential before engaging cooling. | Auto |
| Cool Dissipation Time | The amount of time the fan will continue to run once the cooling cycle is completed. | Auto |
| Compressor Reverse Staging | When enabled, the second-stage compressor will be engaged if the current temperature is greater than the value designated in the Compressor Stage 2 Temperature Delta setting. | off |
| Compressor Stage 2 Temperature Delta | The minimum number of degrees from the current temperature vs. setpoint before engaging the second stage of the compressor. | Auto |
| Compressor Stage 1 Max Runtime | The maximum number of minutes running stage 1 before engaging the second stage of the compressor. | Auto |
| Heat Reverse Staging | When enabled, second stage heat will be engaged if the current temperature is greater than the value designated in the Heat Stage 2 Temp Delta setting. | off |
| Heat Stage 2 Temp Delta | The minimum number of degrees from the desired set point before engaging the 2nd stage of heat | Auto |
| Heat Stage 1 Max Runtime | The maximum number of minutes running stage 1 before engaging the second stage heating. | Auto |
ACCESSORY SETTINGS
Menu > Settings > Installation Settings > Equipment
| SETTING NAME | DESCRIPTION |
| Humidifier | |
| Evaporative or Steam | An ‘Evaporative’ humidifier will operate with a heating cycle whereas a ‘Steam’ humidifier can operate with/without a heating cycle. |
| Min Runtime Delta | The humidifier will run beyond the desired humidity setpoint by the selected amount |
| Window Efficiency | The Frost Control setting uses the efficiency rating to determine the desired humidity within the range of 15 to 50%. |
| Dehumidifier | |
| Dehumidify with Fan | When enabled, this will activate the furnace/air-handler fan during a call for Dehumidification. |
| Min Runtime Delta | The dehumidifier will run beyond the desired humidity setpoint by the selected amount |
| Dehumidify in Heat Mode | Will permit the Dehumidifier to operate independently of a heating cycle. |
| Dehumidifier Active | This setting is dependent on whether the HVAC system or Dehumidifier requires it to be open or closed while active. |
| Ventilator | |
| Pre-Occupancy Purge | Enable to run ventilator for 1 hour prior to expected occupancy |
| Free Cooling Max Outdoor Temperature | Free Cooling will not run when the outdoor temperature is above this point |
| Free Cooling Max Outdoor Temperature | Maximum Outdoor Humidity to permit Free Cooling to run |
| Indoor/Outdoor Temperature Delta | Permit Free Cooling if Indoor Temp vs. Outdoor Temp is greater than Temperature Delta |
| Max Desired Temperature Delta | The maximum delta between current and desired temperature to engage Free Cooling |
| Pre-Occupancy Purge | Enable to run ventilator for 1 hour prior to expected occupancy |
REMINDERS & ALERTS SETTINGS
Menu > Reminders and Alerts > Preferences
SEWING NAME | DESCRIPTION | DEFAULT |
| HVAC Maintenance | Maintenance interval for the heating & cooling systems. | Enabled,6 months |
| Furnace Filter | The frequency of filter reminders is based on months or runtime. | Enabled, 3 months |
| UV Lamp | The frequency when maintenance is needed is based on months or runtime hours. | Disabled |
| Low Temp Alert | When indoor temperature meets/exceeds this setting an alert will be generated. | Enabled, 50F |
| High Temp Alert | When indoor temperature meets/exceeds this setting an alert will be generated. | Enabled, 92F |
| Aux Outdoor Temp Alert | An alert will be generated when Aux Heat is used at this value or above. | Disabled |
| Aux Heat Runtime Alert | An alert will be generated when Aux Heat meets/exceeds this runtime value in a 24hr period. | Disabled |
| Low Humidity Alert | An alert will be generated if humidity falls below this value. | Disabled |
| High Humidity Alert | An alert will be generated if the humidity rises above this value. | Disabled |
| Display Alerts on Thermostat | When enabled, Alerts will also appear on the thermostat display. | Disabled |
| Enable Heating/Cooling Alerts | An alert will be generated indicating that the system has failed to heat or cool the indoor location. | Enabled |
465-00396-RevB_Ares_Pro_Wiring-Guide_20220406
