Taotronics Tt-sd003 Height-adjustable Desk Pro User Guide

MODEL: TT-SD003
HEIGHT-ADJUSTABLE DESK PRO
User Guide

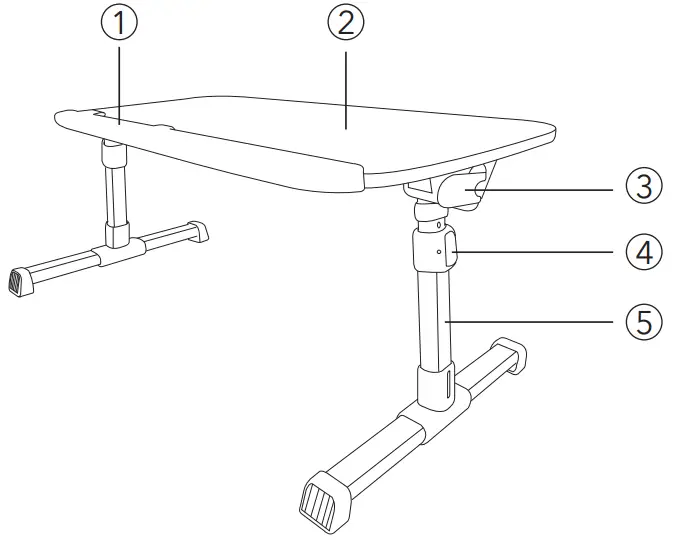

Product Diagram

1. Baffle
2. Desktop
3. Angle Adjustment Switch
4. Lift Switch
5. Desk Legs

Instructions

1. Hold the desk legs with both hands to unfold/fold the desk. Steer away from the struts to avoid pinching.

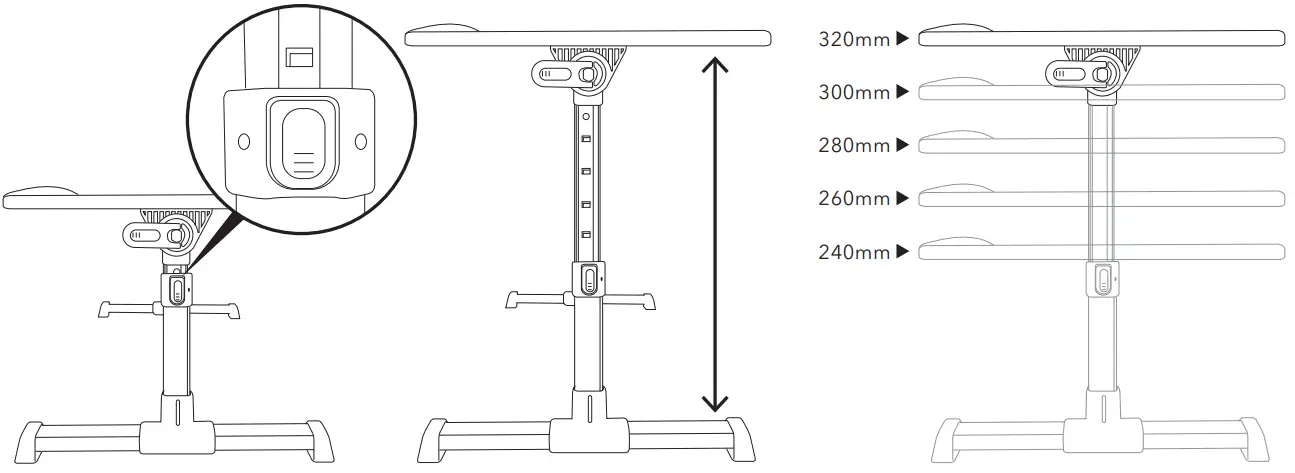

2. Press and hold the Lift Switch to adjust the height. Release and set at the desired height. The height can be set at 5 levels (240-260-280-300-320 mm )

3. Pull the Angle Adjustment Switch to adjust the angle. Push it back and set at the desired angle. The angle can be adjusted at 15°,25°and 35°angles.

Caution

1. Max loading 10 kg, don’t sit on the desk.
2. Do not place any belongings on the edge to prevent dropping or falling off
3. Make sure the cables are long enough to cover the range of the deck elevation.
4. Don’t use excessive force to unfold the desk legs.
