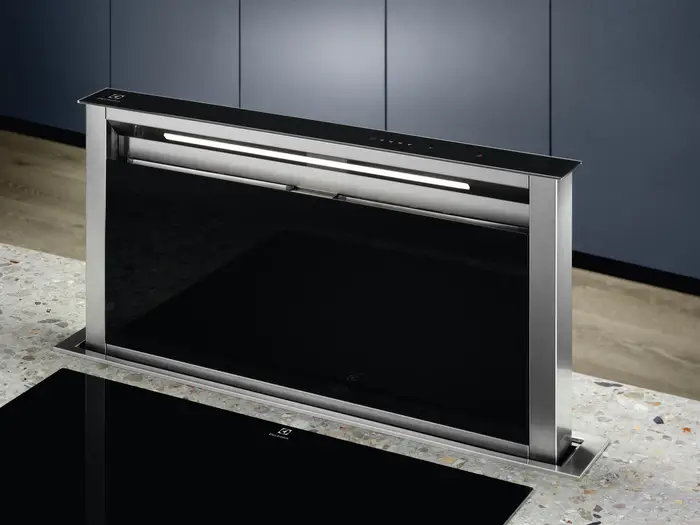

Electrolux LFD619Y Recessed Pull Out Table Hood User Manual

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux.

Visit our website to: Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support

Register your product for better service: www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

SAFETY INFORMATION AND INSTALLATION

WARNING! Refer to the separate Installation Instructions booklet for Safety Information and Installation. Read carefully the Safety chapters before any use or maintenance of the appliance.

BEFORE FIRST USE

WARNING! Refer to Safety chapters.

Closing the glass

When the slider do not open and the panel blinks white the glass inside the slider is loose. The glass must be closed in order to open the slider and operate the appliance.

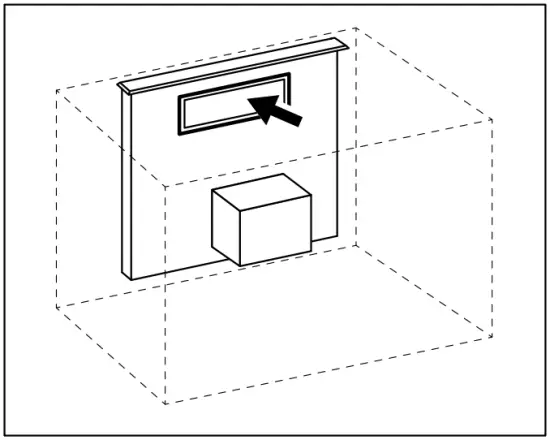

1. Reach to the front side of the appliance inside the furniture.
2. Open the small cover in front and make sure that the glass inside is not loosened.

   Gently push the glass if it is loosened to close it.
3. Close the cover in front of the appliance. The appliance is now ready to use.

PRODUCT DESCRIPTION

Control  panel overview

1. On / Off, Open / Close
2. First motor speed
3. Second motor speed
4. Third motor speed
5. Maximum motor speed
6. Breeze function
7. Filter notification
8. Lamp

DAILY USE

Opening and closing the hood

WARNING! Risk of injury or damage to the appliance! Do not put any cookware or other objects on and under the slider.

1. Press and hold’ until the slider start to open. The appliance turns on and slider goes up.
2. To close the slider and turn off the appliance press and hold until slider starts to go down. Use the hood only when slider stops and is fully open.

Using the hood

Check the recommended speed according to the table below.

• While heating up food, cooking with covered pots.
• While cooking with covered pots on multiple cook-ing zones or burners, gentle frying.
• While boiling and frying big quantities of food with-out a lid, cooking on multiple cooking zones or burners.
• While boiling and frying big quantities of food with-out a lid, big humidity.
• Refreshes the air in kitchen after cooking at a very low noise level. It can be activated and deactivated by touching the symbol. The function turns off automatically after 60 minutes. Use after cooking only.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

The control Panel is a sensor field. Touch the symbols for 1 second to activate the functions.

To operate the hood when the hood is open:

1. Turn on the appliance by pressing the symbol.
   You can now activate the functions.
2. To activate the function touch the symbol.
3. If needed, touch the light symbol to illuminate the cooking surface.
   To turn off the appliance press the symbol again.

Activating Maximum Motor Speed

When you press the button , the Maximum Motor Speed starts to operate for 8 minutes. After that time, the appliance returns to its previous speed settings.

When the function is turned on, additional touch on the button does not have any effects.

Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator flashes for 30 seconds if the charcoal filter must be replaced or cleaned.

Refer to cleaning the grease filter in care and cleaning chapter.
Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.

To reset the function touch for 3 seconds.
To activate or deactivate function (only for charcoal filter):

1. Switch on the control panel.
2. Make sure that the icons are turned white.
3. To activate function touch for 3 seconds.
   If the function is activated, the filter icon flashes five times.
4. To deactivate function touch for 3 seconds.
   If the function is deactivated, the filter icon flashes three times.

CARE AND CLEANING

Notes on cleaning

Do not use abrasive detergents and brushes.

Cleaning Agents
Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.
Clean stains with a mild detergent.

Keep the hood clean
Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.
Follow the instructions for cleaning the accessories when filter notification is on. Refer to Filter notification in daily use chapter.
Grease filters can be washed in a dishwasher. The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

Charcoal filter
The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. Charcoal filter is washable, clean or regenerate the filter after approximately every two months. Refer to leaflet included in the accessory.

Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

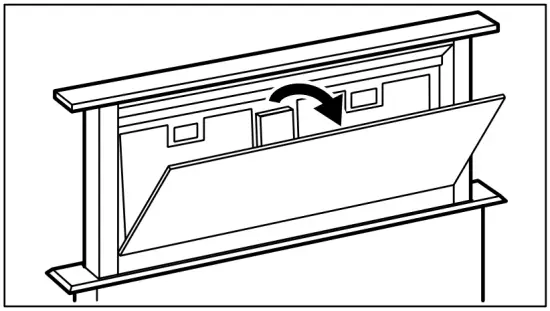

1. Pull the cover to open it. Be careful! To prevent accidental collapse, the cover has two hooks on the sides.

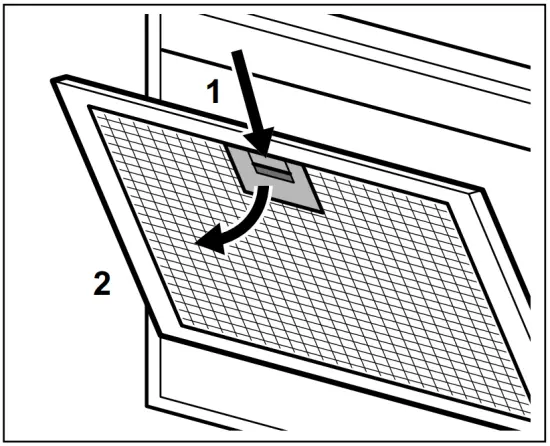

2. Press the handle of the mounting clip on the filter panel underneath the hood (1).

3. Slightly tilt the front of the filter downwards (2), then pull.
   Repeat the first two steps for all filters.
4. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.
   The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.
5. To mount the filters back follow the first two steps in reverse order. Repeat the steps for all filters if applicable.
   After closing the cover, the control panel turns white. The appliance is ready to use.

Cleaning the charcoal filter

To remove the filter:

1. Remove the grease filters from the appliance. Refer to “Cleaning the grease filter” in this chapter.

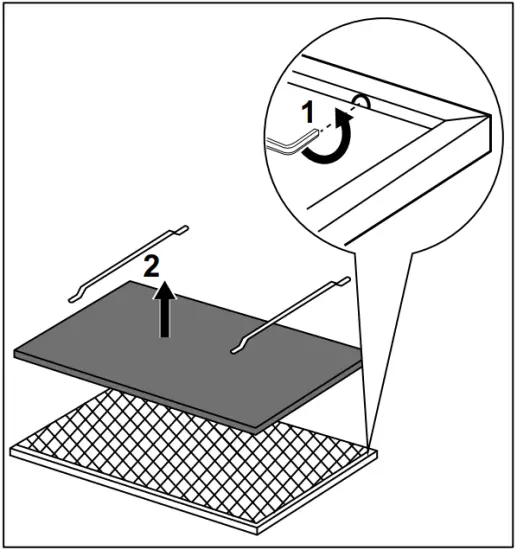

2. Remove the clips holding the filter bed (1), then the filter bed (2).

3. Wash the filter bed in hot water without using detergent or use a dishwasher.
   Set the dishwasher without using rinse aids or any other detergents. The dishwasher cannot be filled with dishes.
4. Leave the filter bed to dry or use an oven.
   WARNING! Risk of bums! Refer to safety chapter in oven user manual.
   Set the oven for 10 minutes in the maximum temperature of 60°C.
5. To install the filter, perform the steps in reverse order. The filter has to be fully dried before installing it back into appliance. Replace the filter bed every 2 years or when the cloth is damaged.

Replacing the lamp

This appliance is supplied with a LED lamp. This part can be replaced by a technician only. In case of any malfunction refer to “Service” in the “Safety Instructions” chapter.

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

What to do if… technician only.

Problem	Possible cause	Remedy
You cannot activate the appliance.	The appliance is not connected to a power supply or it is connected incorrectly.	Check if the appliance is correctly connected to the electrical supply.
You cannot activate the appliance.	The fuse is blown.	Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
You cannot open the slider and the panel blinks red and white.	The glass inside the appliance is opened.	Close the glass. Refer to “Closing the glass” in the “Before first use” chapter.
The lamp does not operate.	The lamp is defective.	Replace the lamp. Refer to the “Care and Cleaning” chapter.
The appliance does not absorb enough vapours.	The motor speed is not ad-equate to the appearing vapours.	Change the speed of the motor.
The filter alarm indicator  is on.	The filter alarm is on. The grease filter must be cleaned or the charcoal filter must be replaced or cleaned.	Refer to the filter notification in “Daily use” chapter.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

Warning / Caution-Safety information
General information and tips
Environmental information

Subject to change without notice.
