Edison Ps2000 Pa Speaker Instruction Manual

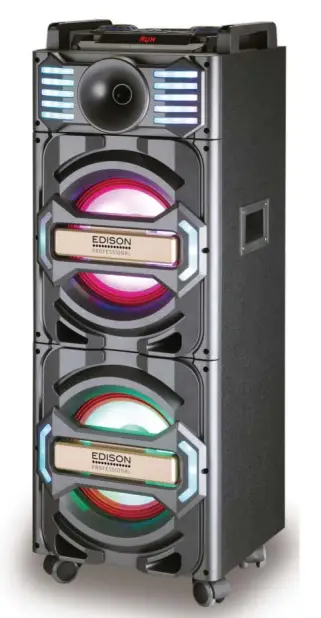

EDISON PS2000 PA Speaker

IMPORTANT SAFEGUARDS

1.  Read Instructions:
   All the safety and operating instructions should be read before the appliance is operated.
2.  Retain Instructions:
   The safety and operating instructions should be retained for future reference
3.  Follow Instructions:
   All operating instructions should be followed.
4.  Heed Warnings:
   All warnings on the unit and the operating instructions should be adhered to
5.  Power Source:
   The appliance should be connected based on instructions
6.  Heat :
   Keep the unit away from heat sources such as radiators.refrigerators.stoves or other appliances that may radiate heat
7.  Non-use Periods :
   The power cord of the unit should be unplugged from the outlet when you do not use it for a long time
8. Damage requiring service:
   The unit should be repaired by qualified service personnel in the following cases
   •  The power plug or cable has been damaged;
   •  Objects have fallen or liquid has been spilled on the appliance
   •  The appliance has been exposed to rain;
   •  The appliance is functioning abnormally

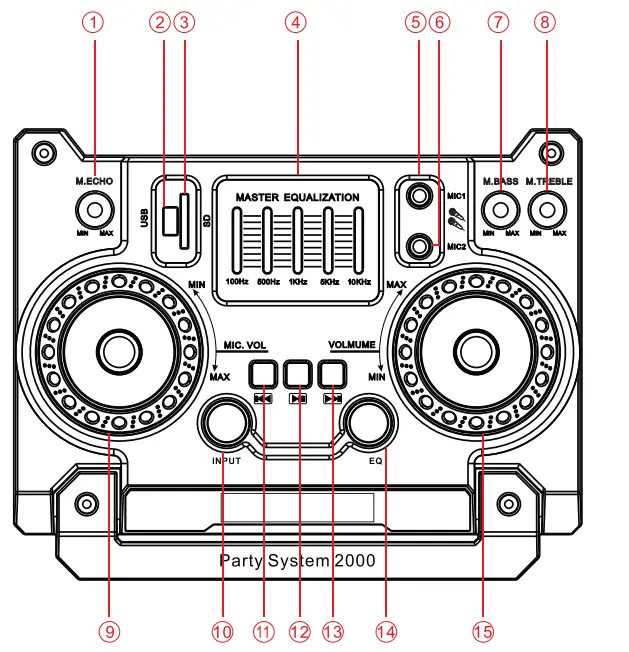

CONNECTIONS

1.  Microphone Echo
2.  USB input
3.  SD Input
4.  Echo
5.  Microphone Input 1
6.  Microphone Input 2 ?.Microphone Bass
7. Microphone Volume 1 a.Input
8.  Previous Key
9.  Play/Pause Key
10.  Next Key
11.  Echo increase/decrease
12.  master volume

Specifications

•  Power:4000W
•  LED information display
•  Bluetooth receiver x LED 1
•  USB flash reader x Speakers1
•  SD card reader x Resistance: 1
•  FM receiver x 1
•  Microphone input 6.3mmX1
•  the wireless remote control unit
•  LED Lighting Effects
•  Speakers. 1 0″ x 2 + 1.5″ x 1
•  Resistance: 3 ohm
•  Frequency·80Hz-18KHz
•  Power source: AC-110-220V/50Hz

Limited Warranty

products for his Limited Product warranty is provided by 5riteL. its Enterprises. Lite warrants to the customer that the for parts and 1-year labor If the product fails to conform to the warranty then BriteLite or its authorized service wil either repair or replace any non-conforming product, provided that Customer gives notice of noncompliance within the Warranty Period to BriteLite by emailing [email protected] or calling 310-363-7110 (Mexico customers can call 0155 4624 0251). Please retain the original dated receipt as evidence of proof of purchase.
