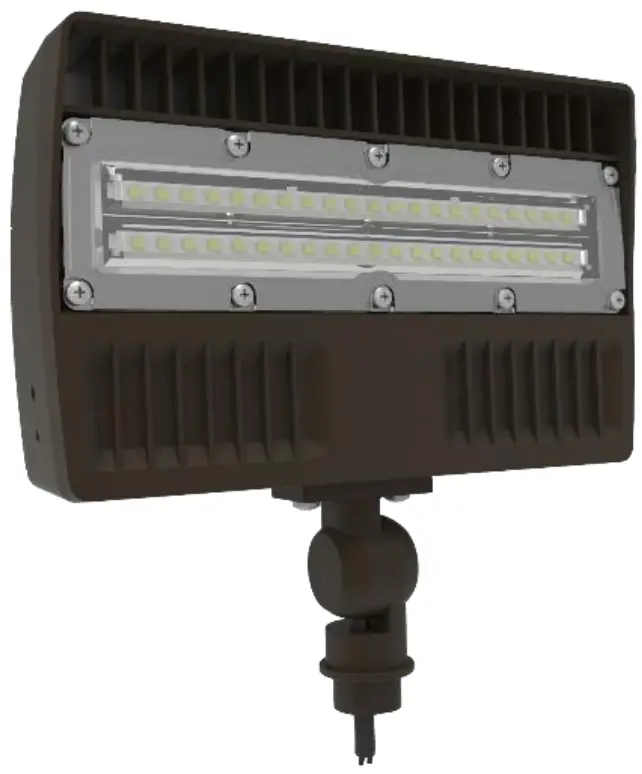

LED Knuckle Mount Flood Light Series
Instruction Manual
Knuckle Mount
FEATURES
- IP65 rated
- Easy installation and maintenance
- Corrosion and rust proof
- Semi cut-off
- 50,000 hours lifetime
SUITABLE APPLICATIONS
- Warehouses
- Stadiums
- Factories
- Parking Lots
- Shopping Malls
- Supermarkets
- Logistic Centers
- Auto dealerships
Special Order:
- Other CCTs
CONSTRUCTION:
Heavy die-cast aluminum housing with polyester powder-coated finish. Integral secondary heat sink to optimize thermal transfer and maximize the performance of the LEDs. The driver is mounted in direct contact with the casting for low operating temperature.
OPTICAL SYSTEM:
Philips Lumiled 3030 LED chips. High-quality tempered glass optics. 120° beam angle.
WARRANTY:
5-year limited warranty. Actual performance may differ as a result of the end-user environment and application.

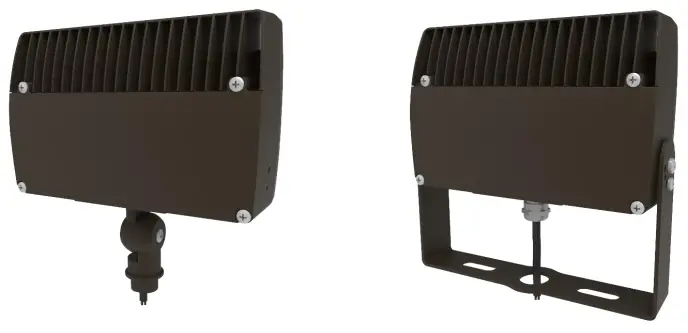

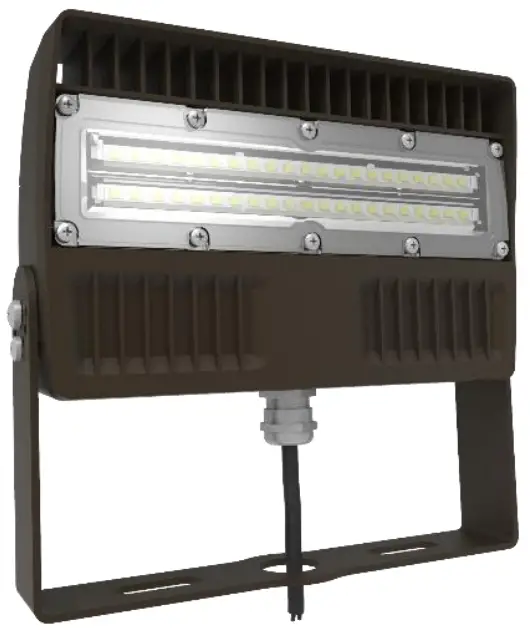

U-Bracket Mount
ELECTRICAL:
Available as 120-277V input. -20°C to 50°C, -4°F to 122°F
INSTALLATION & MOUNTING:
Knuckle mount or U-Bracket.
| MODEL NUMBER – 5,000K | WATTAGE | LUMENS | EFFICACY | CRI | POWER FACTOR | THD | REPLACES |
| LOD-KFL-20W-50K-LV-V11 | 20W | 2,080LM | 104LM/W | 80 | 0.9 | 18% | 50W |
| LOD-KFL-30W-50K-LV-V11 | 30W | 3,050LM | 101.67LM/W | 80 | 0.96 | 12.8% | 75W |
| LOD-KFL-45W-50K-LV-V11 | 45W | 5,670LM | 126LM/W | 70 | 0.9 | 20% | 150W |
LED Knuckle Mount Flood Light Series
| Series | Wattage | Color Temperature | Voltage |
| LOD-KFL | 20W 30W 45W | 5000K | LV = 120-277V |

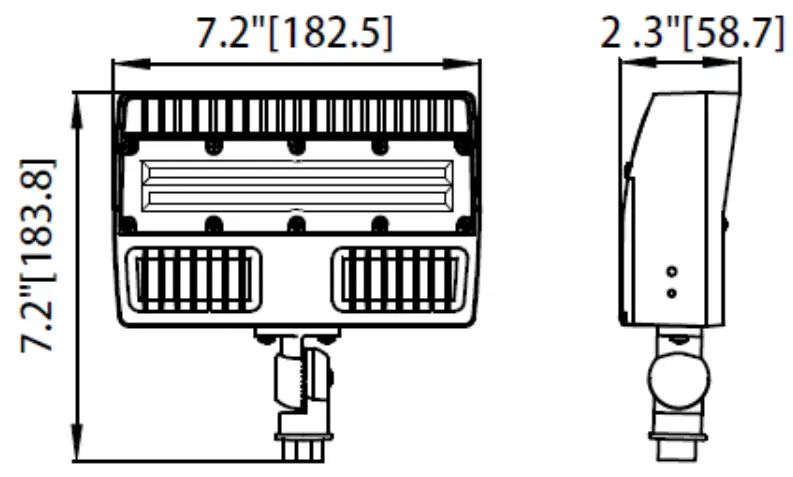

MEASUREMENTS
|
|
|
|
Knuckle Mount

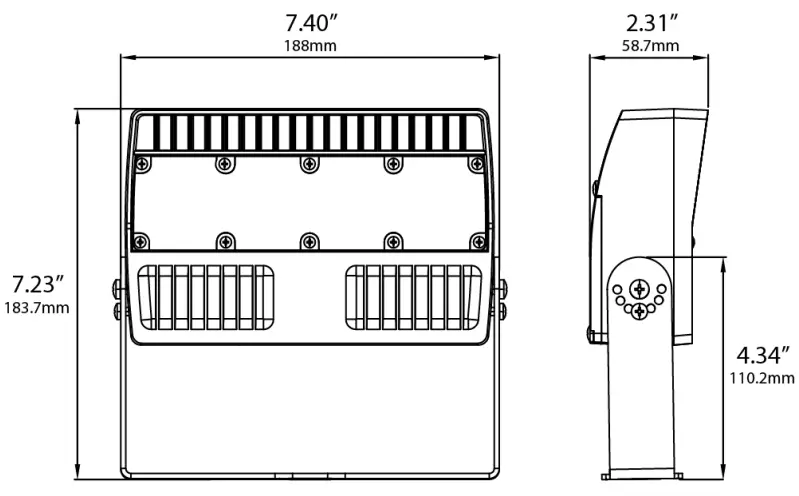

45W w/ U-Bracket Mount

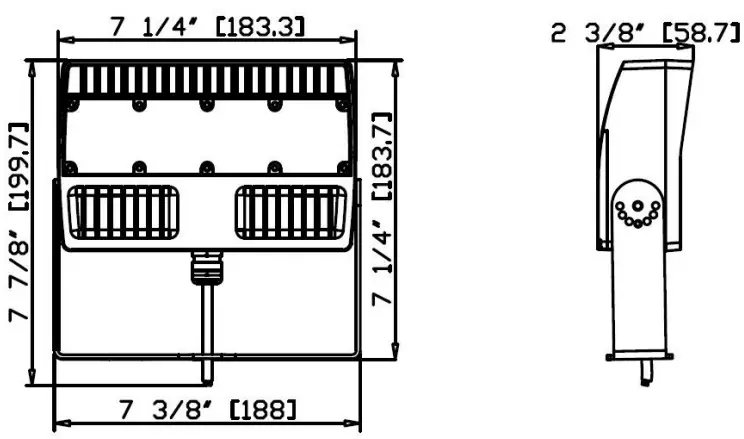

20W/30W U-Bracket Mount

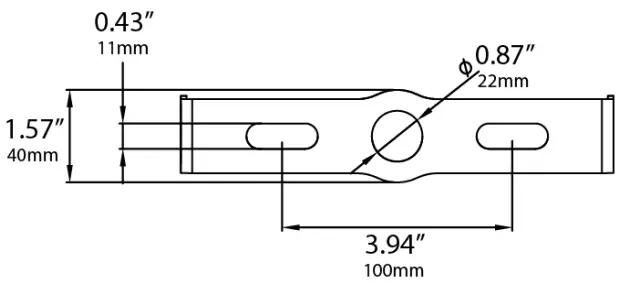

U-Bracket Mount Screw Hole Size | MODEL | QUANTITY | WEIGHT | UPC CODE |
| LOD-KFL-20W-50K-LV-V11 (Knuckle Mount) | 1 | 2.10 lbs | 00810050940290 |
| LOD-KFL-20W-50K-LV-V11 (U-Bracket Mount) | 1 | 00810050940306 | |
| LOD-KFL-30W-50K-LV-V11 (Knuckle Mount) | 1 | 2.10 lbs | 00810050940313 |
| LOD-KFL-30W-50K-LV-V11 (U-Bracket Mount) | 1 | 00810050940320 | |
| LOD-KFL-45W-50K-LV-V11 (Knuckle Mount) | 1 | 2.35 lbs | 00810050940337 |
| LOD-KFL-45W-50K-LV-V11 (U-Bracket Mount) | 1 | 00810050940344 |

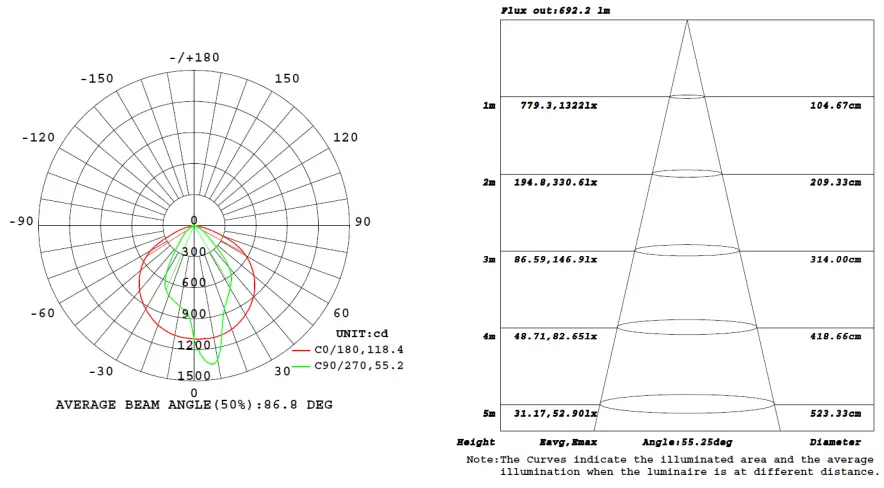

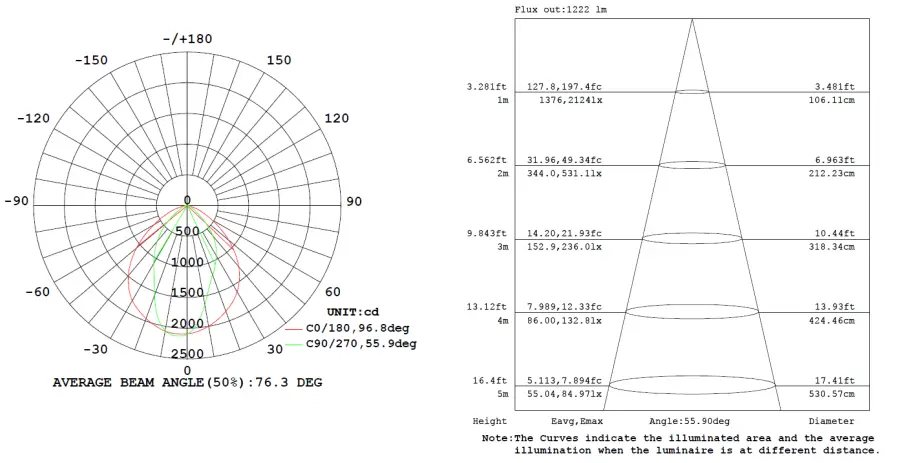

PHOTOMETRIC DATA
20W
30W
45W
Date: _______________ Location: _____________________________________
Product: ___________________Project: ________________________________
Quantity: _____________Catalog #: ___________________________________
Phone: (844) LEDONE6
Fax: 1-510-217-9461
Web: www.ledonecorp.com
