Econoboard 6106 Coated Insulation Boards
Product Information
Coated Insulation Boards Installation Guide

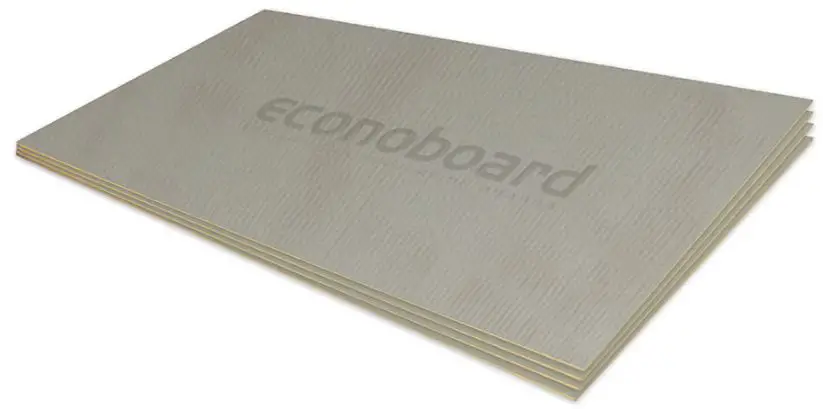

Econoboard Coated Insulation Boards are designed for use on a timber substrate where they provide lateral stability. These boards have an extruded polystyrene core with a fiber-reinforced cement coating on both sides. The technical specifications of the product are as follows:
| Board Size | Board Area | Thermal Conductivity | Compressive Strength | Water Absorption |
|---|---|---|---|---|
| 1.2 x 0.6 meters | 0.72 square meters | 0.033 W/MK | 300 kpa | 0.6% by volume |
The product comes with the following accessories:
- 6015 Reinforcing Tape (100-meter roll)
- 6016 Zinc Fixing Washers (pack of 100)
- 6022 Fixing Washers and Screws (pack of 100)
Product Usage Instructions
- Measure your floor space and calculate how many boards you will need using the simple formula given in the manual.
- Cut the boards to size to suit your room layout. Use a sharp blade or wood saw for cutting, taking appropriate care when using sharp tools.
- Ensure your substrate is secure, clean, and free from dust and loose particles.
- Set out your cut boards onto the area in an offset brick pattern.
- Fix the boards in position using fixing screws (6020) and washers (6016) at 300mm centers (10 washers per board). Allow approximately 10 mechanical fixings per board, fixing in the middle of the board as well as around the perimeter. This will maximize the strength and lateral stability of the floor.
- For a high-quality finish, make sure all boards are flush and tape over the seams using Reinforcing Tape (6015). Allow 2 meters of tape per head.
For any further assistance, you can contact the manufacturer at [email protected] or call 1300 368 631.
Econoboard Coated Installation

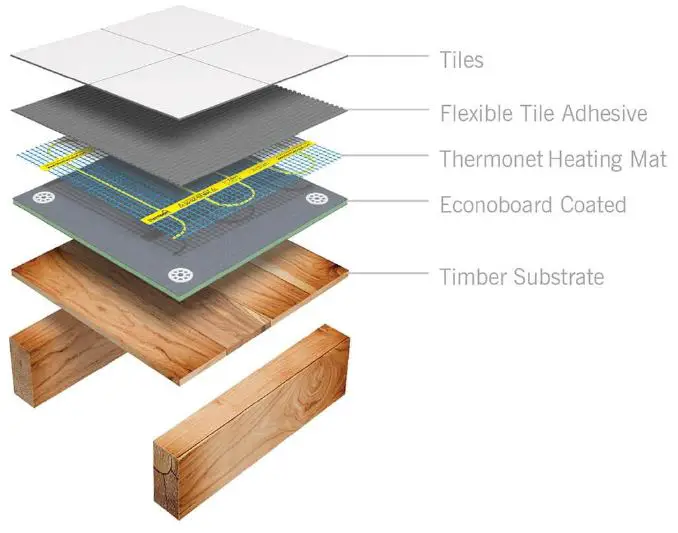

Econoboard Coated Insulation Boards have an extruded polystyrene core with a fiber-reinforced cement coating on both sides. These boards are designed for use on a timber substrate where they provide lateral stability.
Installation steps
- Measure your floor space and calculate how many boards you will need using the simple formula below
- Cut the boards to size to suit your room layout. Econoboard coated can be cut very easily using a sharp blade or wood saw. Please take appropriate care when using sharp tools

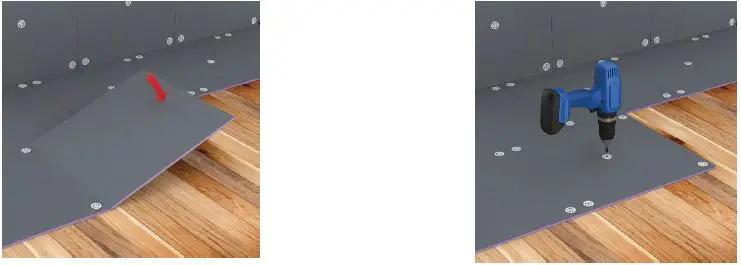

- Ensure your substrate is secure, clean, and free from dust and loose particles. Set out your cut boards onto the area in an offset brick pattern. Fix in position using fixing screws (6020) and washers (6016) at 300mm centers (10 washers per board)
Pro Tip:
Allow approximately 10 mechanical fixings per board, fixing in the middle of the board as well as around the perimeter. This will maximize the strength and lateral stability of the floor For a high-quality finish make sure all boards are flush, and tape over the seams using Reinforcing Tape (6015).
- THIS INSULATION IS FOR OVER-SUBSTRATE APPLICATIONS AND IS NOT DESIGNED TO COVER BUILDING REGULATIONS
- ENSURE THE SUBSTRATE IS STABLE AND CLEAN BEFORE INSTALLAING ECONOBOARD COATED
- DO NOT LAY ON TOP OF UNDERFLOOR HEATING
- MAKE SURE YOU DO NOT SCREW DOWN INTO WATER PIPES OR ELECTRICAL CABLES
- TAKE CARE TO ENSURE ALL JOINS ARE FLUSH AS POSSIBLE, TAPING IF NECESSARY
Technical Specifications
| Board Size | 1.2 x 0.6 |
| Board Area | 0.72m2 |
| Thermal Conductivity | 0.033W/MK |
| Compressive Strength | 300 kpa |
| Water Absorption | 0.6% by vol. |
STOCK CODE | THICKENESS (mm) | PACK QUANTITY | PACK AREA (m2) | R-VALUE (m2k/w) |
| 6106 | 6 | 8 | 5.76 | 0.15 |
| 6110 | 10 | 6 | 4.32 | 0.27 |

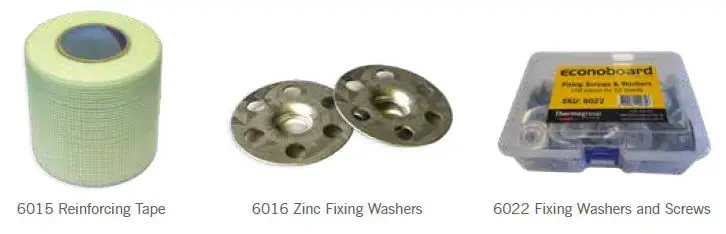

STOCK CODE | DESCRIPTION | UNIT |
| 6015 | 100mm Reinforcing Tape 25m roll* | Ea |
| 6016 | Zinc Fixing Washer (35mm) | pk 100 |
| 6022 | Fixing Washers (32mm) and Screws | pk 100 |
Allow 2m of tape per head
Contact Us
[email protected].
www.thermogroup.com.au.
1300 368 631.
