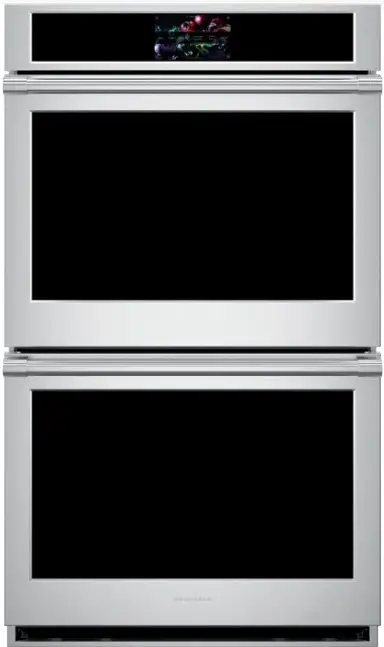

MONOGRAM ZTD90DPSNSS Statement Series Smart Electric Double Wall Oven Instruction Manual
SPECIFICATIONS
| Overall Width | 29 3/4″ (75.6 cm) |
| Overall Height | 51 3/16″ (130.0 cm) |
| Overall Depth Including Handle | 27 5/16″ (70.6 cm) |
| Oven Door Clearance | 20 9/16″ (52.3 cm) |
| Overall Oven Interior Capacity | 10.0 cu. ft. (283.2 liters) |
| Oven Interior Dimensions (W x H x D) each oven | 25″ x 17 3/8″ x 20 1/4″ (63.5 x 44.1 x 51.4 cm) |
| Minimum Cabinet Width* | 30″ (76.2 cm) |
| Minimum Cabinet Depth* | 24″ (61.0 cm) |
| Minimum Base Support | 400 lbs. (181 kg) |
| Cutout Width* | 28 1/2″ (72.4 cm) Min 28 5/8″ (72.7 cm) Max |
| Cutout Height* | 50-1/4″ (127.6 cm) |
| Cutout Depth* | 23 1/2″ (59.7 cm) Min |
| Volts/Hertz/Amps | 240/208 V AC, 60 Hz, 40A |
| Conduit Length | 48″ (72″ available special order: WB18T10398) |
| Electrical Rating | 6.8 kW at 208V 9.0 kW at 240V |
| Shipping Weight | 330 lbs. (150 kg) |
Additional space will be needed for flush installation
ATTENTION ELECTRICIAN:
A 240/208V, 60Hz, 40 Amp circuit is required. An individual properly grounded branch circuit or circuit breaker is required. Hardware junction box is required for built-in product.

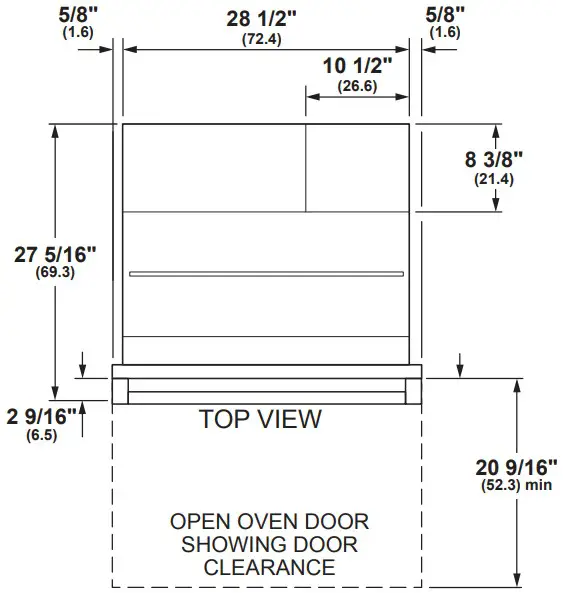

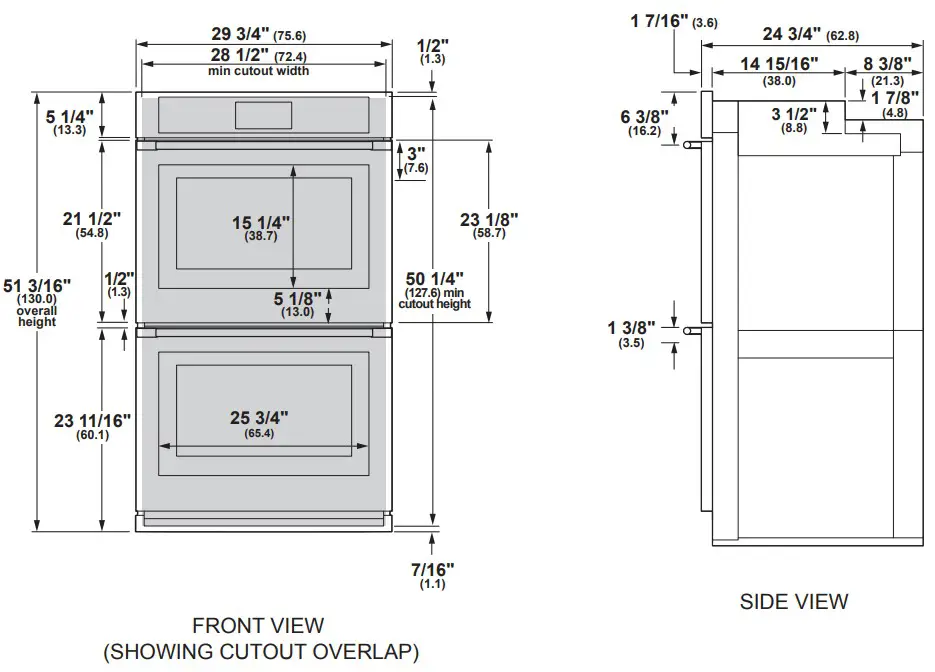

OVERALL DIMENSIONS
Dimensions in parentheses are in centimeters unless otherwise noted. Actual product dimensions may vary due to manufacturing tolerances.

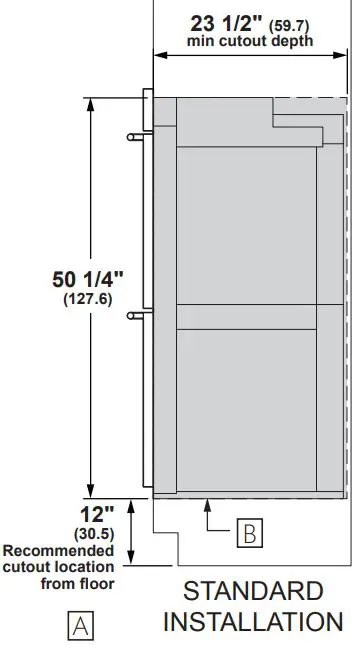

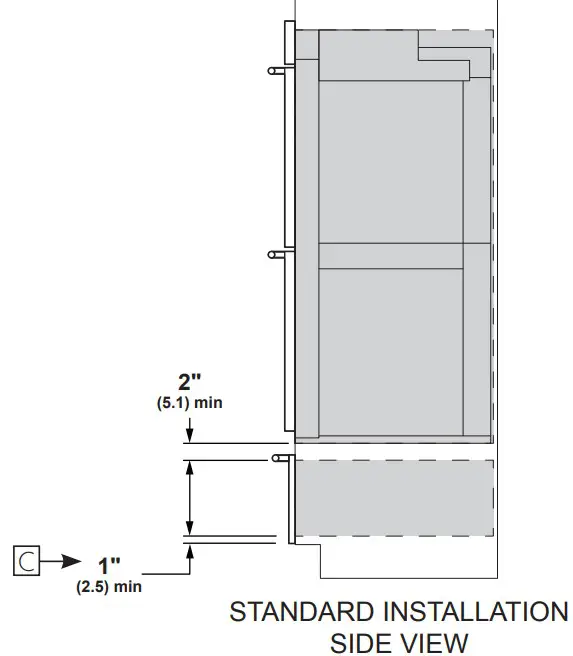

WALL INSTALLATION
Allow 1/8″ (0.3 cm) clearances from side edges of oven door
INSTALLATION OVER WARMING DRAWER
For more details, refer to the installation instructions for this product on Monogram.com. Dimensions in parentheses are in centimeters unless otherwise noted.
For questions about your
appliance, please call 1-800-626-2000.
Product Specification Revised 11/21
