Canyon Set-14 Desktop Wired Combo User Guide (+ PDF)

Desktop wired combo
SET-14
Quick Guide v 1.0

CANYON SET-14 Desktop Wired Combo - fig1

CANYON SET-14 Desktop Wired Combo - fig2

User manual.
Wired keyboard and wired optical mouse
Wired keyboard

12 mutimedia functions
Number of keys: 104
Lifespan: 10 million clicks
Cable length: 1.5 m
Compatible with Windows OS / MAC OS
Size: 434x159x27 mm

Wired mouse

1000 DPI
Number of keys: 3, including scroll wheel
Size: 115x65x27 mm
Compatible with Windows OS / MAC OS

Package contents

Wired keyboard
Wired optical mouse
User manual

Connection

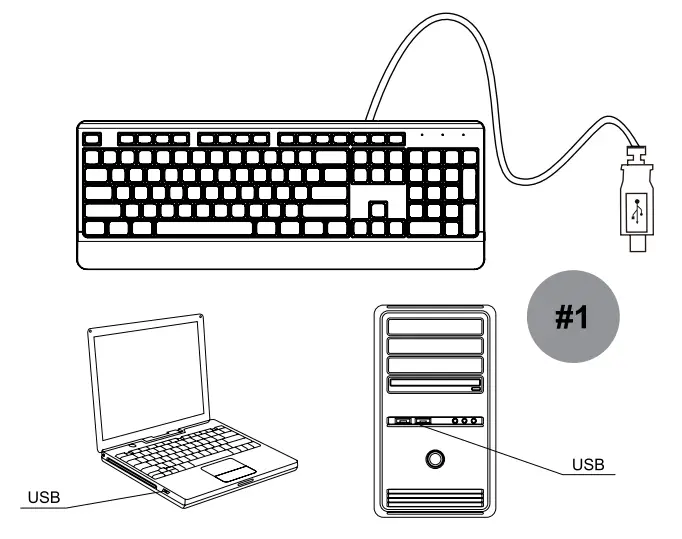

For correct operation of the keyboard, connect it to the USB port of a personal computer/laptop/all-in-one. After turning on the computer and installing the operating system standard drivers – the keyboard will be ready for use (pic. 1).

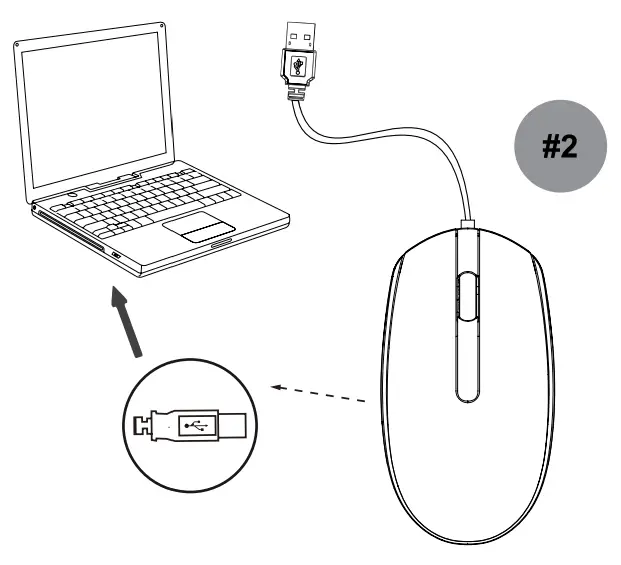

For correct operation of the wired optical mouse, connect it to the USB port of a personal computer/laptop/all-in-one. After turning on the computer and installing the operating system standard drivers – the mouse will be ready for use (pic. 2).

Contents hide

1 Multimedia function keys:

2 SAFETY INSTRUCTIONS

3 Troubleshooting

4 WARRANTY

5 Documents / Resources

5.1 References

6 Related Posts

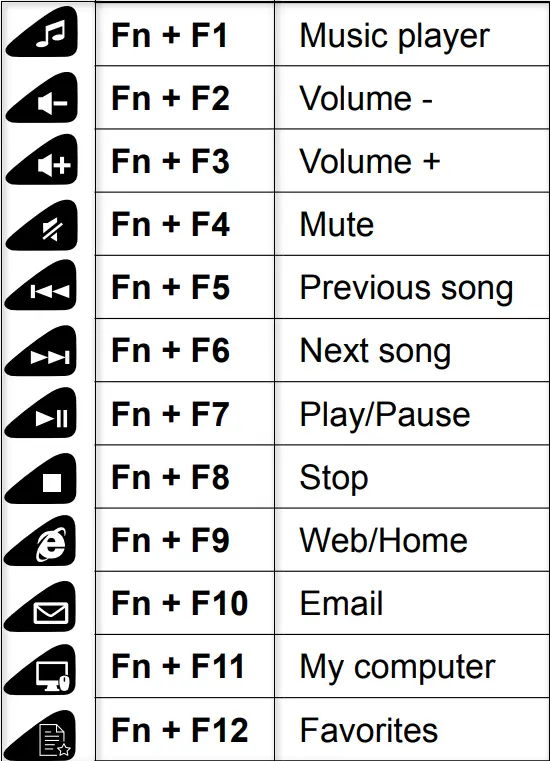

Multimedia function keys:

SAFETY INSTRUCTIONS

Read carefully and follow all instructions before using this product.

Do not expose the mouse to excessive moisture, water, or dust.
Do not install in rooms with high humidity and dust level.
Do not expose the mouse to heat: do not place it close to heating appliances, and do not expose it to direct sun rays.
The product shall be connected to the power supply source of the type indicated in the operation manual only.
Never spray liquid detergents. Use only dry clothes for device cleaning.

WARNING
It is forbidden to dismantle the device. Attempting to repair this device is not recommended and leads to the cancellation of the warranty.

Troubleshooting

Problem	Solution
1. 1.The keyboard does not work properly	If some standard keys do not work on the keyboard, there may be a cable problem. You need to check that the cable is connected properly in the USB socket or connect it to another USB port or computer. It is possible that one of the keys is “fused”. Keypad faults can be caused by a technological defect in the keyboard, as well as from debris or water in the keyboard. It’s not recommended to perform self-cleaning of the keyboard.
2. Keyboard doesn’t work	Check whether the device supports your operating system. Enter the BIOS setup and make sure that the USB port is enabled. Try to reset and save BIOS to default settings.
3. Mouse doesn’t work	Make sure that the USB cable is connected to the computer. Check the USB receiver, connecting it to another USB port.

If the actions from the above list do not contribute to problem-solving, please contact the support team at Canyon: http://canyon.eu/ask-your-question
Warranty
For detailed information regarding warranty terms, please refer to: http://canyon.eu/warranty-terms/

WARRANTY

The warranty period starts from the day of the product purchase from Canyon authorized Seller. The date of purchase is the date specified on your sales receipt or on the aybill. During the warranty period, repair, replacement, or refund for the purchase shall be performed at the discretion of Canyon. In order to obtain warranty service, the goods must be returned to the Seller at the place of purchase together with proof of purchase (receipt or bill of lading).
2 years warranty from the date of purchase by the consumer. The service life is 2 years. Additional information about the use and warranty is available at https://canyon.eu/warranty-terms/
Manufacturer: Asbisc Enterprises PLC, 43, Kolonakiou Street, Diamond Court 4103 Ayios Athanasios http://canyon.eu

All other products names and trademarks are the property of their respective owners.
www.canyon.eu/certificates
www.canyon.eu
