Climarad Vita H1c-s Instructions

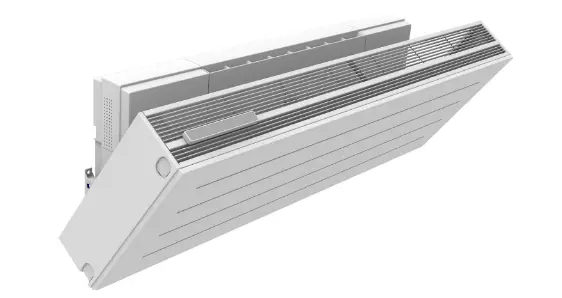

climaRAD Vita H1C-S

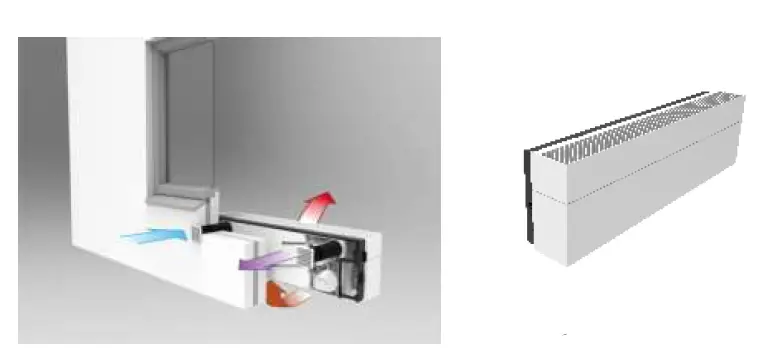

Operating principle ClimaRad Vita H1C-S

Installing and using the ClimaRad Vita H1C-S unit ensures optimum air quality and temperature. This unit heats, cools and ventilates in combination with air filtration and heat recovery. The built-in heat exchanger ensures that hardly any heat is lost during ventilation with outside air.

Operating the ClimaRad Vita H1C-S

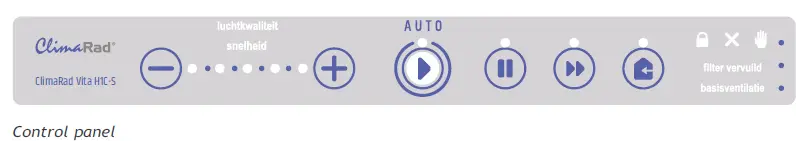

The control panel is located on the top of the device.

The ClimaRad Vita H1C-S in your room is adjusted optimally by the installer and works completely automatically. This is why we will only explain the function buttons that are relevant for you in daily use.

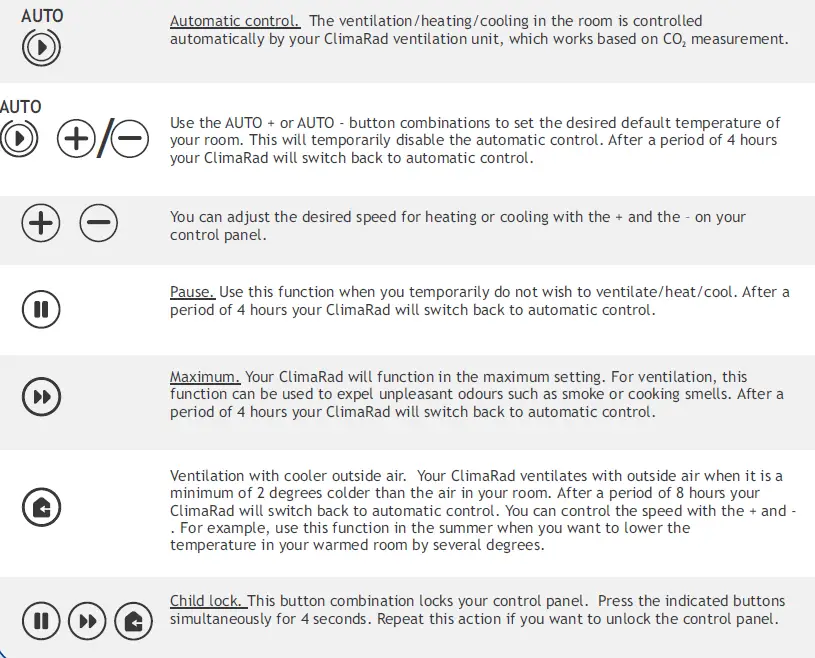

Function Keys

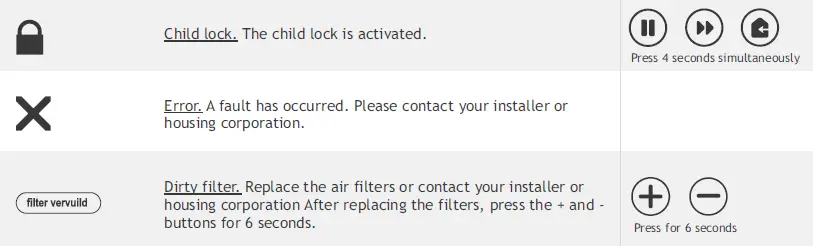

Messages

ClimaRad B.V. – Lübeckstraat 25 – 7575 EE – Oldenzaal – NL – [email protected] – www.climarad.co.uk – tel. +31 541 358130
